Description

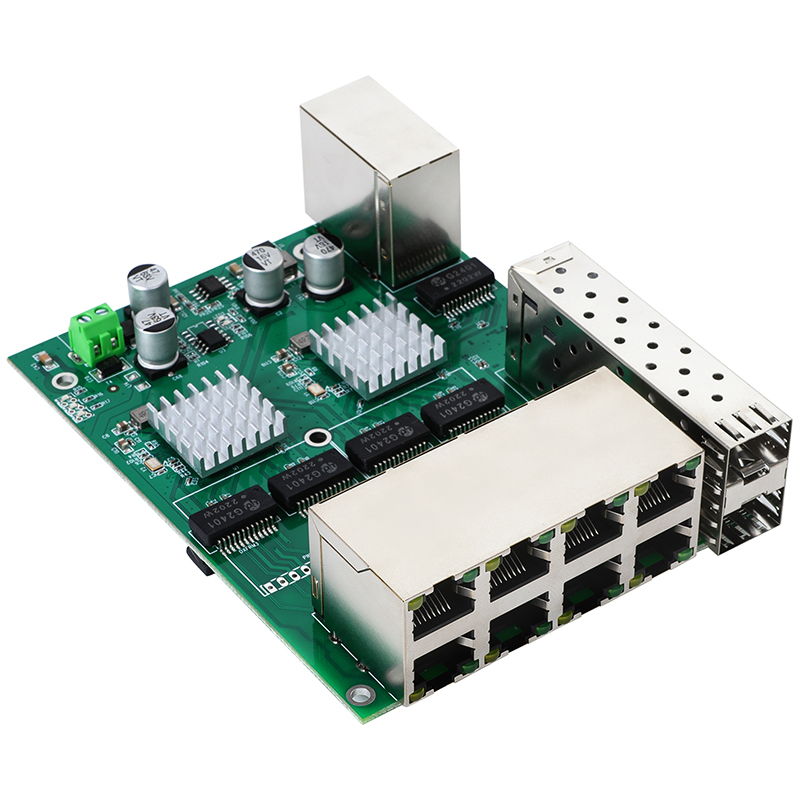

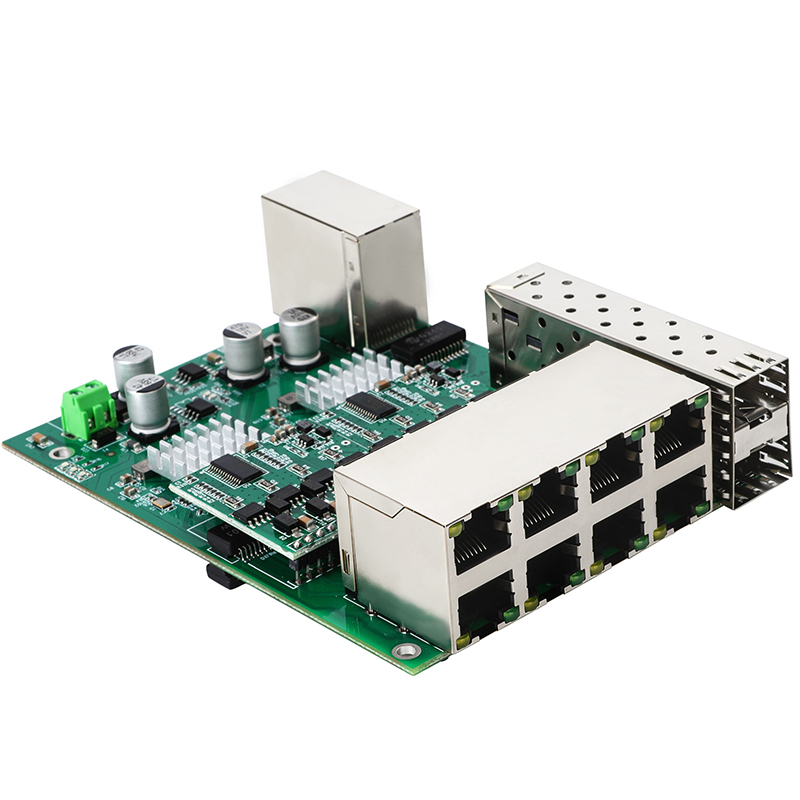

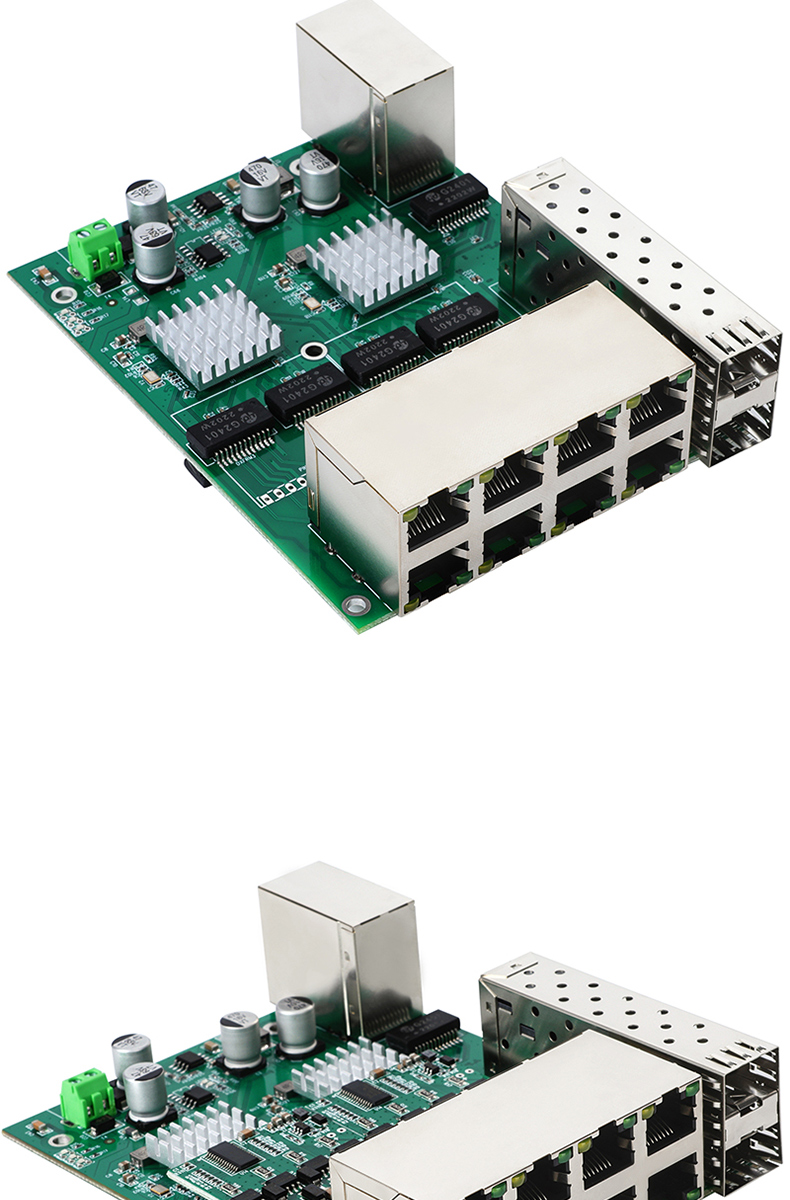

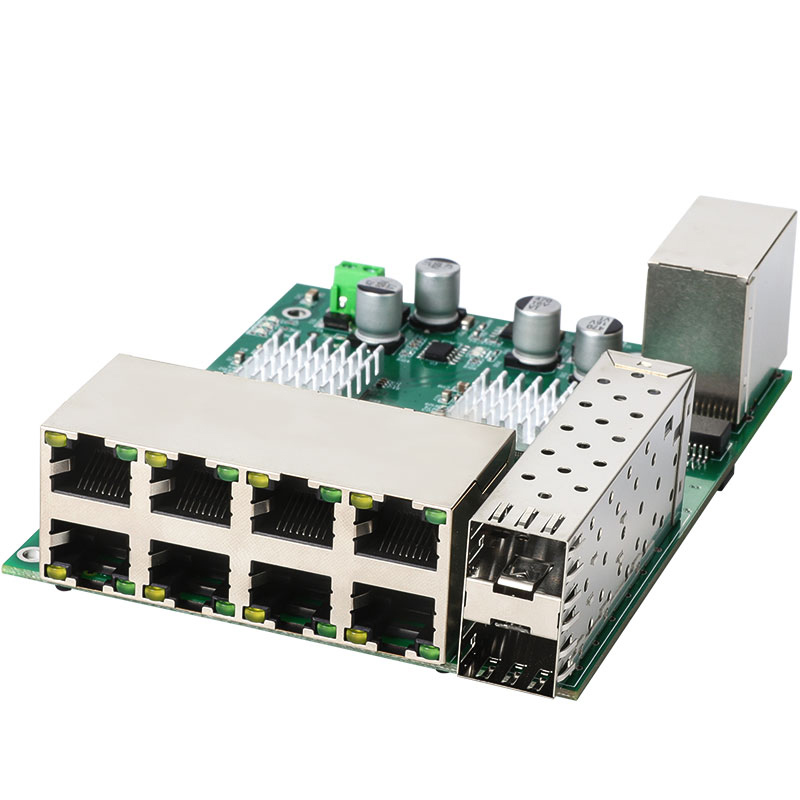

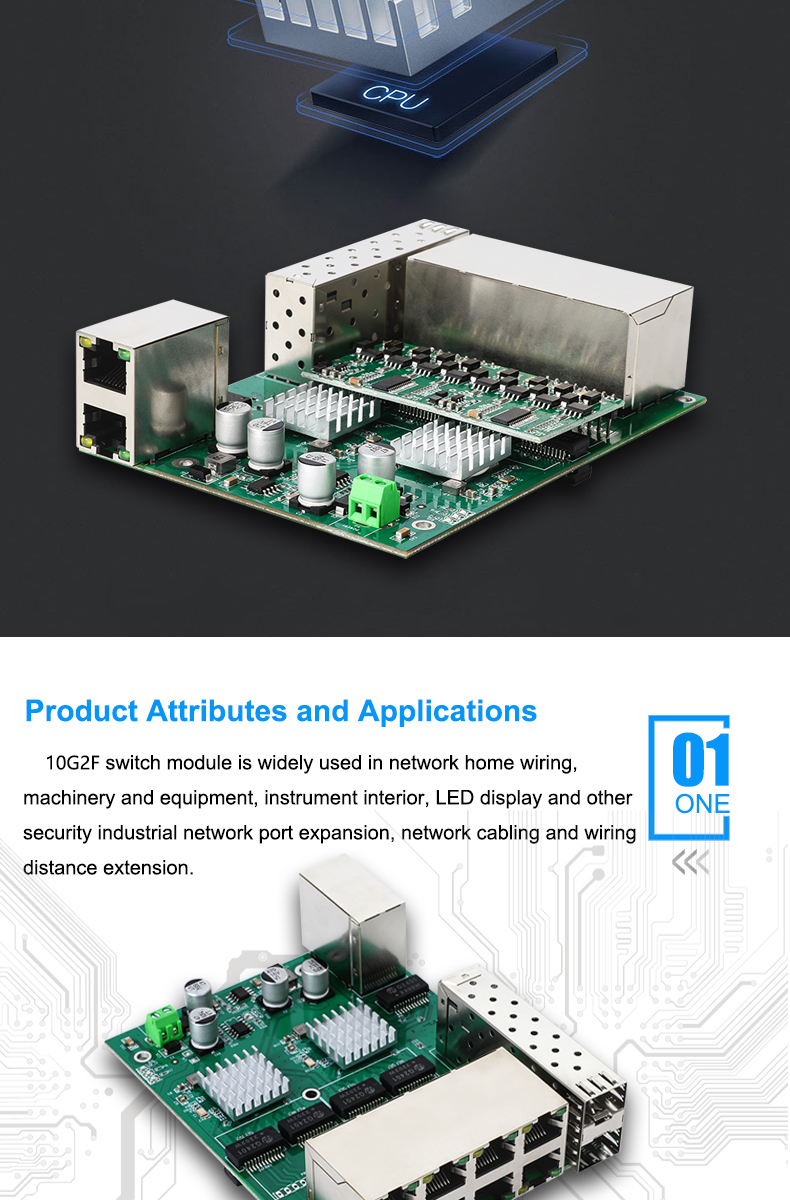

10G2F series are unmanaged full Gigabit PoE fiber optic switch modules independently developed by HUASIFEI, with 10 full Gigabit adaptive ports + 2 Gigabit SFP optical port slots. Among them, ports 1-8 support IEEE 802.3af/at standard PoE power supply, with single-port PoE power up to 30W, and the maximum total PoE output power of the whole machine is 130W. As a PoE power supply device, it can automatically detect and identify the powered devices that meet the standard, and supply power to them through the network cable. It can supply power to wireless AP, network camera, network telephone, visual intelligent building intercom and other POE terminal devices through the network cable to meet the demand for high-density PoE power supply network environment, suitable for hotels, campuses, parks, scenic spots, supermarkets, factories, dormitories and small and medium-sized enterprises to set up cost-effective network.

Non-network management model, plug and play, no need to configure, easy to use;

Key Features

Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af/at standards.
10 10/100/1000 Base-T Ethernet ports (Data/Power),
2 x 100/1000Base-X SFP optical ports
8K MAC address and MAC address auto-learning.
20 Gbps non-blocking wire-speed forwarding backplane bandwidth.
Optional standard POE power supply, PoE port single port maximum output power: 30W.

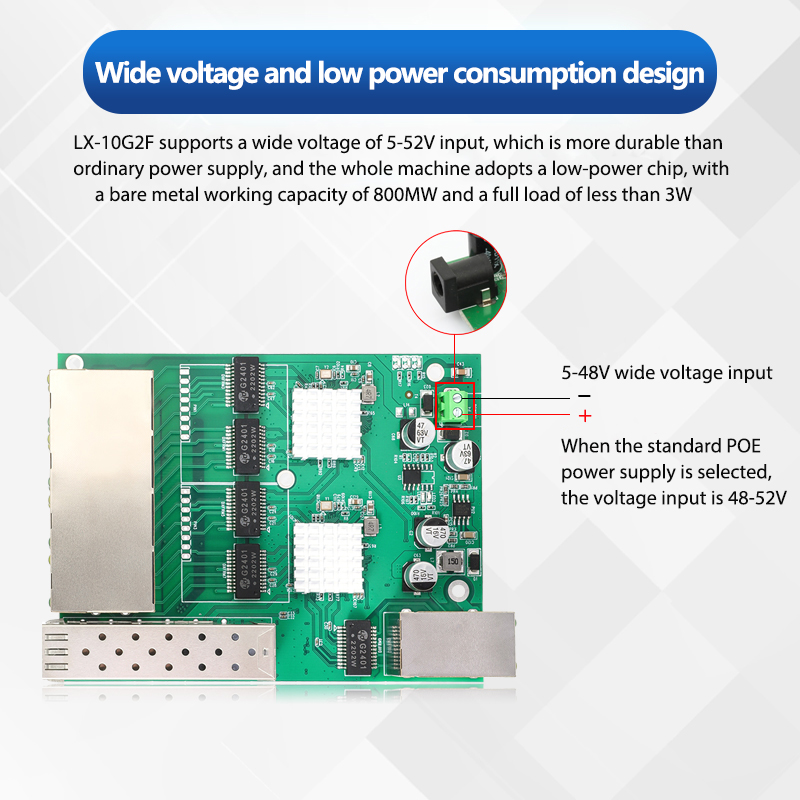

External power supply DC 5-52V, POE power supply must be 48-52V.

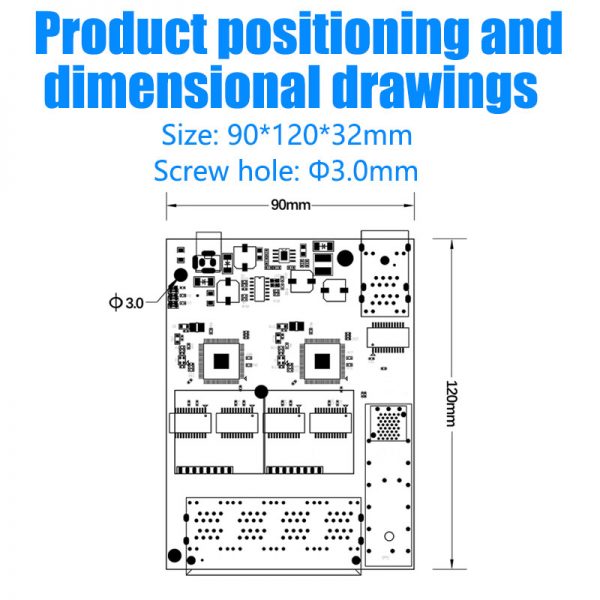

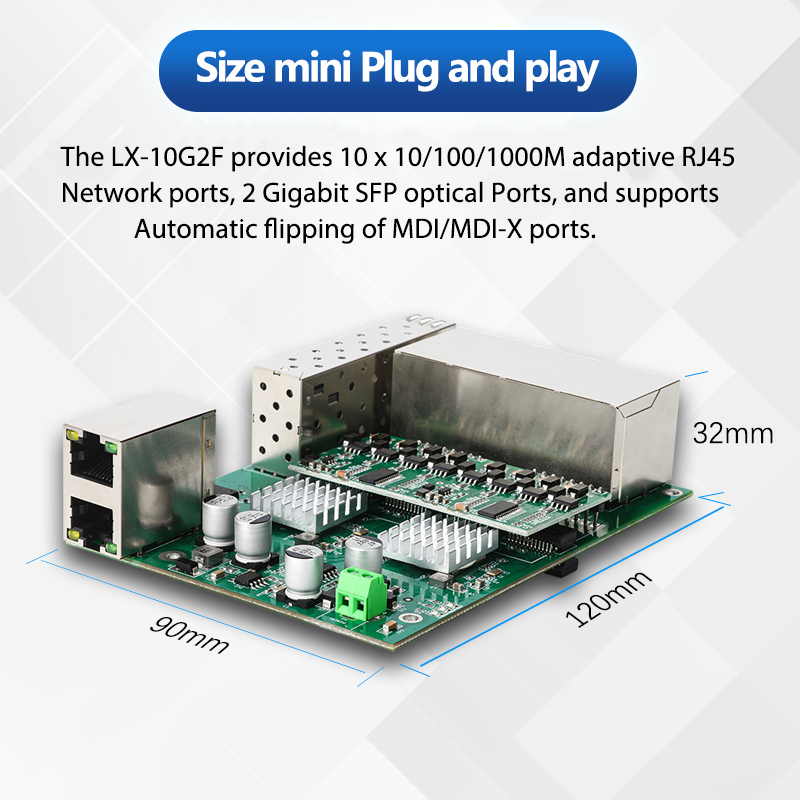

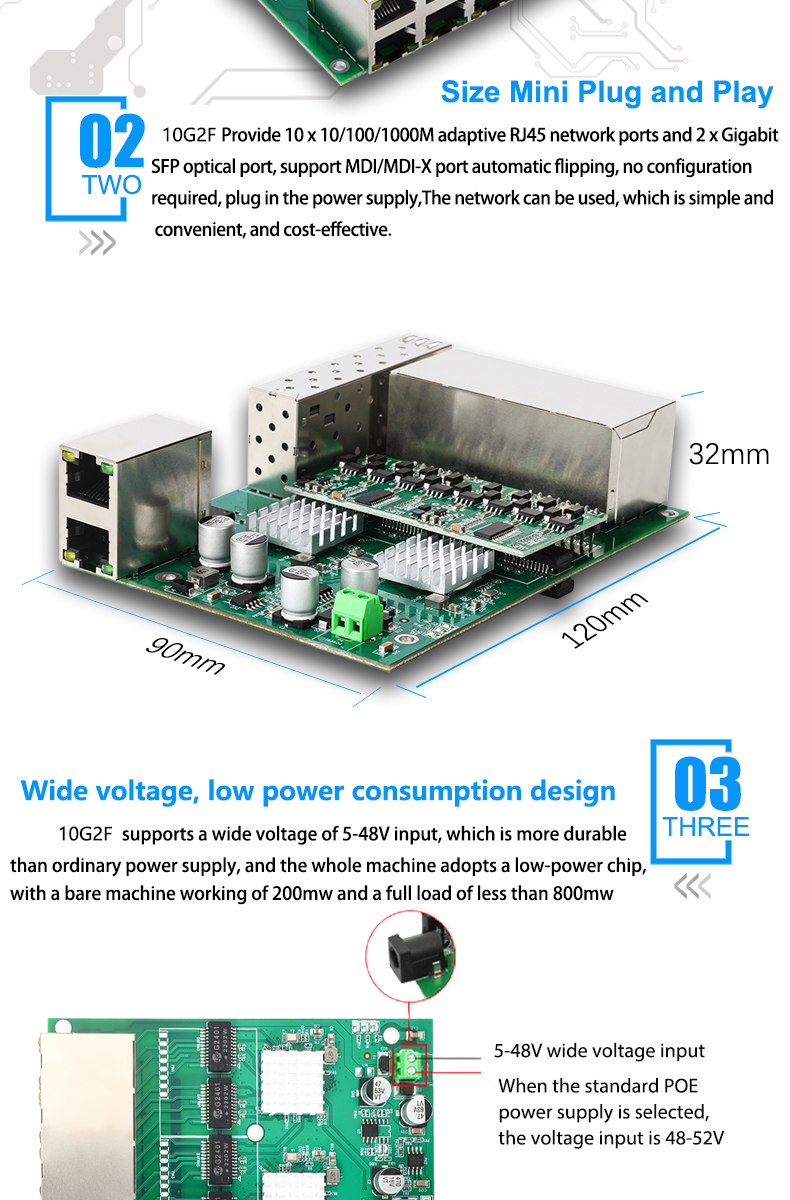

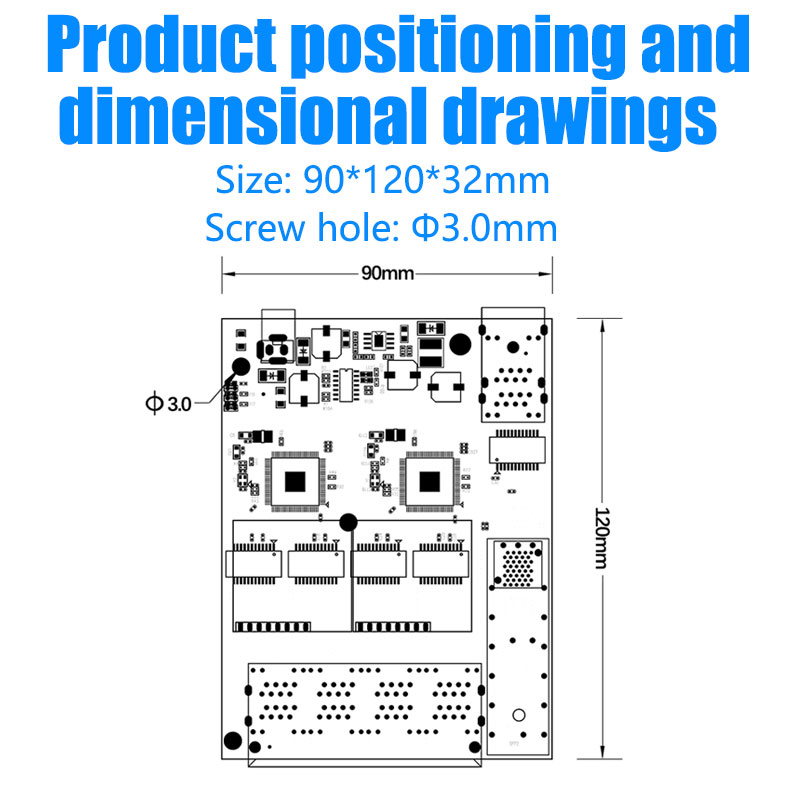

Module PCBA size: 90*120*30mm.

Product Characteristics

Full Gigabit Access, Gigabit Optical Uplinks

All series support “Gigabit Ethernet port + Gigabit optical port uplink” combination, which is convenient for users to network flexibly to meet the needs of various scenarios; all ports support non-blocking wire-speed forwarding for smoother transmission. Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

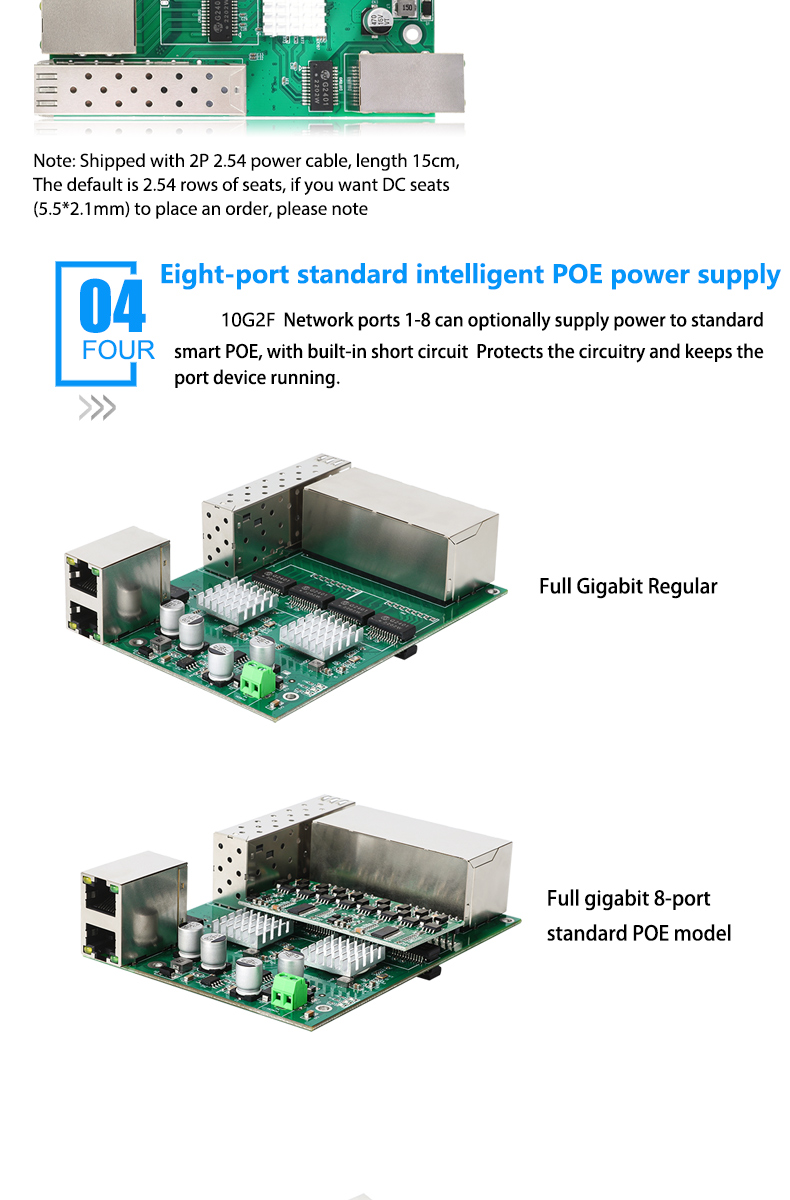

Intelligent PoE power supply

8*10/100/1000Base-T RJ45 ports support PoE power supply to meet the needs of PoE power supply for security monitoring, teleconferencing system, wireless coverage and other scenarios. Conforms to IEEE 802.3af/at PoE power supply standard, automatically recognizes PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power of a single port is 30 W. PoE ports support the priority mechanism, when the remaining power is insufficient, the power supply of high-priority ports will be given priority to avoid overloading of equipment.

Plug and play without configuration

Support 10/100/1000M adaptive PH2.08PIN port, each port supports MDI/MDIX adaptive function Full wire-speed Gigabit switching capability, plug and play, no management to ensure that all ports are forwarded without blocking. Users

Users can easily know the working status of the device through the power indicator (PWR) and port status indicator (Link,L/A).

Cache data without loss

Adopts store-and-forward mode, provides 10Gbps backplane bandwidth, and high-capacity cache, which effectively reduces data forwarding delay and improves forwarding efficiency to avoid data loss.

specification

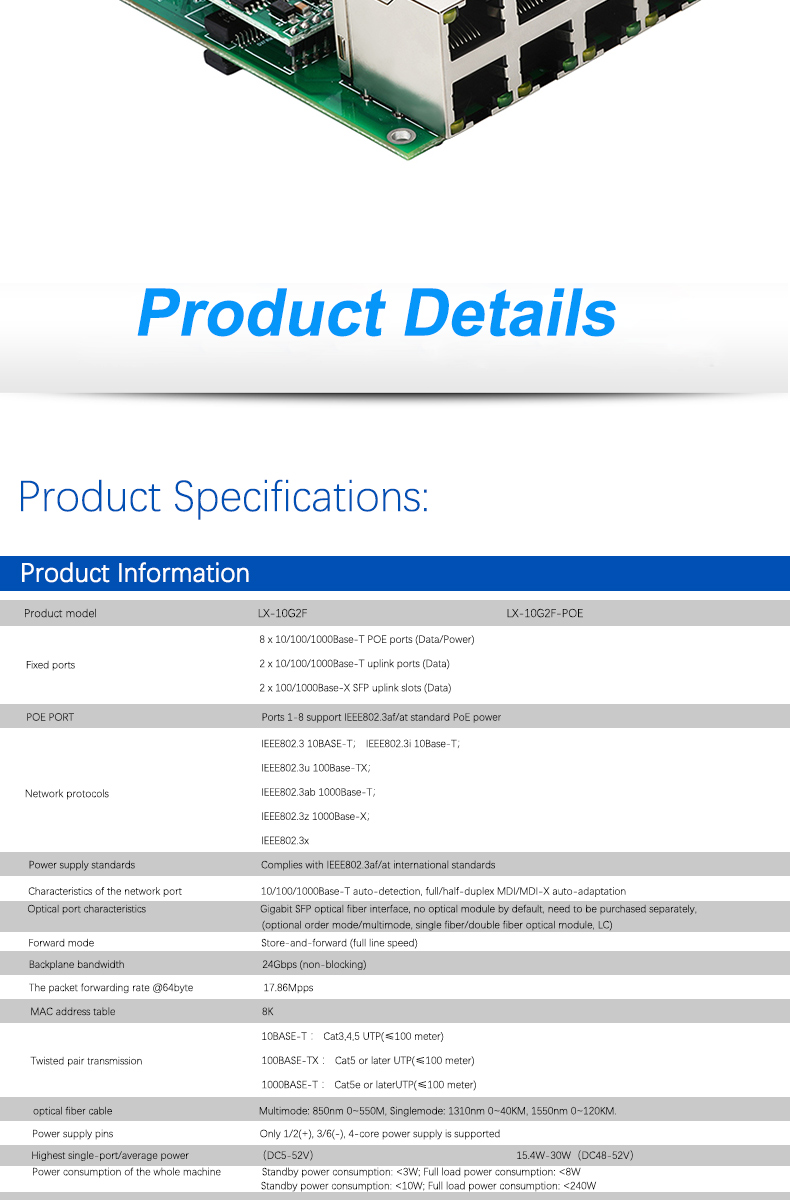

Product Specification
Product Model	10G2F 10G2FPOE
Fixed Port	810/100/1000Base-T POE ports (Data/Power) 210/100/1000Base-T uplink power ports (Data) 2 100/1000Base-X SFP uplink optical port slots (Data)
POE Port	1-8 ports support IEEE802.3af/at standard PoE power supply
network protocol	IEEE802.310BASE-T,IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Power supply standard	Conforms to IEEE802.3af/at international standards
Port Characteristics	10/100/1000Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Optical port characteristics	Gigabit SFP fiber optic interface, default does not support optical modules, need to purchase, (optional order mode/multimode, single fiber/dual fiber optical modules, LC)
Backplane Bandwidth	24Gbps (non-blocking)
forwarding rate	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Packet Forwarding Rate @ 64byte	17.86Mpps
MAC Address Table	8K
twisted-pair transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Maximum Single Port/Average Power	(DC5-52V) 15.4W-30W(DC48-52V)
Power Supply Pins	Support 1/2(+),3/6(-),4-pole power supply only
Fiber Optic Cable	Multimode: 850nm0~550M,Single mode: 1310nm 0~40KM,1550nm 0~120KM.
Overall Power Consumption	Standby power consumption: <3W;Full load power consumption: <8W Standby power consumption: <10W;Full load power consumption: <240W
LED Indicator	Power indicator light: PWR (green); Network indicator light: Link, Link/ACT (yellow); POE indicator light: PoE (green)
Appearance dimensions (L * W * H)	1209030mm
Net weight/Gross weight	<148g/<153g <160g/<165g

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
