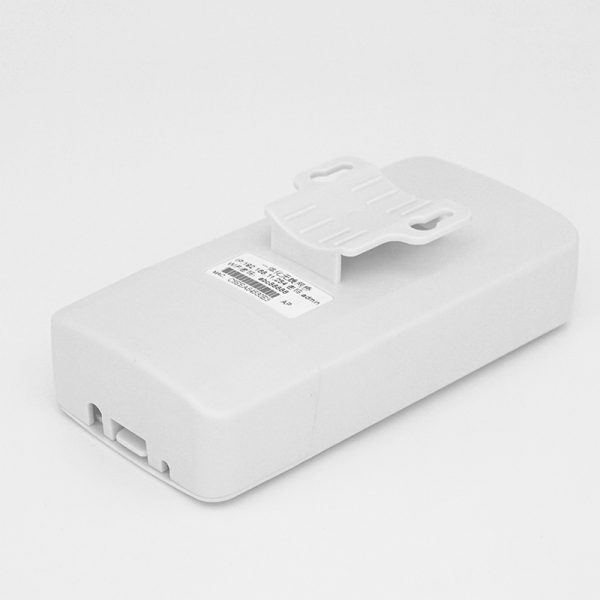

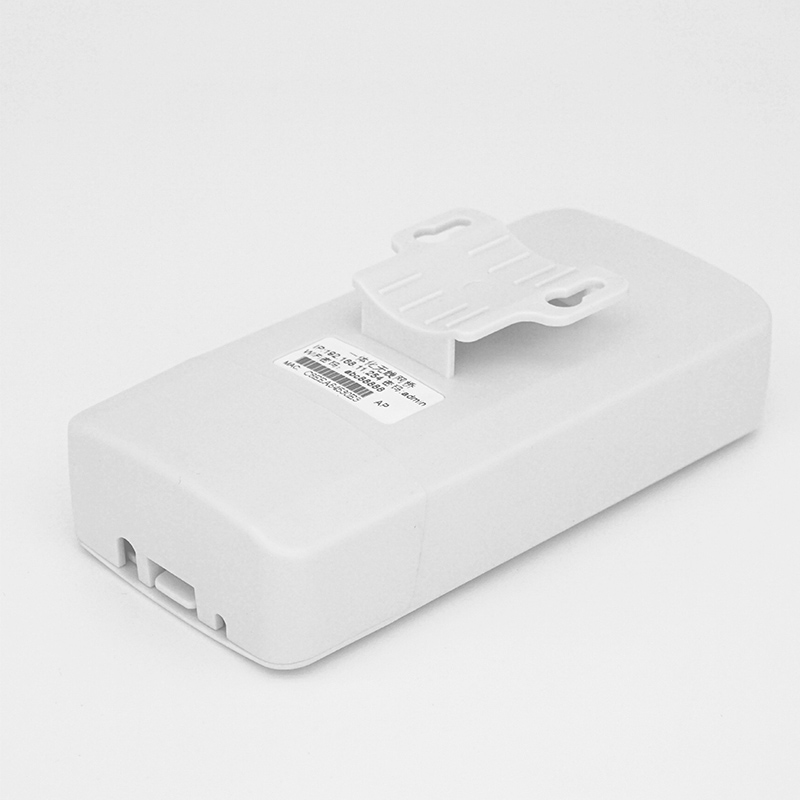

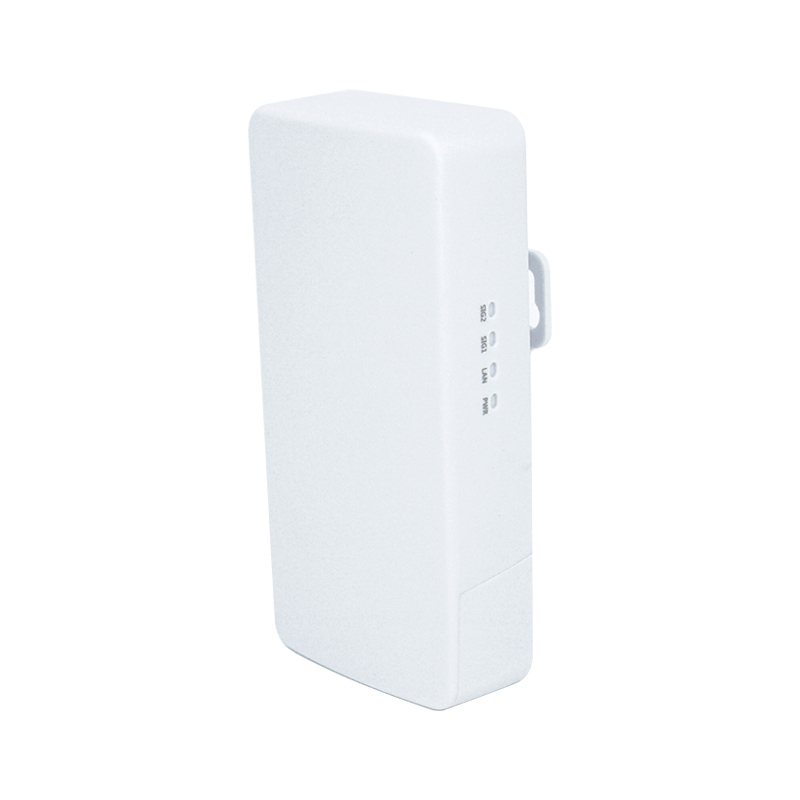

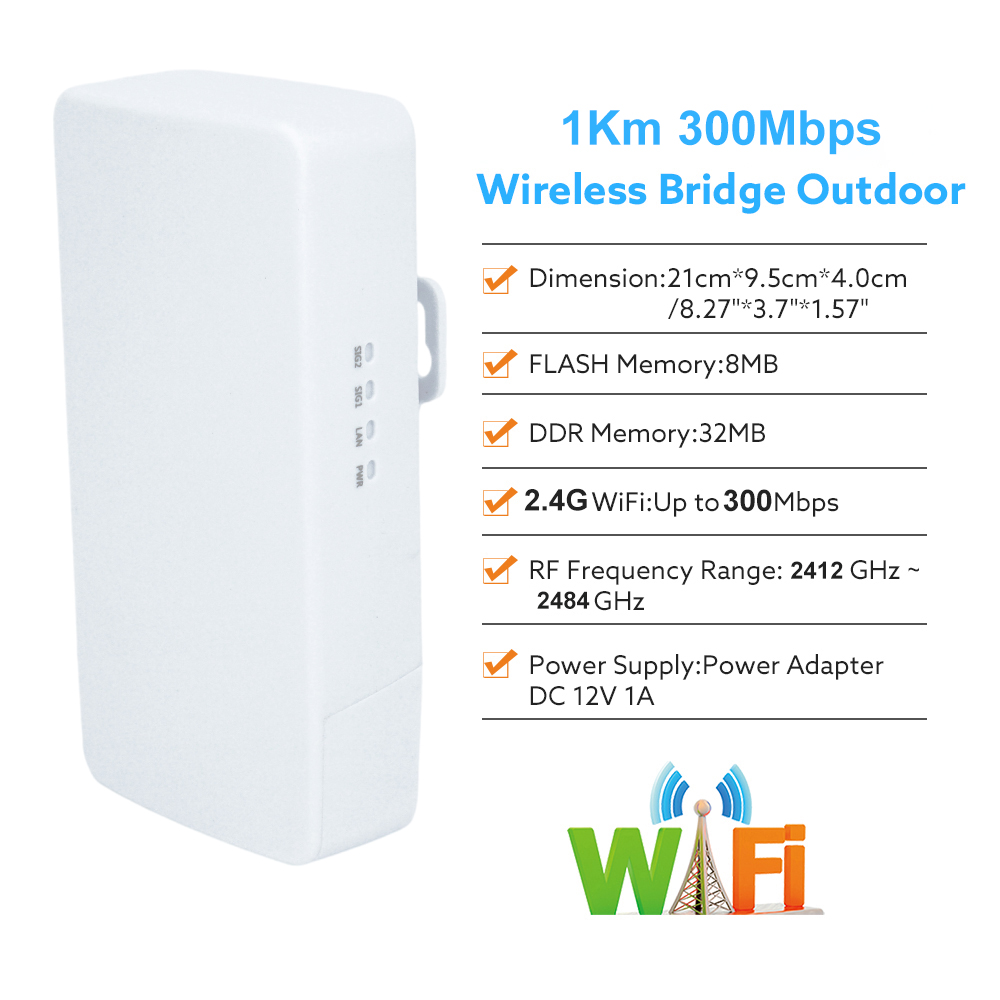

728c82 300Mbps Wireless Bridge

300Mbps Wireless Bridge AP 2.4GHz 12dBi Outdoor Point to Point CPE for Monitoring Video Surveillance Transmission

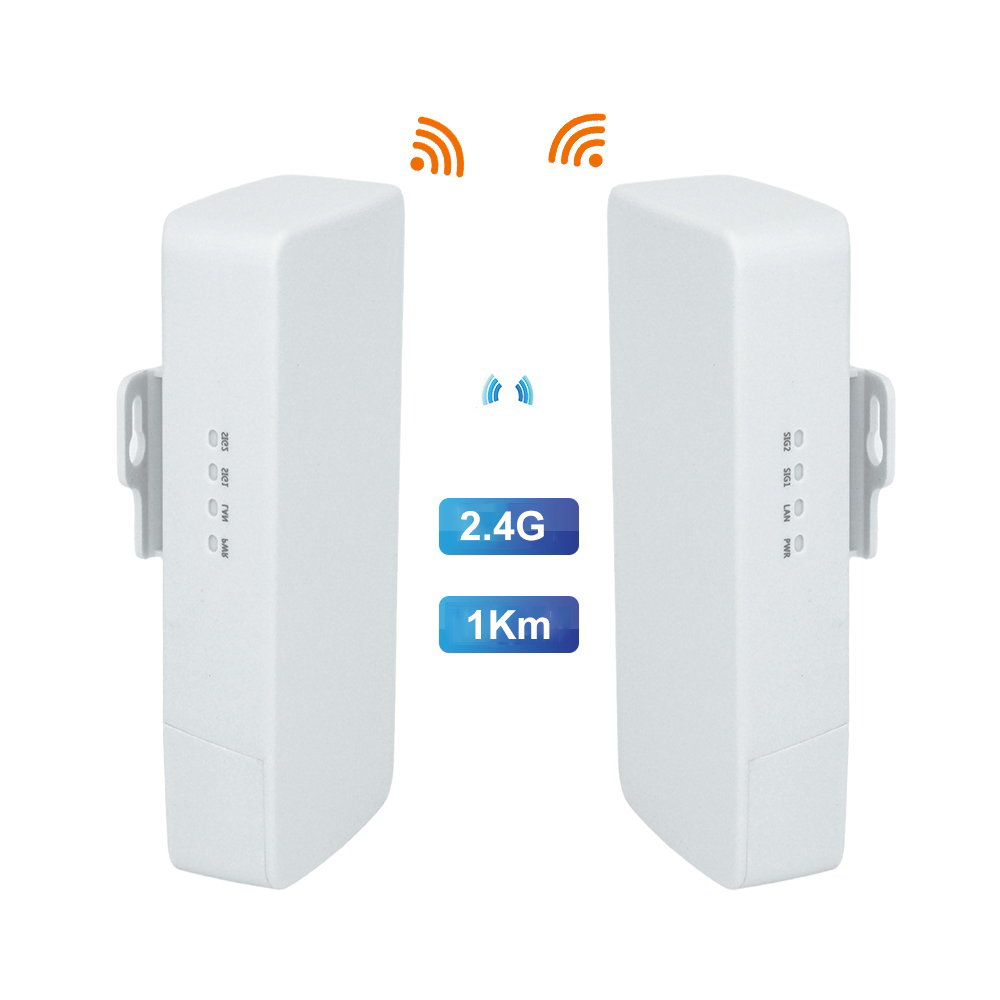

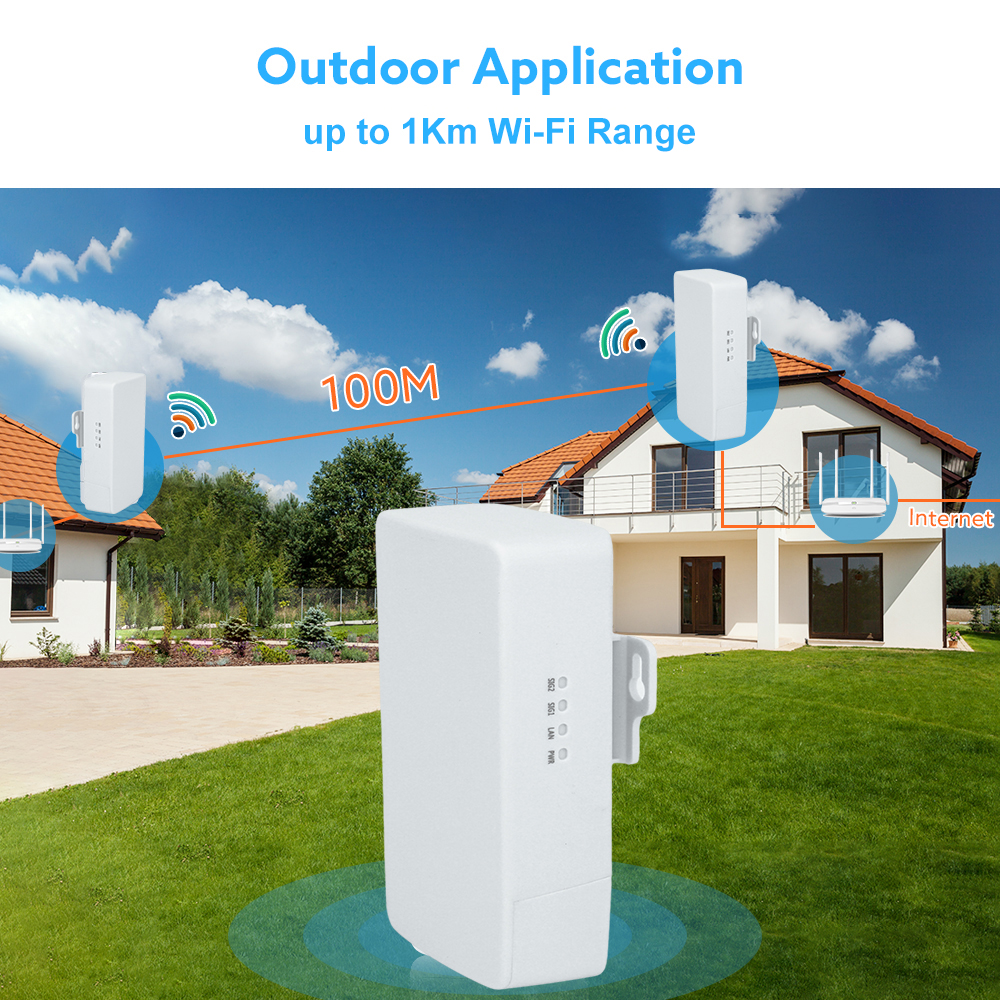

300Mbps PoE output outdoor wireless WiFi bridge support 2KM
2.4GHz long-range WiFi extender with LED indicator meet with multiple wireless transmission scheme demands. Outdoor wireless CPE bridge waterproof, dustproof, lighting protection. Operating temperature: -20~+65°C/storage temp: -40℃-85℃
Multi-Mode wireless wifi bridge with an ethernet port and LED indicator. Support wireless AP, Point to Point Connection s with 1-2KM distance

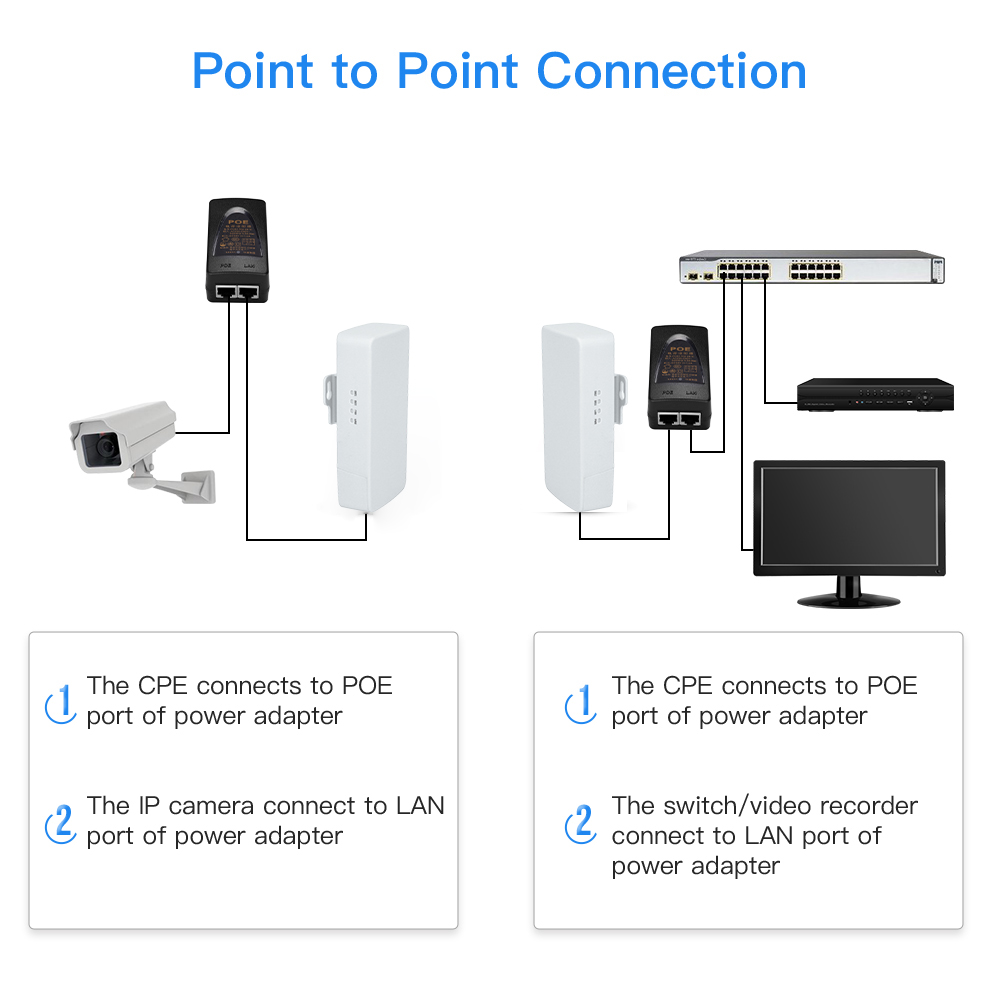

Wireless bridge LED indicator can show signal strength, easy to set via computer. Setting CPE master mode as AP mode, slave mode as Client mode. Click ” Scan” in the settings of the slave mode, scan to the CPE SSID of the master mode to be connected, and then make the connection settings. It transmits via wireless signal, reducing the trouble of wiring cable.

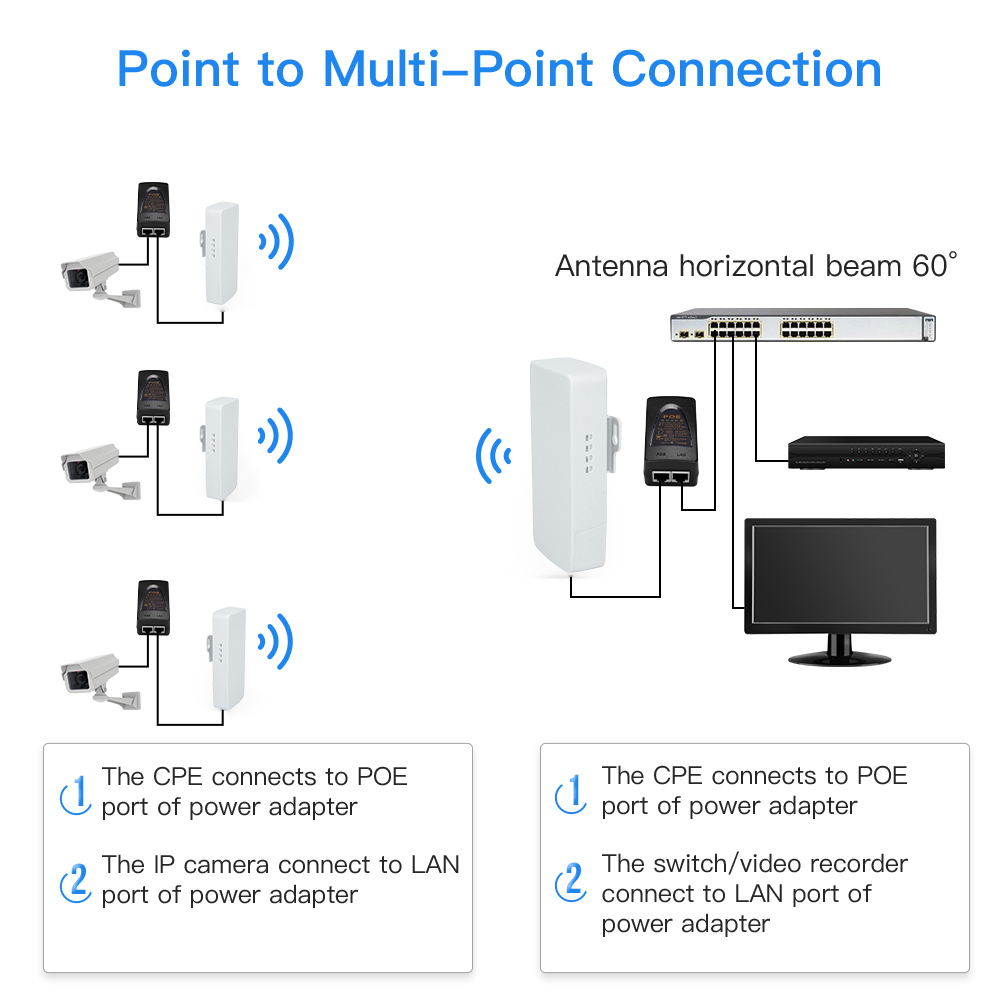

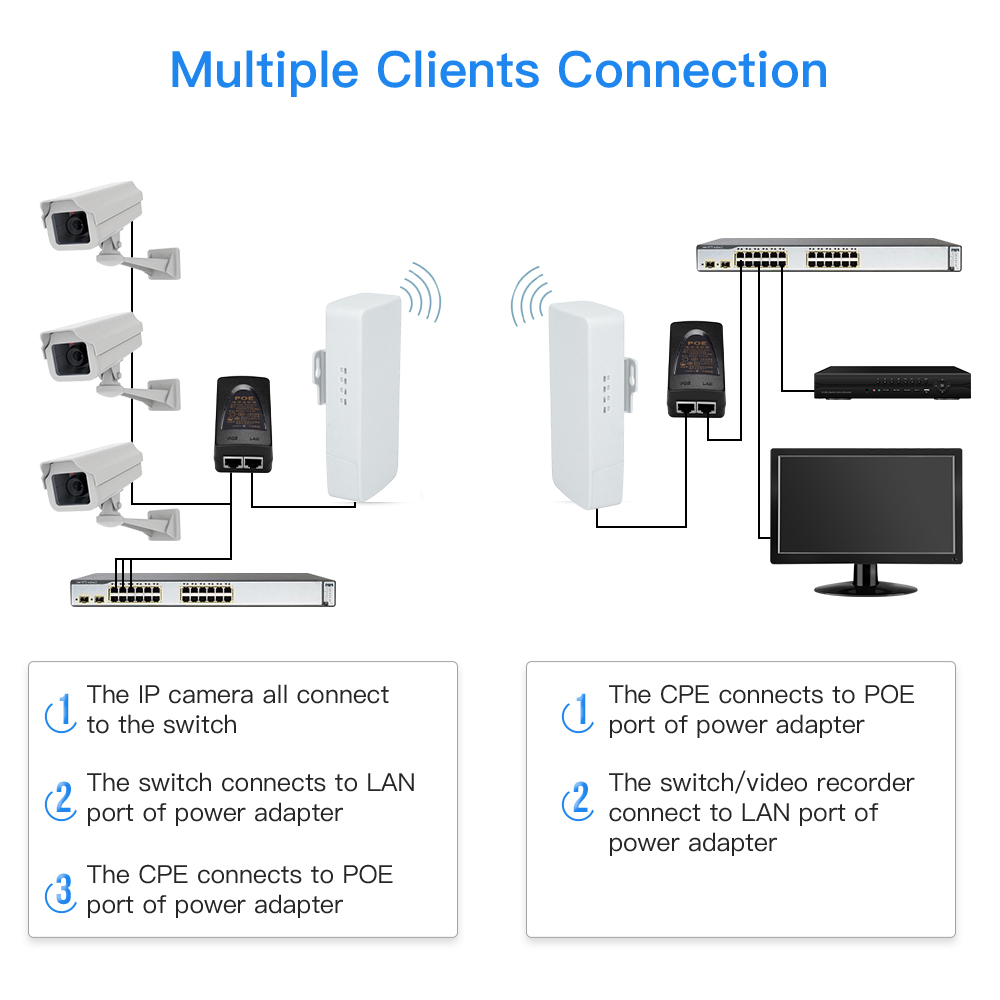

Widely Applications,Any place required security monitoring by cameras Point to Point/Multi-Point connection Client Bridge for Elevator Monitor, surveillance networks. Outdoor CPE Connect an IP Surveillance Camera to a secondary port and utilize its long-range connectivity to send surveillance video back through the wireless network for extended surveillance coverage.

Facebook Twitter Youtube

Description

specification

Chip solutions CPU:MT7628KN    RF:MT7628KN
Follow standards IEEE802.3u MDI / MDIX 10/100 Fast Ethernet
IEEE802.11b/g Wireless LAN interface
IEEE 802.11n Wireless LAN standard
DDR 8Mbyte
Flash Memory 2Mbyte SPI FLASH
Power supply network port Both network ports support 24V Poe power supply
Power supply interface DC 12V
CPU dominant frequency 580MHz

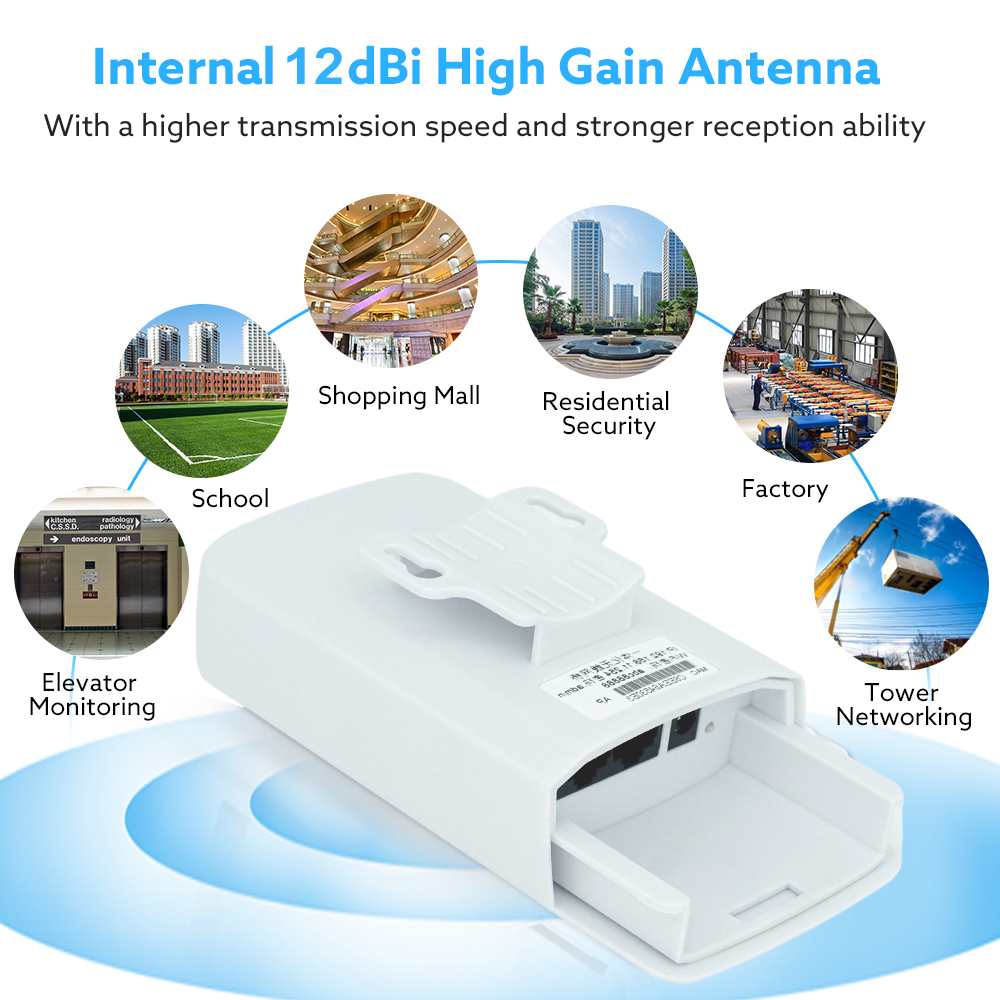

antenna 12dBi directional antenna
Wireless configuration WIFI : 1×2 (1Tx,1 Rx)

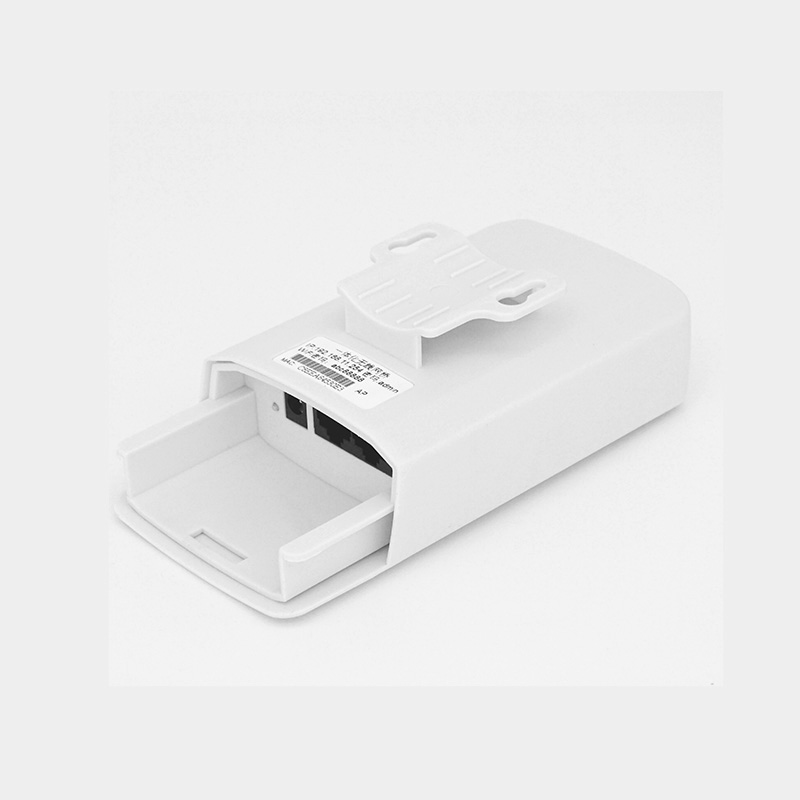

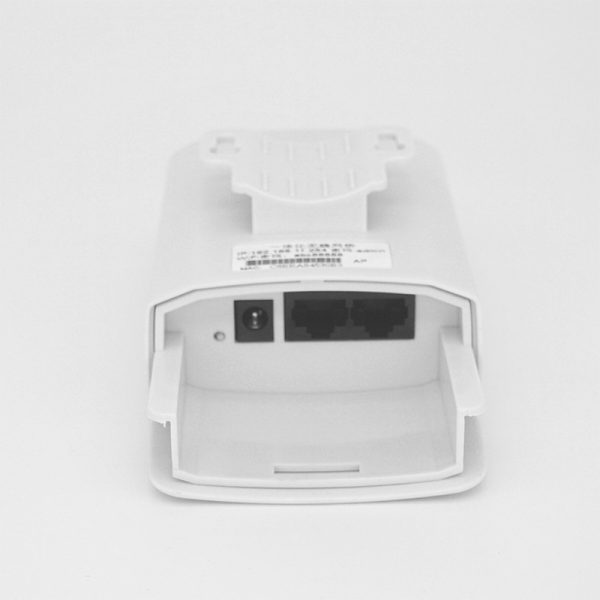

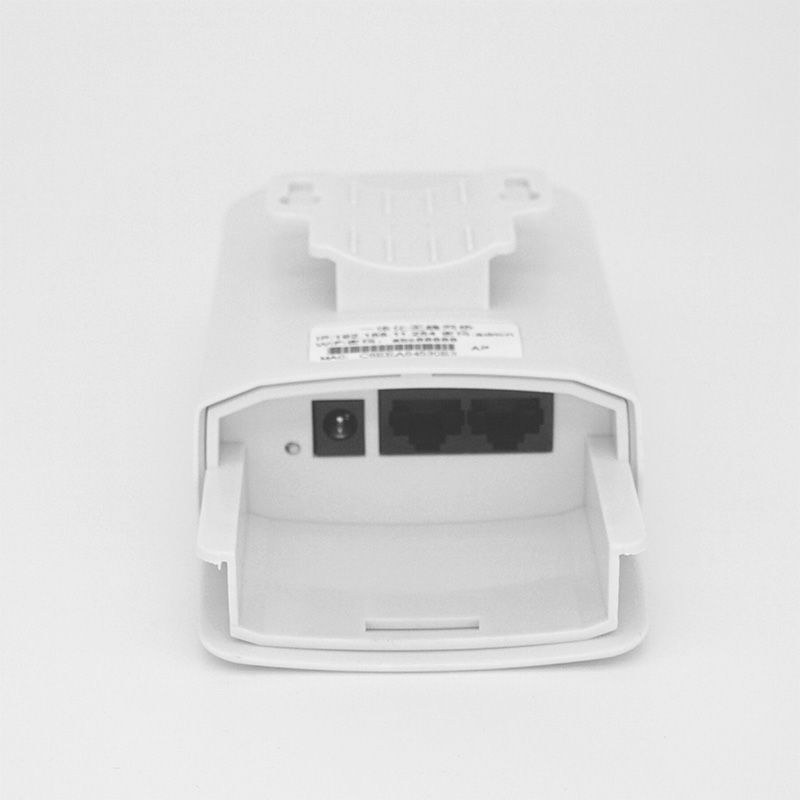

Ethernet interface Two 10 / 100Mbps Ethernet adaptive RJ45 ports
Ethernet physical rate 10/100Mbps
Reset button Restore the device to factory settings
LED light POWER LAN1 LAN2 SIG1 SIG2 SIG3
Wireless transmission rate 11b: 11M, 5.5M, 2M, 1Mbps
11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps
11N:6.5M, 13M, 13.5M,19.5M, 26M,27M, 39M, 40.5M,52M, 54M,58.5M, 65M,81M,108M,121.5M,135M,150Mbps
transmission mode Direct sequence spread spectrum (DSSS)
modulation mode OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
RF frequency range China : 2412 GHz ~ 2472GHz
802.11b 11Mbps 20.0 ± 2.0dBm
output power
(2.4G)
802.11g 6Mbps (-25@EVM) MCS 7 18.0 ± 2.0dBm
54Mbps(-25@EVM) MCS 7 17.0 ± 2.0dBm
802.11n HT20  (-30@EVM) MCS 7 15.0 ± 2.0dBm
HT40  (-30@EVM) MCS 7 15.0 ± 2.0dBm
sensitivity IEEE 802.11b IEEE 802.11g IEEE 802.11n
1Mbps=-95dBm 6Mbps=-92dBm HT 20
11Mbps=-89dBm 54Mbps=-73dBm MCS 0=-86dBm
MCS 7=-68dBm
HT 40
MCS 0=-83dBm
MCS 7=-65dBm
size 110mmx69mm
weight =300g
Operating temperature -20~+65°C
Operating humidity (non condensing) 10%~90% RH
Storage temperature -40~+85°C
Storage humidity (no condensation) 10%~90% RH
environment protection Follow ROHS standards

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
