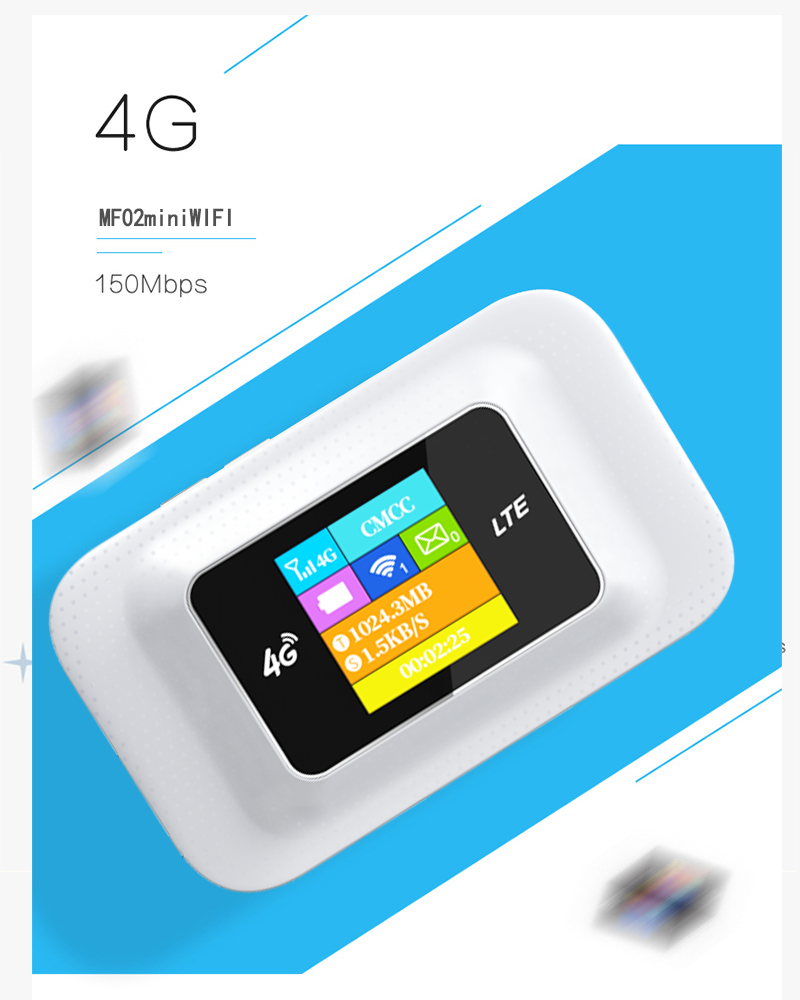

MF02 4g mini wifi router

150Mbps 4g mini wifi router 2500mAh Battery wifi router 4g lte with sim card slot

  • CPU module: ASR1803S
  • WiFi /Bluetooth module: SR5803W( 2.4 GHz 150 Mbps PHY)
  • Device memory: Flash 64M NOR
  • External storage: TF card(Max:64G)
  • SIM slot: Stander MICRO-SIM,support 1.8/3.3V
  • Esim: Support 1~2 Esim

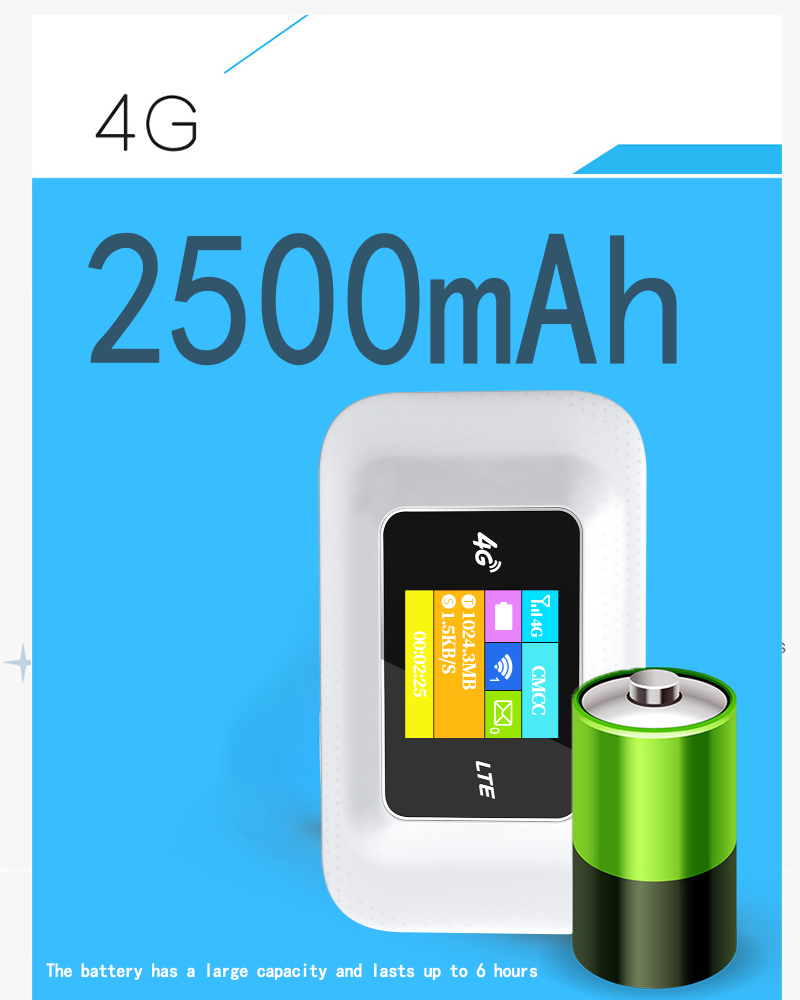

  • Battery: 2500mAh/3.7V; 78*44*H6.5mm
  • USB port: : Type-C/USB2.0

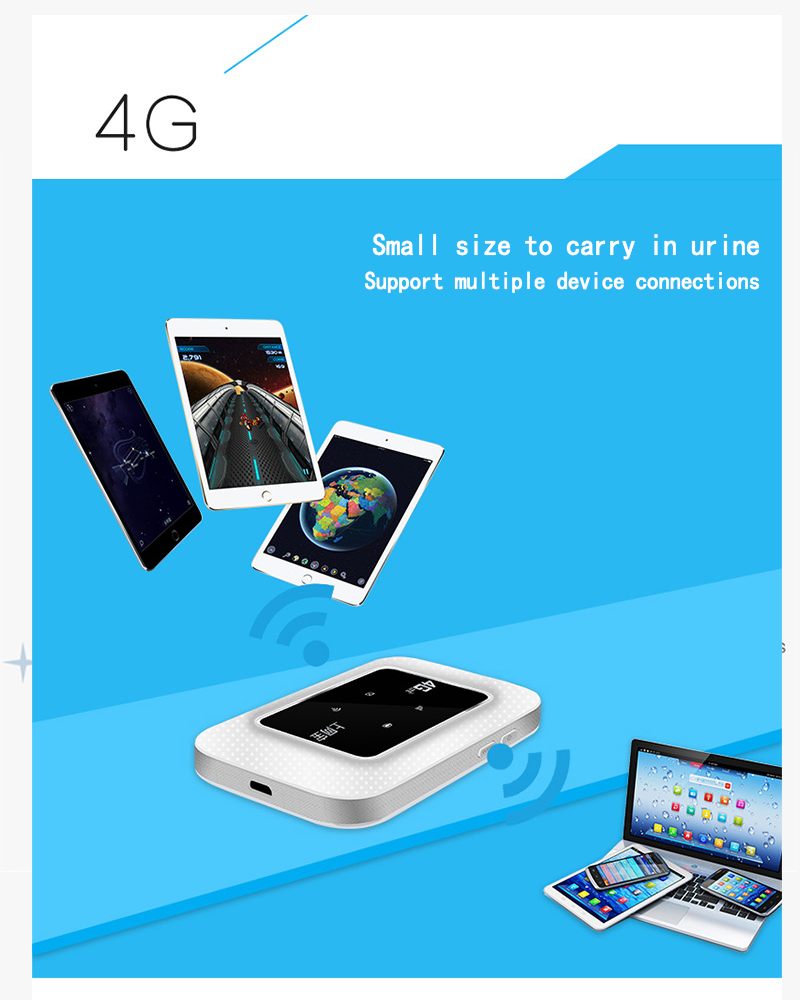

  • Max number of WiFi user access: 8 wireless users+1 wired user



Facebook Twitter Youtube

Description

specification

                                  MF02-MiFi-specification
Item Spec Description Additional remarks

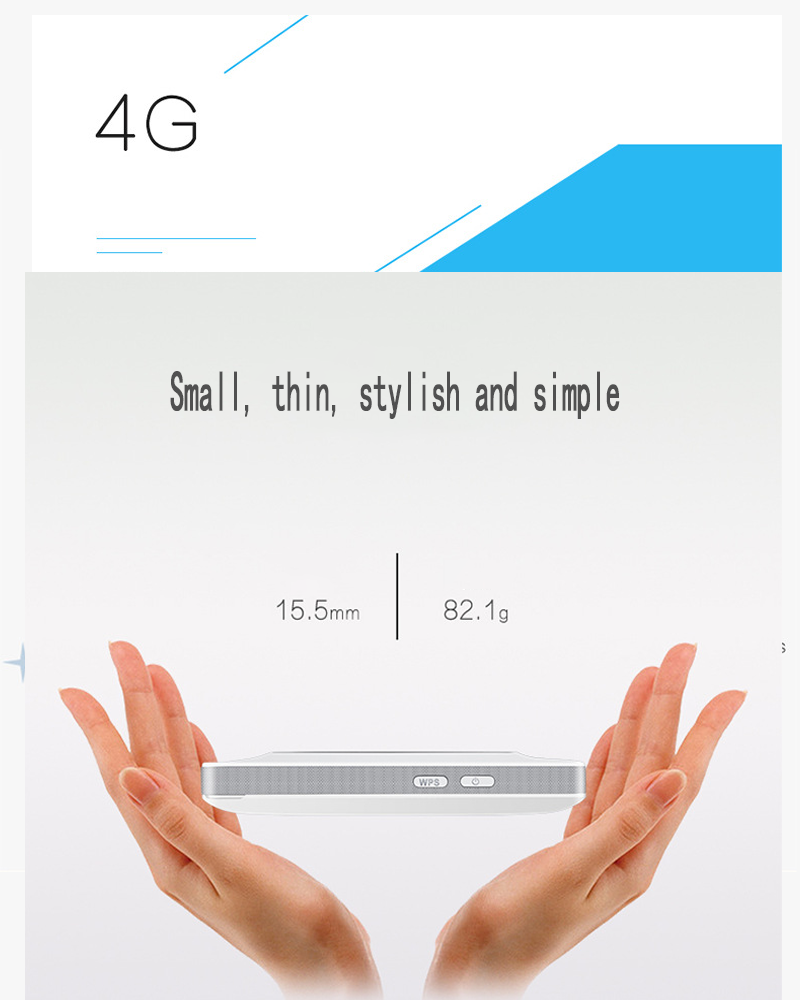

Modeling design Size 100*59.8*18.6mm
Weight about 108g(with battery)
product type MiFi product  4G LTE wifi router

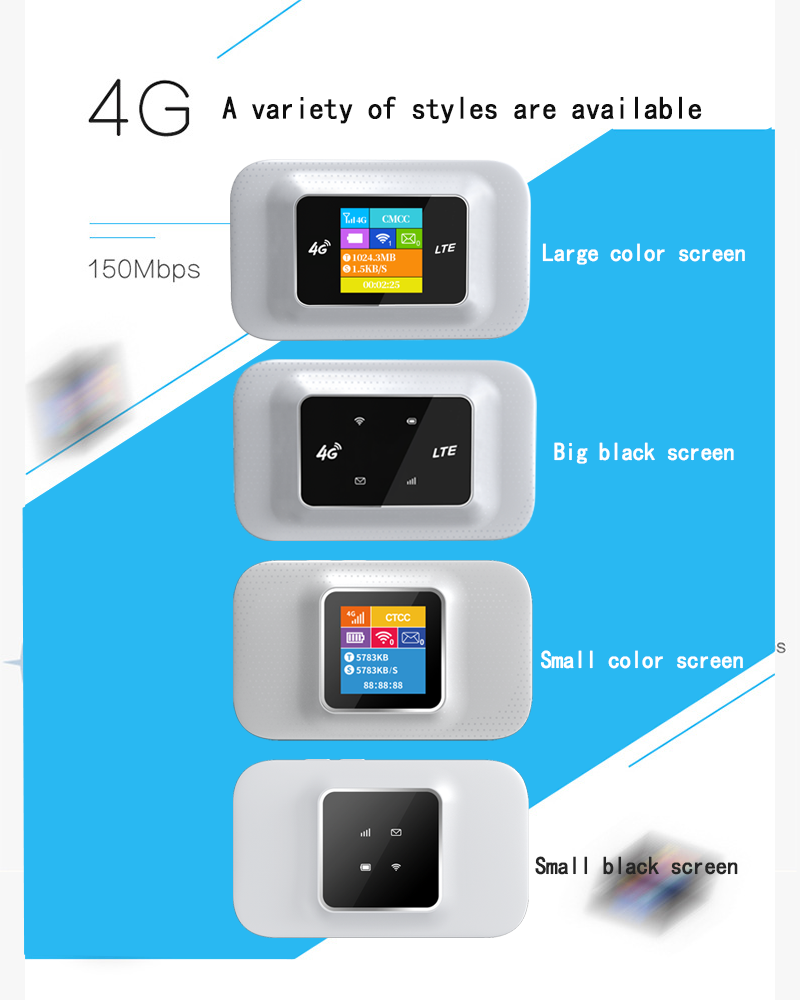

Indicator/ Display LED or LCD display
User manules supported
Warranty card supported
Battery supported
Power in Type-C USB 5V-1A/2A
Power addapter No
Chip supplier Communication chip supplier ASR
WiFi chip supplier ASR

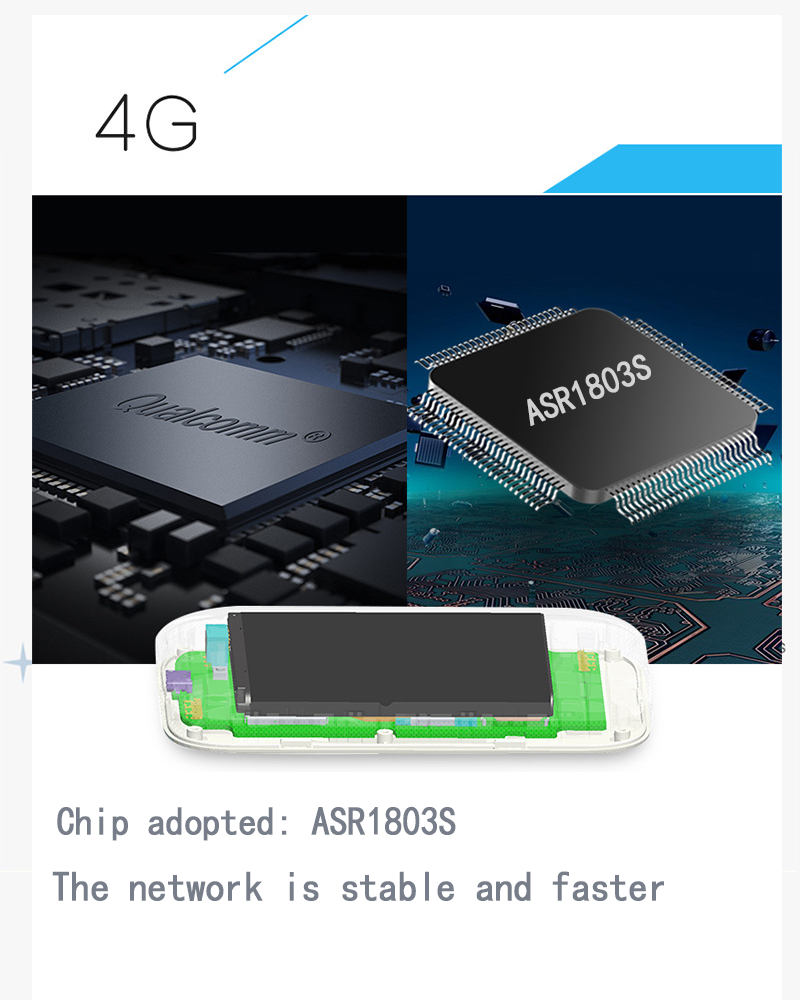

Basi Funtion CPU module ASR1803S
WiFi /Bluetooth module ASR5803W( 2.4 GHz 150 Mbps PHY)
Device memory Flash:  64M NOR
External storage TF card(Max:64G)
SIM slot Stander MICRO-SIM,support 1.8/3.3V
Esim Support 1~2 Esim
Battery 2500mAh/3.7V; 78*44*H6.5mm

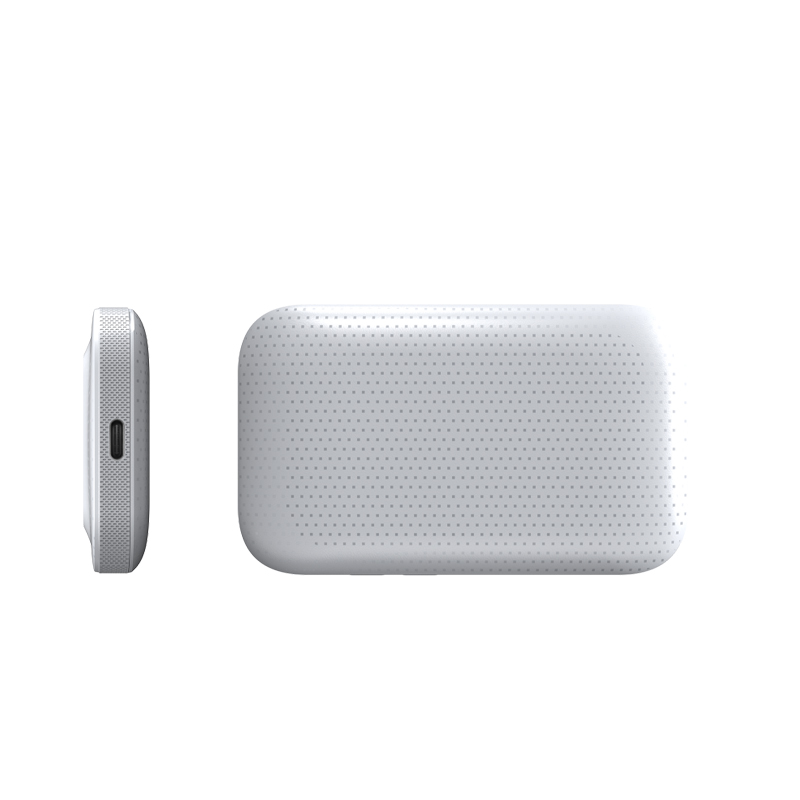

USB port Type-C/USB2.0
Max number of WiFi user access 8 wireless users+1 wired user 2.4GHz

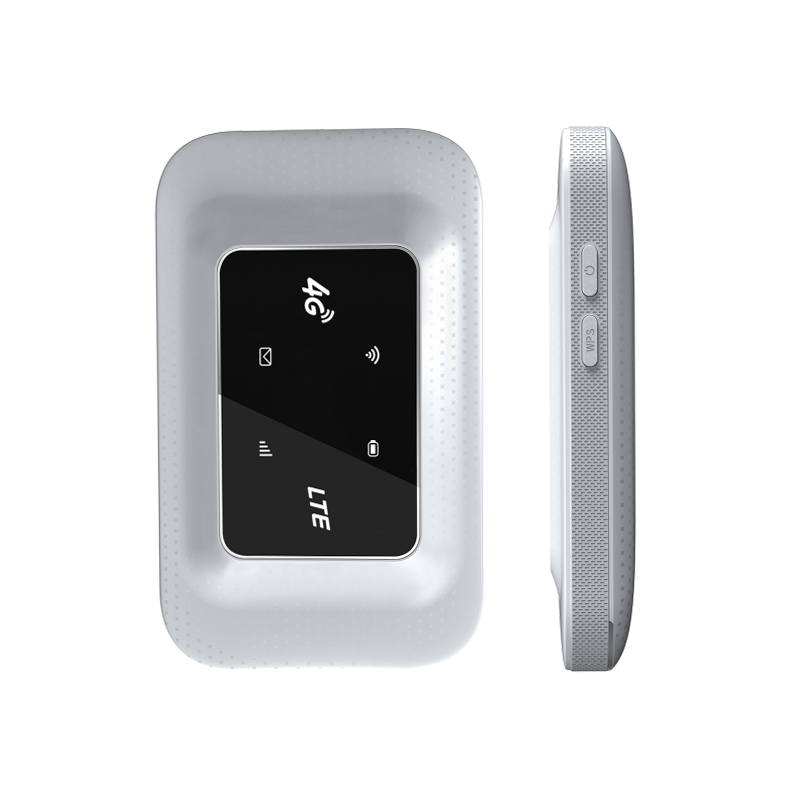

Indicator LED:
4G signals/Wifi signals/Message status/Battery status		 Optional

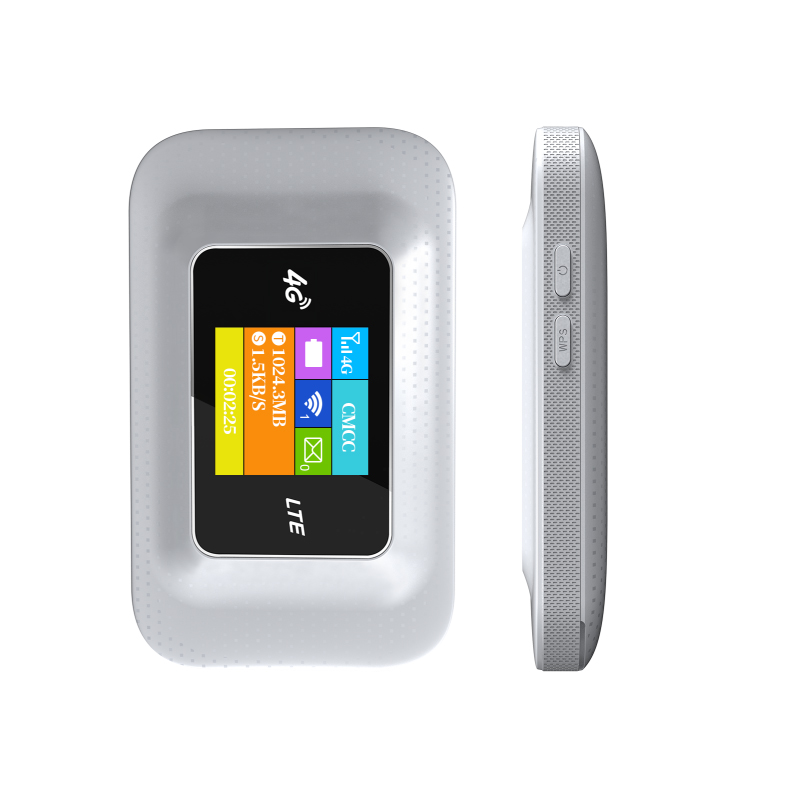

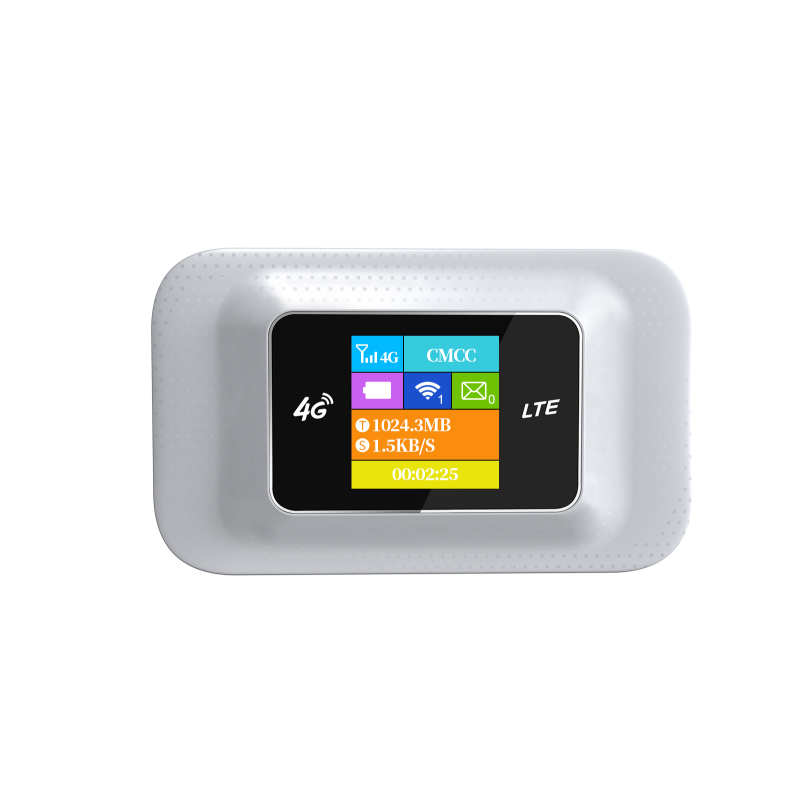

LCD:
1.77‘LCD 128*160,display device status:1.4G signals;  2.Wifi funtion,wifi connection number;
3.Battery capacity;    4.Telecom operator;
5.Used traffic;   6.Total used time
RF Capability Main antenna FPC
Sub antenna FPC
WiFi antenna FPC
Main Channel Bandwidth FDD-LTE: B1/B3/B5/B7/B8/B20/B28
TDD-LTE: B38/B40/B41
WCDMA: B1/B5/B8
sub Channel Bandwidth Support LTE
Power Level TDD-LTE:23dbm±2dbm
FDD-LTE:23dbm±2dbm
WCDMA :23dbm±2dbm
WiFi  Channel Bandwidth support 2.4GHz
WiFi MIMO technology support 802.11b/g/n 1*1 mode

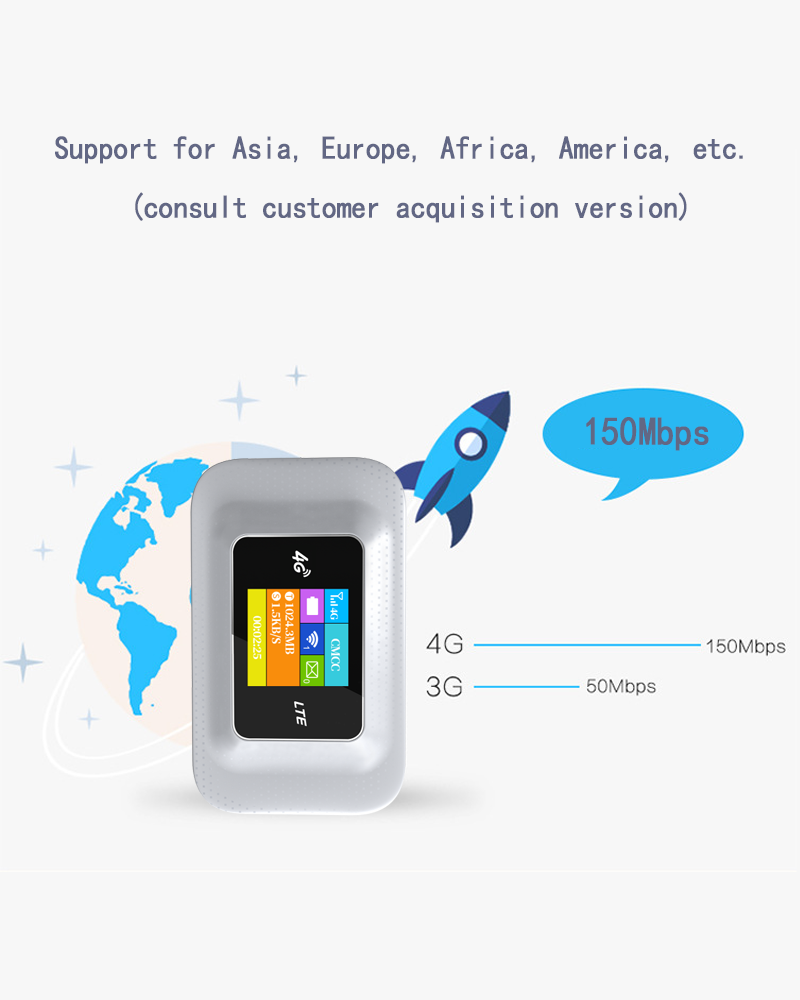

Data Rate LTE TDD-LTE:Cat4 130 Mbps DL / 35Mbps UL

FDD-LTE Cat4 150 Mbps DL / 50Mbps UL

 The theoretical peak value is related to the test environment, bandwidth and channel settings
WCDMA DL 21Mbp
UL 5.76Mbps
3GPP/3GPP2 protocol LTE FDD/TDD Rel 9
WiFi standard 802.11 b/g/n(1*1 only)
WiFi authentication default WPA-PSK/WPA2-PSK default authentication can be customized
WPS funtion supported

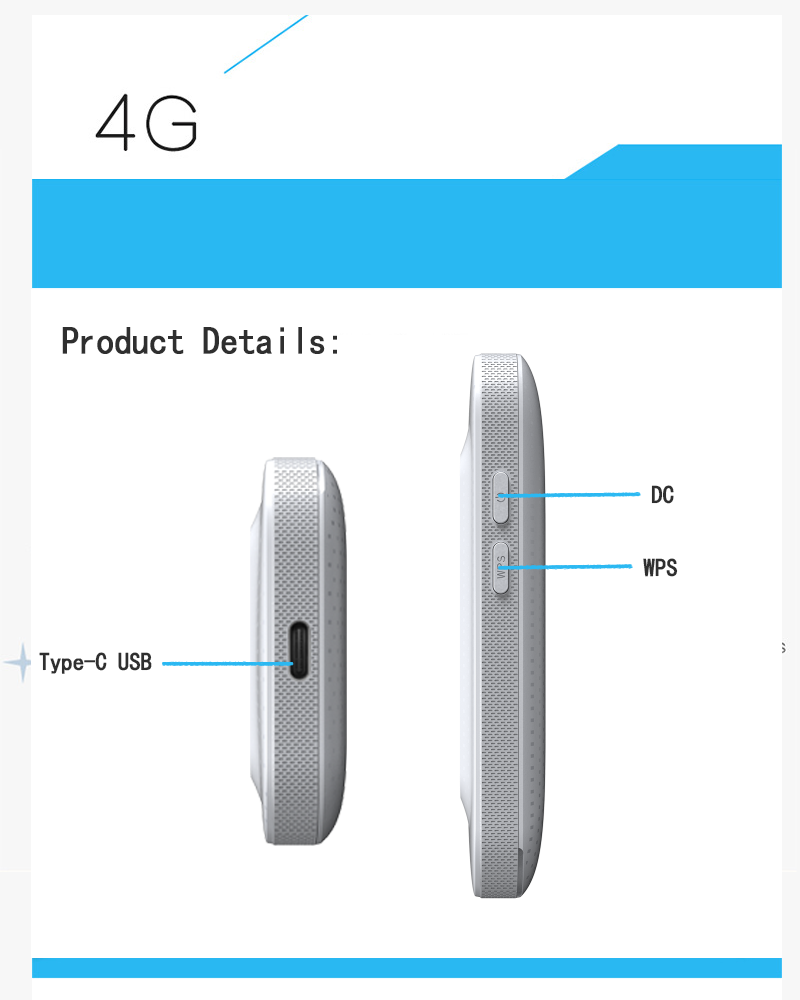

Button On/off button supported
Reset button /
WPS button supported
Working Environment working temperature -10~ 60° C
Storage temperature -45 ~ 85° C
Humidity 10%~ 95%
Standby duration supported
Working hours 8-10 Hours



FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
