Description

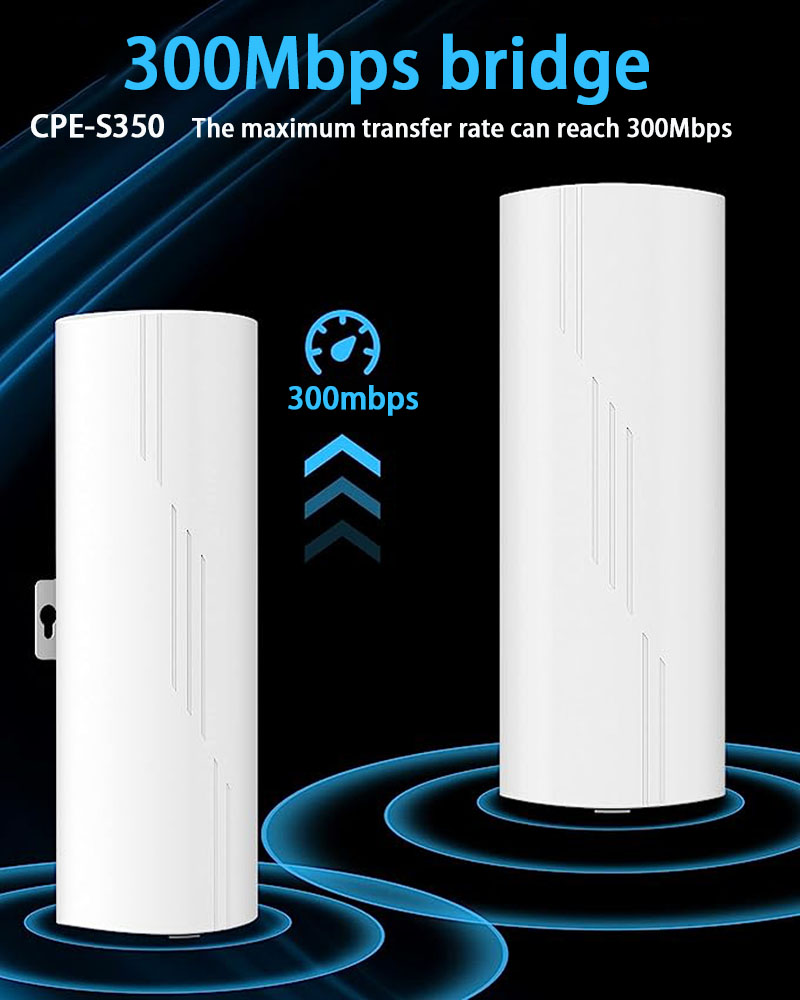

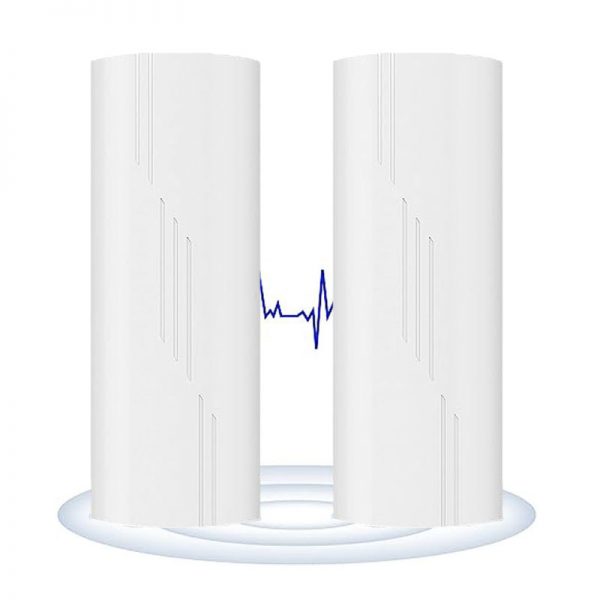

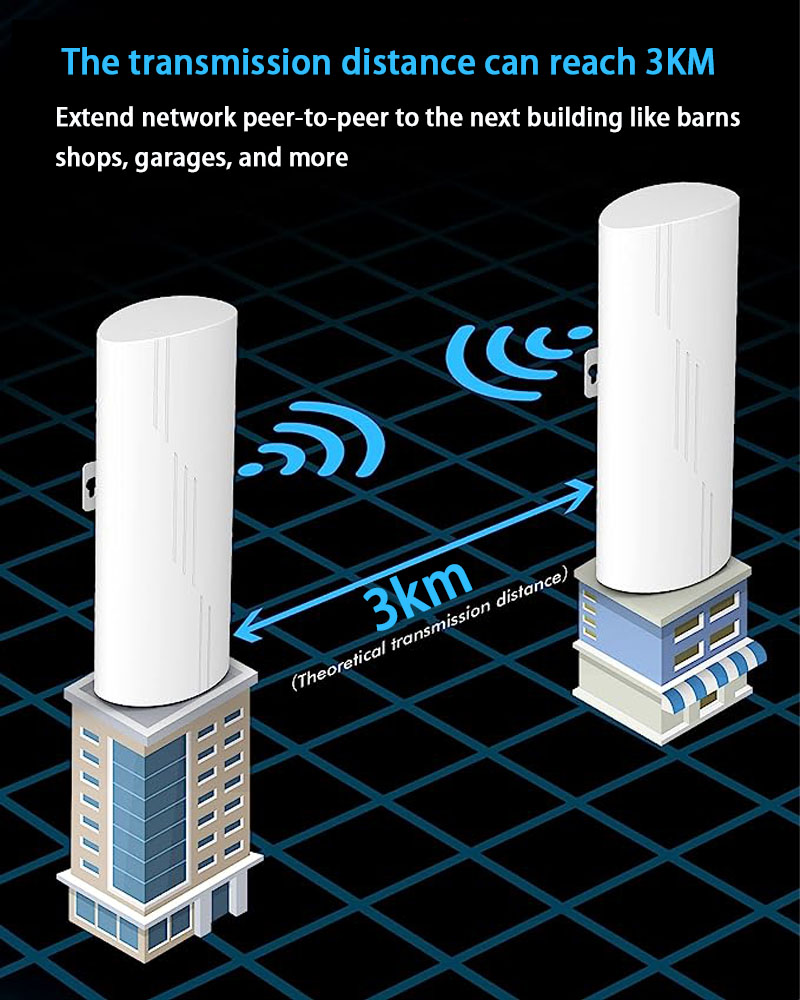

HUASIFEI 5.8g 300Mbps point to point wireless bridge outdoor waterproof 3km long range wifi bridge

Product Description

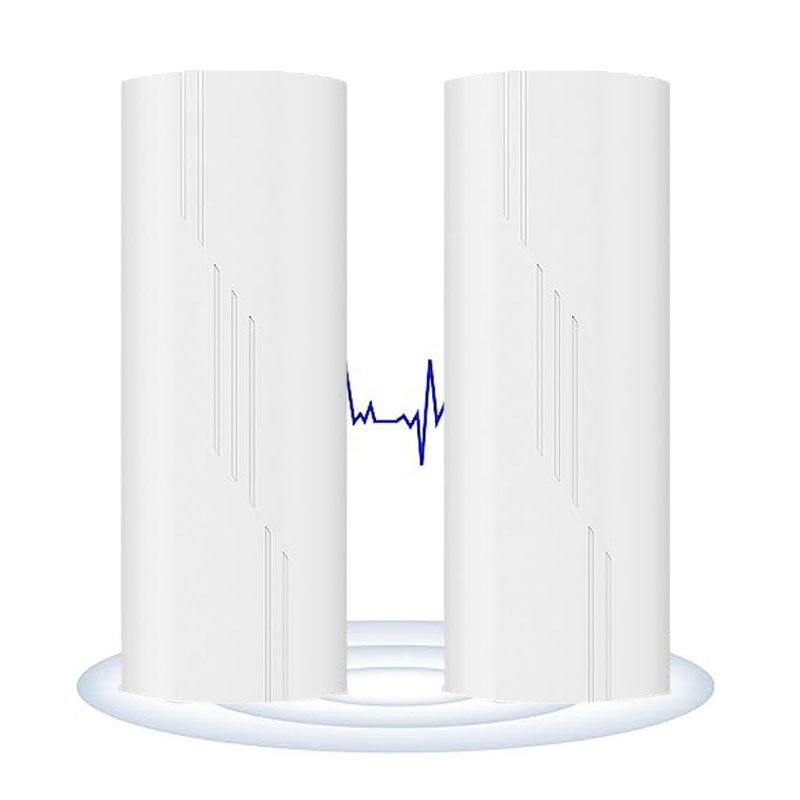

CPE-S350 is a high-performance enterprise outdoor bridge product that works in the 5G band and supports 802.11ac technology. Unique digital tube pairing technology, no computer configuration, easy to complete the point-to-point, point-to-multipoint (within 8 points) device pairing. 100 megabit network interface, 5G 802.11ac wireless processing speed up to 300Mbps, flexible power supply, support 24V PoE network cable power supply and 12V 1A DC local power supply, network cable power supply distance up to 50-70 meters (depending on the network cable material). Outdoor IP65 windproof, rainproof, dustproof and sunproof protection grade housing design, easily adapt to various harsh outdoor environments. Built-in 14dBi high gain, wide angle directional plate antenna, easy and fast installation. With high performance, high gain, high receiving sensitivity, high bandwidth, etc., greatly enhancing the wireless transmission performance and stability, widely used in short and medium distance video transmission and data transmission.

Product Features

Super cost-effective hardware configuration

Enterprise-class host chip with industrial-grade circuit design supports IEEE802.11a/n/ac protocol, which can provide 300Mbps wireless access speed and 10/100Mbps Ethernet switching processing speed. Excellent anti-high and low temperature design, fully guarantee the user network data in the extreme environment can be real-time, long-term, stable, high-performance transmission, enhance the user experience.

Powerful wireless transmission capability

High power and high receiving sensitivity circuit design with high gain directional plate antenna greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission.

Simple and efficient pairing

No need for network expertise, no computer operation, easy to dial the code and adjust the master and slave device digital tube to the same value to complete the point-to-point, point-to-multipoint (within 8 points) pairing work.

Flexible power supply

The device not only supports the power supply method of PoE remote network cable power supply, but also supports the power supply method of 12V 1A DC local connection power supply to meet the needs of various scenarios, reduce the construction cost and choose the power supply method flexibly.

Stylish and compact, simple and easy to install

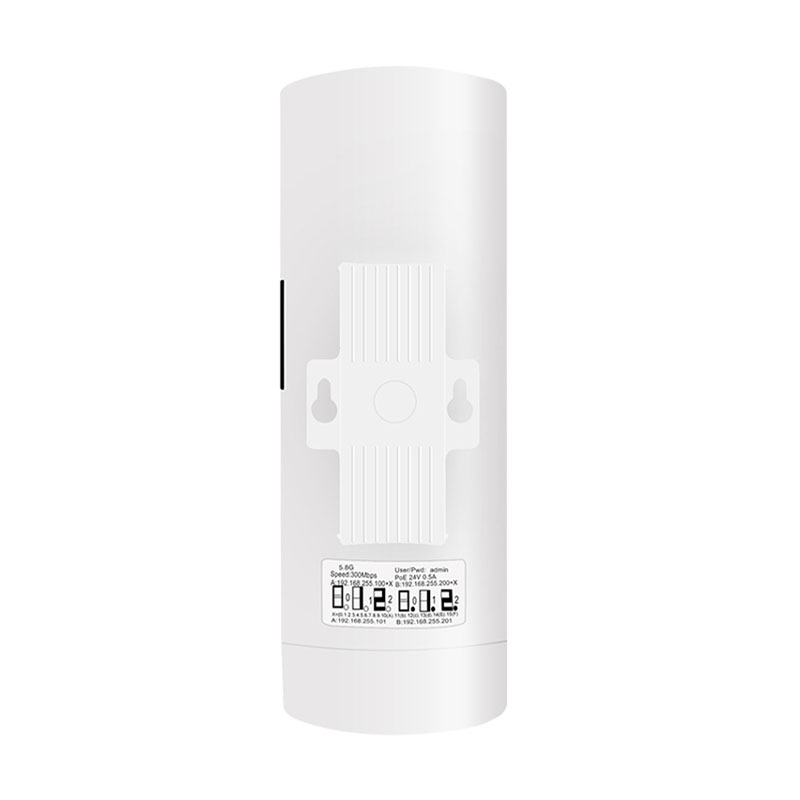

Fashionable and compact shape, flexible and simple installation methods, with wall hanging, holding bar fixed installation methods, without affecting the original design on the basis of greatly reducing the difficulty of construction personnel to improve construction efficiency

Parameters

Product technical specifications
Product parameters
Hardware Configuration
Model	CPE-S350
Main Chip	High performance enterprise chip (Qualcomm AR9344)
Main Frequency	580MHz MIPS® 24KEc™ Central Processing Unit
Wireless Technology	5G:300M 802.11a/n/ac 1T1R technology
Memory	64MByte DDR2
Flash	8MB

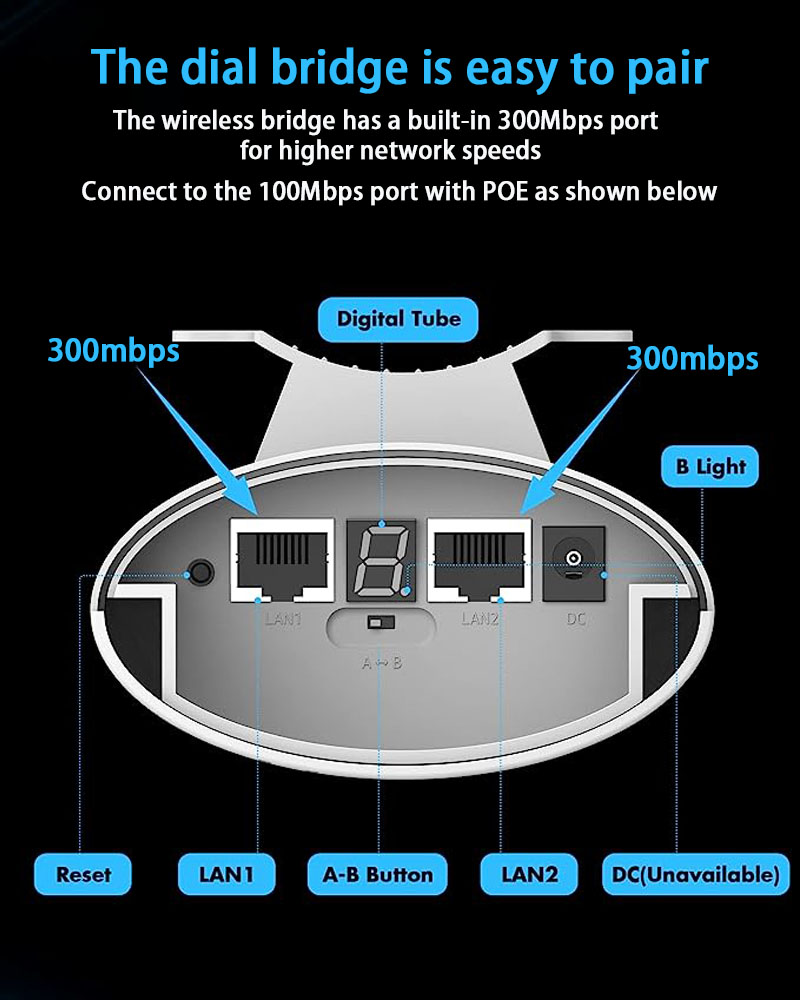

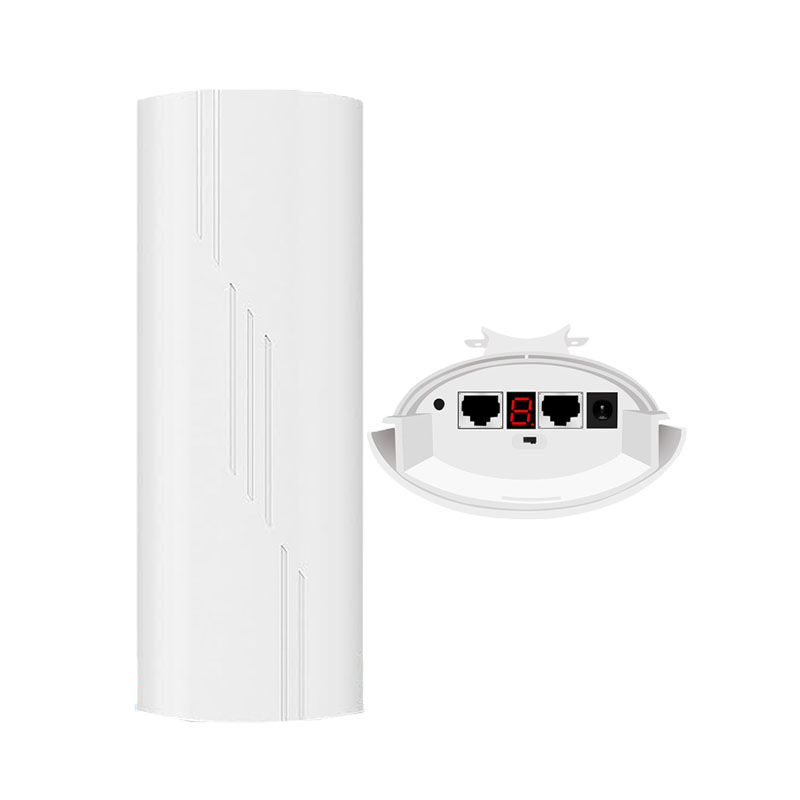

Network Interface	2*10/100Mbps adaptive RJ45 network interface
Buttons/Switches	1 * digital switch / reset button, short press the digital tube display value plus one, long press 5 seconds to restore factory settings
Buttons/Switches	Master-slave dip switch: master for access point mode, slave for client mode
Indicator light	Signal SIG indicator, ETH network interface status indicator, power indicator, system indicator, digital tube indicator
Power source	24V 1A non-standard PoE power supply.
Power source	DC 12V 1A, power consumption <10W
Working Environment	Temperature: -30℃～+55℃（working）, -40℃～+70℃（storage）
Working Environment	Humidity (non-condensing): 10%～90% (working), 5%～95% (storage)
Product Size	250mm90mm48mm
PackingSize	2700mm95mm95mm
Product weight	0.46kg
Antenna	Built-in high gain 14dBi directional plate antenna (horizontal wave half-angle 60°, vertical wave half-angle 15°)

RF Characteristics
Frequency Range	ISM Wave : 4.900GHz ~ 5.850GHz
Channel Distribution	5G：36、40、44、48、52、56、60、64、100、104、108、112、116、120、124、128、132、136、140、149、153、157、161、165
Modulation method	OFDM = BPSK,QPSK,16-QAM,64-QAM,256-QAM;DSSS = DBPSK,DQPSK,CCK
Output power	11a @54M:20±2dB, @6M:23±2Db
	11n 20MHz：@MCS9:20±2dB, @MCS0:23±2dB
	11n 40MHz：@MCS9:20±2dB, @MCS0:23±2dB
	11ac 40MHz @MCS9:20±2dB, @MCS0:23±2dB
	11ac 80MHz @MCS9:20±2dB, @MCS0:23±2Db
Reception sensitivity	11a: ＜-72dbm@54Mbps, ＜-89dbm@6Mbps
	11n 20MHz: ＜-71dbm@MCS8, ＜-89dbm@MCS0
	11ac 40MHz：＜-66dbm@MCS9, ＜-84dbm@MCS0
	11ac 80MHz: ＜-63dBm@MCS9 ＜-81dBm@MCS0
EVM	802.11n: ≤-28 dB 802.11a: ≤-25 dB
Frequency	＜±20ppm

Software Features
Working Mode	Master AP (bridge access point), slave AP (bridge client), switch by dip switch

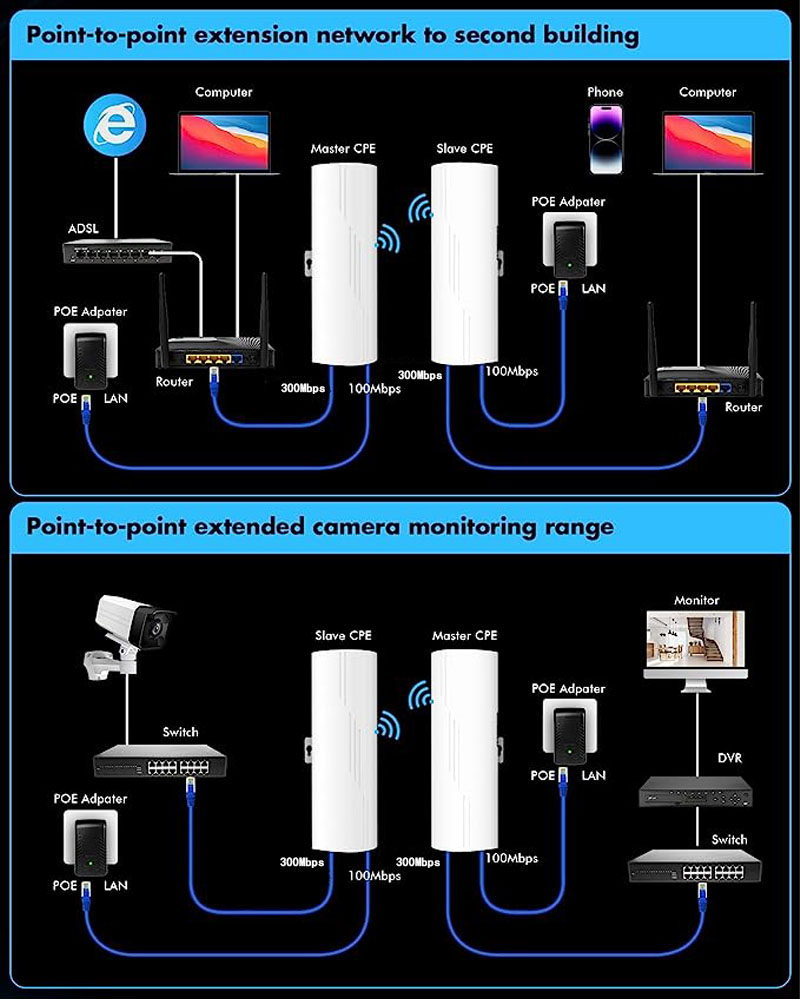

Network mode	Point-to-point, point-to-multipoint (within 8 points)
Management method	Chinese WEB remote management
Bridge Configuration	Wireless mode: Bridge access point, bridge client switching
	Bridge access point.
	Bridge SSID, encryption method (WPA2-PSK, WPA-PSK, no encryption), bridge password, wireless protocol
	Wireless bandwidth, wireless channel, wireless power (100%, 75%, 50%, 25%, 10%, 5%)
	Bridge client.
	Bridge SSID, encryption method (WPA2-PSK, WPA-PSK, no encryption), bridge password,
	MAC address lock at the other end, wireless channel, wireless power (100%, 75%, 50%, 25%, 10%, 5%)
Network	Static IP / dynamic acquisition
System	Login password change, restore factory, local upgrade

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
