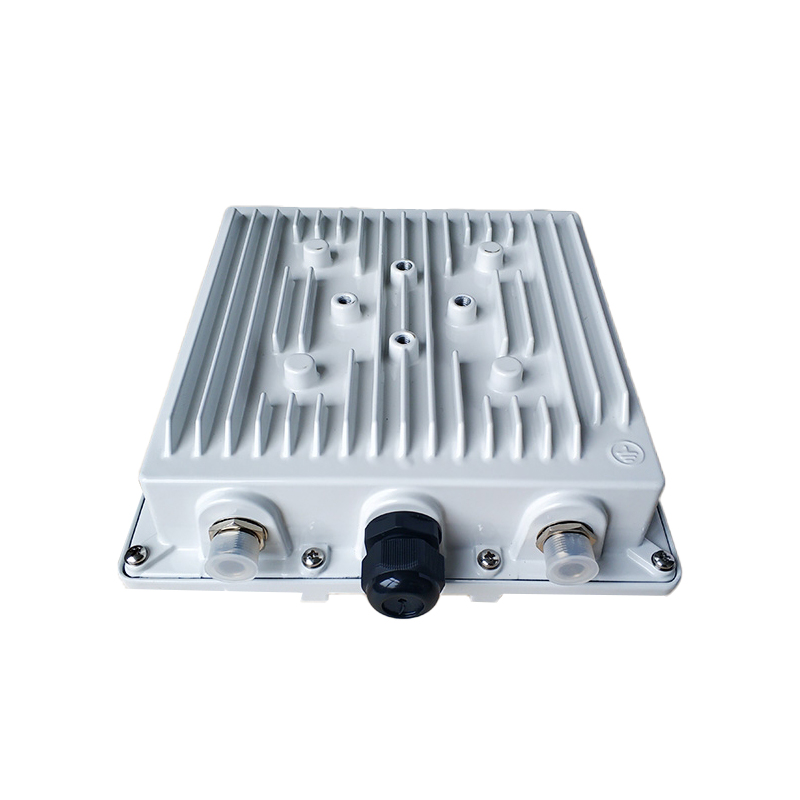

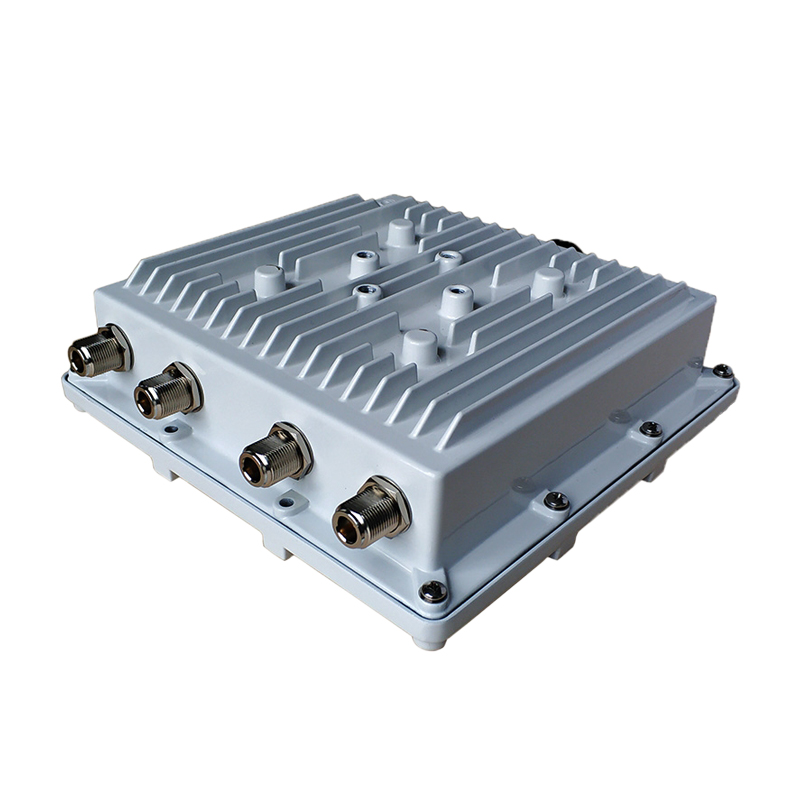

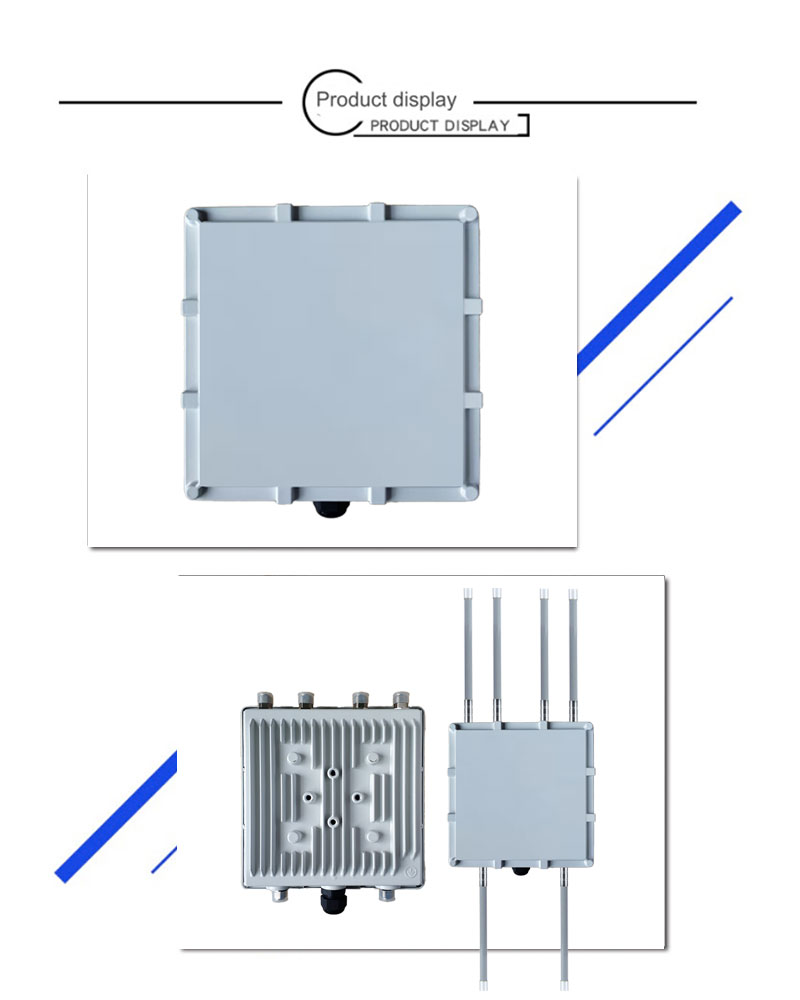

WS1209-H 5g outdoor cpe sim router

High speed 1200Mbps dual band unlock 4g/5g router POE power supply waterproof outdoor 4G/G router

Product Description

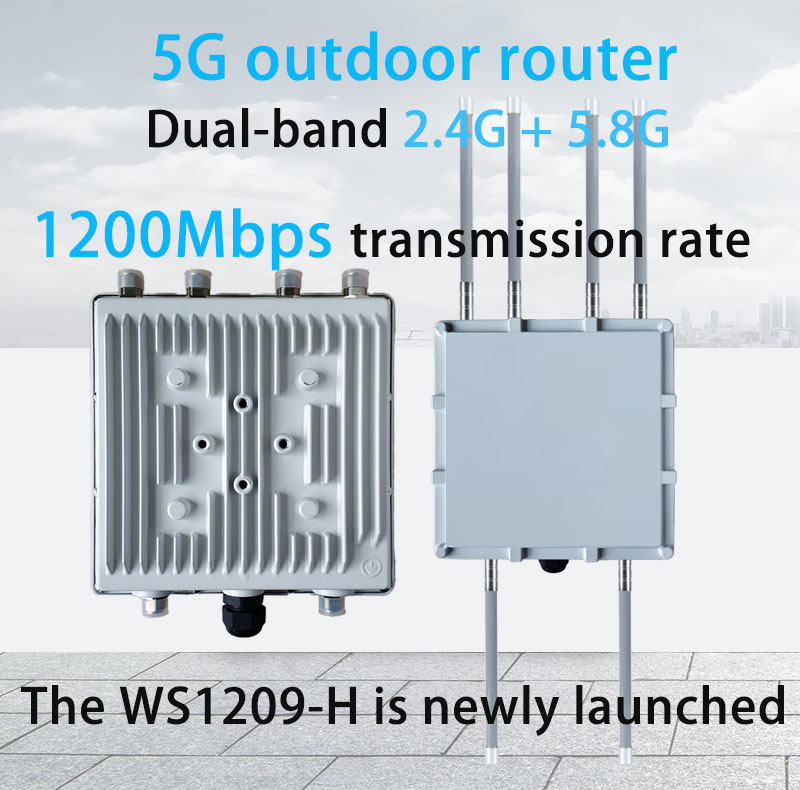

5g outdoor cpe sim router

The WS1209-H outdoor 5G gateway base station is based on our independent technology research and development. It belongs to the hardware product category of distributed self-organizing network system solutions. It has a 5G industrial host with high speed, large connection, wide coverage, low latency, and high reliability. This product supports 5G, Ethernet, WiFi, wireless spread spectrum communication and other network access; at the same time, it has strong real-time data edge computing capabilities, open system design, and supports secondary development; it adopts chips, devices, housing design, etc. Full industrial-grade housing waterproof design, with waterproof casing protection grade up to IP66, supports ceiling, wall, pole-mounted installation, can be adapted to a variety of industrial sites such as indoor and outdoor, widely used in smart factories, smart medical, unmanned vehicles, Smart cities and other fields.

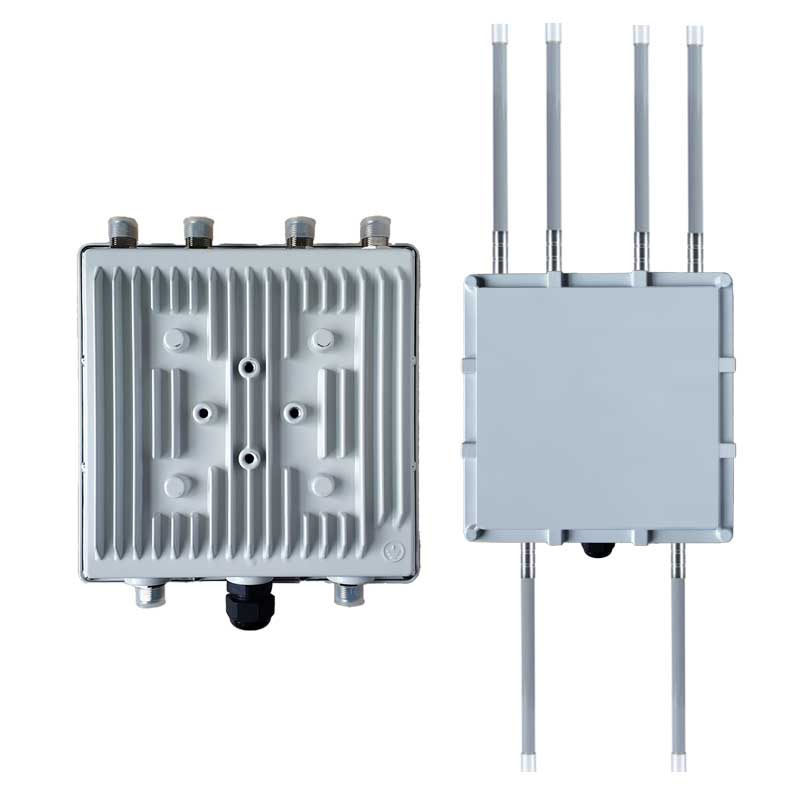

Shell characteristics

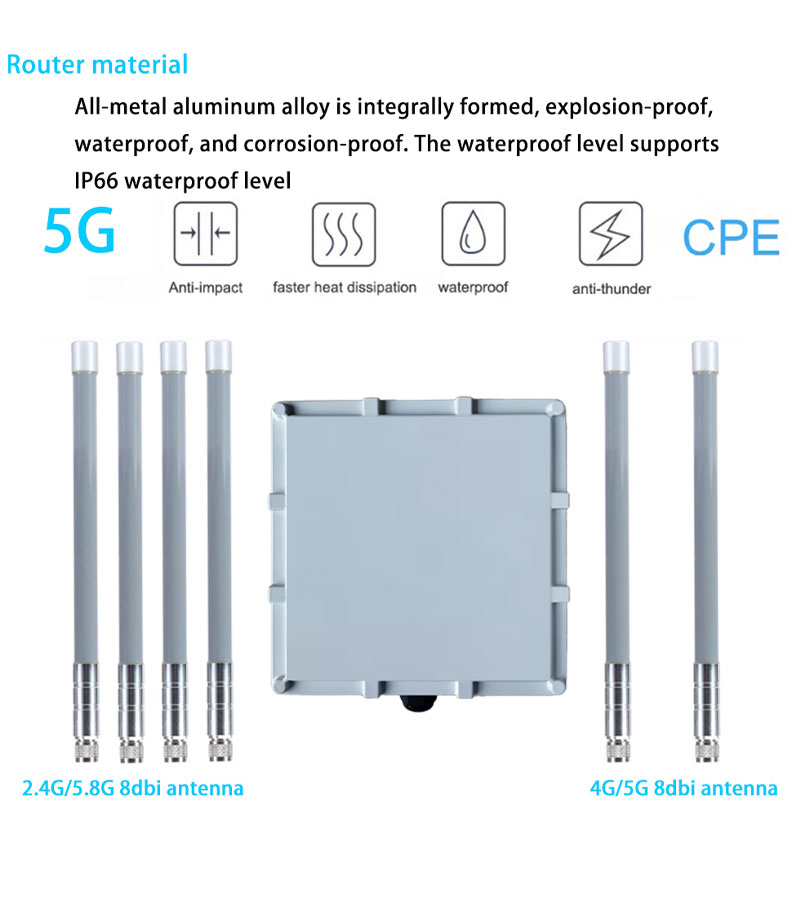

  1. All-metal aluminum alloy is integrally formed, explosion-proof, waterproof, and corrosion-proof. The waterproof level supports IP66 waterproof level

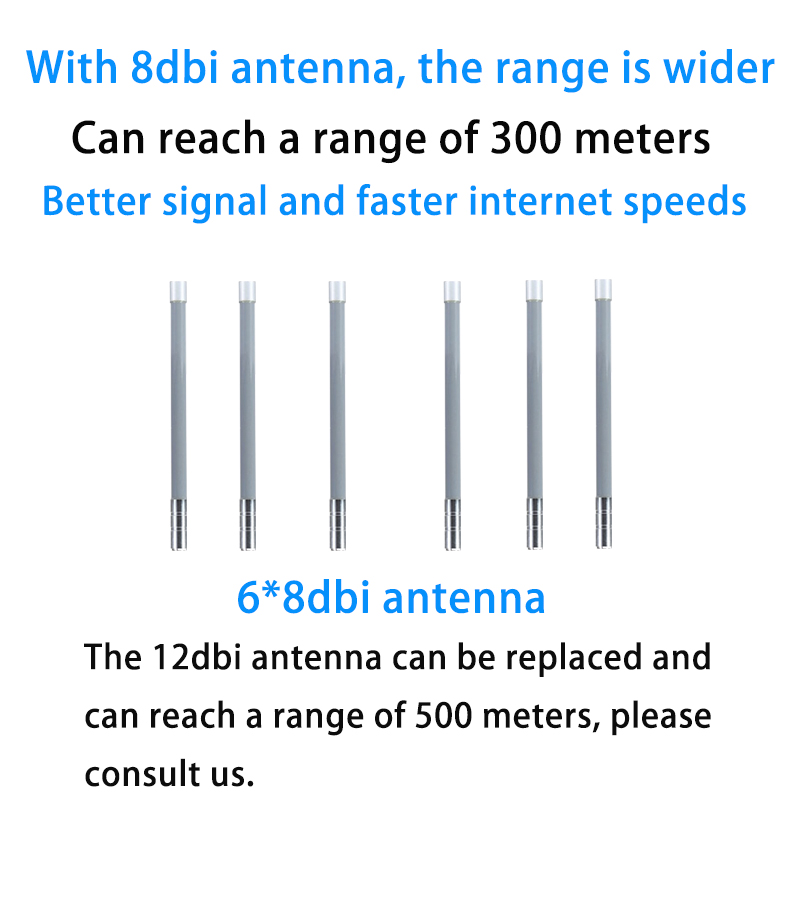

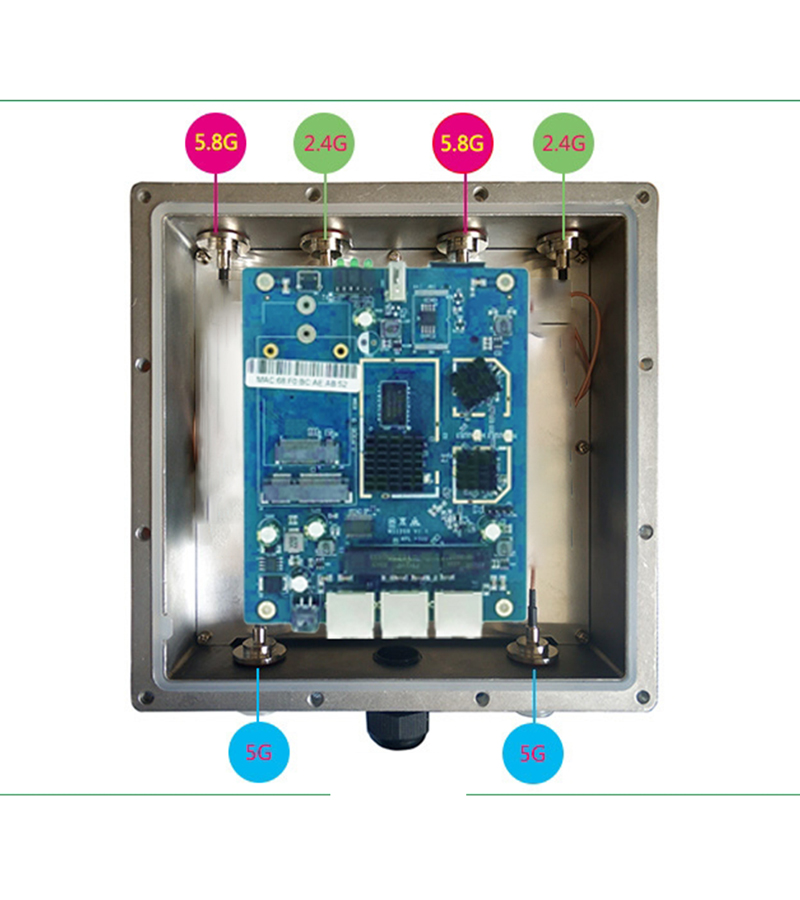

  2. 5 external N-type industrial-grade WiFi antenna interfaces, adapt to different antenna types according to the needs of the scene,8DBi high gain fiberglass antenna
  3. The power, internet, 4G/5G instructions are clear at a glance.
  4. External waterproof grade Gigabit Ethernet LAN port.

Description

Parameters

WiFi Datasheet

WiFi 1200Mbps(802.11AC)

  • Working Radio: #1: 300Mbps @ 2.4GHz; #2: 900Mbps @ 5.1-5.8GHz
  • Coding Technology:1024-QAM / OFDMA
  • Peak Connections:>500+ Clients
  • Wi-Fi Standard Conformance:WiFi 802.11ac / 802.11n backward

Data Switching

  • Mobile 4G/5G Connection (Support APN)
  • Giga Ethernet Connection
  • 4G/5Ghz WiFi
  • Advanced Firewall
  • MAC Filter
  • WiFi Sercurity
  • VPN Passthrough and VPN Client (L2TP PPTP)
  • IPV4/IPV6
  • WEB / APP Mangement
  • Firmware upgrade

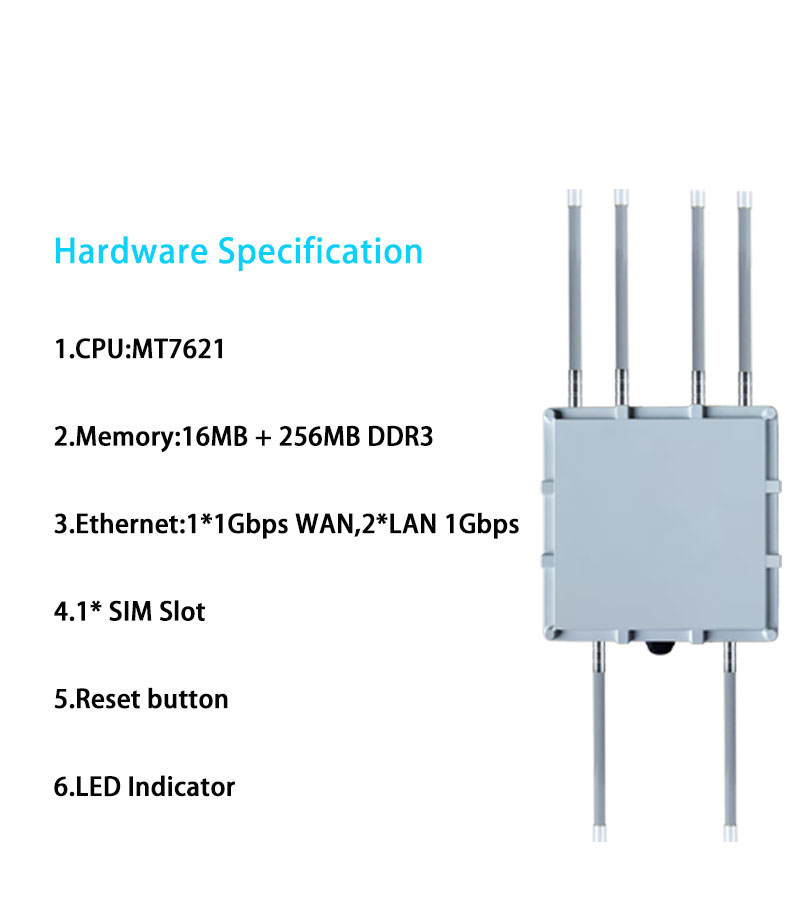

Hardware Specification

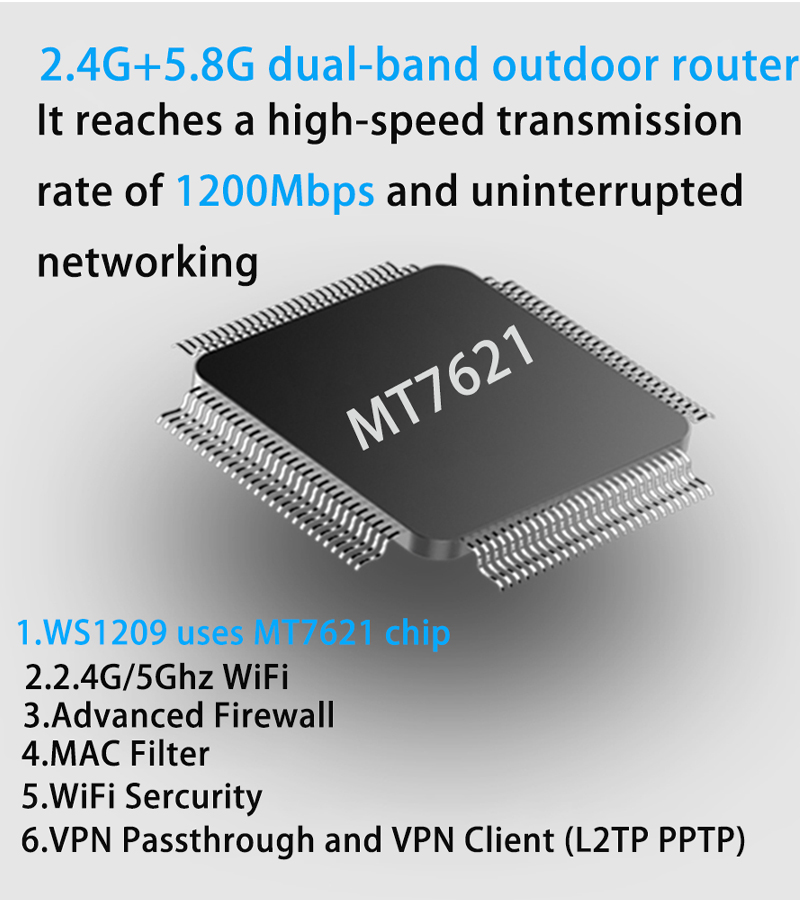

  • CPU:MT7621
  • Memory:16MB + 256MB DDR3
  • Ethernet:1*1Gbps WAN,2*LAN 1Gbps
  • 1* SIM Slot
  • Reset button
  • LED Indicator : 4G5G Status, Power Status, 2.4G LED, 5.8G LED
  • Power Consumption:<24W

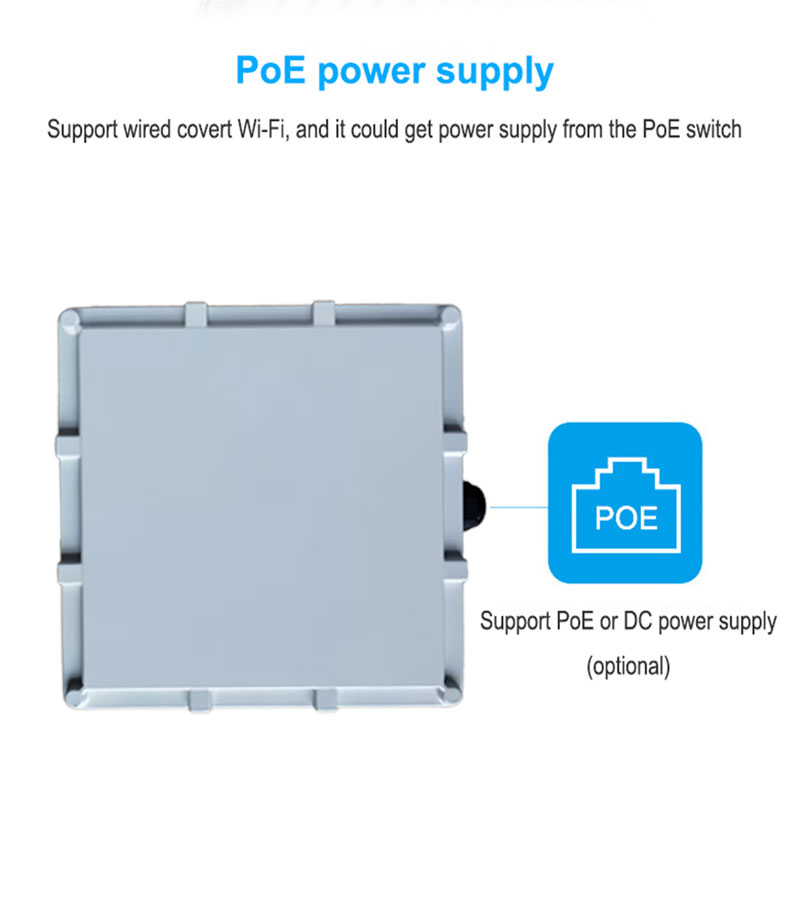

  • DC Power Supply: 15V POE or 48V POE
  • Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
  • Humidity:5%~95%



Specification

Model WS1209-H
CPU MT7621
Flash 16MB + 256MB Fl
WiFi Frequency band 2.4G&5G
WiFi 2.4G:802.11b/g/n  5.8GHz:802.11a/n/ac MIMO
WiFi rate 2.4GHz :300Mbps ,5GHz :900Mbps
5G Standard 3GPP Release 15 NSA/SA operation, Sub-6 GHz
5G Networking method NSA/SA
5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
5G/4G rate 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
LTE :   Down 1.0 Gbps;UP 200 Mbps
5G NR NSA
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
5G NR SA
5GFrequency band n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
MIMO
Down:4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79
UP:2 × 2 MIMO on n41
LTE Category
Down Cat 16/ UP Cat 18
LTE-FDD
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD
B34/B38/B39/B40/B41/B42/B43/B48
4GFrequency band LAA
B46(Only supports 2 × 2 MIMO)
Down 4 × 4 MIMO
B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
WCDMA
B1/B2/B3/B4/B5/B6/B8/B19
5G:
Modulation mode GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM
WIFI:
 1024-QAM / OFDMA

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1)Custom solutions for WIFI system
2)Replacement and enhancement of connectors, antennas, modules, and GPS systems
3)Custom logo design
4)Label creation and application
5).And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
