Description

5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.

The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.

specification

Key Features

5G Cellular
Built-in Qualcomm™ SDX62 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.

Wi-Fi 6 (802.11ax)
The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best network efficiency.

Higher Wireless Capacity
Dual-band 4 spatial streams, the CPE outputs 3000Mbps wireless bandwidth (600 + 2475), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.

Hybrid MESH+ Networking
The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.

5G Datasheet

5G Baseband: Qualcomm® Snapdragon™ X62 Modem-RF System Peak Downlink Rate:4.4Gbps Peak Uplink Rate:1500Mbps·
5G Network Modes: SA (standalone), NSA (non-standalone)
5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
5G Standards:3GPP Release 15
5G SA Sub-6 DL2.4 Gbps:UL 900 Mbps
5G NSA Sub-6 DL 3.4 Gbps; UL 550 Mbps
5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)

4G Datasheet

LTE Category:Down Cat 16/ UP Cat 18
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12 /B13/B14/B17/B18/B19 /B20/B25 /B26/B28/B29/B30/B32/B66/B71
LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
LTE Down 4 × 4 MIMO :B1/B2/B3/B4/B7/B25 /B30/B32/B34/B38/B39 /B40 /B41/B42/B43/B48/B66
WCDMA:B1/B2/B3/B4/B5/B8/B19
LTE :Down 1.6 Gbps;UP 200 Mbps

WIFI6 Datasheet

WiFi 6(802.11ax)

Working Radio: #1: 600Mbps @ 2.4GHz; #2: 2475Mbps @ 5.1-5.8GHz
Coding Technology:1024-QAM / OFDMA

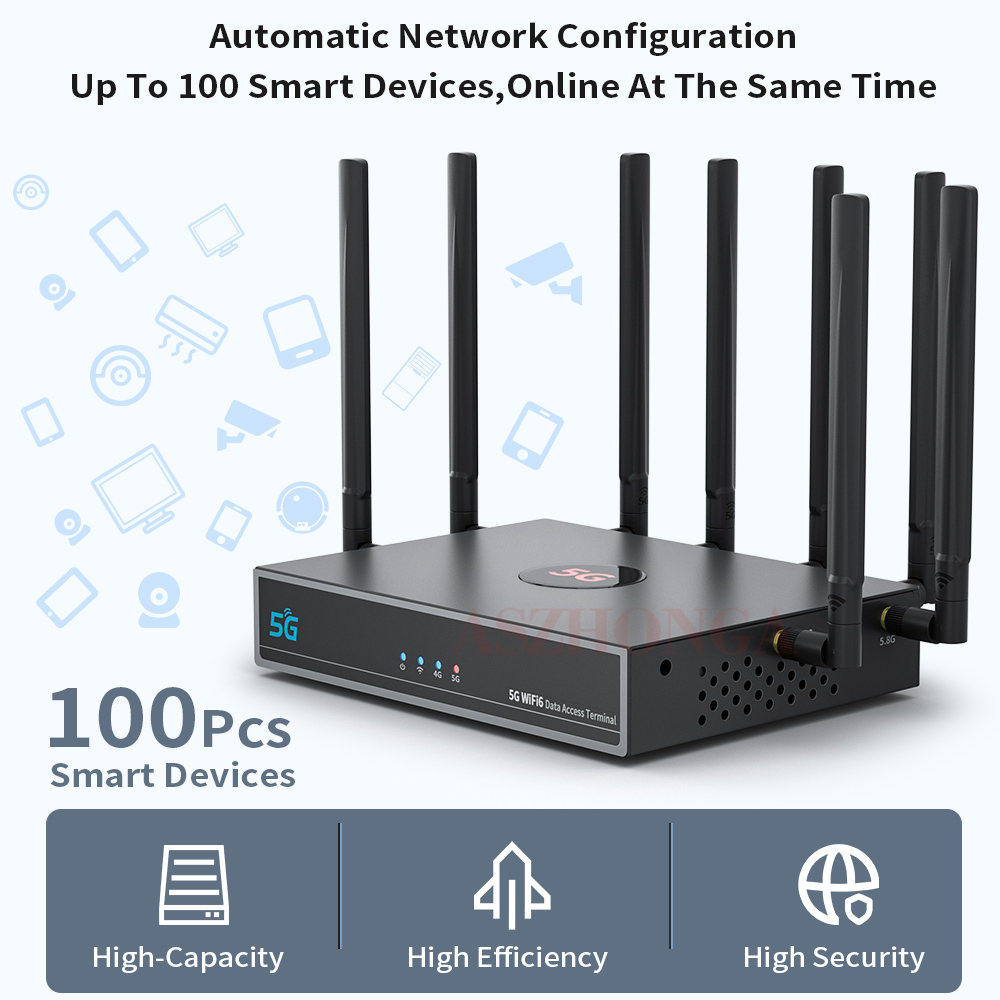

Peak Connections:>100+ Clients
Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward

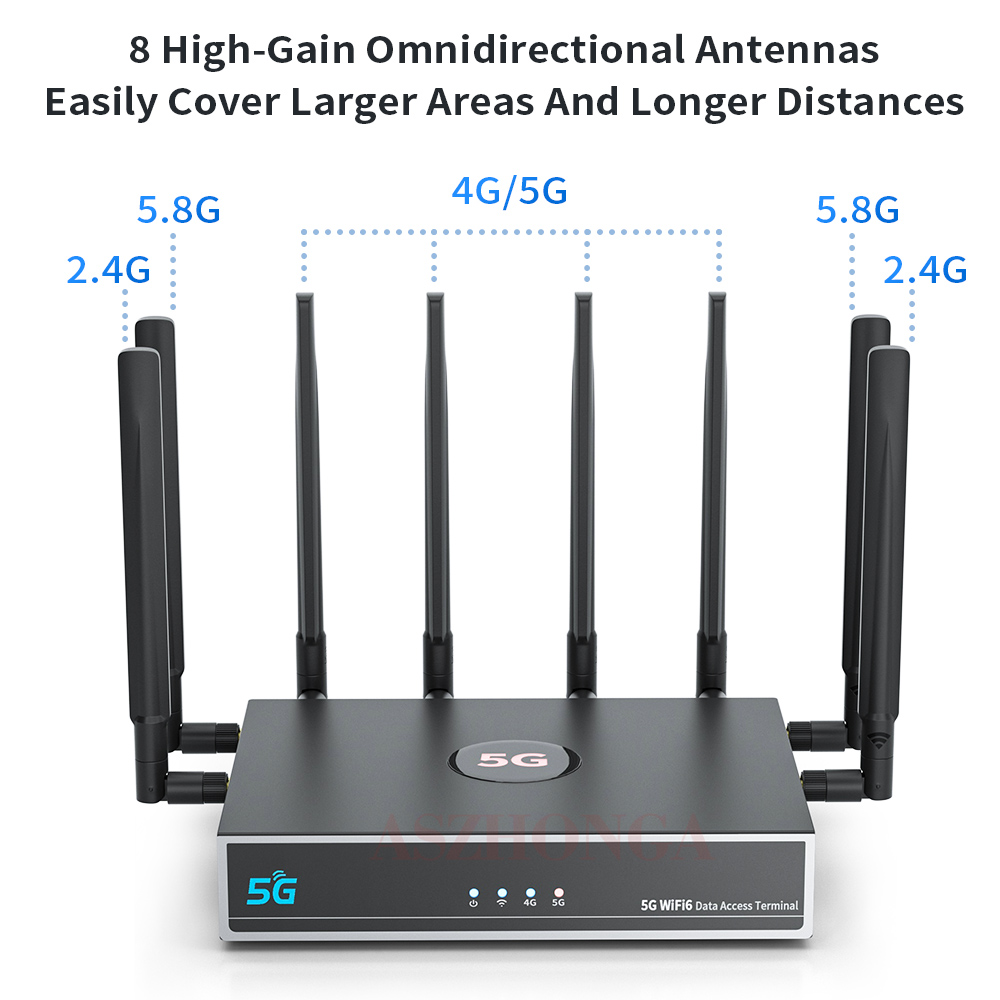

Antenna: 8 external detachable high-performance antennas.

Data Switching

Mobile 4G/5G Connection (Support APN)
Giga Ethernet Connection
MESH:MESH+ hybird
2.4G/5Ghz WiFi
Advanced Firewall
MAC Filter
WiFi Sercurity
VPN Passthrough and VPN Client (L2TP PPTP)
IPV4/IPV6
WEB / APP Mangement
Firmware upgrade

Hardware Specification

Chip:MT7981 +MT7976+MT7531

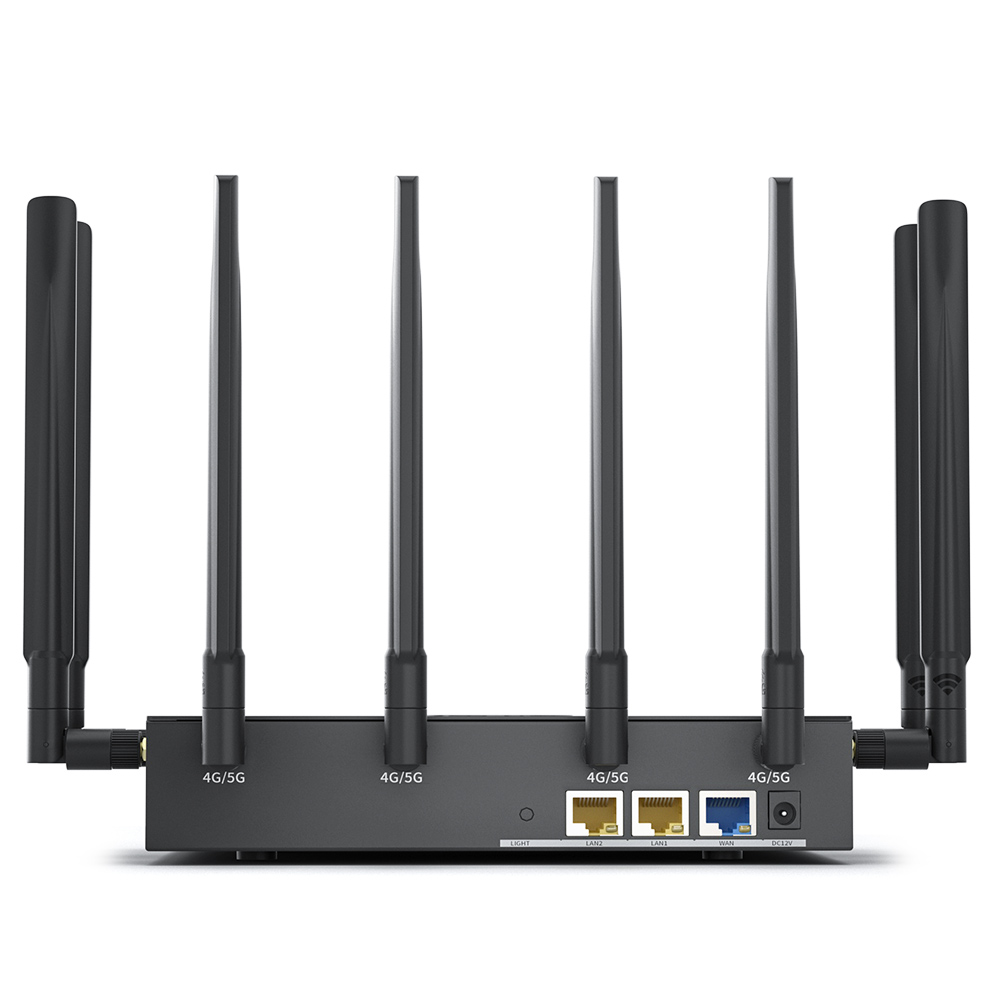

Ethernet:1*1Gbps WAN,2*LAN 1Gbps
1* SIM Slot(Nano-SIM)
Reset button
MESH+ Button
MESH+ LED Switch
LED Indicator
MESH+ Working Status (breathing light)
4G Status
5G Status
WiFi Status
Power Status
General
Power Consumption:<20W
DC Power Supply: 12V/2A
Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
Humidity:5%~95%
Dimensions:108X108X216MM

Model	MC02X62
CPU	MT7981B+SDX62
Flash	32MB
RAM	2Gb
WiFi Frequency	2.4G&5G
WiFi Standard	2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO
WiFi	2.4GHz :600Mbps ,5GHz :2475Mbps

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
