Description

750Mbps high speed rate
AP50 adopts Qualcomm QCA9531+QCA9887 chip, 2.4GHz&5.8GHz operating band, equipped with powerful 16M flash memory + 128M memory configuration, can support up to 32 terminals access, 2.4G 300Mbps, plus 5.8G 450Mbps collectively known as 750Mbps wireless network , faster download and upload speed, online surfing at will.

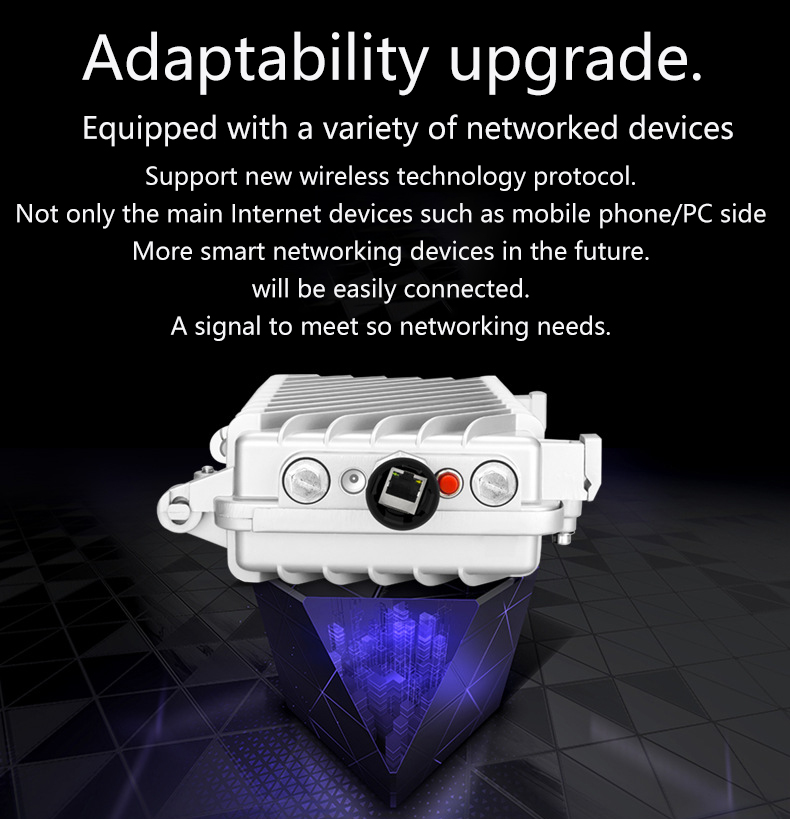

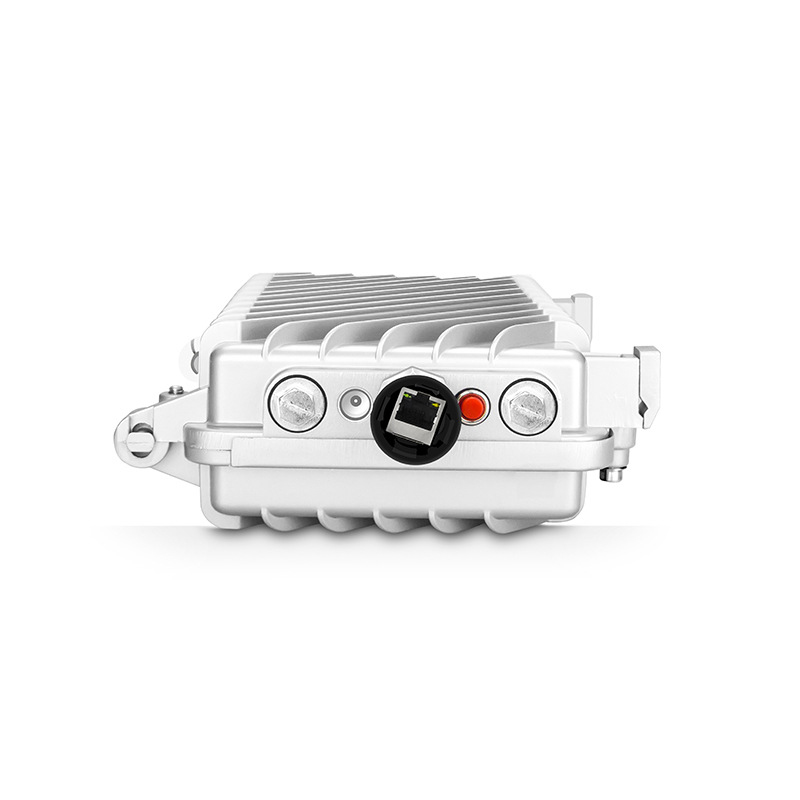

100 megabit adaptive wired network interface Support POE power supply
It provides one 10/100Mbps adaptive wired network interface, which can debug the AP itself while providing network, and supports 48V POE power supply when providing data transmission when it is elected to use 48V POE power supply.

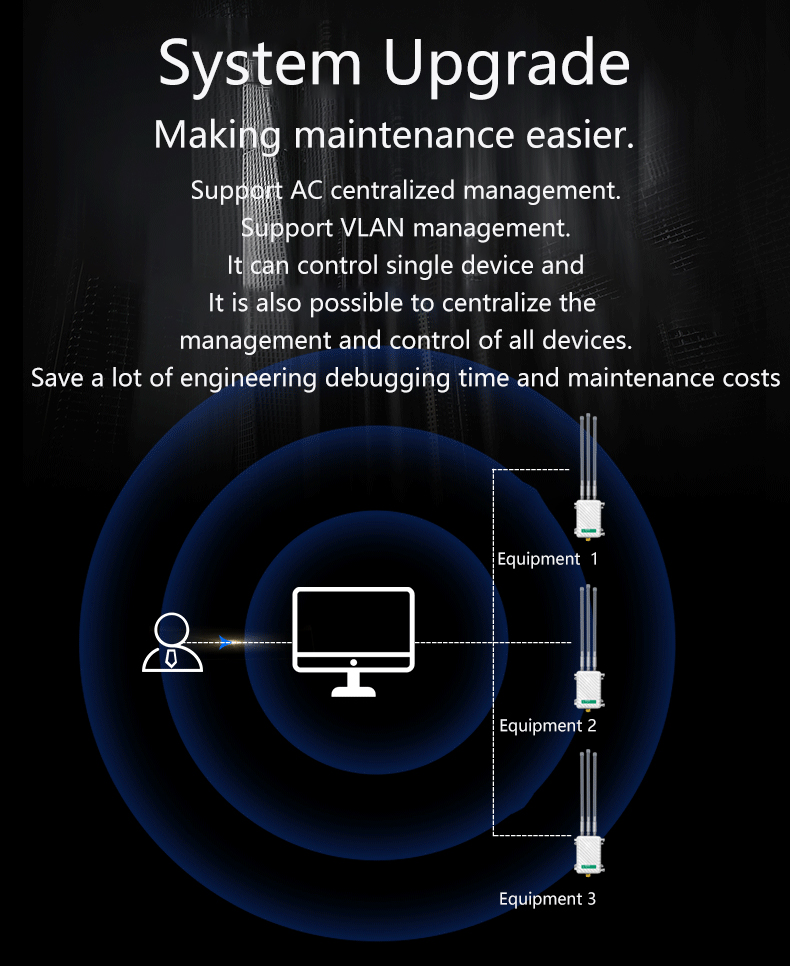

Various functions, support AC centralized management, support Chinese SSID
AP50 supports AC centralized management, through remote management, change configuration and other functions, so that large-scale network installation, engineering layout becomes more simple and convenient; support Chinese SSID signal name, set the WIFI name as the name of the merchant, so that customers can accurately search and connect to use; AP50 can automatically clean up the cache garbage, timing reboot, easier and more convenient to use.

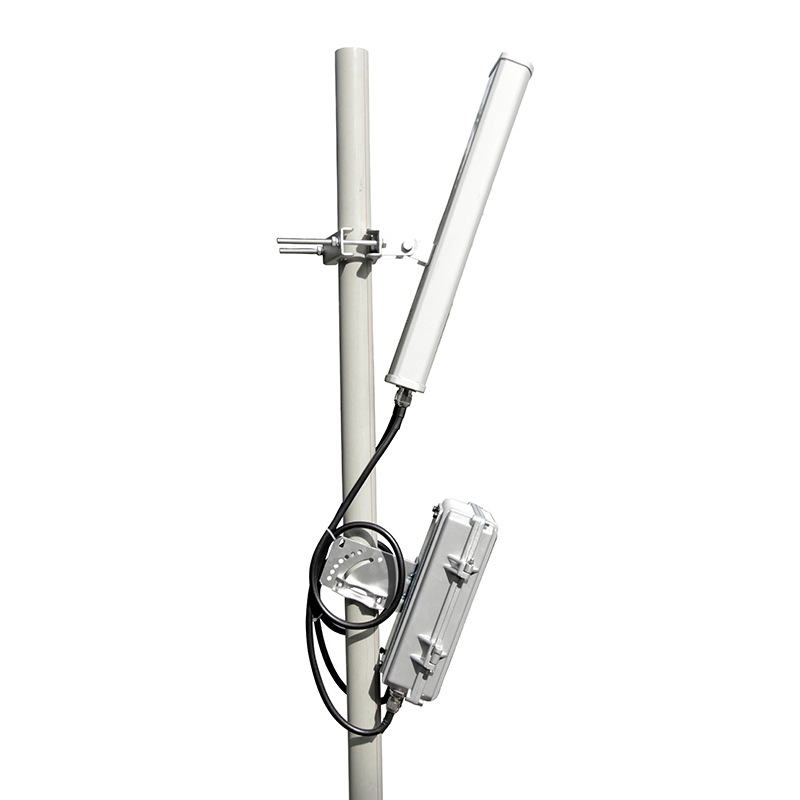

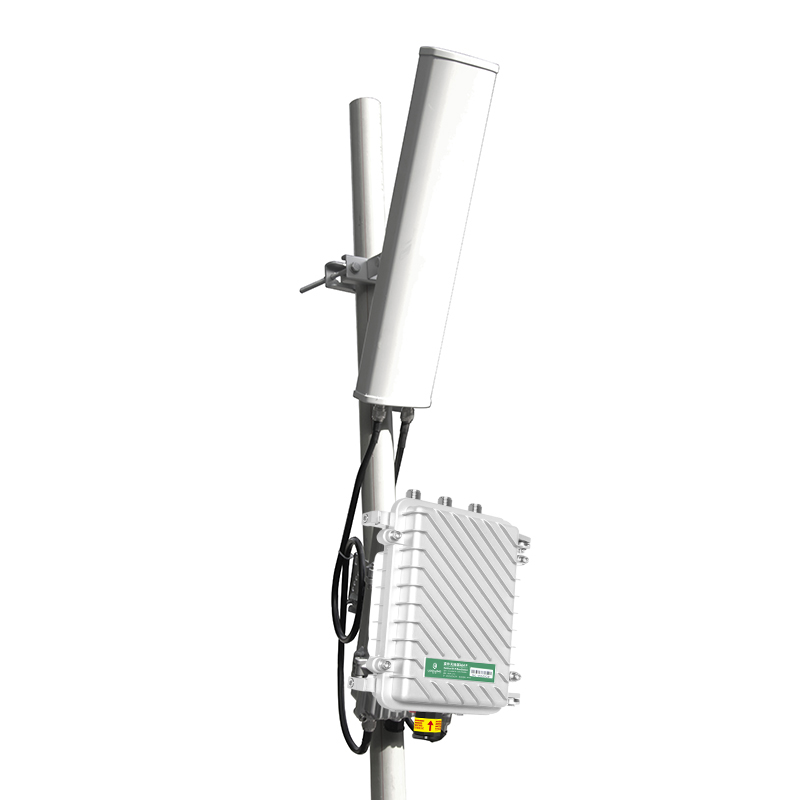

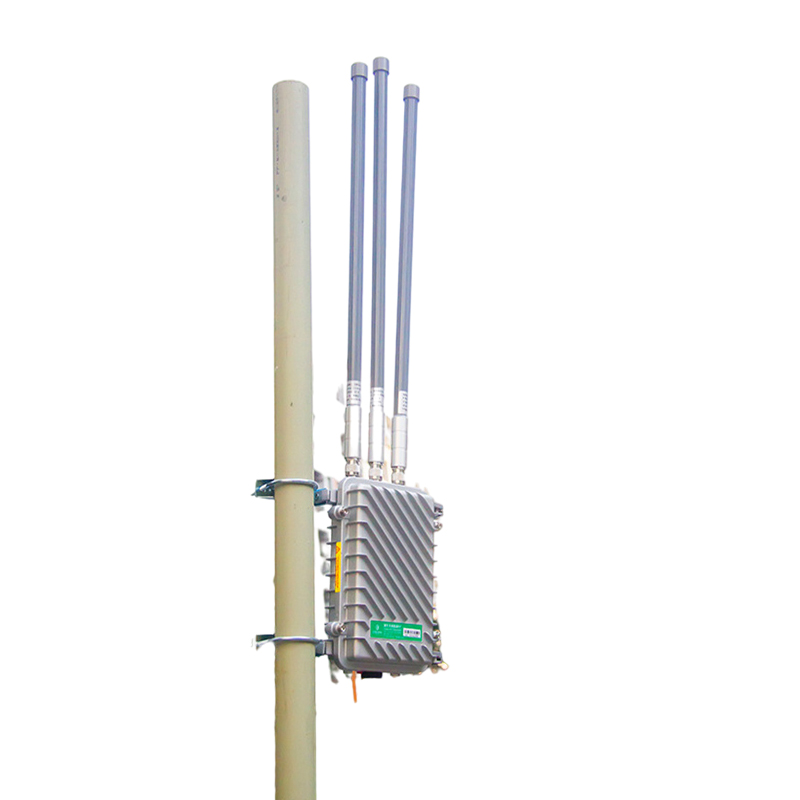

Adapt antenna with different functions according to demand

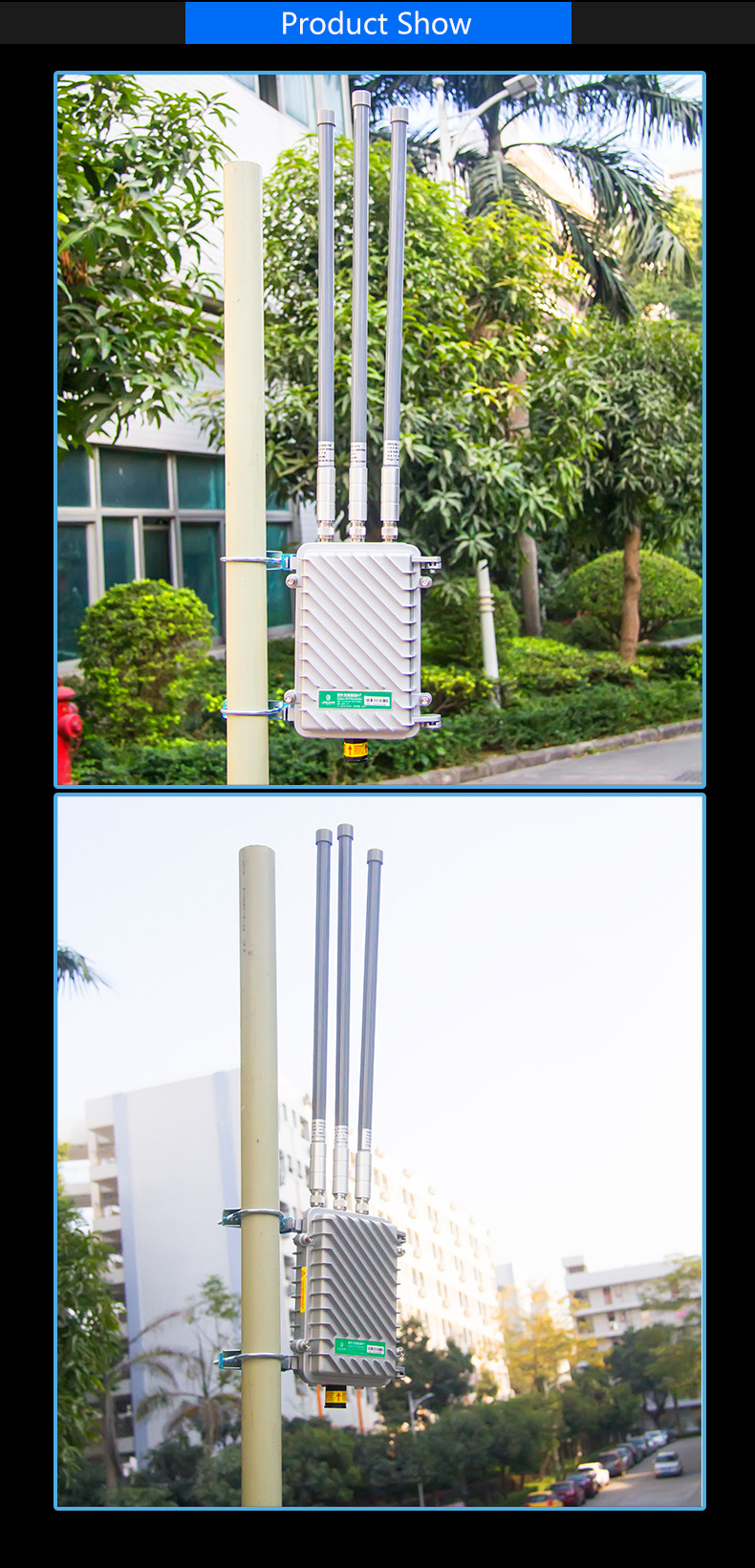

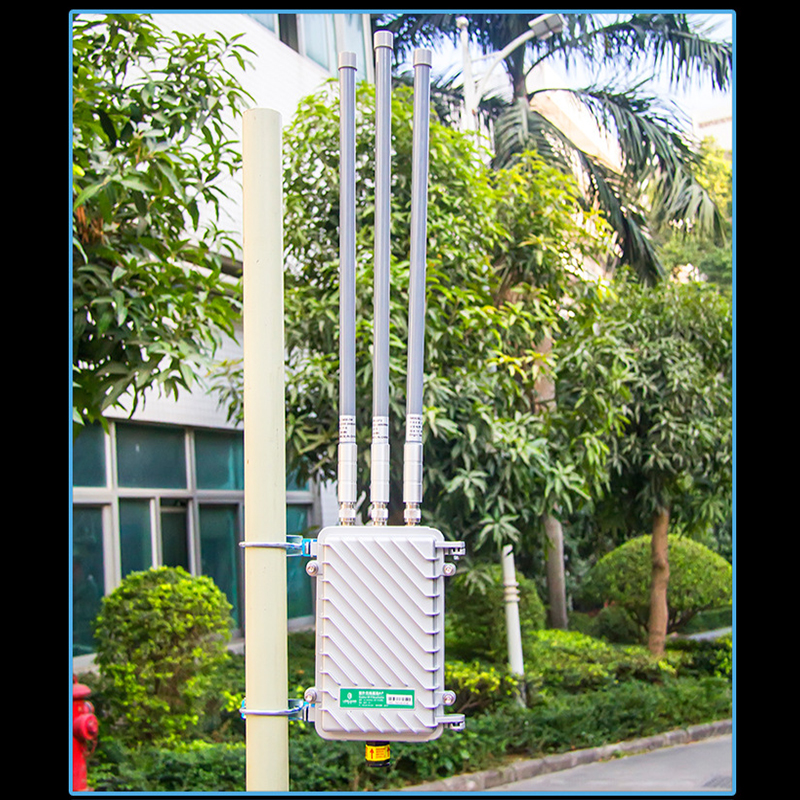

According to different needs, the effect varies when the host is equipped with different outdoor antennas. The recommended radius of omnidirectional transmission distance is 200 meters for 8DBi omnidirectional fiberglass antenna, 300 meters for 12DBi omnidirectional fiberglass antenna

specification

Hardware Configuration
Main Chip	QCA9531+QCA9887
Memory	128MB DDR2 RAM
Flash	16MB
Device Interface	1 x 10/100 Mbps adaptive wired network interface (supports 48V POE power)

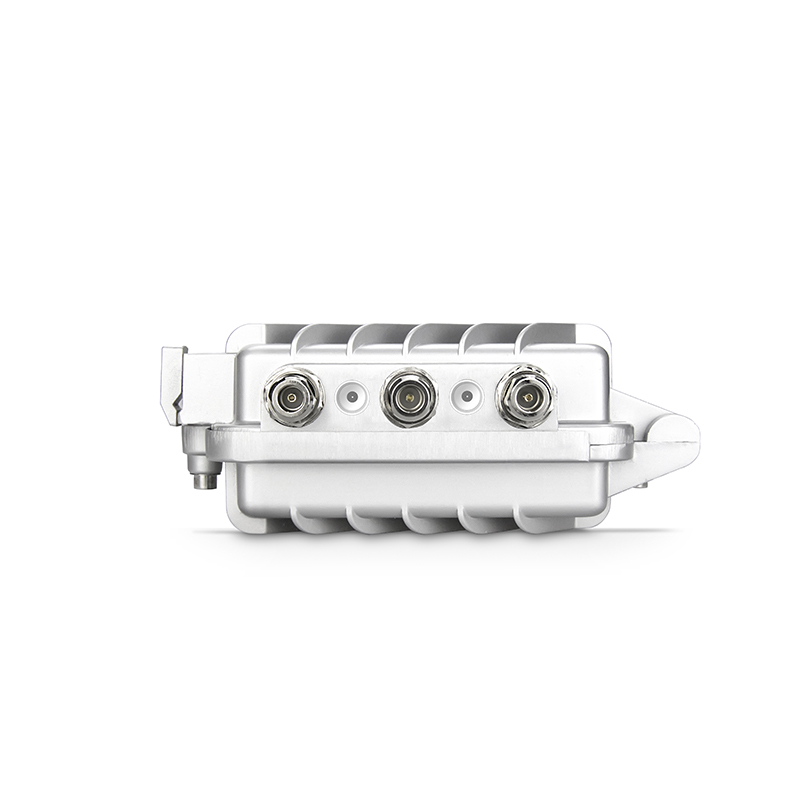

Antenna	External option
Product Size	Length 278mm,Width 195mm,Height 78mm
Power Adapter	Standard 48 V POE power supply
Software characteristics
Operating mode	Gateway Mode/AP Mode / Universal Trunking Mode
Communication standard	IEEE 802.3(Ethernet) IEEE 802.3u(Fast Ethernet) IEEE 802.11b/g/n(2.4G WLAN) IEEE 802.11a/n/ac(5.8G WLAN)
Wireless Settings	Intelligent channel analysis Distance control 802.1x ACK time output Multiple SSIDs, up to 4 configurable BSSID
Wireless Security	WEP security mechanism Support 64/128/152-bit WEP security password WPA/WPA2 security mechanism (WPA-PSK using TKIP or AES) WPA/WPA2 security mechanism (WPA-EAP using TKIP) Hidden SSID security mechanism
System Settings	WEB configuration (HTTP/remote login)
Software Upgrade	WEB page or TFTP to upgrade software
User Management	Configurable user and password
System Monitoring	Device and network status statistics
Logging	Provide local log, host log, file transfer log
Recovery Settings	Restore output default settings
Backup Functions	System configuration can be backed up to restore user configurations when needed
Physical Characteristics
Temperature Characteristics	Operating temperature: 0°C to 55°C Storage temperature: -20°C to 70°C
Humidity	5% to 95% (typical)

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.

Industrial Router

Home Router

Outdoor Wireless

Industrial Switch

The 5G Wi-Fi 6 router has remarkable features and is well recognized by the market!

Hotel wireless network construction plan

Scenic area wireless network construction plan

Rural wireless network coverage solution

AP50 dual band wireless AP

750Mbps Dual band wireless ap POE Power supply waterproof WAN network interface AP

Description

specification

FAQ

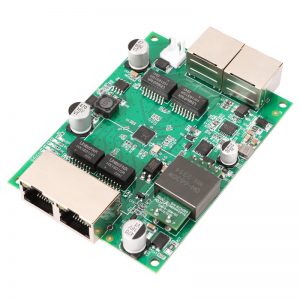

SW0402C switch module
