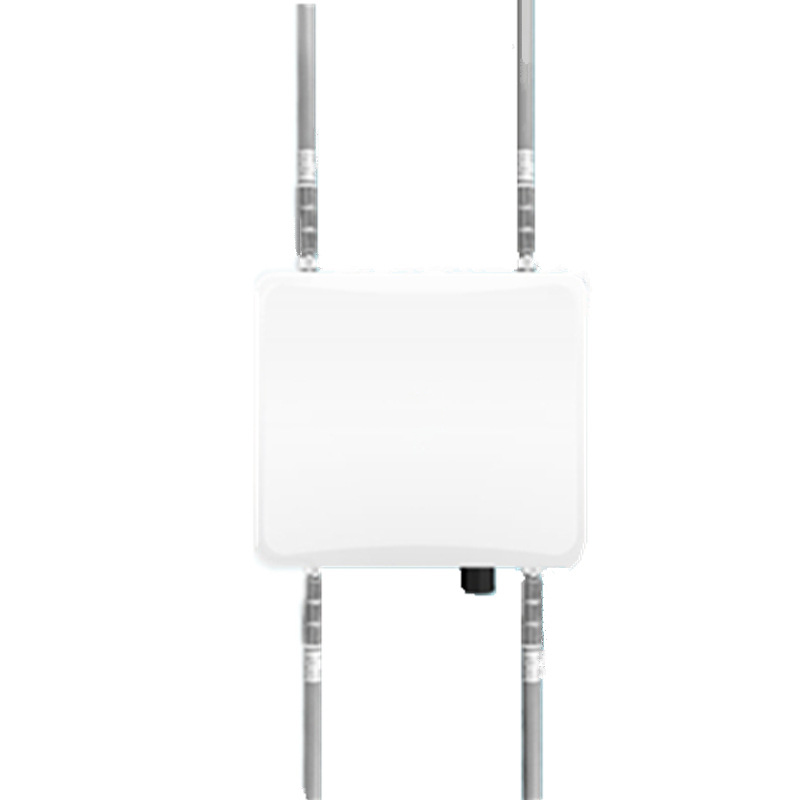

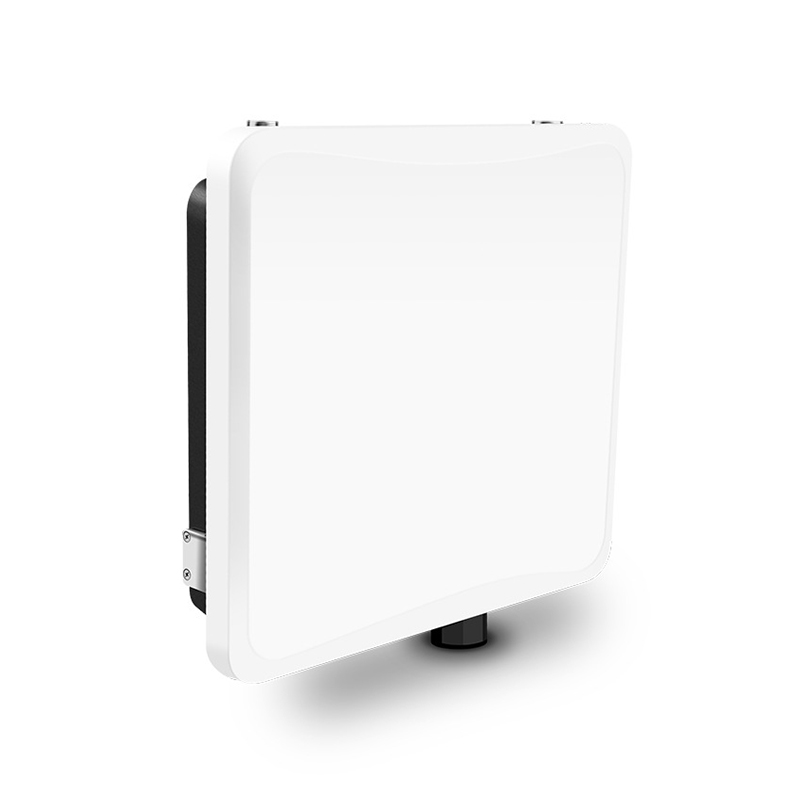

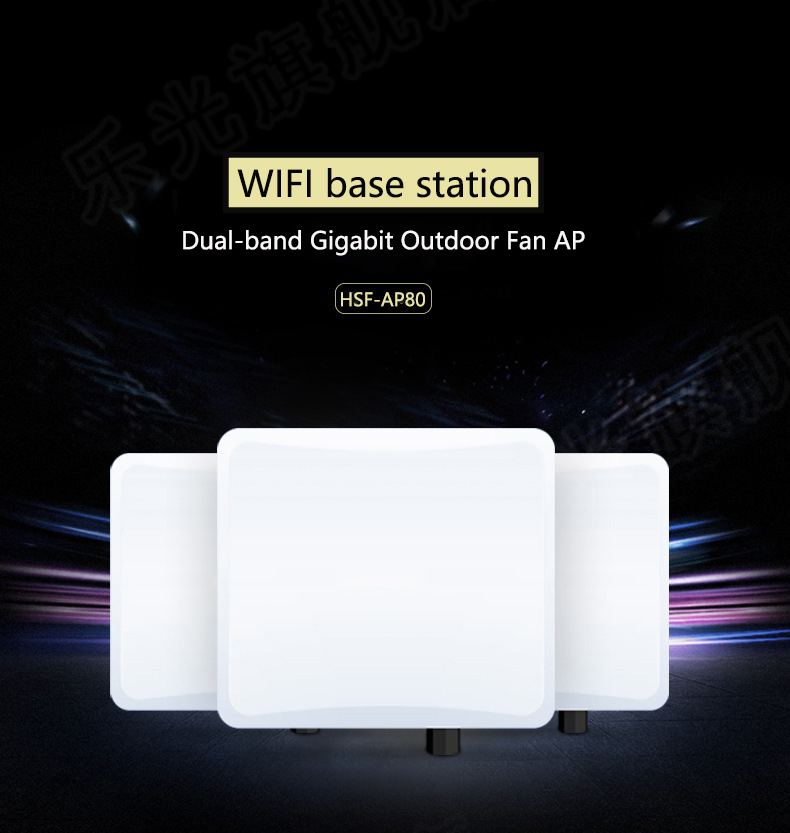

AP80 2.4G&5.8G Gigabit wireless ap

Dual band 2.4G&5.8G Gigabit wireless ap outdoor waterproof network AP up to 100 users

Product Features

1200Mbps high speed rate

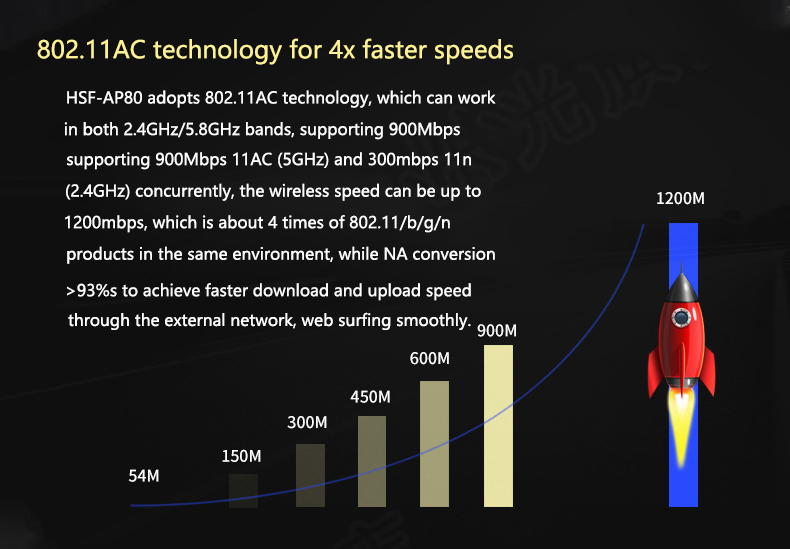

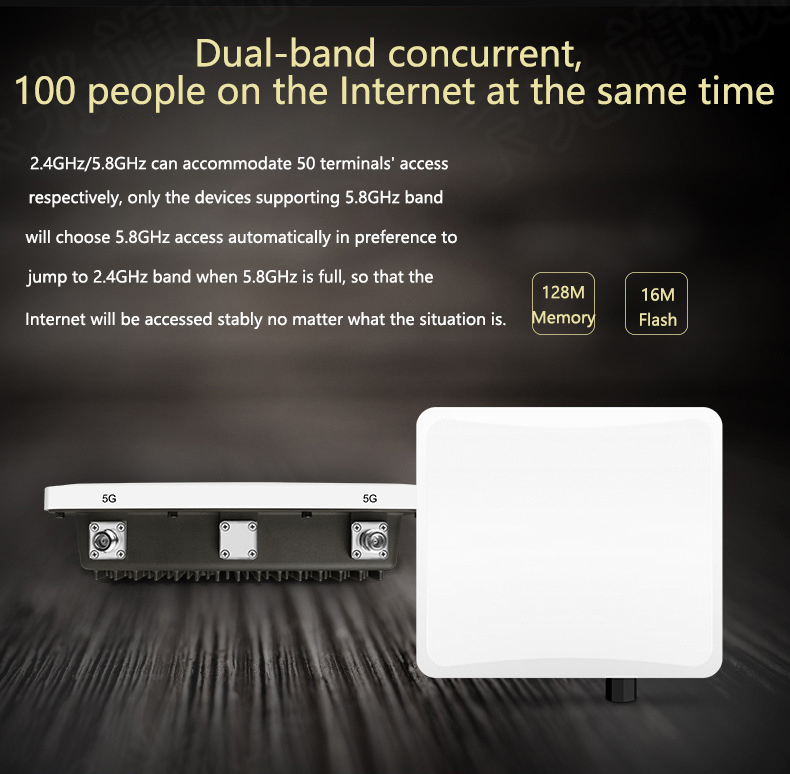

AP80 adopts Qualcomm QCA9563+QCA9886+QCA8337 chip, 2.4GHz +5.8G operating band, equipped with powerful 16M flash memory + 128M memory configuration, can support up to 80 terminals access, providing up to 1200Mbps wireless access speed, faster download and upload speed, online surfing at will.

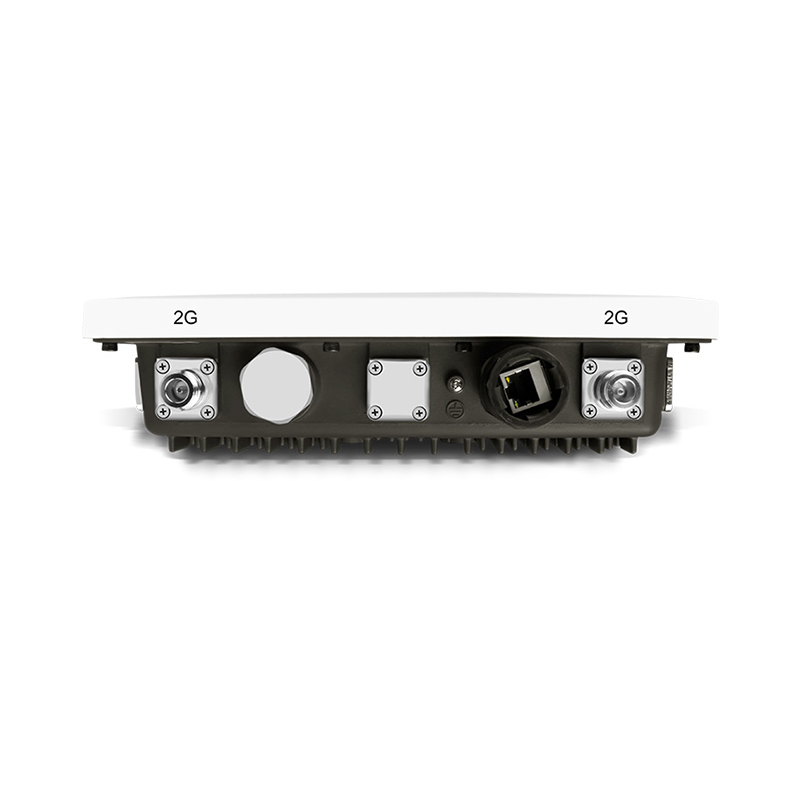

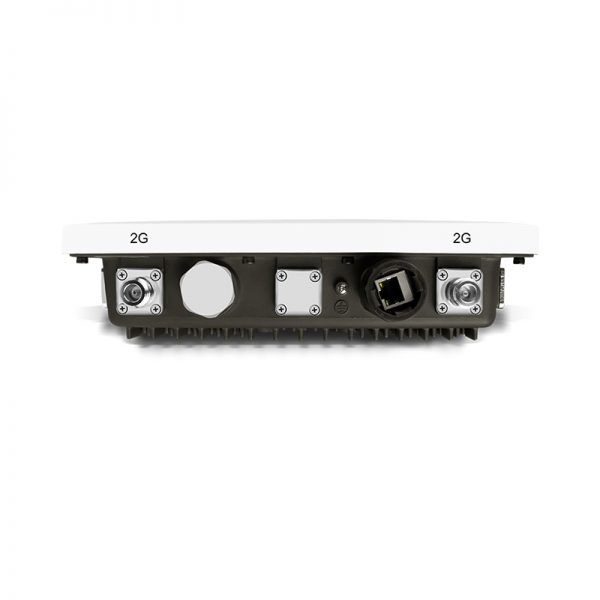

1000 megabit adaptive wired network interface Support POE power supply
It provides one 10/100/1000Mbps adaptive wired network interface, which can debug the AP itself while providing network, and supports 48V POE power supply when providing data transmission when it is elected to use 48V POE power supply.
Various functions, support AC centralized management, support Chinese SSID
AP80 supports AC centralized management, through remote management, change configuration and other functions, so that large-scale network installation, engineering layout becomes more simple and convenient; support Chinese SSID signal name, set the WIFI name as the name of the merchant, so that customers can accurately search and connect to use; AP80 can automatically clean up the cache garbage, timing reboot, easier and more convenient to use.

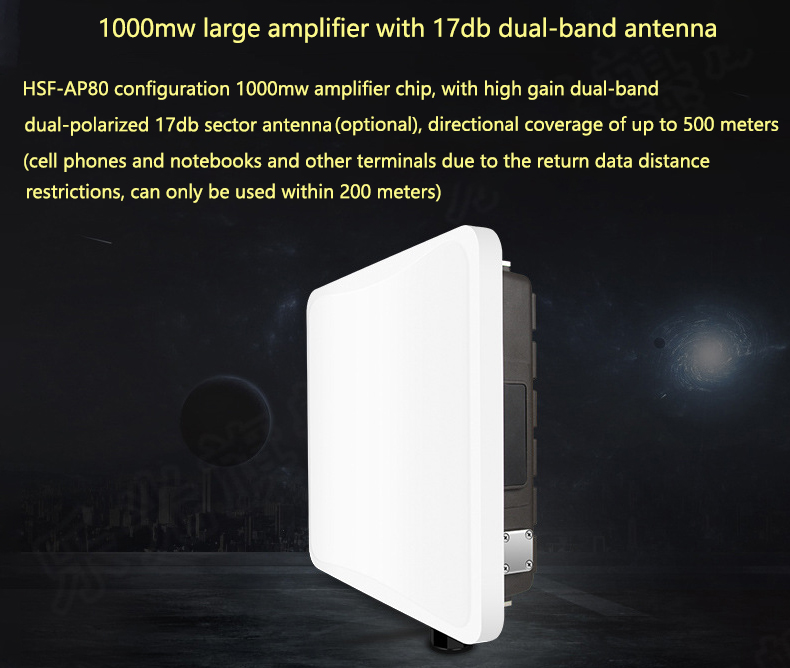

Adapt antenna with different functions according to demand
According to different needs, the effect varies when the host is equipped with different outdoor antennas. The recommended radius of omnidirectional transmission distance is 200 meters for 8DBi omnidirectional fiberglass antenna, 300 meters for 12DBi omnidirectional fiberglass antenna, and 700 meters for 14DBi sector antenna.

Facebook Twitter Youtube

Description

Parameters

Hardware Configuration
Main Chip QCA9563+QCA9886+QCA8337
Wireless Technology 802.11AC, 2T2R 1200M MIMO technology
Memory 128MB DDR2 RAM
Flash 16MB
Device Interface 1 x 10/100 Mbps adaptive wired network interface (supports 48V POE power)
Antenna External option
Product Size Length 326mm,Width 270mm,Height 79mm
Power Adapter Standard 48 V POE power supply
RF Parameters
RF Characteristics 802.11a/b/g/n/ac: 2.4+5.8GHz
Korea, Japan, ETSI, FCC communication channel optional
Modulation Mode OFDM = BPSK, QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Transmission rate 1200 Mbps
Software characteristics
Operating mode Gateway Mode/AP Mode / Universal Trunking Mode
Communication standard IEEE 802.3(Ethernet)
IEEE 802.3u(Fast Ethernet)
IEEE 802.11b/g/n(2.4G WLAN)IEEE 802.11a/n/ac(5.8G WLAN)
Wireless Settings Intelligent channel analysis
Distance control 802.1x ACK time output
Multiple SSIDs, up to 4 configurable
BSSID
Wireless Security WEP security mechanism Support 64/128/152-bit WEP security password
WPA/WPA2 security mechanism (WPA-PSK using TKIP or AES)
WPA/WPA2 security mechanism (WPA-EAP using TKIP)
Hidden SSID security mechanism
System Settings WEB configuration (HTTP/remote login)
Software Upgrade WEB page or TFTP to upgrade software
User Management Configurable user and password
System Monitoring Device and network status statistics
Logging Provide local log, host log, file transfer log
Recovery Settings Restore output default settings
Backup Functions System configuration can be backed up to restore user configurations when needed
Physical Characteristics
Temperature Characteristics Operating temperature: 0°C to 55°C
Storage temperature: -20°C to 70°C
Humidity 5% to 95% (typical)

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
