Description

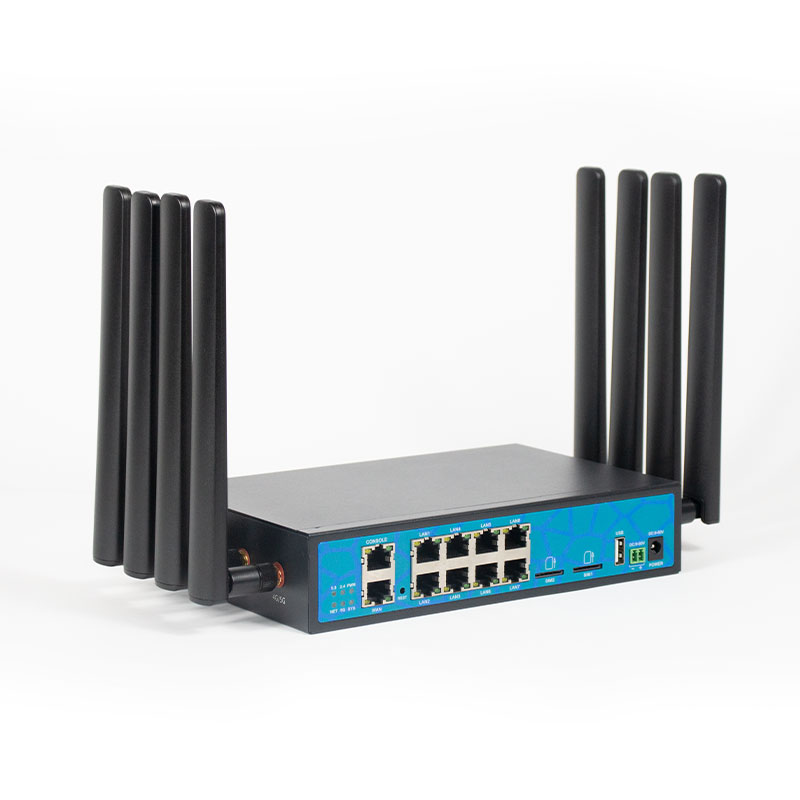

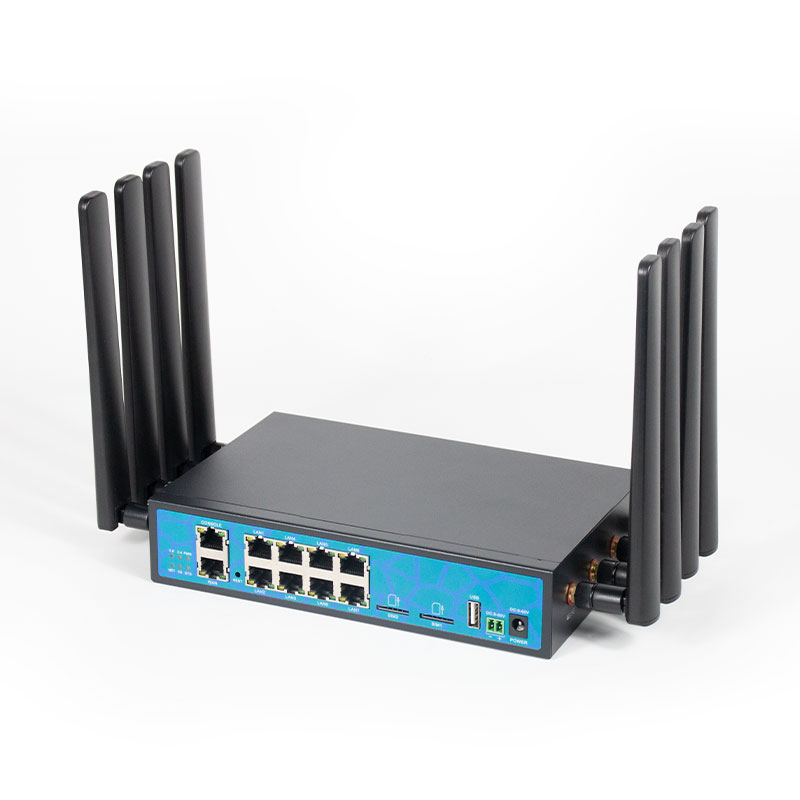

WS3080 is a Industrial 5G/4G+WIFI6 router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN

Hardware Description

Using MT7981B solution, ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ;
Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps;

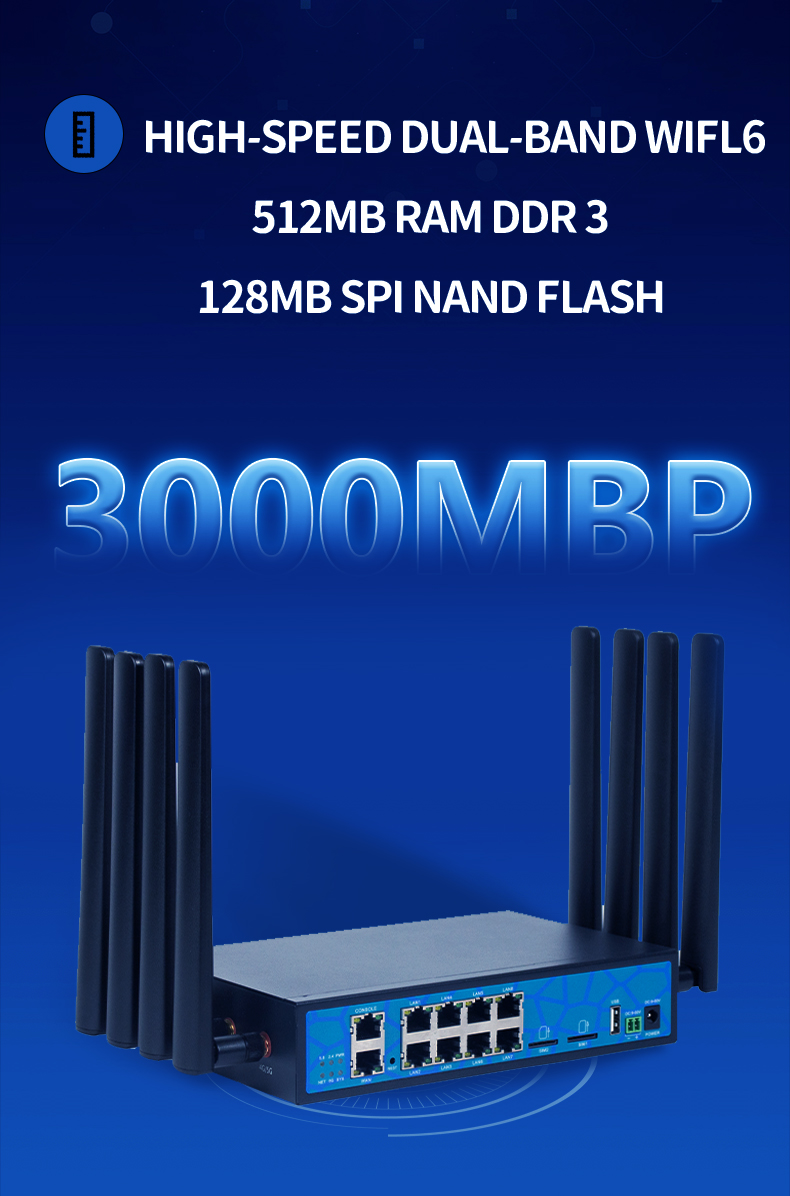

High-speed 512MB RAM, with 128MB SPI NAND Flash;

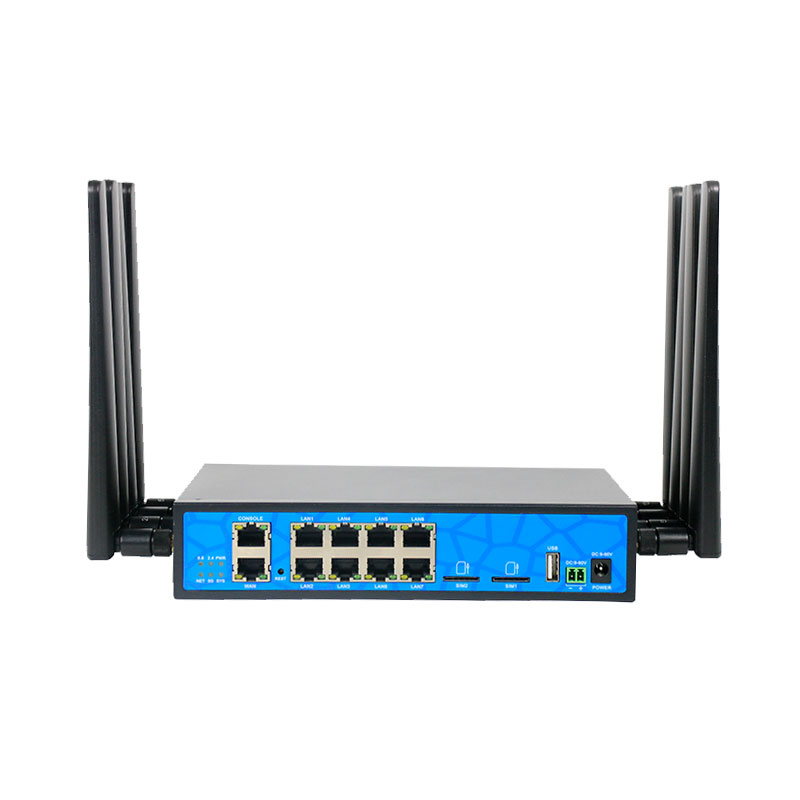

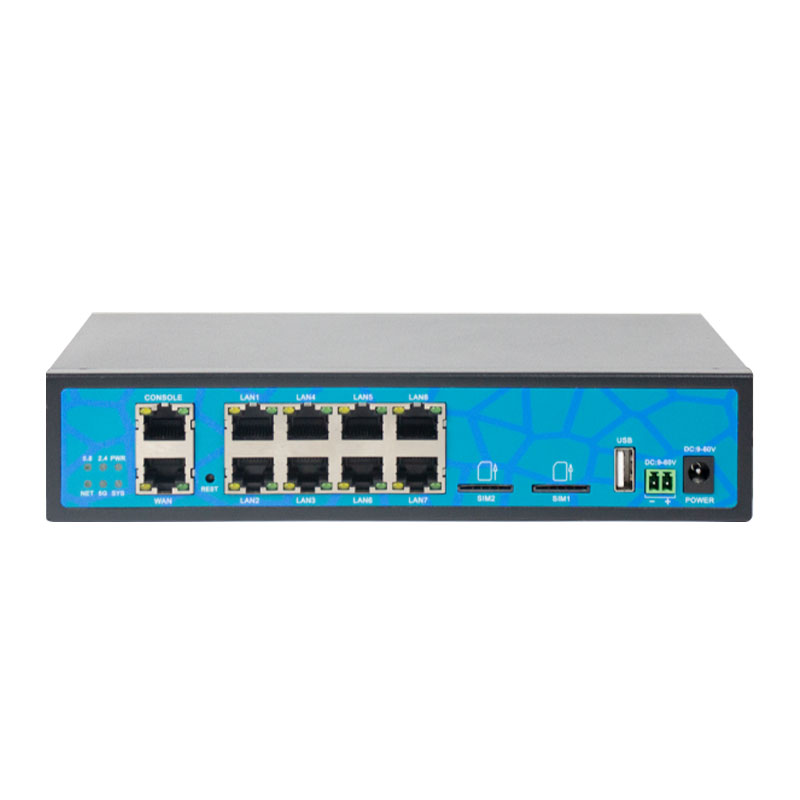

1WAN+8LAN 1000M adaptive network port, support automatic flip (Auto MDI/MDIX), 1 console port
1 USB 3.0 port
1 2pin Terminal port, 1 DC power port, support 9V-60V power
Support “one-key flashing mode”, long press the reset button to enter the rescue flashing mode;
Built-in M.2/Mini-PCIE standard interfaces (choose one of the two), which can be used to connect to 5G/4G mobile communication modules;

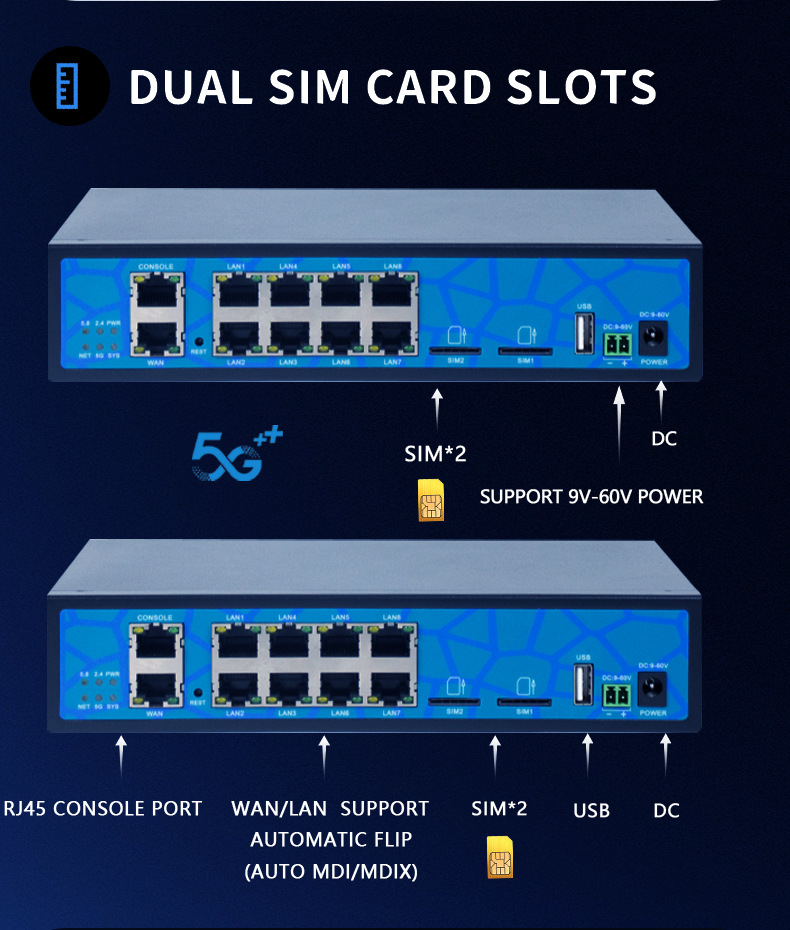

External standard SIM card interface, support 2 SIM card load balance
External high-gain WIFI antenna, 360-degree wireless signal without dead angle

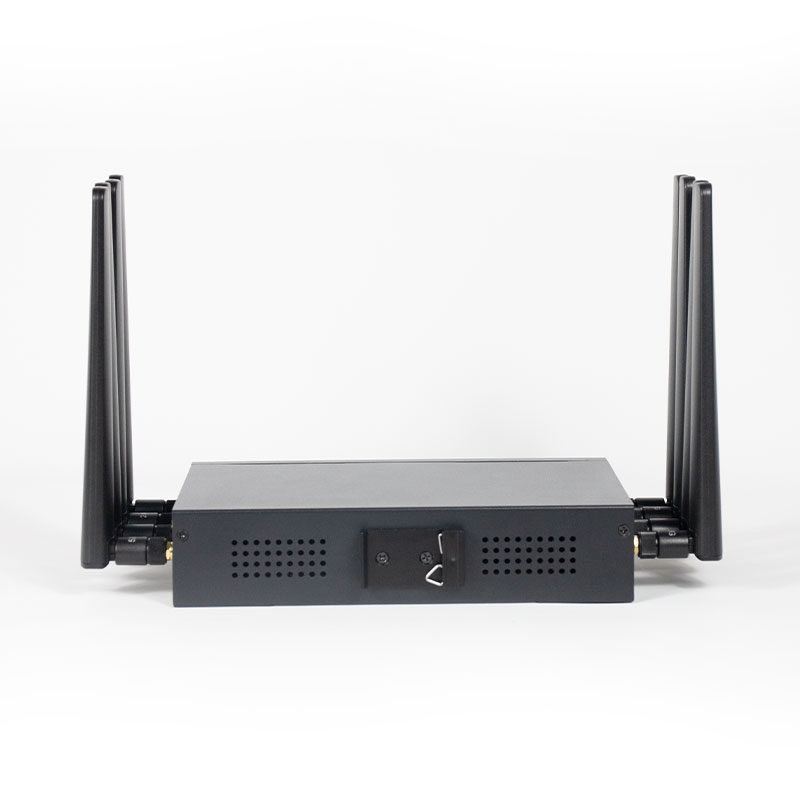

DIN Rail Clip
Preload openWRT system, support flash customer’s firmware

Hardware watchdog function introduction

WS3080 is designed with a hardware watchdog function. After the hardware watchdog is powered on, it will automatically start up and detect the heartbeat level output by the routing system that jumps once every second. If the routing system itself fails (such as a crash), it will also Naturally, the heartbeat level can no longer be output. At this time, if the hardware watchdog has not detected the heartbeat level within 120 seconds, it will shut down by itself for 15 seconds and then restart the entire system.

When the routing system is running normally, but the 5G/4G module dialing is abnormal, the routing system will control the power supply of the 5G/4G module through GPIO, so that the module will automatically restart to fix the 5G/4G dialing abnormality.

specification

WS3080 Hardware Specifications
Hardware Specifications	Processor:MT7981B ARM Cortex-A53 dual-core CPU, 1.3GHZ main frequency RAM:DDR3 512MB Flash:SPI NAND Flash 128MB
WIFI Chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards	IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate	Dual-band concurrent up to 3000Mbps
Operating band	2.4GHz 5.8GHz
4G 5G Modem	5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps;UP 200 Mbps
5G NR	NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
5G NR	SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
LTE	LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
LTE	LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
UMTS	WCDMA B1/ 2/ 4/ 5/ 8/ 19
5G SA Sub-6 5G NSA Sub-6 LTE WCDMA	DL 2 Gbps; UL 1000 Mbps DL 2.6 Gbps; UL 650 Mbps DL 600 Mbps; UL 150 Mbps DL 42 Mbps; UL 11 Mbps
Output Power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm
Antenna	4* external omnidirectional 5dbi 5G/4G mobile communication antennas 2* external omnidirectional 5dbi 2.4G wifi antennas 2* external omnidirectional 5dbi 5.8G wifi antennas
Interface	110/100/1000Mbps WAN port, supports Auto MDI/MDIX Conforms to IEEE 802.3/802.3u/802.ab 810/100/1000Mbps WAN port, supports Auto MDI/MDIX Conforms to IEEE 802.3/802.3u/802.ab 1RJ45 Console port 1USB 3.0 port 2SIM card slots 1 M.2 1*PCIE Port
LED	5.8g/2.4g/PER/NET/5G/SYS
Button	1 Reset button,
Power adapter	1 DC5.5*2.1MM port, 1 2pins Terminal port, support 9V-60V power
Maximum power consumption	< 24W
Color scheme	Black
Accessories and Packaging	Egg separator paper tray 30258cm 1PCS Power adapter 12V/3A 1PCS Super Category 5 network cable *1PCS

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
