Description

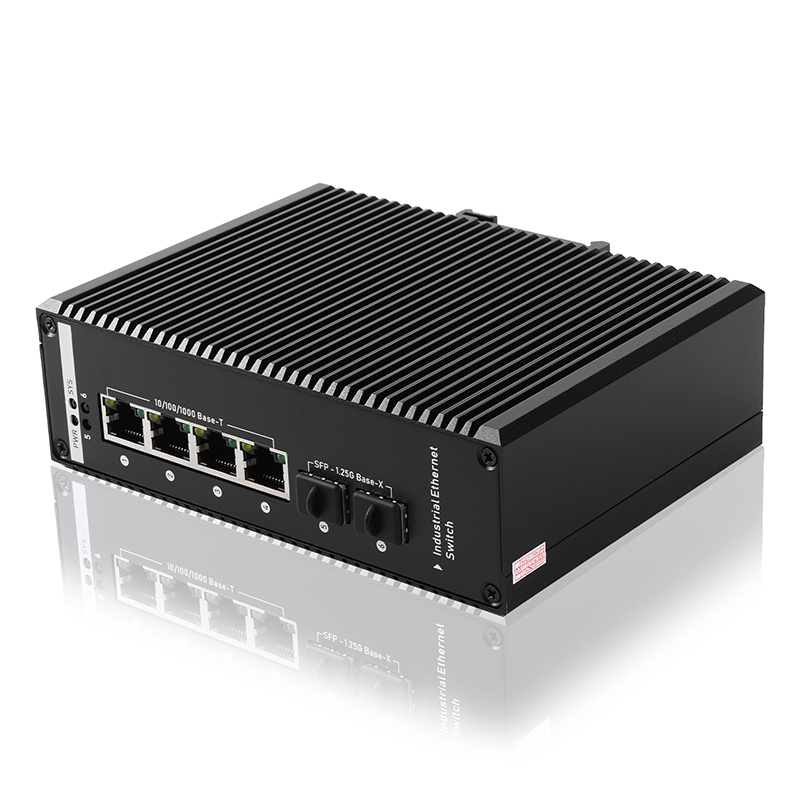

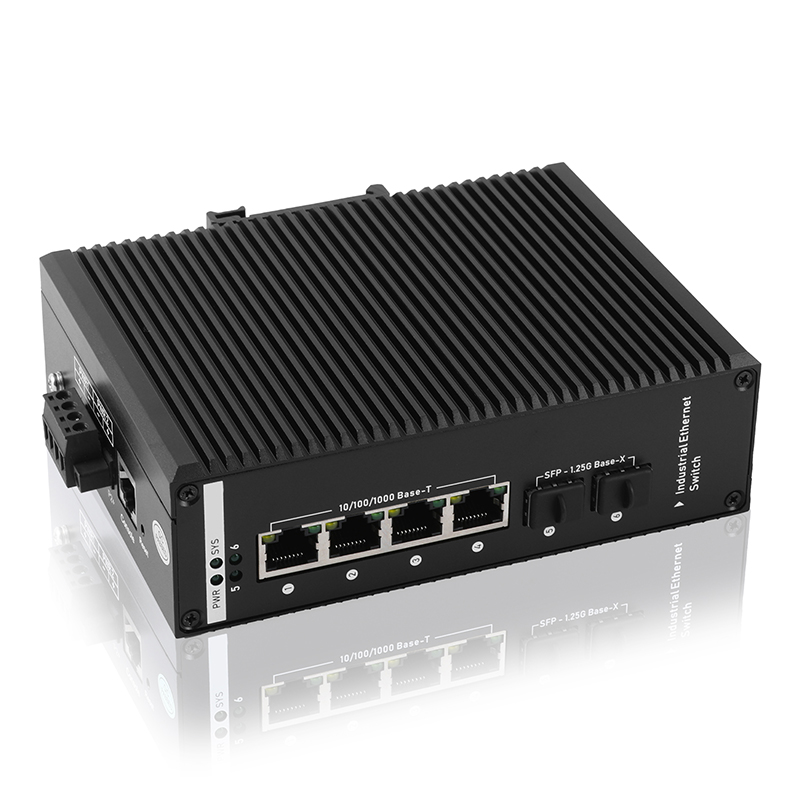

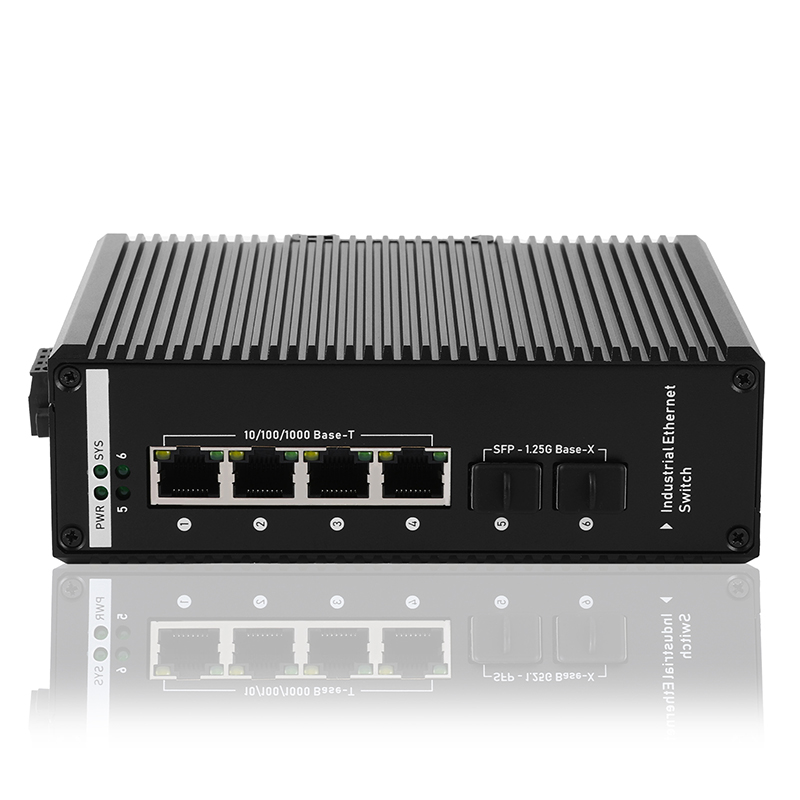

The M804GP-2SFP-I is a full Gigabit managed industrial PoE switch independently developed by HUASIFEI. it has 4*10/100/1000M PoE ports and 2*100/1000 SFP fiber slot ports , port 1-4 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W.
As a PoE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the PoE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment.
It is suitable for intelligent transportation, rail transportation, electric power industry, mining, metallurgy and green energy construction and so on.

Features

Supports IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x,IEEE802.3at,IEEE802.3af,IEEE802.3az.
Supports PoE power up to 30W for each PoE port.
4× gigabit PoE+ ports and 2× gigabit SFP.
Supports MAC address auto-learning and auto-aging.
Store and forward mode operates.
LED indicators for monitoring power, link/activity
Support QoS, port mirroring, link aggregation protocol.

specification

Model	M804GP-2SFP-I
Chipset	RTL8380MI+TPS23861
Standards	IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az, IEEE802.3af,IEEE802.3at
Number of Ports	4 x 10/100/1000Mbps ports 2 x 1000Mbps SFP ports 1x Console port
Network Media (Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF
Transfer Method	Store-and-Forward
MAC Address Table	8K
Switching Capacity	56Gbps
Packet Forwarding Rate	41.67Mpps
Packet Buffer	4.1Mbit
Jumbo Frame	12KBytes
PoE Ports(RJ45)	4x PoE ports compliant with 802.3at/af
Power Pin Assignment	1/2(+),3/6(-)

Indicators	Per Device	Power, System
	Per Port	Link/Activity,
Power Supply		48-56V DC
Power Consumption		Maximum(PoE on): 65W

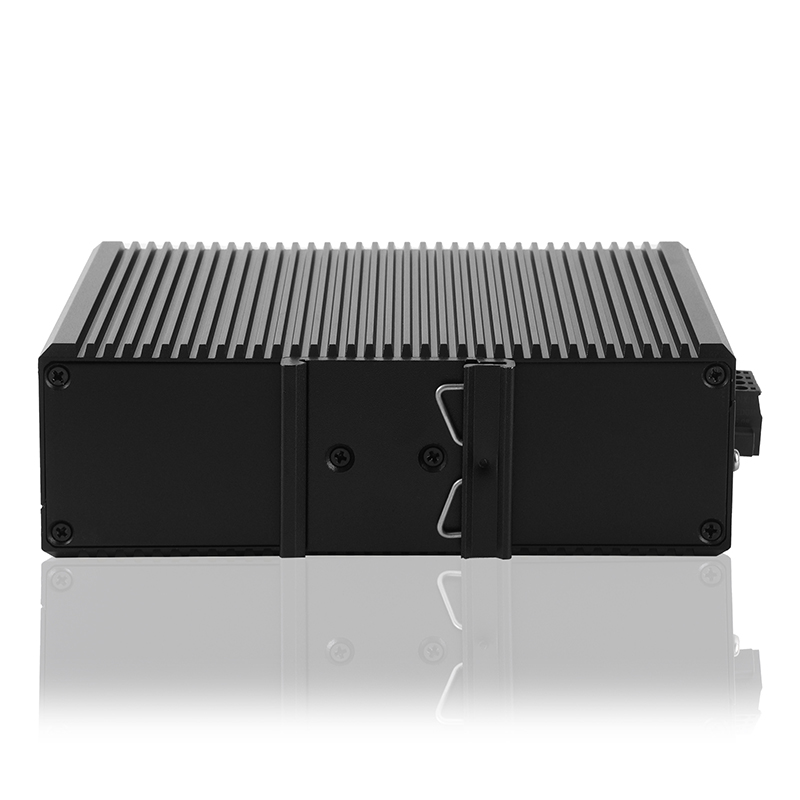

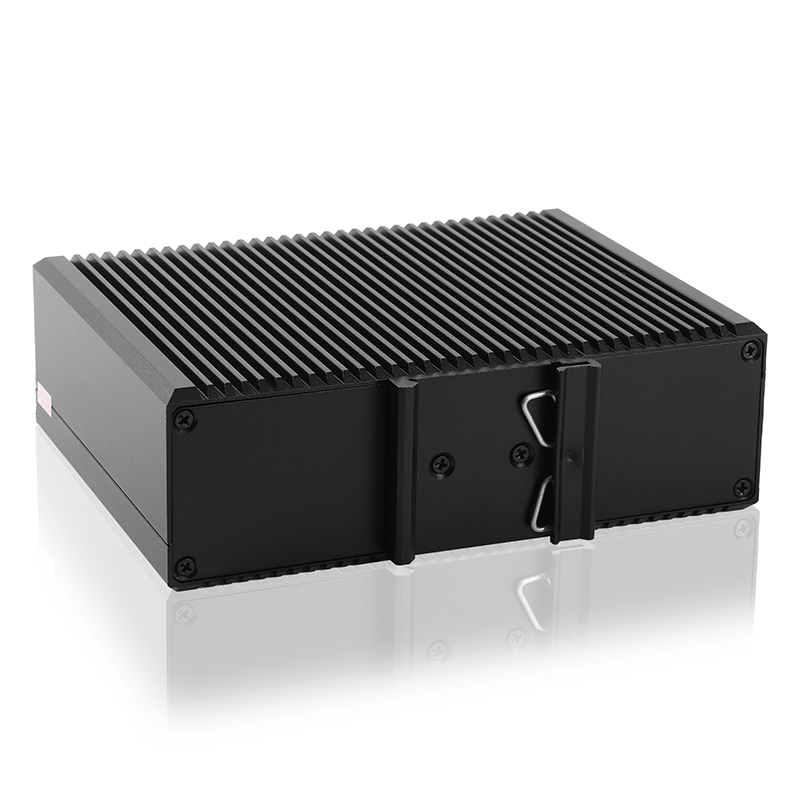

Dimensions (W×D×H)		150x110x48mm (Rail type Aluminum case)
Environment		Operating Temperature: -40℃~85℃ Storage Temperature: -40℃~85℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
