Description

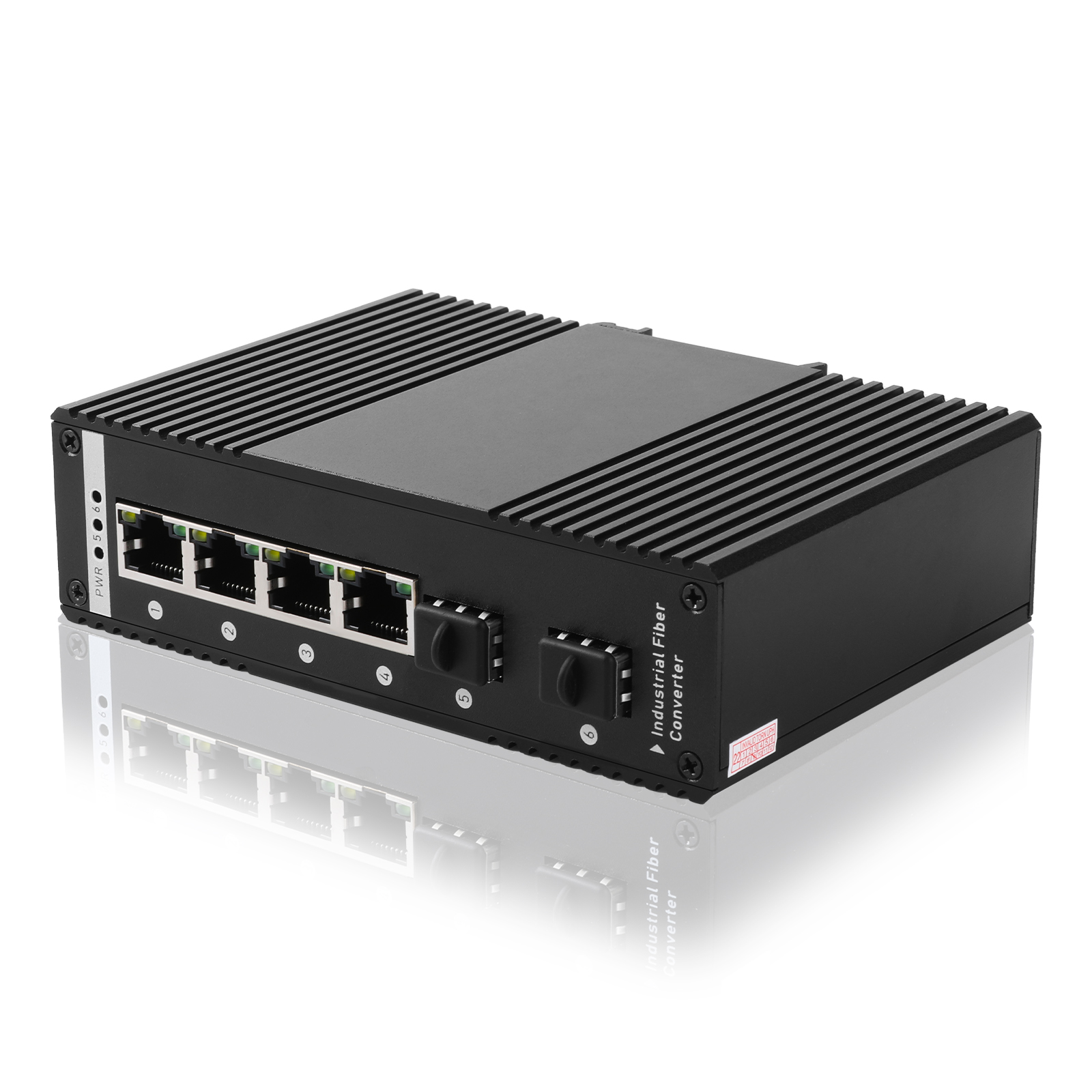

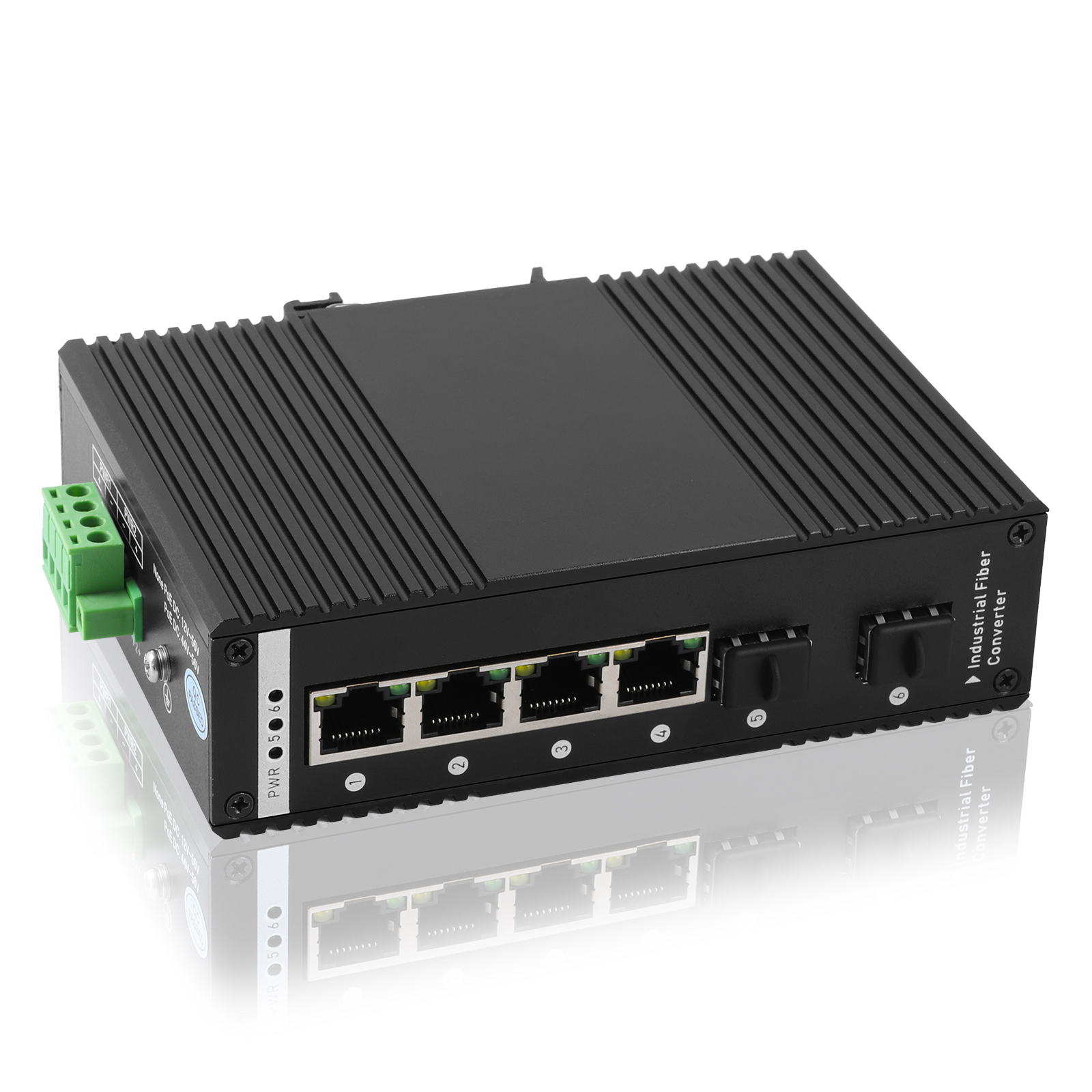

The M804G-2SFP-I is a full Gigabit managed industrial switch independently developed by HUASIFEI . it has 4*10/100/1000M RJ45 ports and 2*100/1000 SFP fiber slot.
With abundant layer 2 management features supported, the M804G-2SFP-I is capable of delivering high throughput to even the most demanding edge-of-network workgroups, while in small networks it can act as a backbone for gigabit switches and high-speed servers. 2 SFP slots provide greater network flexibility.
The M804G-2SFP-I is designed exclusively for the networking needs of growing businesses, with an extensive suite of management and security features available. These devices are cost-effective for small and medium-sized businesses, providing ideal solutions for a variety of network scenarios

Features

Supports IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x,IEEE802.3az.

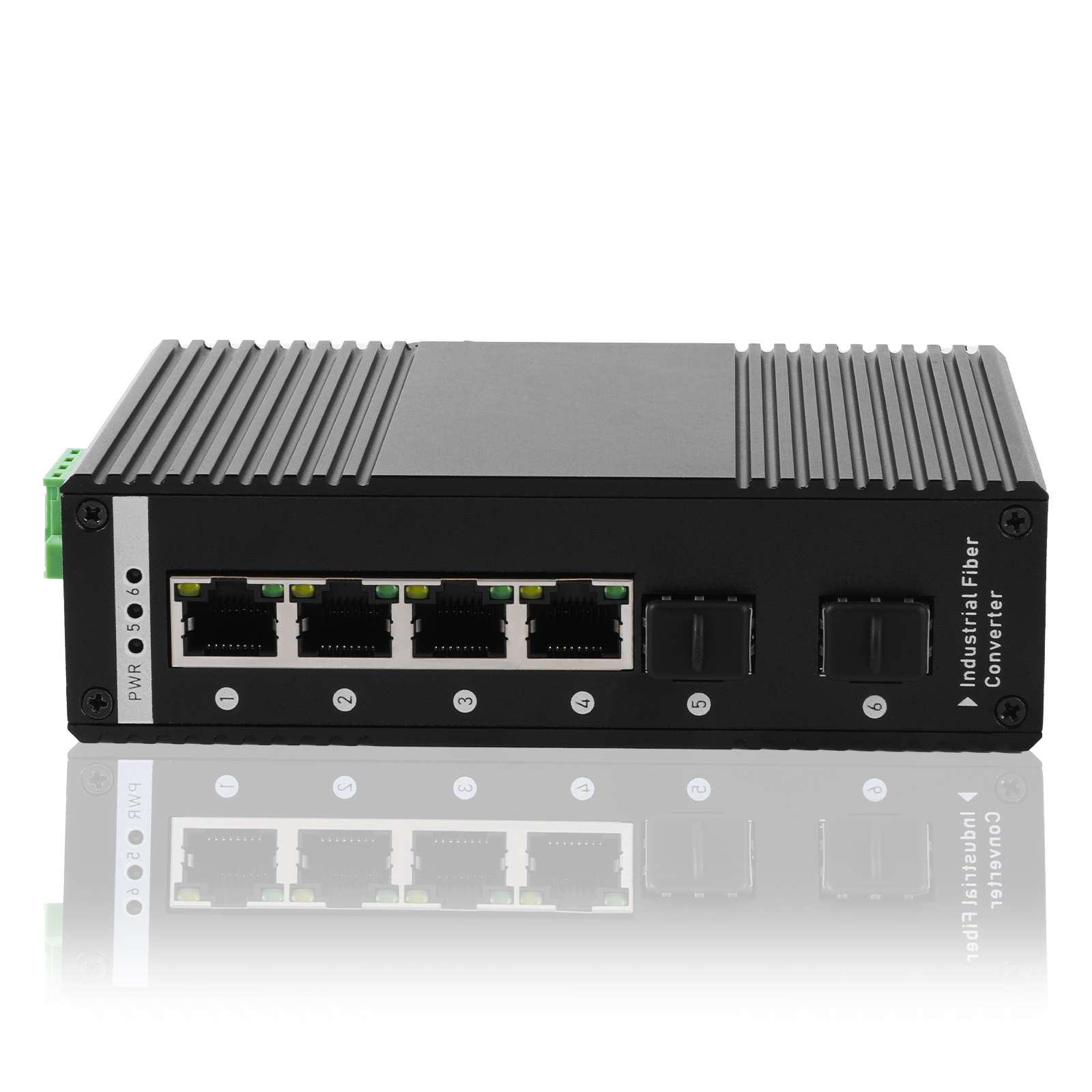

4× 10/100/1000BASE-T and 2× 1000BASE-X SFP.
Supports MAC address auto-learning and auto-aging.
Store and forward mode operates.
LED indicators for monitoring power, link/activity
Support QoS, port mirroring, link aggregation protocol.

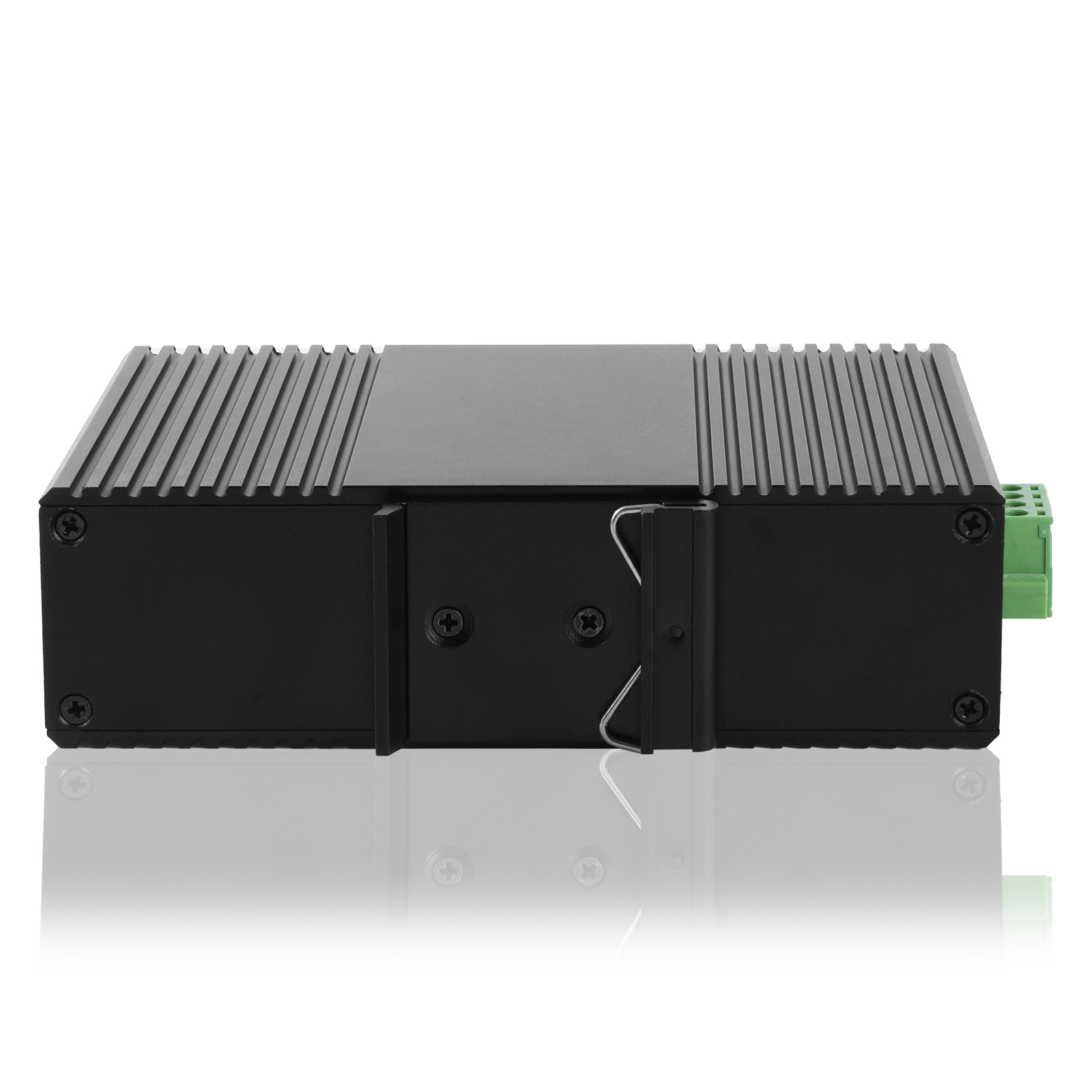

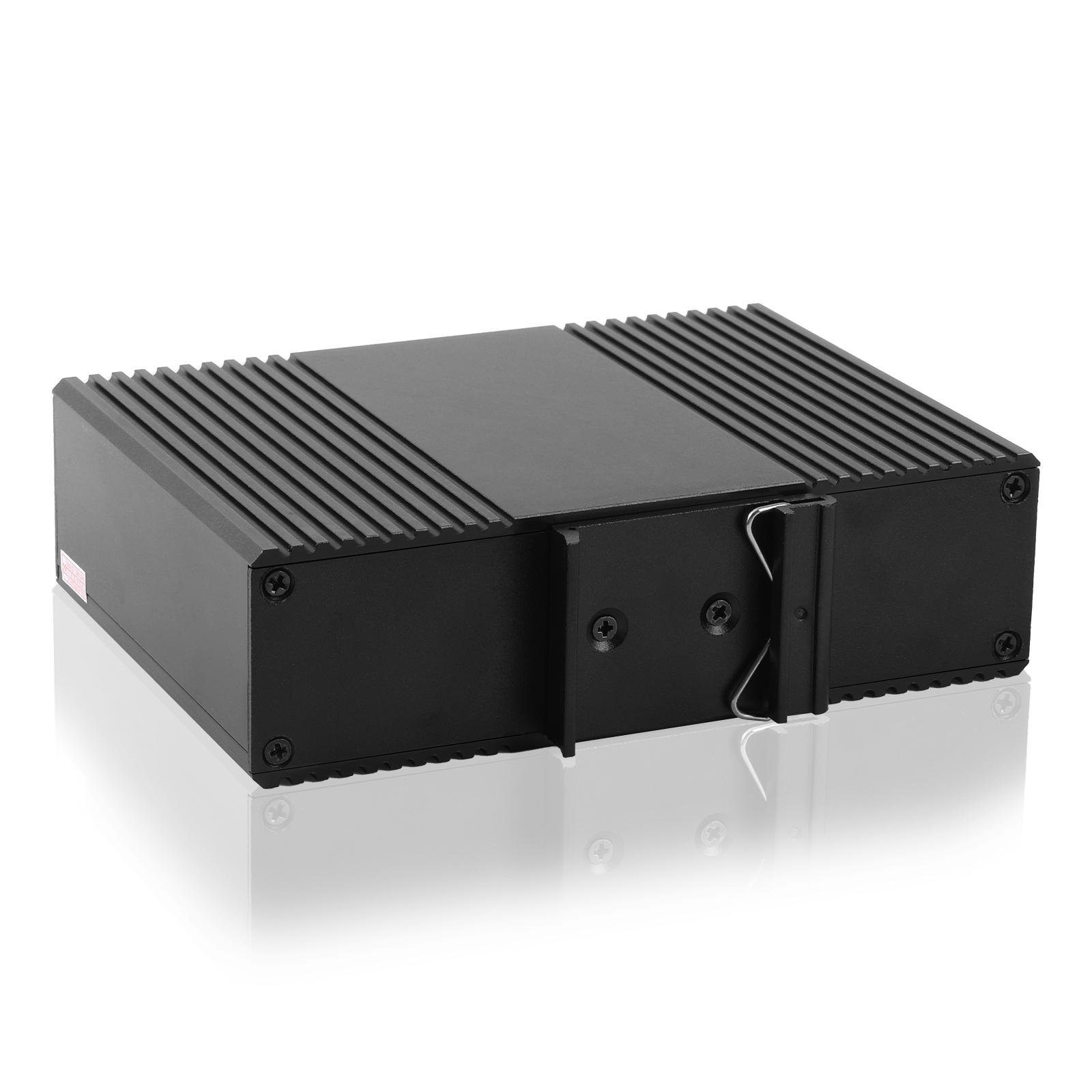

Rail mounted

specification

Model	M804G-2SFP-I
Chipset	RTL8380MI
Standards	IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az
Number of Ports	4x 10/100/1000Mbps ports 2 x 1000Mbps SFP ports 1x Console port
Network Media (Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF
Transfer Method	Store-and-Forward
MAC Address Table	8K
Switching Capacity	20Gbps
Packet Forwarding Rate	41.67Mpps
Packet Buffer	4.1Mbit
Jumbo Frame	12KBytes

Indicators	Per Device	Power, System
	Per Port	Link/Activity,
Power Supply		12V-56V DC
Power Consumption		Maximum: 10W

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
