Description

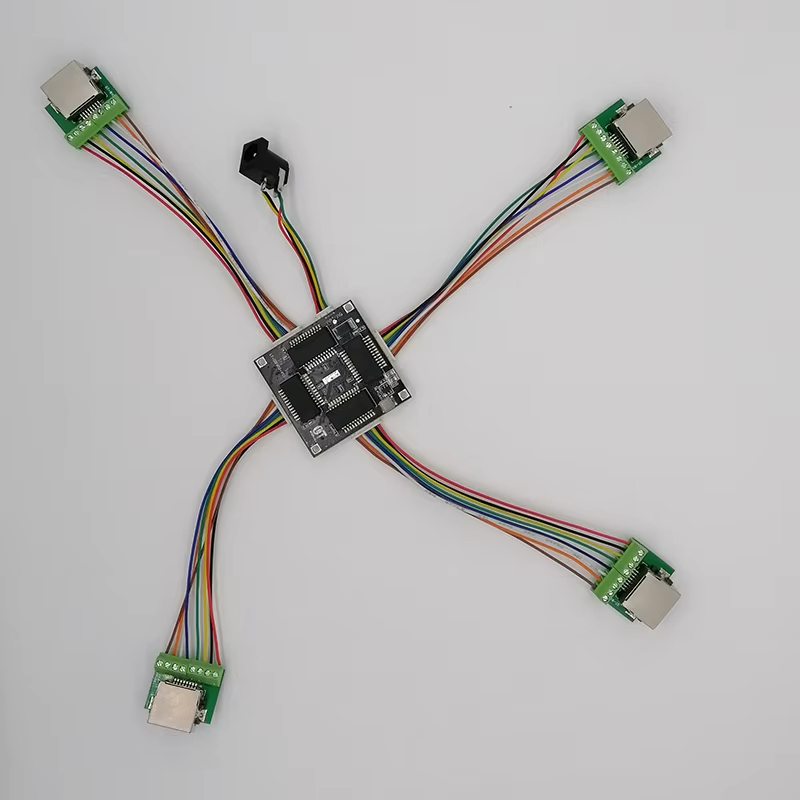

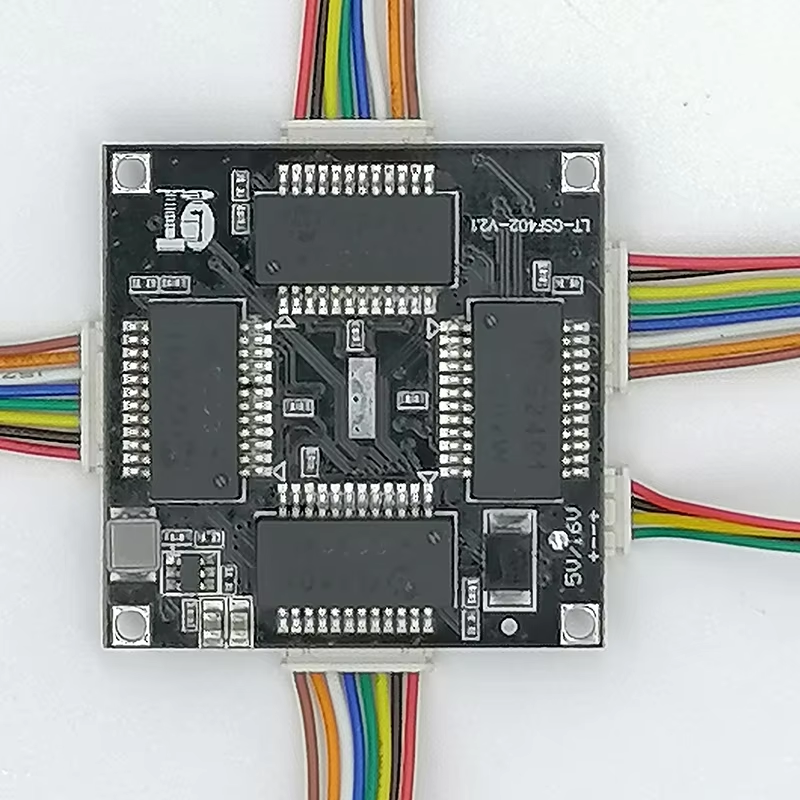

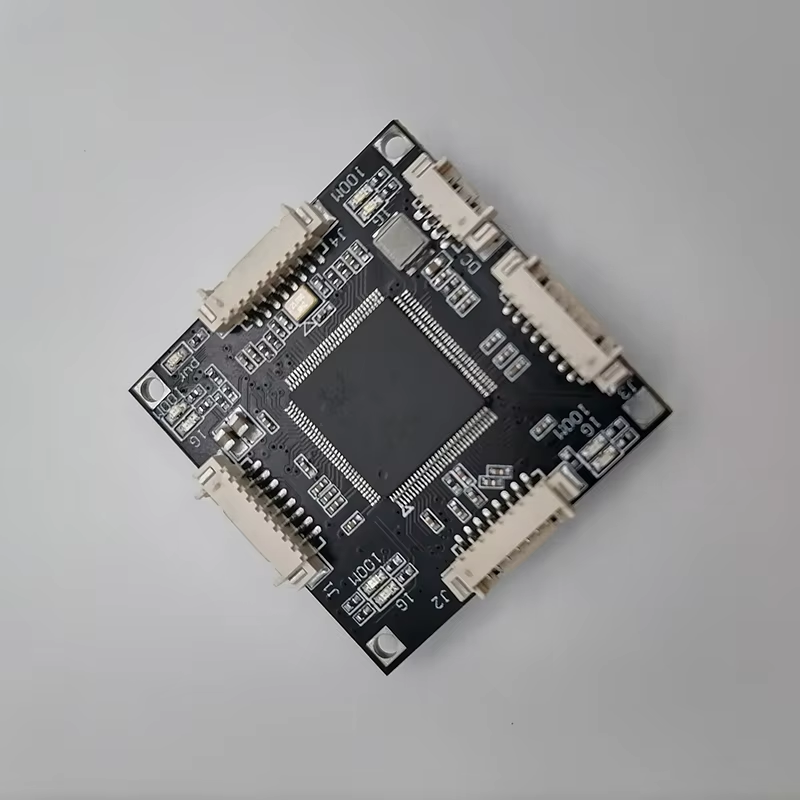

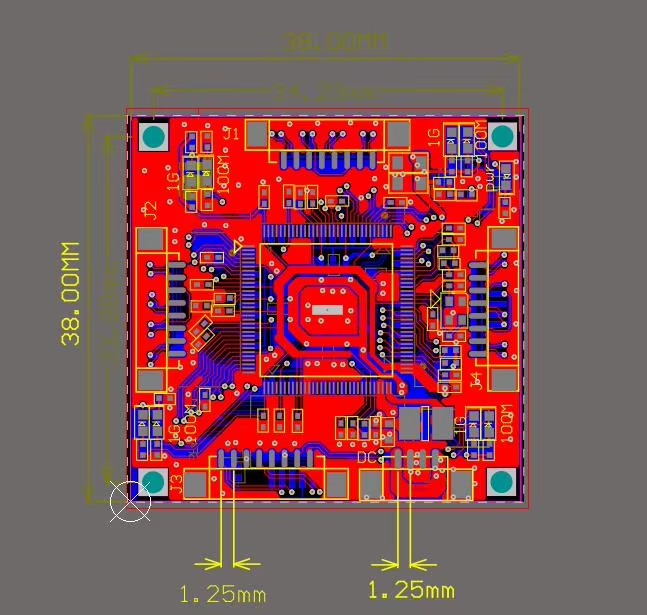

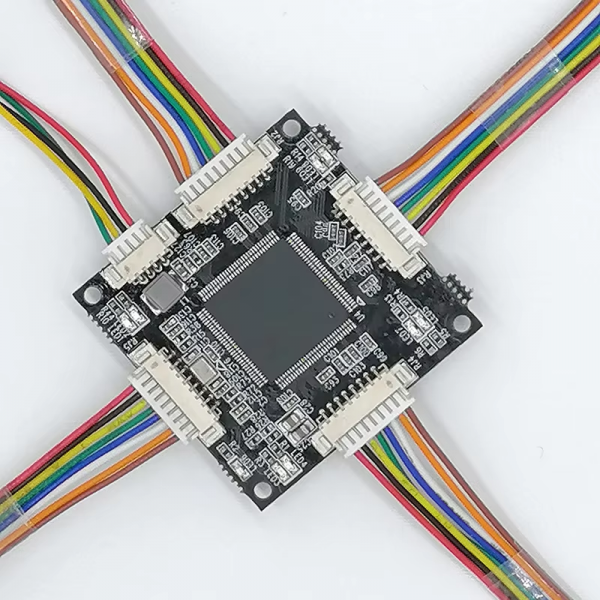

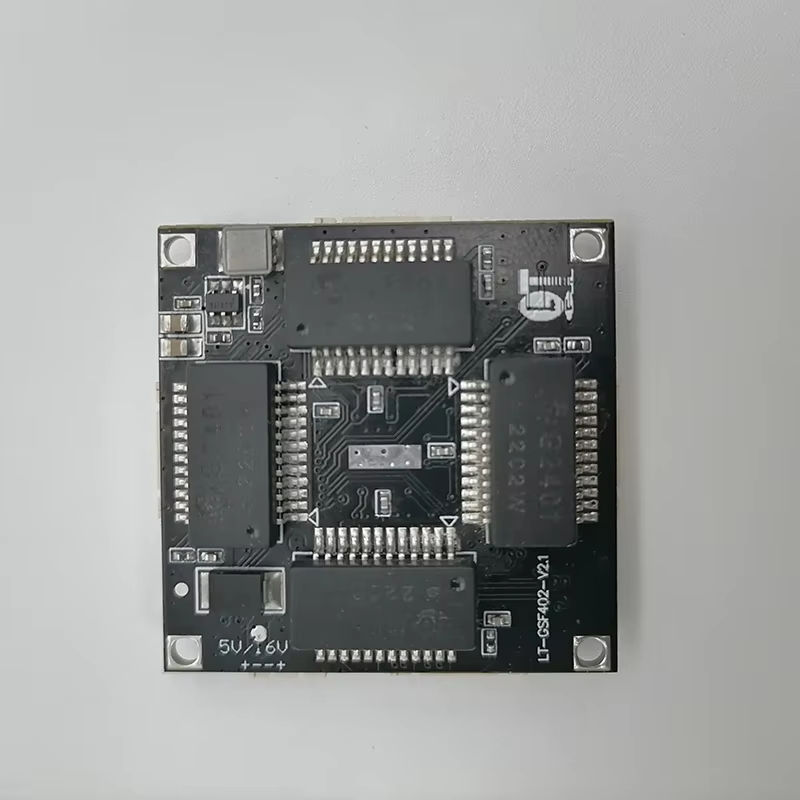

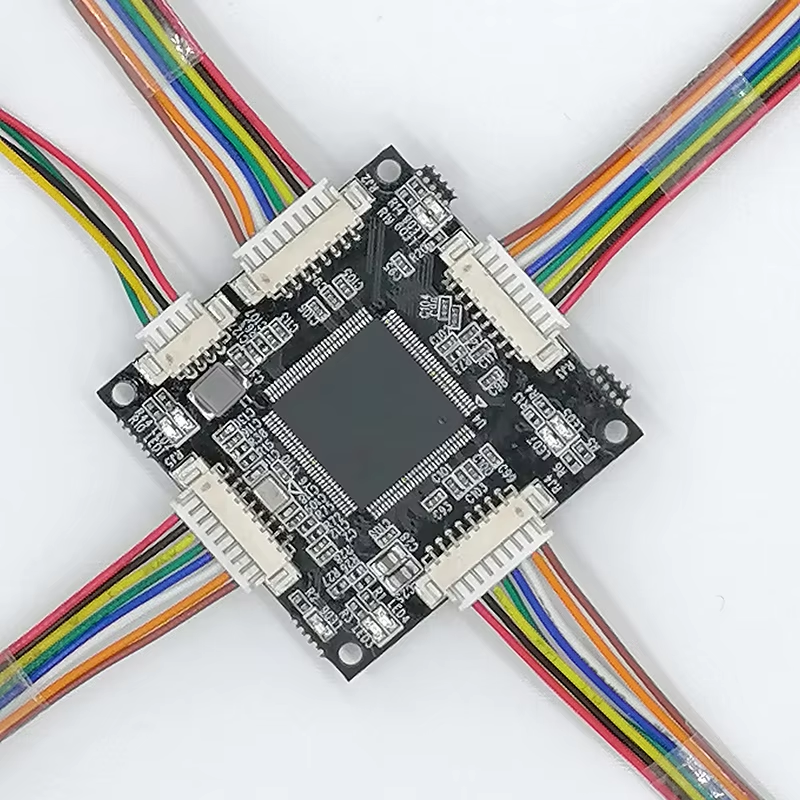

GSF-402 adopts full gigabit technical solutions, with stable performance and richer functions, which can bring users a better experience. The network cable transmission can reach 2000M/S. Provides 1 1.25MM 5v-16v wide voltage power supply interface, 4 8-wire full Gigabit RJ45 interfaces, and can be customized according to customer needs. It can be used for wireless AP, network camera, Internet phone, handheld computer and other terminals through the network cable, the transmission distance can reach 120m, the installation is simple, plug and play, very suitable for industrial computer, security monitoring and other industries.
LT-GSF-402 ,is a scaled down version of a standard switch for limited space installations

Product Features

Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3p, IEEE802.1q and IEEE802.3af standards
4 port 10/100/1000Mbps Adaptive Ethernet interface, support automatic flip(Auto MDI/MDIX)
Dynamic LED indicators provide simple working status prompts and faults
Wide voltage 5v-16v input

specification

GSF-402 \| Hardware Specifications
main chip	RTL8367S
Protocol standard	IEEE802.11b/802.11g/802.11n/802.3/802.3u
interface	4*10/100/1000M/s Port
Forwarding rate	10Mbps:14880pps;100Mbps:148800pps
Backplane bandwidth	1.6Gbps
network medium	10Base-T,100Base-TX: Category 5 and above UTP
MAC address	1K
LED	The order is Power, 100M/S indicator, 1000M/s indicator
Power Adapter	DC 5v/2A-16V/1A
Product maximum power consumption	< 6W
working environment	Working temperature: 0°C to 40°C;
	Storage temperature: -20℃ to 70℃;
	Operating humidity: 10% to 90%RH non-condensing
	Storage humidity: 5% to 90%RH non-condensing
Third Party Certification	CE Certification
Packaging Information	Black iron case color box 383815mm

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
