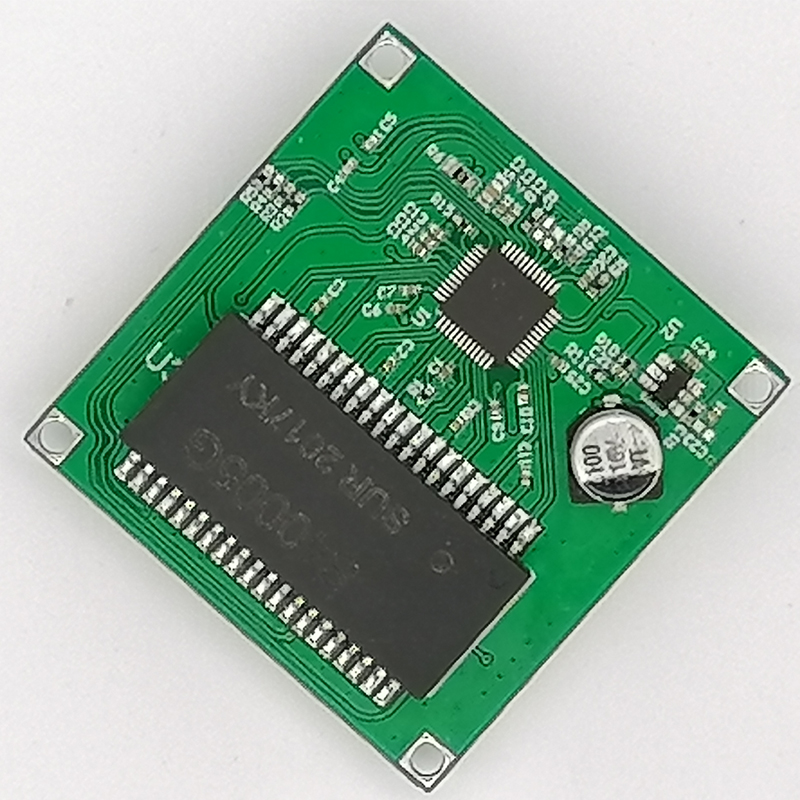

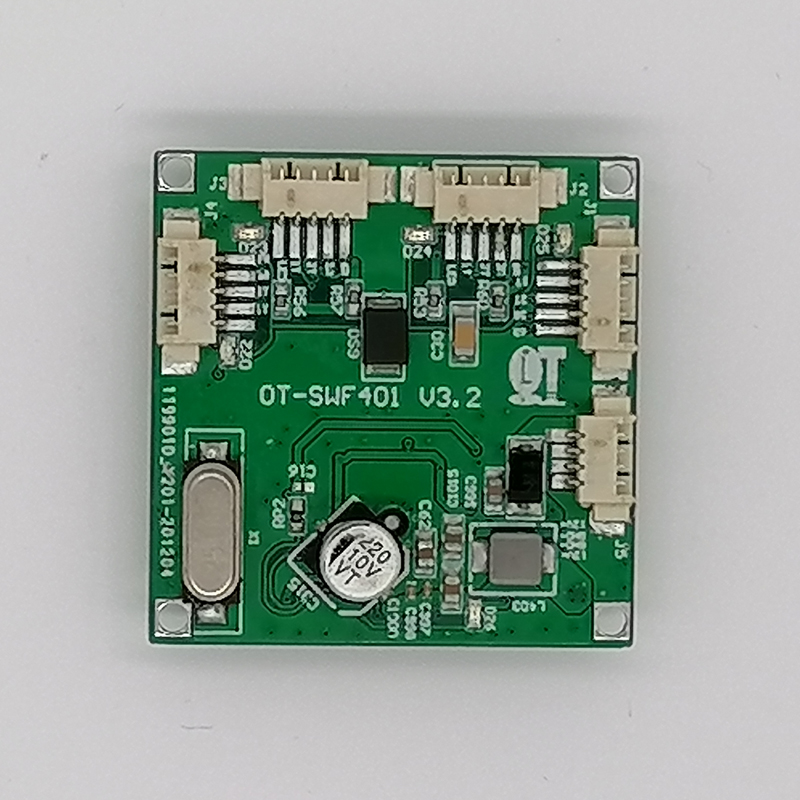

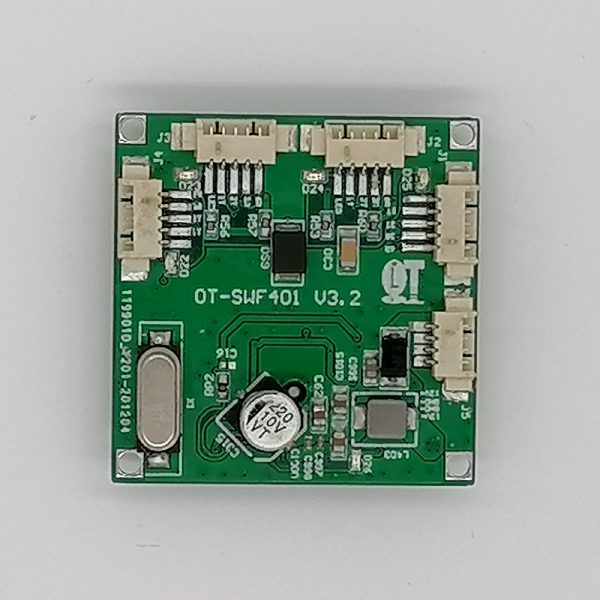

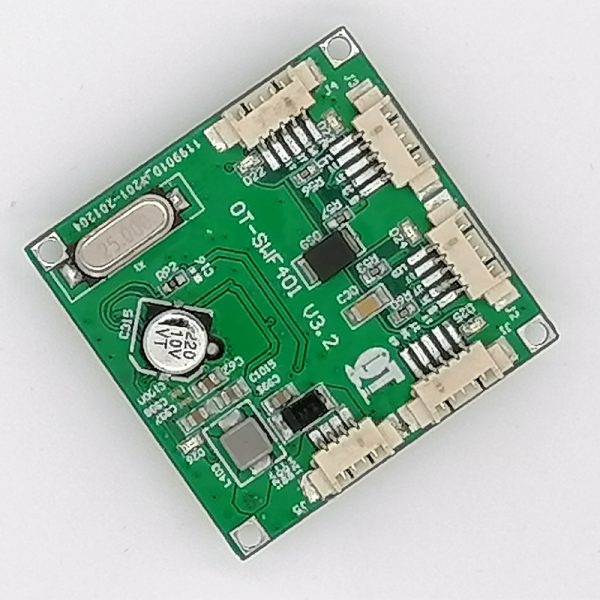

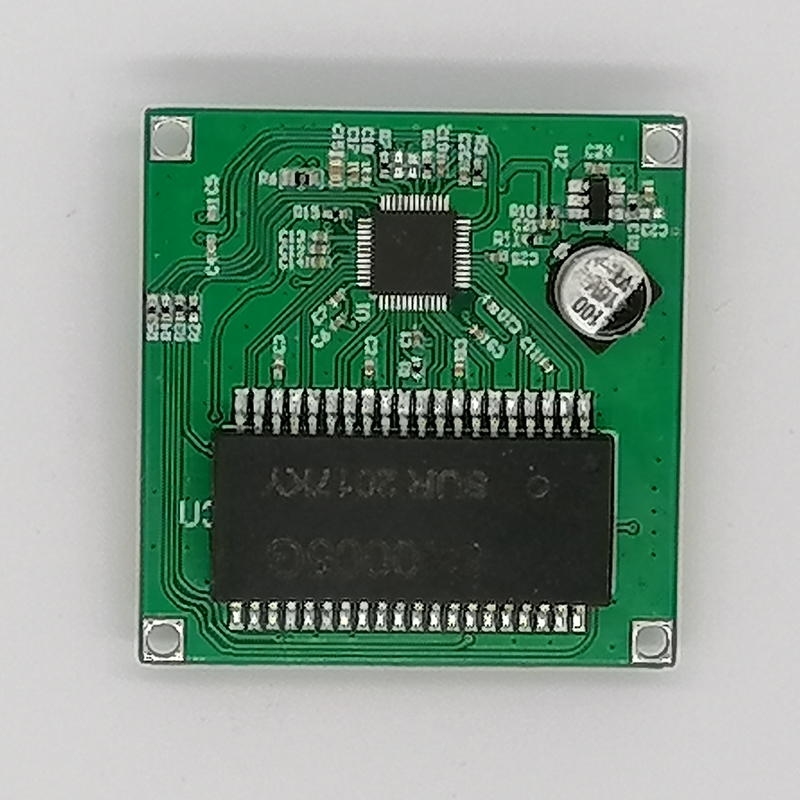

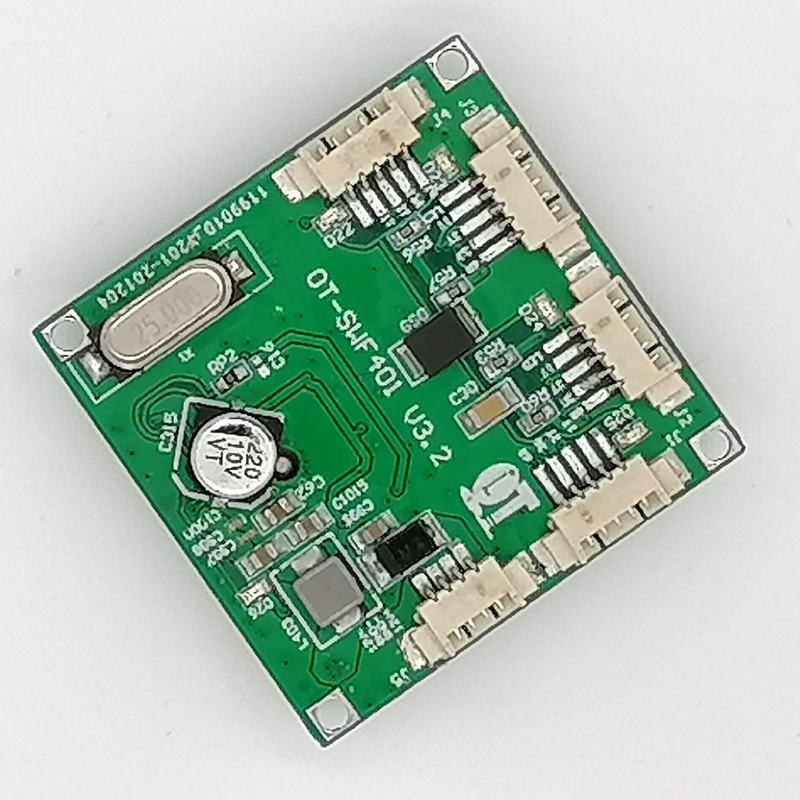

SWF401 mini switch module

HUASIFEI 38mmX38mm mini switch module PCBA 4 RJ45 Ethernet port DC Power Adapter

Facebook Twitter Youtube

Description

 SWF401 is a four-port unmanaged Ethernet switch module, providing four 10/100M adaptive Ethernet ports, 38mmX38mm size, easy installation, suitable for different system integration



Product Features

  • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab ;
  • Full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard ;
  • 4 10/100M adaptive pin network ports, support automatic port flip (Auto MDI/MDIX)
  • Each port supports auto-negotiation function, automatically adjusts the transmission mode and transmission rate ;
  • Support MAC address self-learning ;
  • Supports full-speed forwarding of non-blocking traffic
  • Mini size design, 38mmX38mm (length X width)
  • Dynamic LED indicators provide simple working status prompts and troubleshooting ;
  • Power supply supports 5v~12V input

specification

Technical standard:

IEEE802.3,IEEE802.3u,IEEE802.3x

flow control:IEEE802.3x.Back Pressure

Interface

Fast Ethernet port:10Base-T/100Base-TX adaptive

Transmission distance

Twisted pair:100M(Standard CAT5/CAT5e cable)

Indicator light

Interface indicator:1-4(LINK/ACT)

Power Indicator: PWR

Exchange property

Fast forwarding speed: 148810pps

Transmission method:Forwarding

System backplane bandwidth: 1.0G

MAC address: 1K

Power supply



Input voltage: 5v~12VDC (5~12VDC)

Input: Pin type 4P terminal, pitch 1.25MM

Consumption



no load: 0.5W@12VDC

Load: 0.8W@VDC

Working environment

Working temperature: 0~+45℃

Storage temperature: -40~+85℃

Humidity: 10%~95 % (non-condensing)

Product structure

Weight: 12g

Size: 38 mm×38mm×7mm(L*W*H)

Packaging List

Standard Edition:

  1* 4-port switch core module

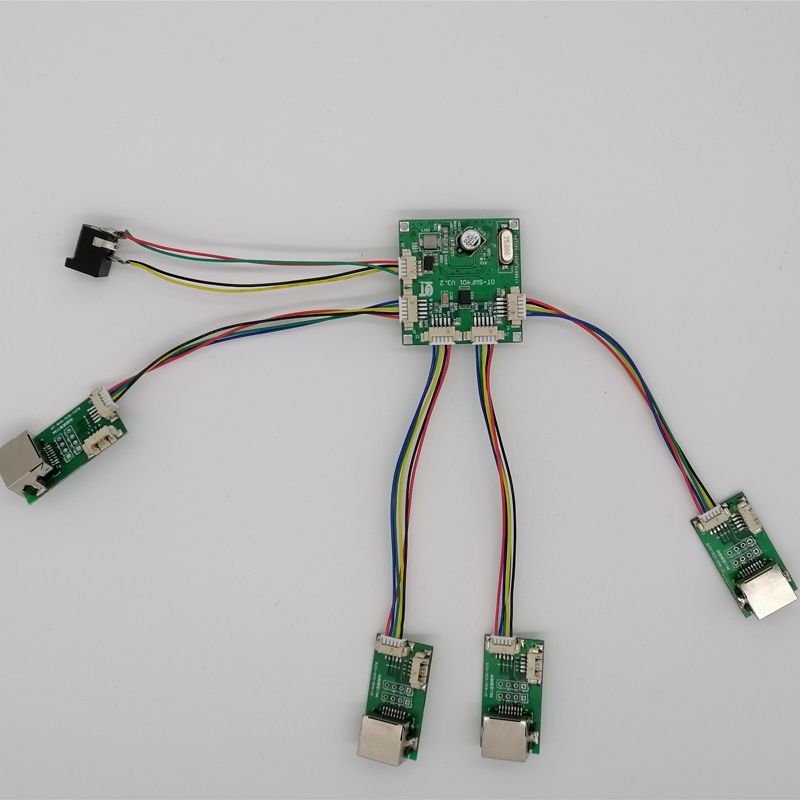

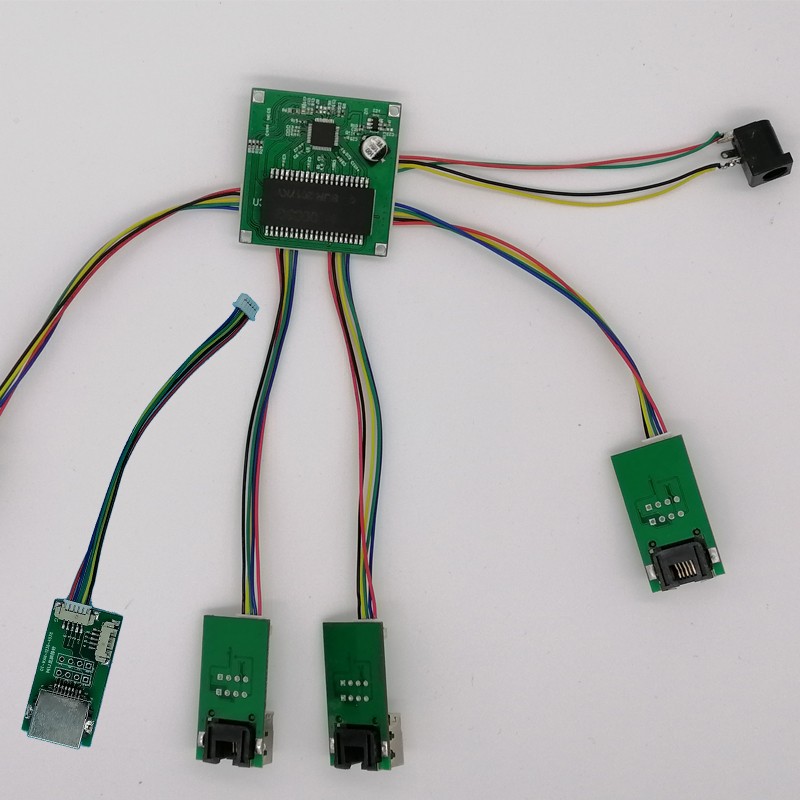

Beta version:

  1* 4-port switch core module

  1* 4 RJ45 network port modules

  1* 4x5pin double-ended terminal wire (1.25mm)

  1* 1 DC terminal wire.

Quality assurance

1 year
