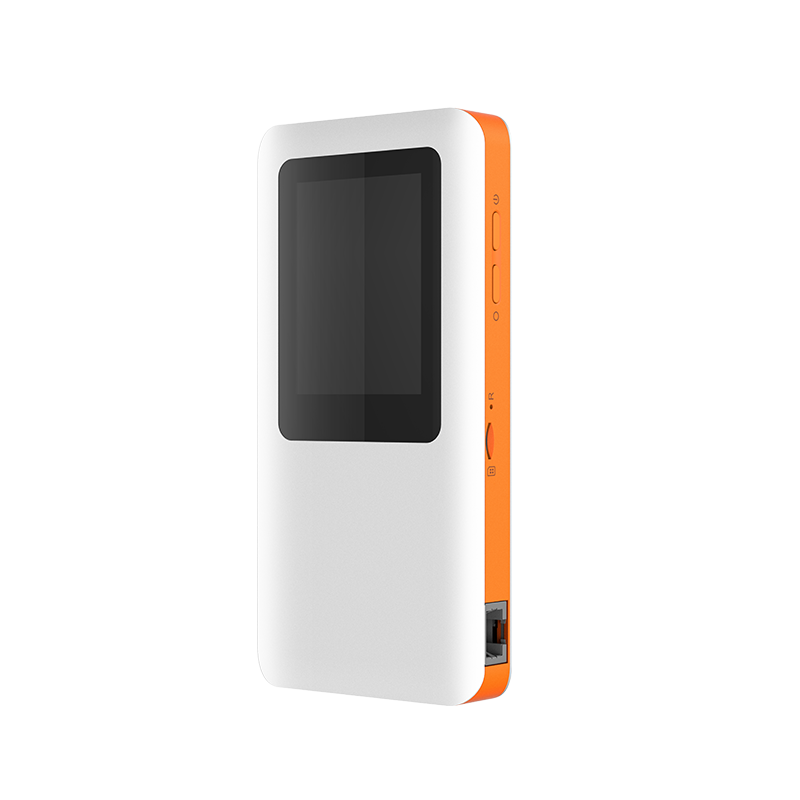

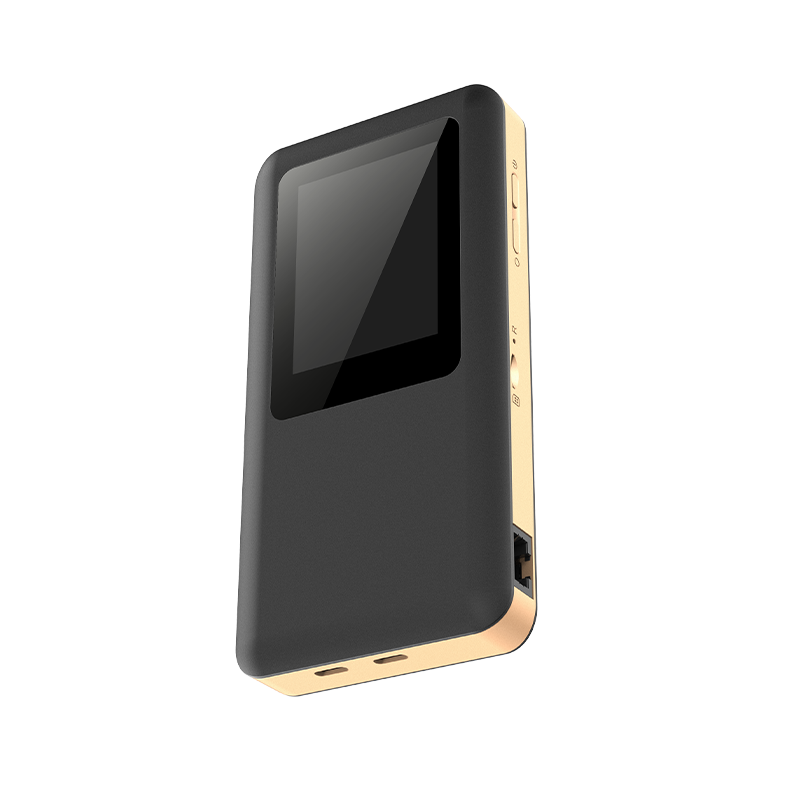

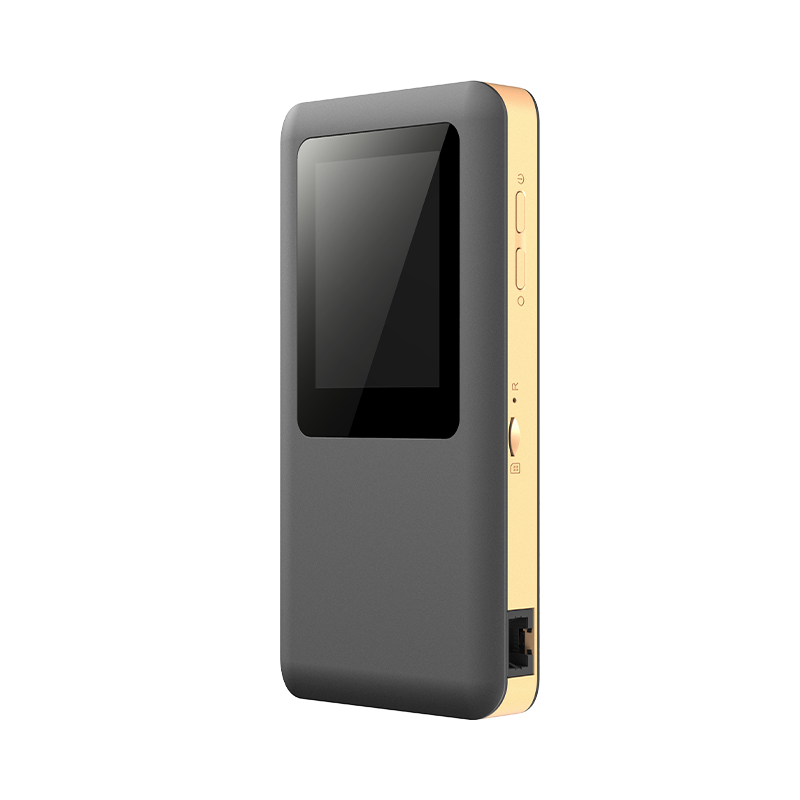

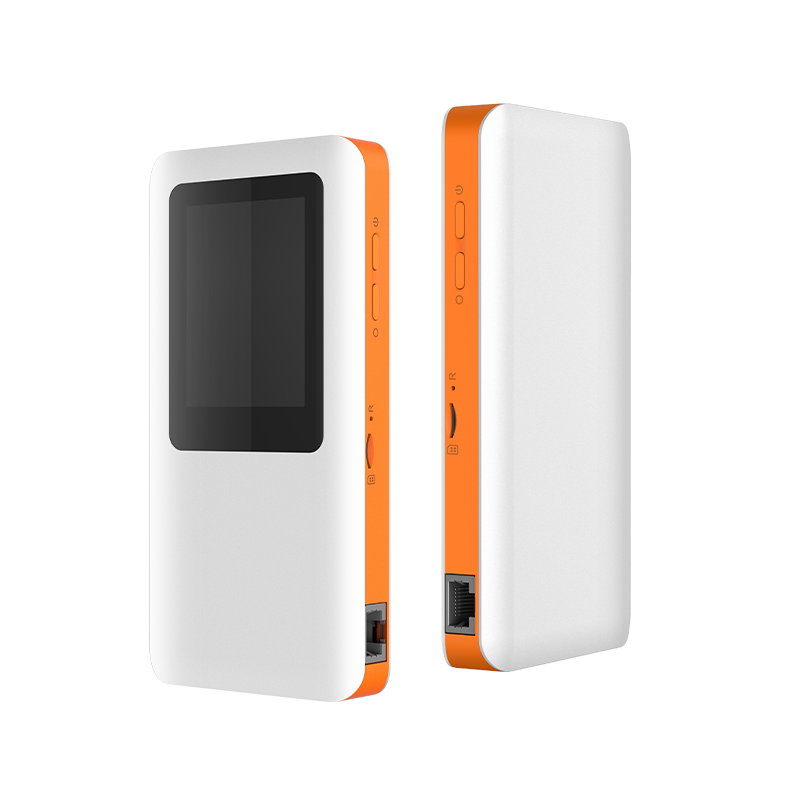

M3 pocket router 5g

1200Mbps dual band pocket router 5g support ESIM card 4400mAh battery 5g wireless router

Chipset: MTK 900,MT6877,6nm
2*A78(2.4GHz)+6*A55(2.0GHz),
GPU:Mali OTR MC4
Memory: LPDDR4X 2GB RAM+EMMC 8GB ROM or above
WiFi: MT6635
BT: Bluetooth 5.1,Optional

Facebook Twitter Youtube

Description

Specifications

                                              5G MIFI Specifications
General Information
Product 5G MIFI
Model M3H77 series
Target Market M3H-77-EAU for China, EMEA, Asia Operators & Open market
M3H-77-LAM for Mexico,Latin America Operators & Open market
M3H-77-NA for North America Operators & Open market
Highlights MTK 5G 6nm MT6877, stable network performance,WiFi6, low power comsuption.
Certificates CE/FCC ability
Specification
OS Version Andriol 11 or above
Platform Chipset MTK 900,MT6877,6nm
2*A78(2.4GHz)+6*A55(2.0GHz),GPU:Mali OTR MC4
Memory LPDDR4X 2GB RAM+EMMC 8GB ROM or above
WiFi MT6635
BT Bluetooth 5.1,Optional
LCM LCD 2.4”TFT MIPI(LCD or LED)
TP Support (Option)
LED LED Power,WiFi,5G,4G(Option,need to be customized)
Cellular Protocal 3GPP Rel.15,5G NR,SA/NSA,Sub 6G/LTE Category 18

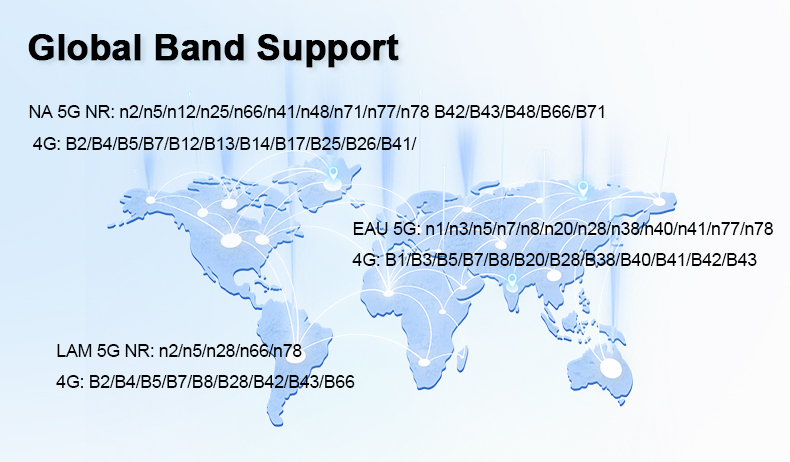

EAU bands 5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
4G:B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43
3G:B1/B5/B8
LAM bands(TBD) 5G:n2/n5/n28/n66/n78
4G:B2/B4/B5/B7/B8/B28/B42/B43/B66
3G:B2/B5/B8
NA bands(TBD) 5G:n2/n5/n12/n25/n66/n41/n48/n71/n77/n78
4G:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42/B43/B48/B66/B71

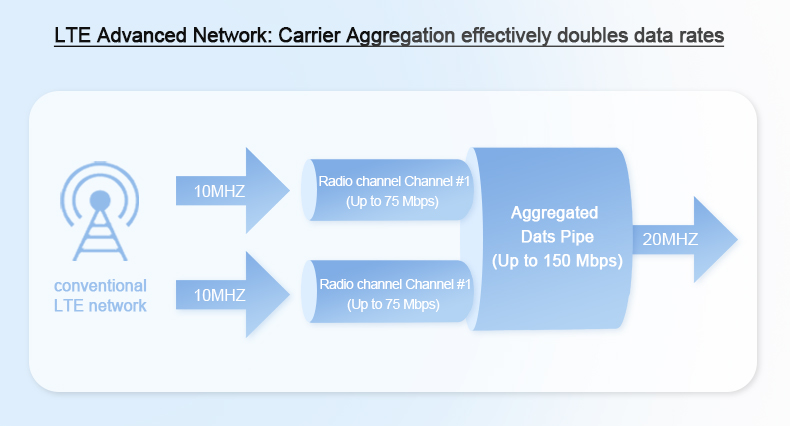

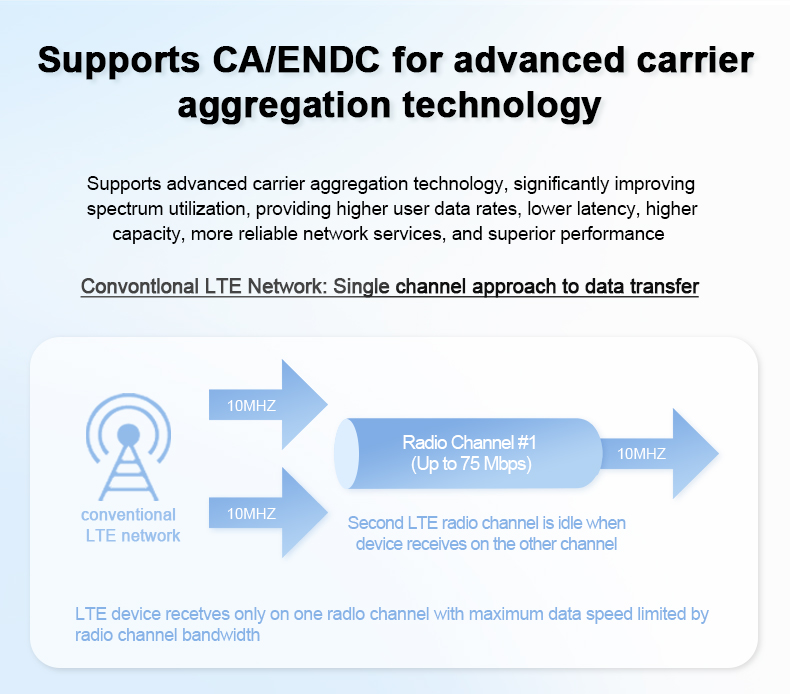

CA/ENDC Support mainstream 2CC LTE+1CC NR ENDC combination, as well as LTE 2CA and partial 2CA NR.
Throughput NSA NR:Downlink/Uplink up to 3.5Gbps/700Mbps
SA NR:Downlink/Uplink up to 2.77Gbps/1.25Gbps
LTE:Downlink/Uplink up to 1.2Gbps/150Mbps                                        WCDMA:Downlink/Uplink up to 42.2Mbps/11.5Mbps
Antenna 4*4 MIMO
WiFi Bands 2.4G or 5.8G dual band
Protocal 802.11 a/b/g/n/ac/ax
Throughput 802.11a:Up to 54Mbps
802.11b:Up to 11Mbps
802.11g:Up to 54Mbps
802.11n:Up to 300Mbps
802.11ac:Up to 866Mbps
802.11ax:Up to 1201Mbps
Antenna 2*2
Users 16 users
Interface SIM card NANO SIM card,eSIM optional,hot plugging supported
USB TYPE-C(USB3.0)
Button Button 1*Power,1*MENU
Charge TYPE-C 5V/2A,5V/3A,9V/2A
Battery Polymer battery 4400 mAh
Size Size 125x70x17 mm
Enviroment Working Temperature 0℃-45℃
Storagy Temperature -20℃-70℃
Humidity 5%-95%
[TBD]This SKU could be supported, but it needs extra debugging.

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
