WS988 router wifi 4g

300Mbps router 4g support EC25-AFX module RJ45 port router wifi 4g with sim card

Product Description

In a networked world where everything is connected, the need for intelligent communication is only getting stronger, especially in the field of intelligent industrial control. WS988 4G Industrial Router is our new generation 4G wireless VPN router for the industrial sector. The device provides fast Internet access with the explosive growth of 4G cellular data network and a variety of wired high-speed broadband access services. With its security, stability and intelligence, it enables easy networking of thousands of devices and provides high-speed data transmission communication for true informationization of equipment.

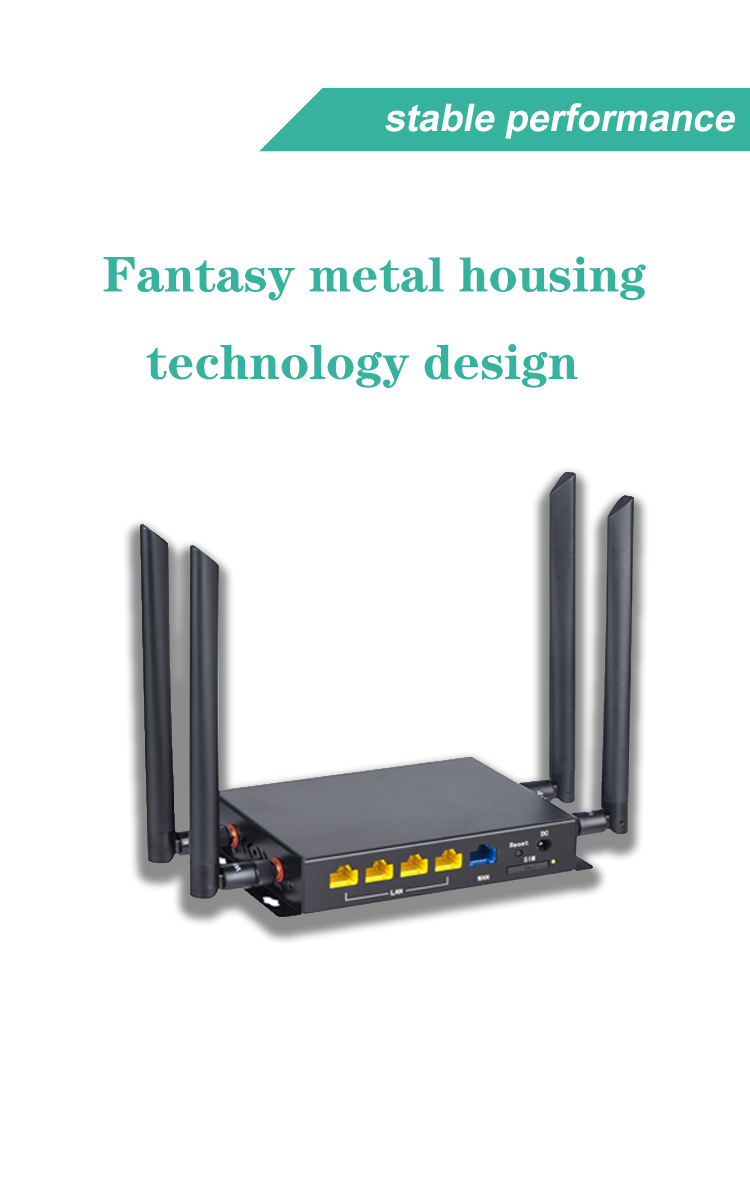

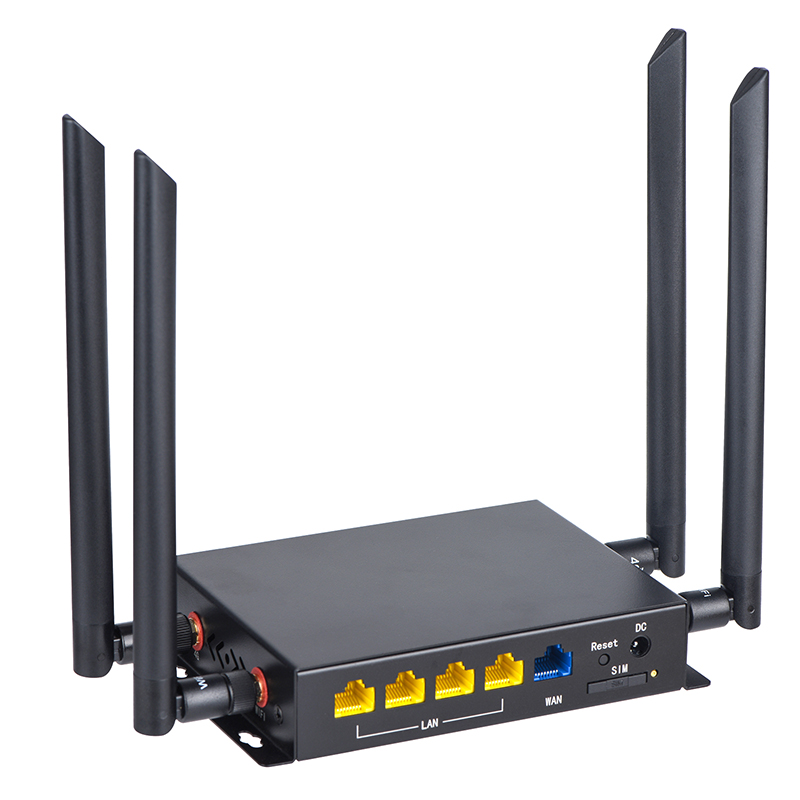

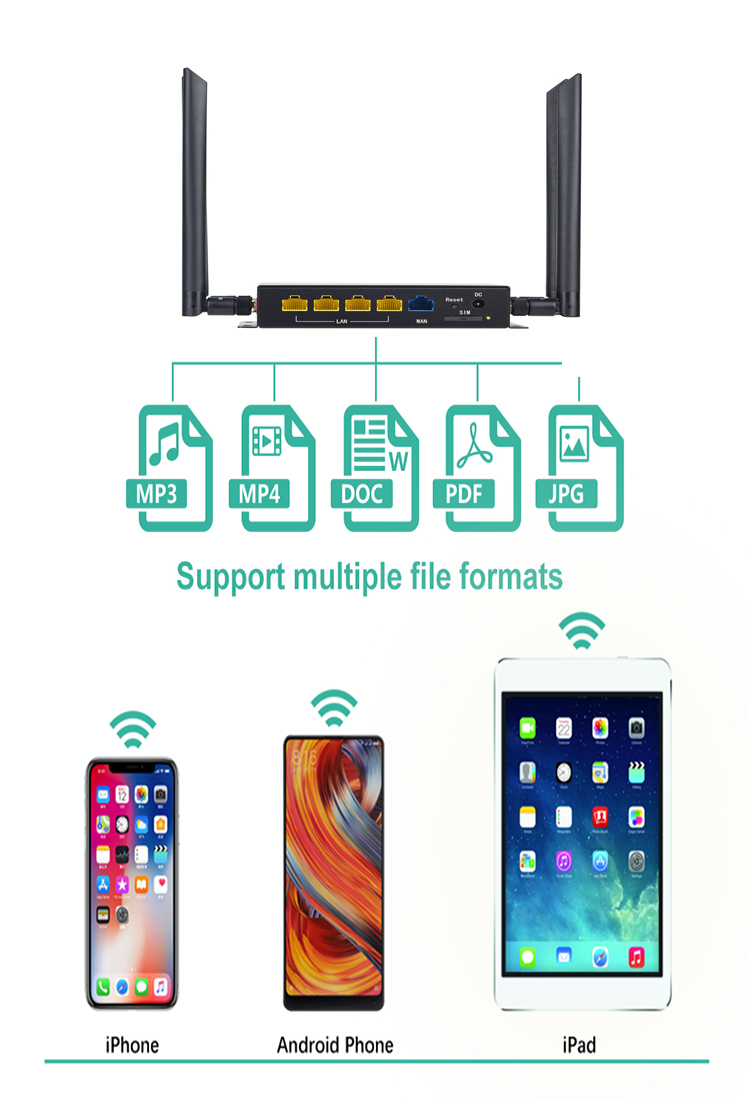

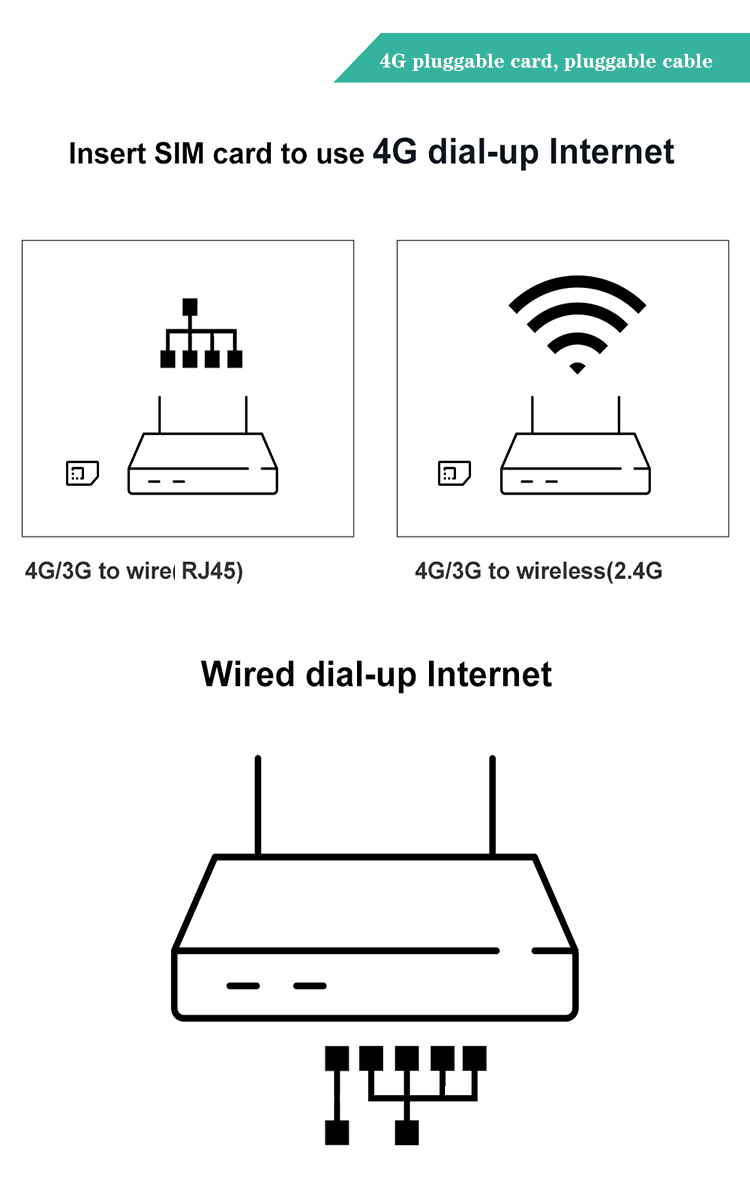

WS988 also provides an Ethernet WAN / LAN RJ45 network port, four Ethernet LAN RJ45 network port, a SIM card slot, can simultaneously Ethernet port and WIFI, providing data gateway function

Support remote management of equipment cloud platform, simple graphical interface, easy and fast to use, let you know the current status of the device at any time, anywhere, widely used in the M2M industry in the IoT industry chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS terminal, supply chain automation, industrial automation, intelligent building, fire, public safety, environmental protection, meteorology, digital medical, remote sensing survey, space exploration, agriculture, forestry, water affairs, coal mining, petrochemical and other fields

Description

RickYI

Parameters

Product Features

  • 4G industrial grade router

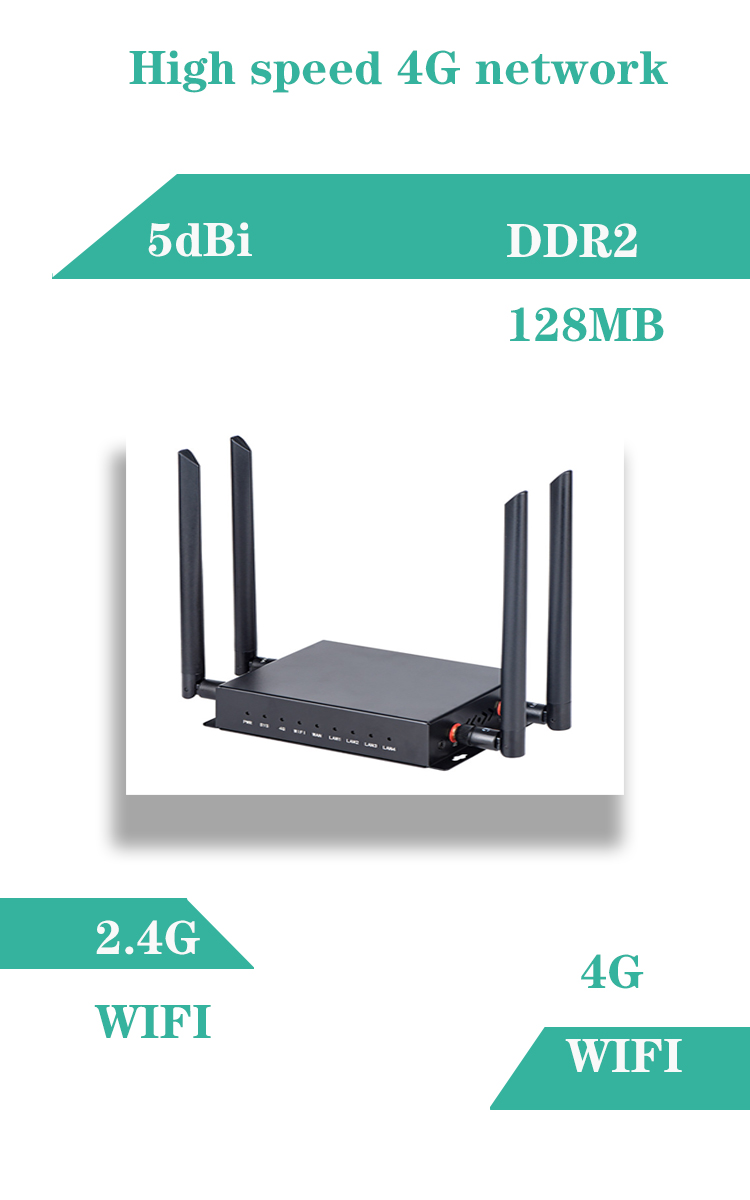

  • 300M bandwidth, smooth wireless connection
  • External omnidirectional 4G antenna, better signal, more stable Internet access
  • Support CAT4 CAT6 CAT12
  • Plug-and-play convenience

Other product related

The price does not include 4G modules, there are only 2 wifi antennas, please contact customer service for the price of adding 4G modules; it can support the installation of modules such as EC200A/EC20/EC25/EP06



Specification

Product Model WS988
SIM card Standard Sim Card
Main Chip QCA9531-BL3A
Memory 128MB
Flash Memory SPI 16MB
Wireless Speed 2.4G 300Mbps
Operating band 2.4GHz
Ethernet port WAN/LAN×1,

LAN×4,

10/100 M adaptive

Power adapter Input: 100V~240V AC 50Hz/60Hz,

Output: DC 12V/1A

Reset button Long press more than 6 seconds to restore factory settings

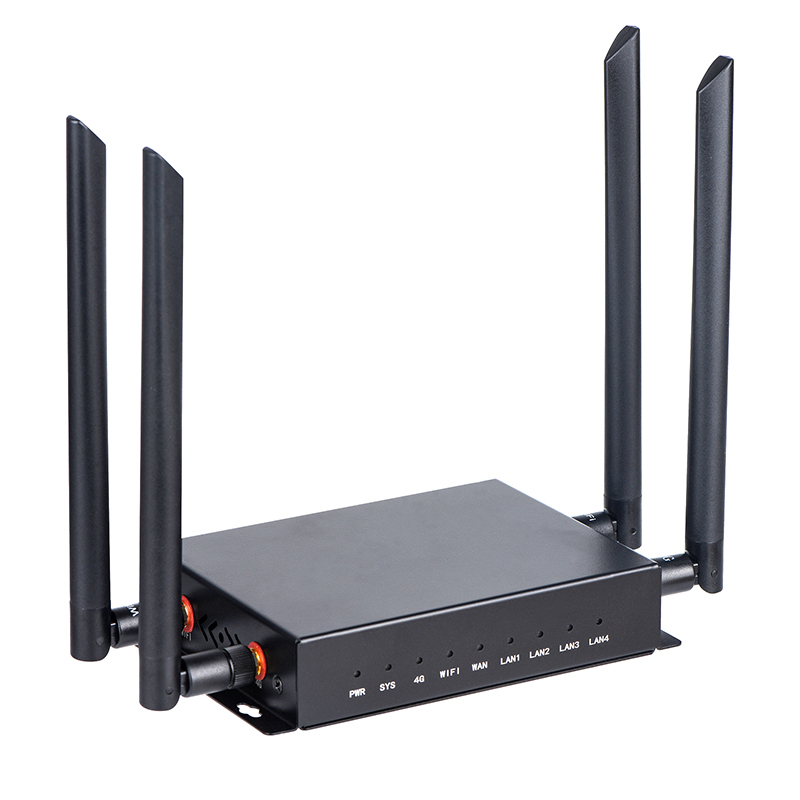

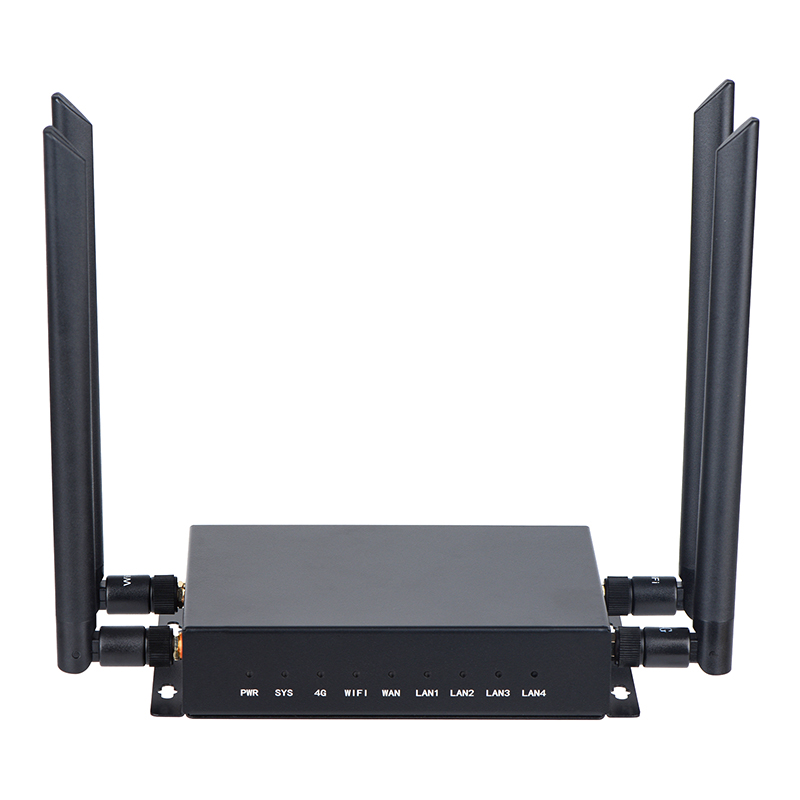

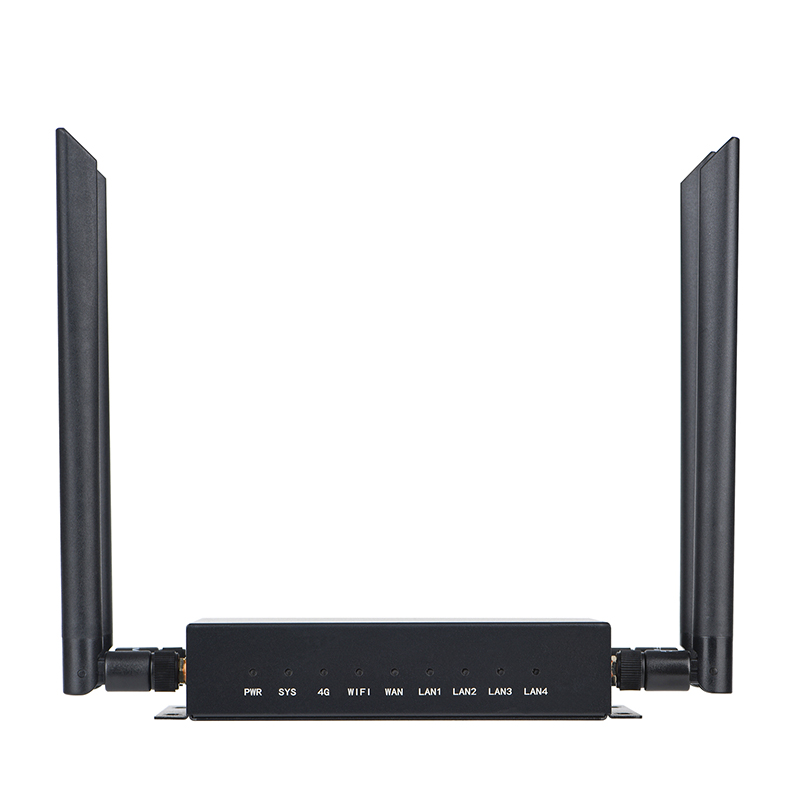

LED Indicator Power light × 1,

system light × 1,

w i f i light × 1,

4G signal light × 1,

network port light × 5

Dimensions 130*98*30mm
Weight 285g
Working Environment Operating temperature: -40 °C to 85 °C;

storage temperature: -40 °C to 8 5 °C;

humidity: 5 % to 95 %

(no condensation)

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1)Custom solutions for WIFI system
2)Replacement and enhancement of connectors, antennas, modules, and GPS systems
3)Custom logo design
4)Label creation and application
5).And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
