Description

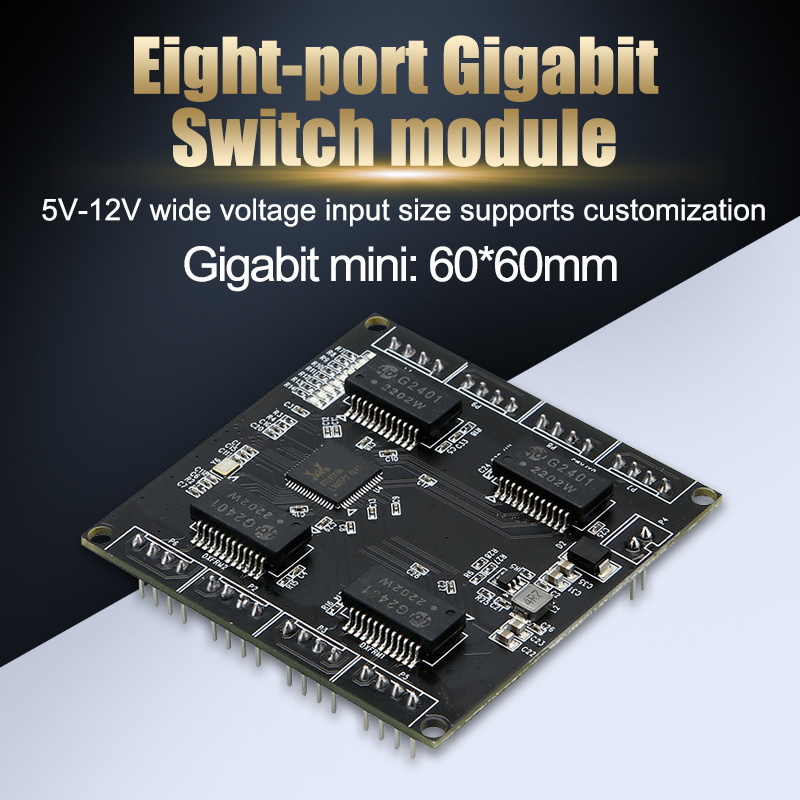

SW803-2 is a high performance 8-port 10/100Mbps Ethernet switch module. It provides a simple network connection to your workgroup or server for plug-and-play convenience. With this flexible non-blocking architecture, users can use it regardless of bandwidth and media network limitations.

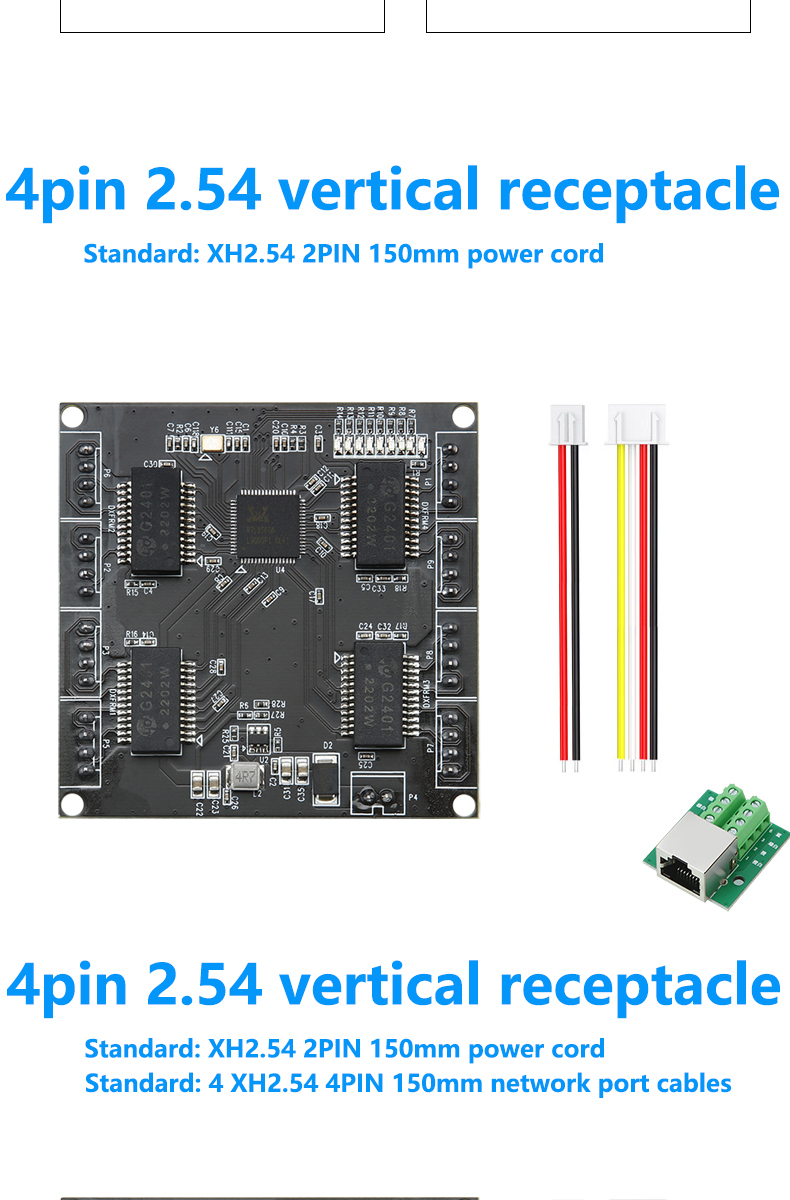

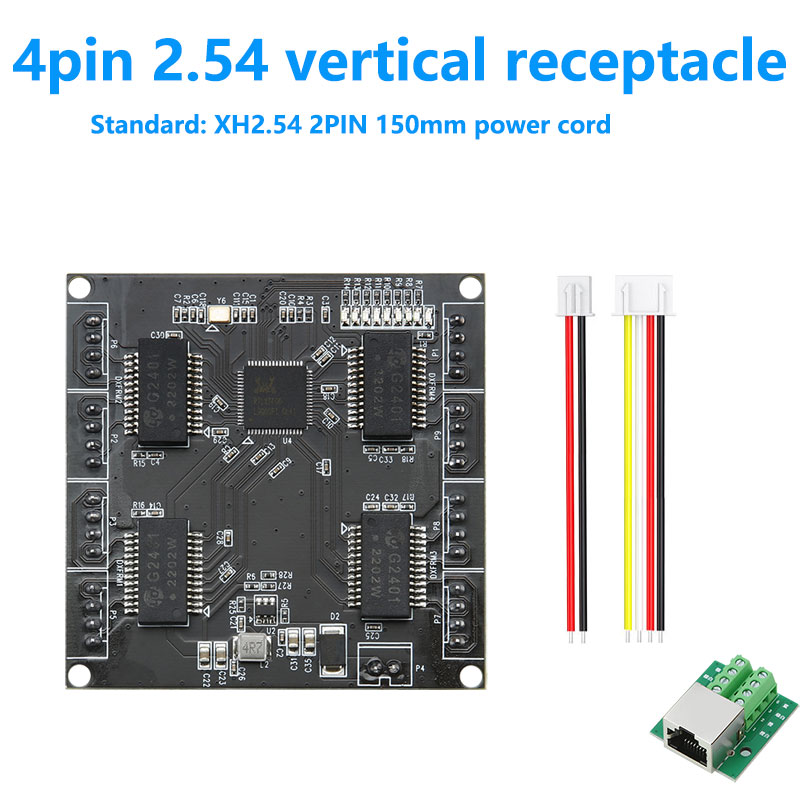

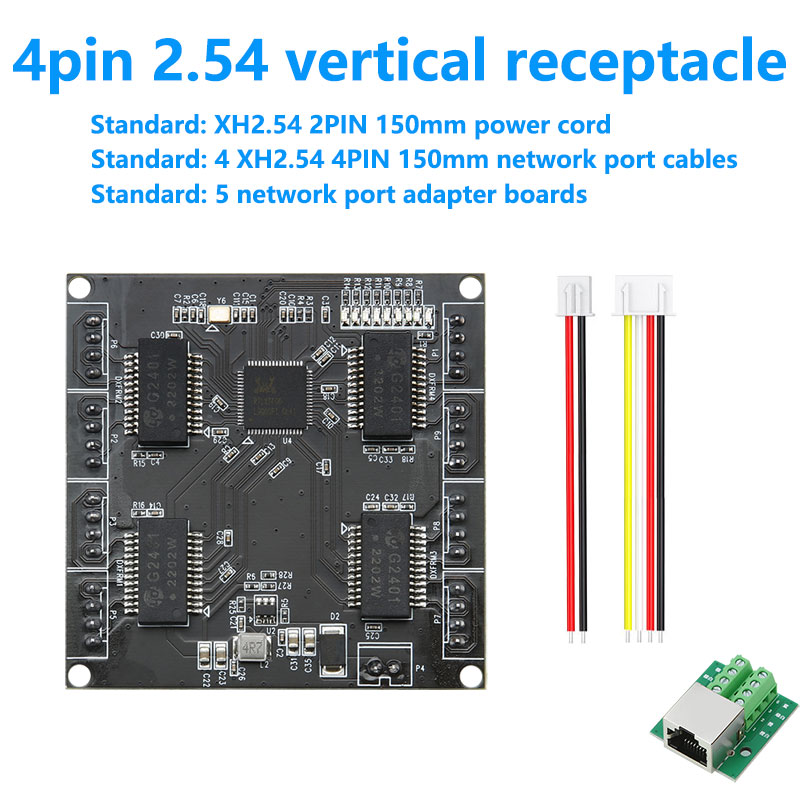

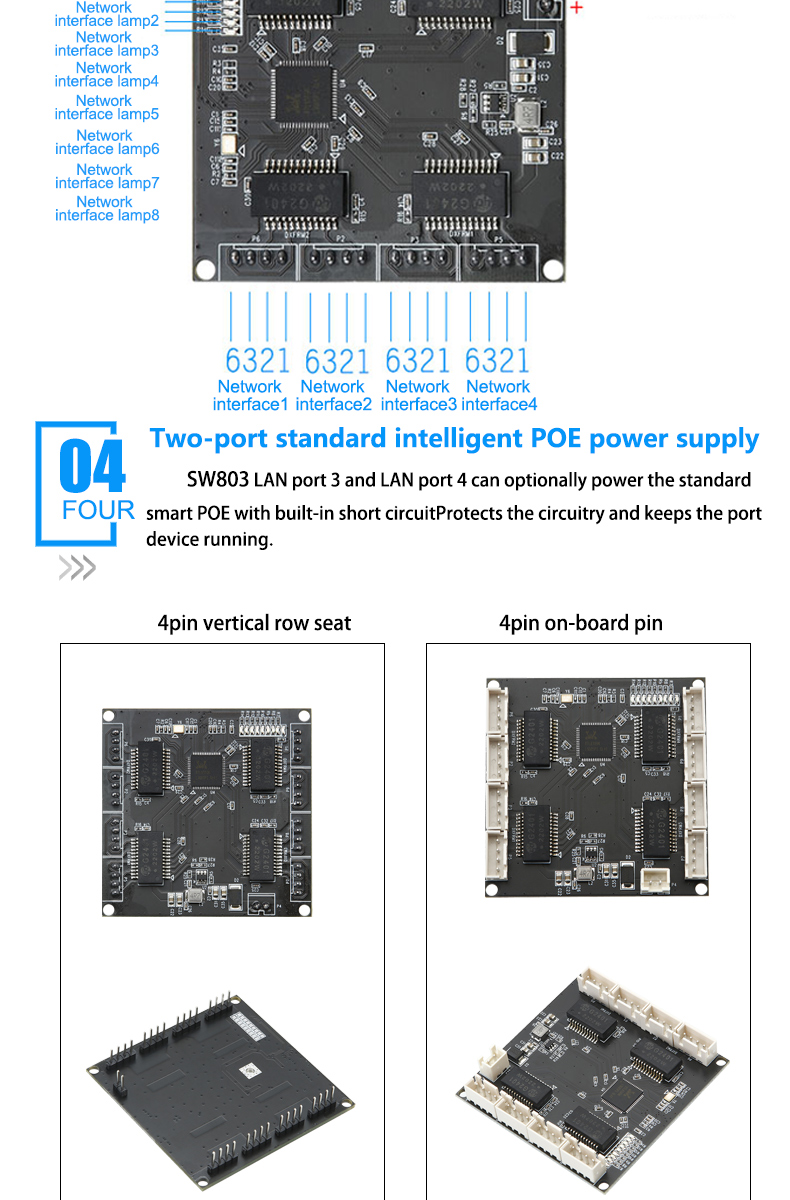

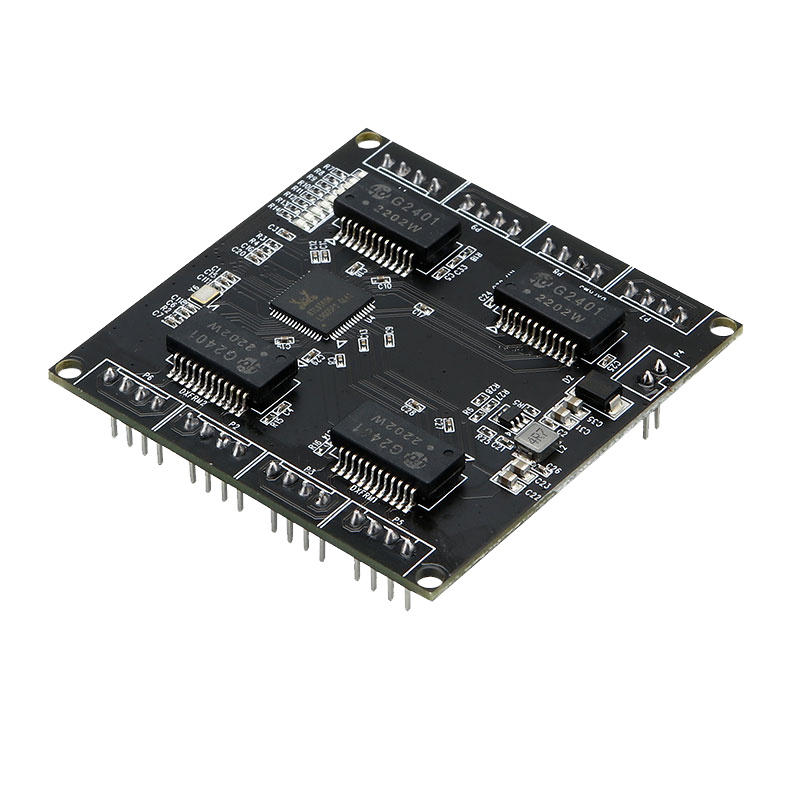

There are 2 models available in this series, the XH2.54mm 4pin port and the on-board 4pin pin model. They are characterized by high integration, compact size, rich functionality, simplicity and convenience. With embedded installation, users can customize the PCB specification and select the type of Ethernet interface through the module pins to meet the needs of different applications.

All ports of the switch support half-duplex flow control and full-duplex backpressure standards to improve bandwidth server and network protocol compatibility. In addition, the LED indication can diagnose the operation status of each port and the whole system, and the product is energy-saving and environmentally friendly.

Key Features

IEEE802.310Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.X,IEEE802.3ab 100Base-T
8*10/100M pitch 2.544PIN pin ports.
1K MAC address and MAC address auto-learning.
1Gbps non-blocking wire-speed forwarding backplane bandwidth.
External power supply DC 5-12V.

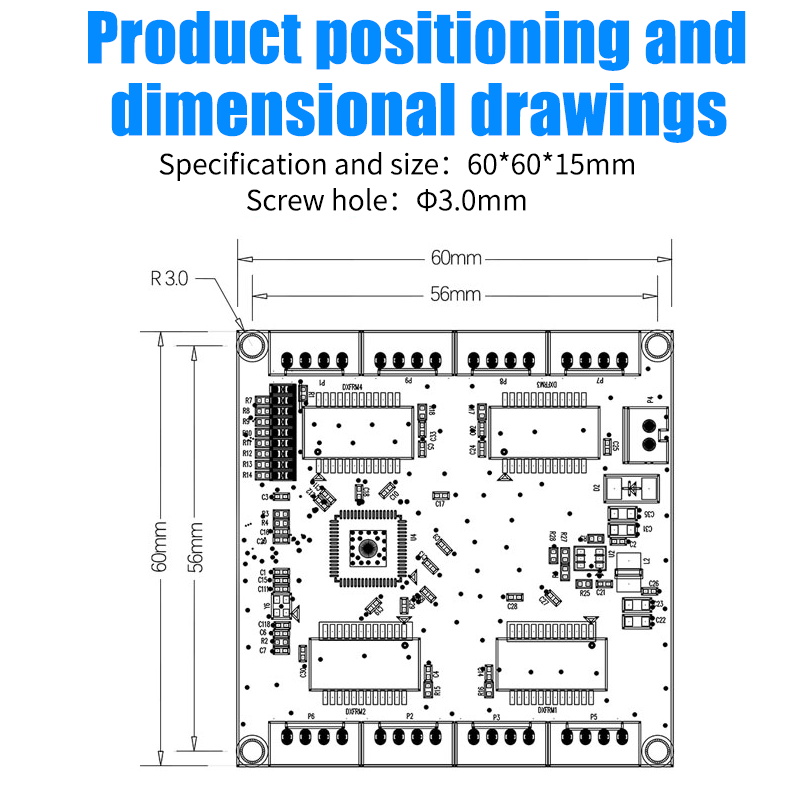

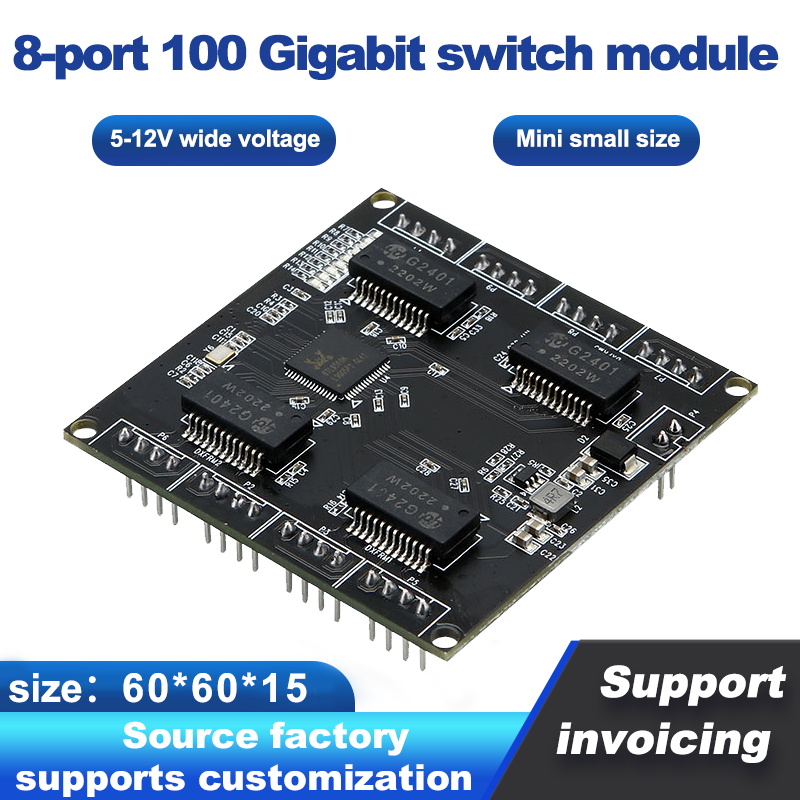

Module PCBA size: 60*60*15mm.

Product Characteristics

Practical choice, superior performance

Provides 8 ports of 10/100M pitch 2.544PIN pin ports, all ports can realize line speed forwarding; builds the delivery switch with enterprise-class standard, with fully optimized performance, and the product performance is comprehensively improved; each port supports MDI/MDIX auto-reversal and duplex/rate self-negotiation; supports IEEE 802.3x full-duplex flow control and Backpressure It supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Plug and play without configuration

Plug and play, dynamic LED indicators without any setup, out-of-the-box, all ports have wire-speed forwarding capability, rich port types for users to provide great flexibility for networking, within 1 second to help you build a 100 Gigabit wired network, greatly simplifying the management and maintenance of the equipment, support for desktop and wall-mounted installation, deployment is simple and convenient.

High-speed cache data lossless

Adopting store-and-forward mode, it provides 1Gbps backplane bandwidth and high-capacity cache, which effectively reduces data forwarding delay and improves forwarding efficiency to avoid data loss.

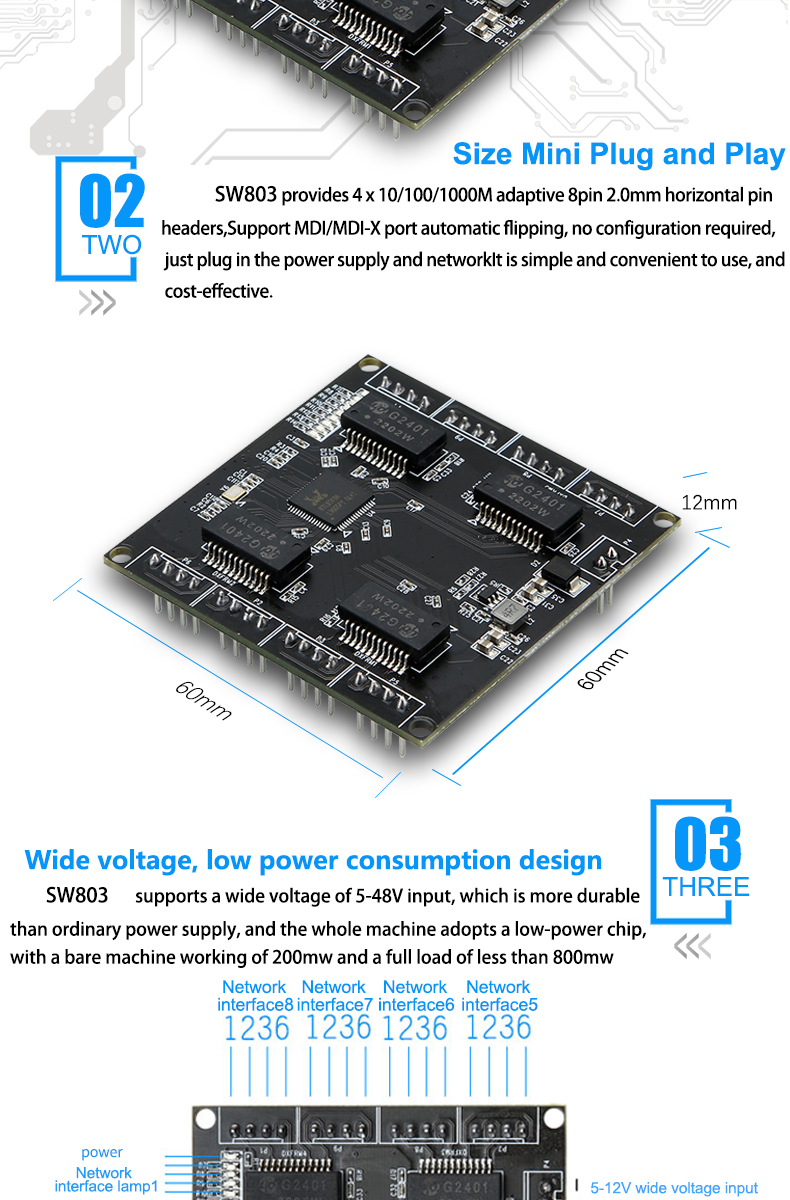

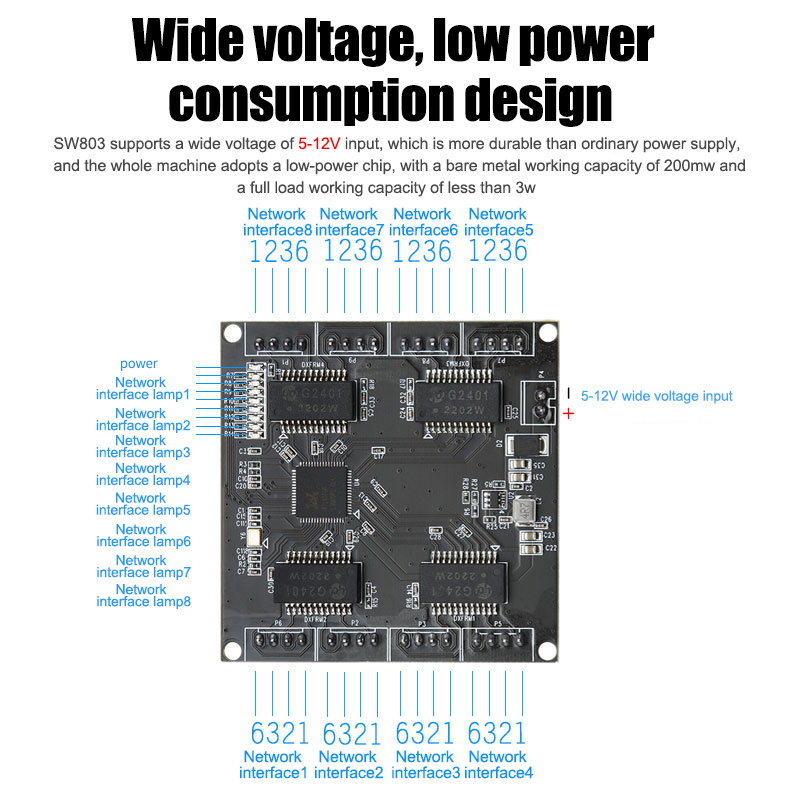

Wide voltage and low power consumption design

Supports wide voltage 5-12V input, more durable than ordinary power supply, the whole machine adopts low-power chip, the bare metal work 500mw, full-load work less than 3W.

specification

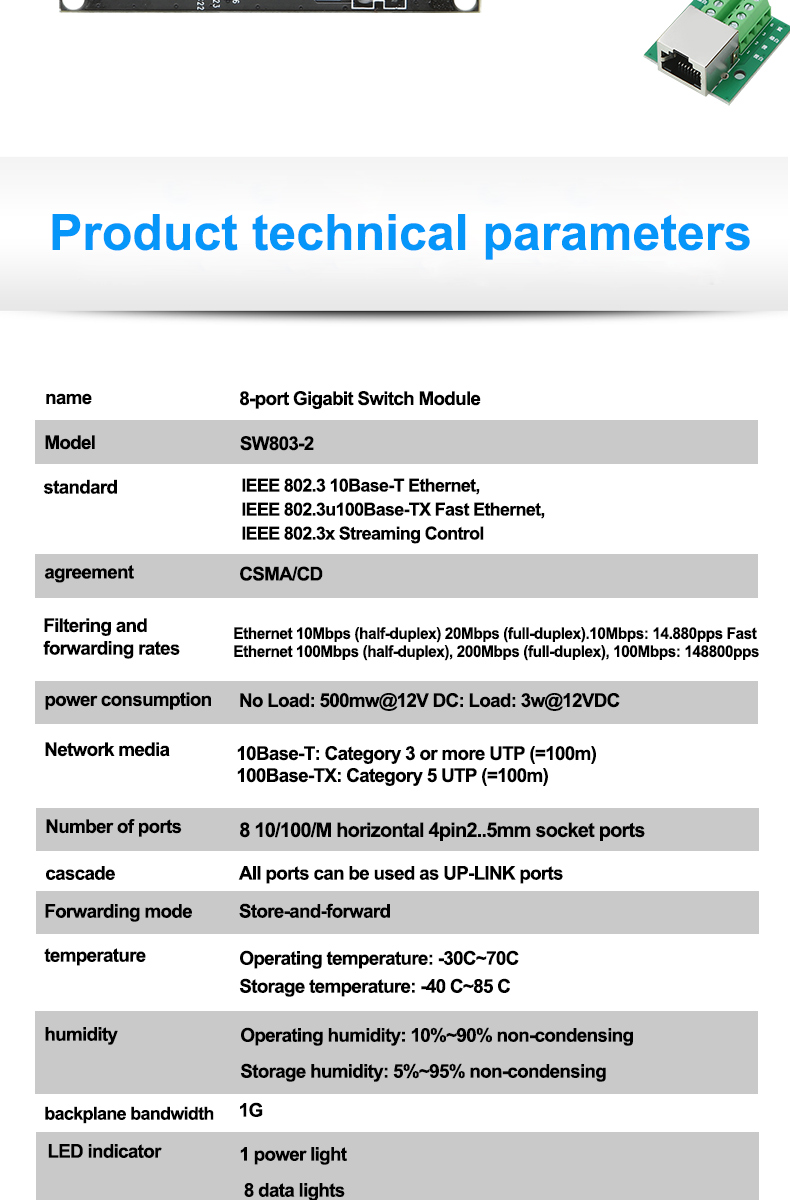

Product Specification
Product Model	SW803-2
Fixed Port	8 x 10/100M Base-T XH2.54mm 4pin socket ports (Data/Power)
network protocol	IEEE802.310BASE-T;IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x
Port Characteristics	10/100Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	1Gbps (non-blocking)
forwarding rate	Ethernet 10Mbps(Half Duplex) 20Mbps(Full Duplex),10Mbps:14,880pps Fast Ethernet 100Mbps(half-duplex),200Mbps(full-duplex),100Mbps :148800pps
Cascade	All ports can be used as UP-LINK ports.
Packet Forwarding Rate @ 64byte	4Mbps
MAC Address Table	2K
twisted-pair transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX Cat5orlater UTP(≤100 meter)
Overall Power Consumption	Standby power consumption: <3W; full load power consumption: <8W
LED Indicator	Power indicator: PWR (green); Network indicator: Link, Link/Act (green)
Appearance dimensions (L * W * H)	606015mm
Net weight/Gross weight	<23g/<25g
work environment
Working humidity	10% -90% RH (non condensing)
working temperature	-40℃-85℃
Storage humidity	10% -90% RH (non condensing)
Storage temperature	-40℃-85℃
Product Versions

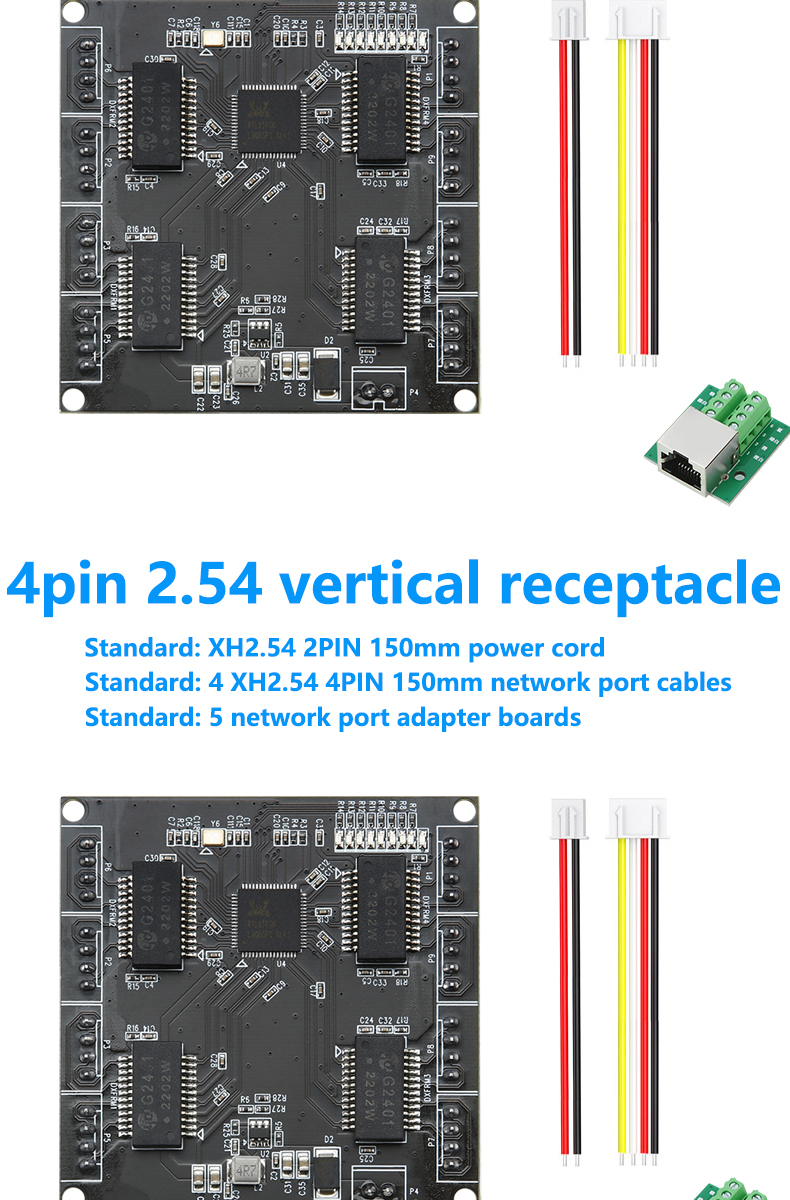

SW803-2	8 x 10/100M Base-TXH2.54mm 4pin sockets (Data/Power)

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
