Description

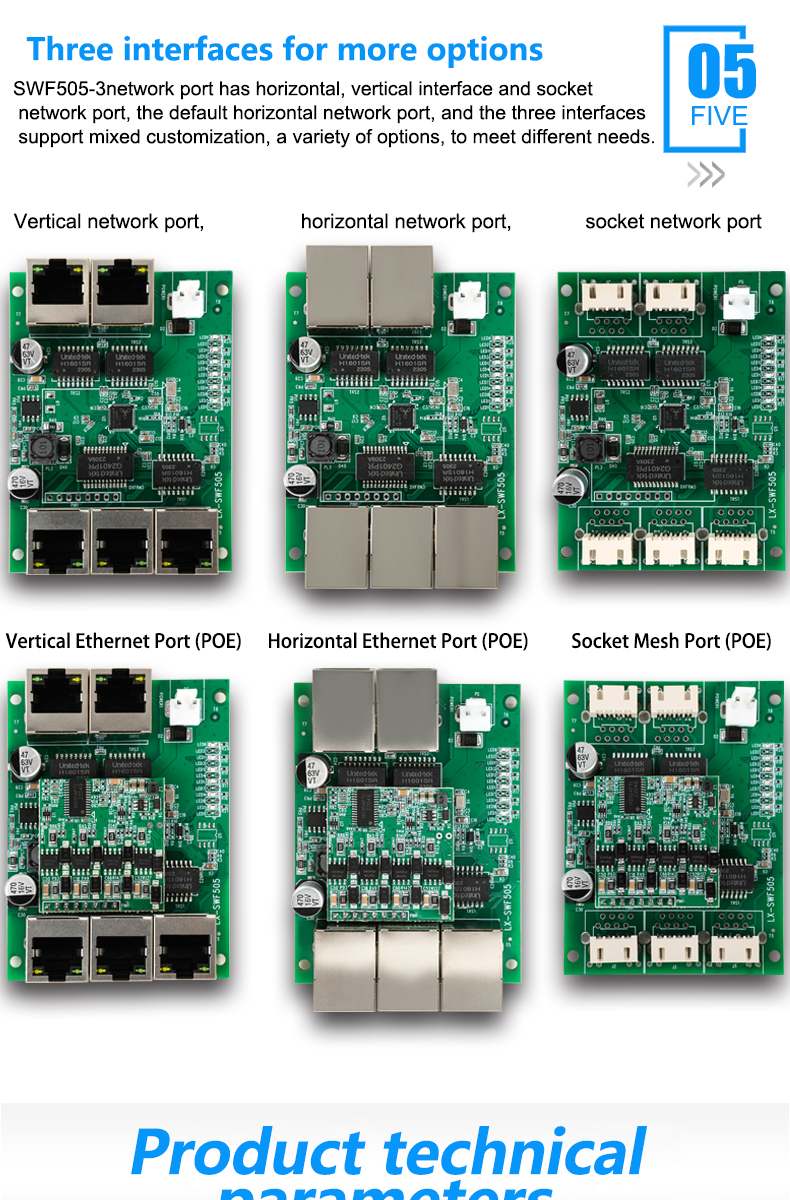

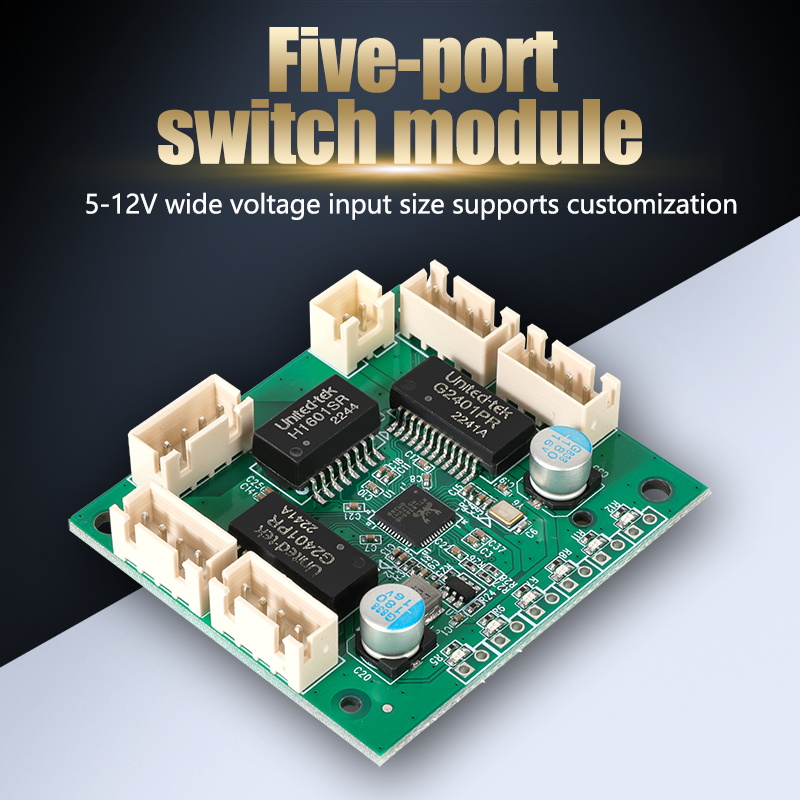

The SWF505 series is a 5-port switch module featuring a fully domestic chipset, supporting Fast Ethernet (100Mbps). This series offers three product variants: one with an XH2.54mm 4-pin connector, one with a horizontal RJ45 Ethernet port, and one with a vertical RJ45 Ethernet port. It provides a simple network connection for your workgroup or server, enabling plug-and-play convenience. Its flexible, non-blocking architecture allows users to operate without bandwidth or media network limitations.

The 5-port 10/100Mbps Ethernet switch module supports auto-negotiation on each switching port, delivering an economical, practical, and cost-effective 10/100Mbps LAN hub for broadband local area networks. It ensures stable performance and high-throughput data transmission for every end-user connected to the LAN. Each port utilizes a store-and-forward mode, effectively isolating broadcast storms, reducing packet errors, and avoiding network congestion and collisions.

This switch supports half-duplex flow control and full-duplex backpressure standards on all ports to enhance compatibility with bandwidth servers and network protocols. Additionally, LED indicators provide diagnostics for individual port and overall system status. The product is energy-efficient and environmentally friendly.

Key Features

IEEE802.310Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.X,IEEE802.3ab 100Base-T

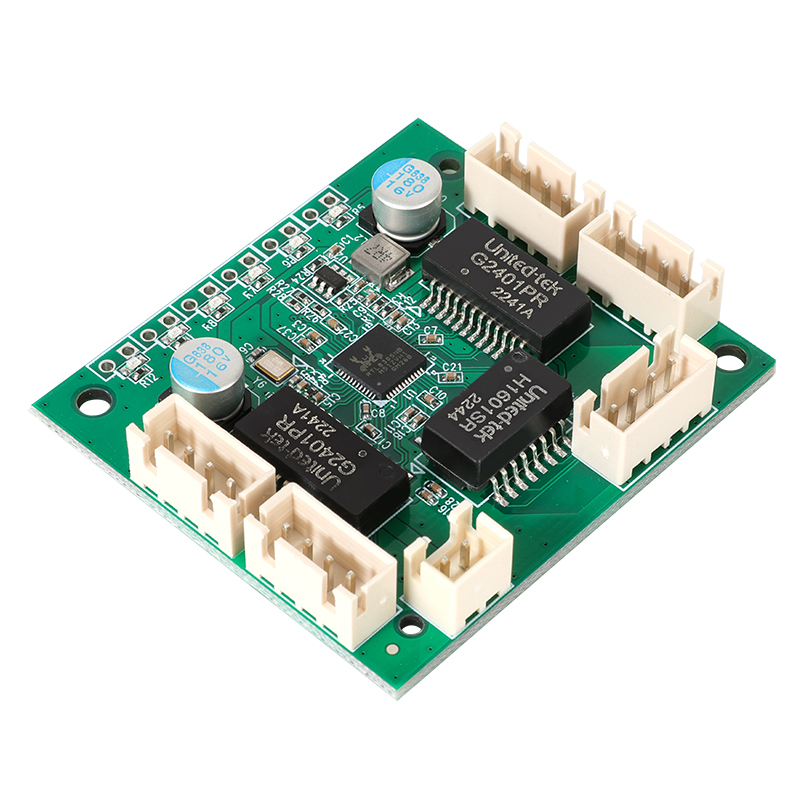

5 x 10/100M XH2.544PIN socket ports.
1K MAC address and MAC address auto-learning.
1Gbps non-blocking wire-speed forwarding backplane bandwidth.
External power supply DC 12-52V.

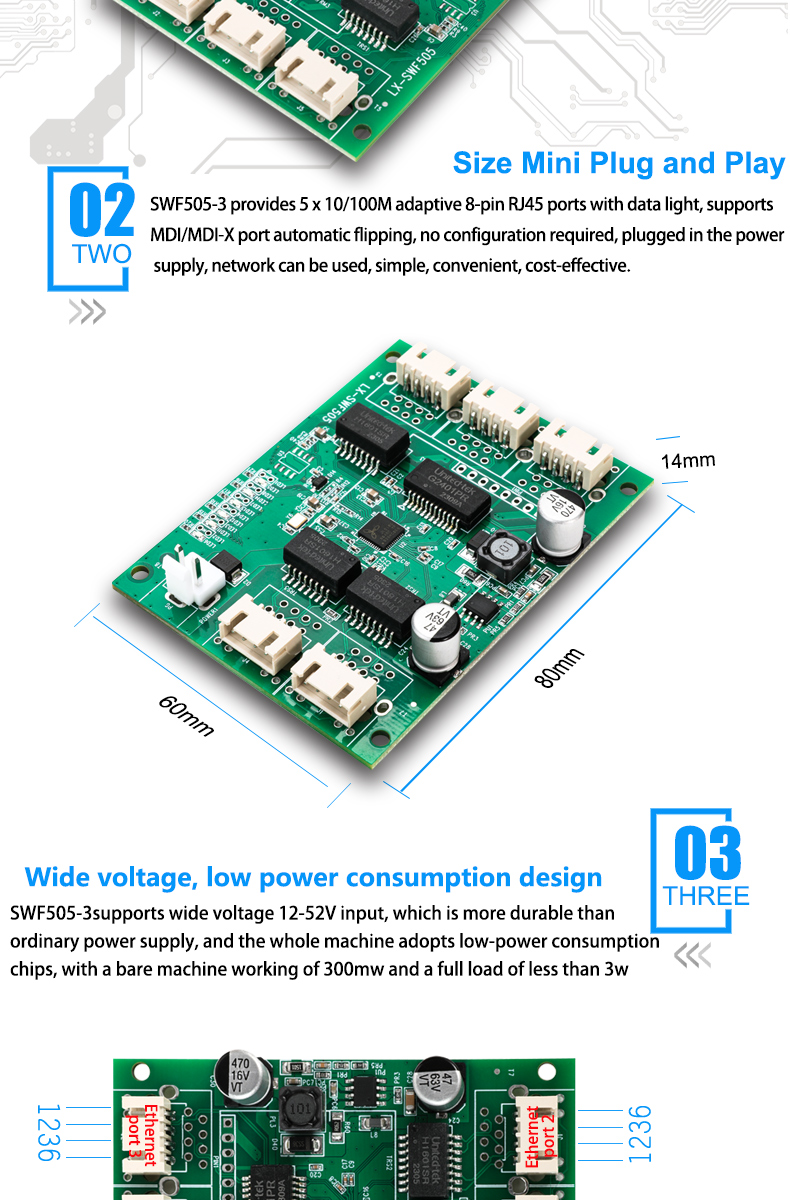

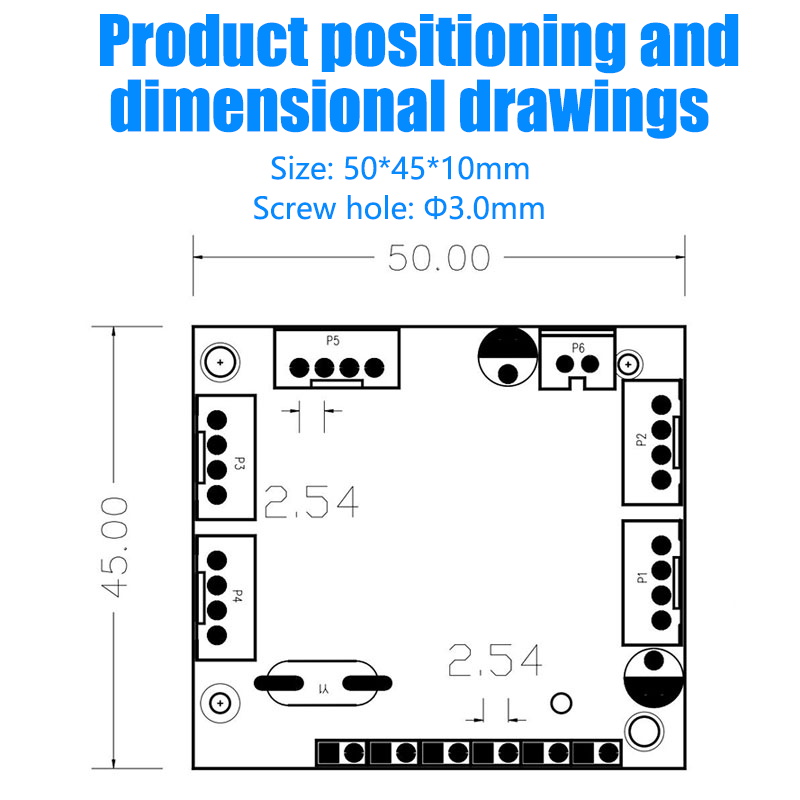

Module PCBA Size: 60*80*14mm

Product Characteristics

Practical choice with superior performance

Provides five 10/100M XH2.544PIN socket ports, all ports can realize wire-speed forwarding; builds a commercial switch with enterprise-class standards, with fully optimized performance, each port supports MDI/MDIX auto-flip and duplex/rate self-negotiation; supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Plug and Play without Configuration

Plug and play, dynamic LED indicators without any setup, out-of-the-box, all ports have wire-speed forwarding capability, rich port types for users to provide great flexibility for networking, within 1 second to help you build a 100 Gigabit wired network, greatly simplifying the management and maintenance of the device, support desktop and wall-mounted installation, deployment is simple and convenient.

Cache data without loss

Adopting store-and-forward mode, it provides 1Gbps backplane bandwidth and high-capacity cache, which effectively reduces data forwarding delay and improves forwarding efficiency to avoid data loss.

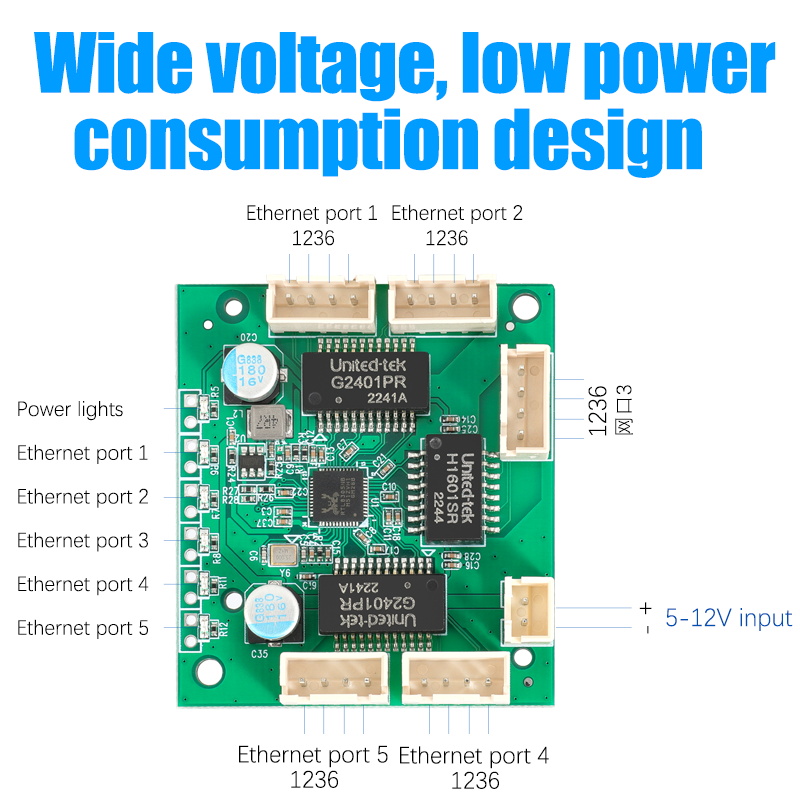

Wide voltage and low power consumption design

Supports wide voltage 12-52V input, more durable than ordinary power supply, the whole machine adopts low-power chip, the bare metal work 500mw, full-load work less than 3W.

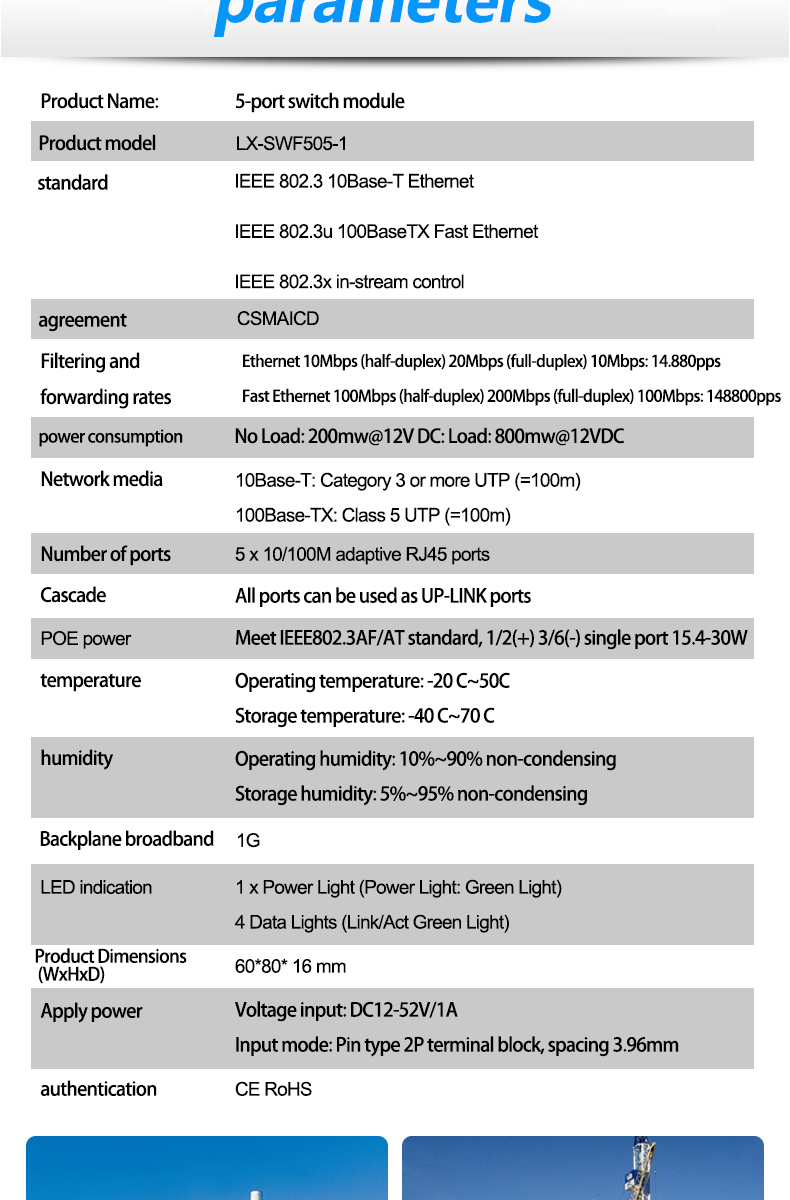

specification

working environment
Product Model	SWF505-3
Fixed Port	5 x 10/100M Base-T XH2.544PIN socket ports (Data/Power)
Network Protocol	IEEE802.310BASE-T;IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x
Port Characteristics	10/100M Base-T auto-detect, full/half-duplex MDI/MDI-X adaptive

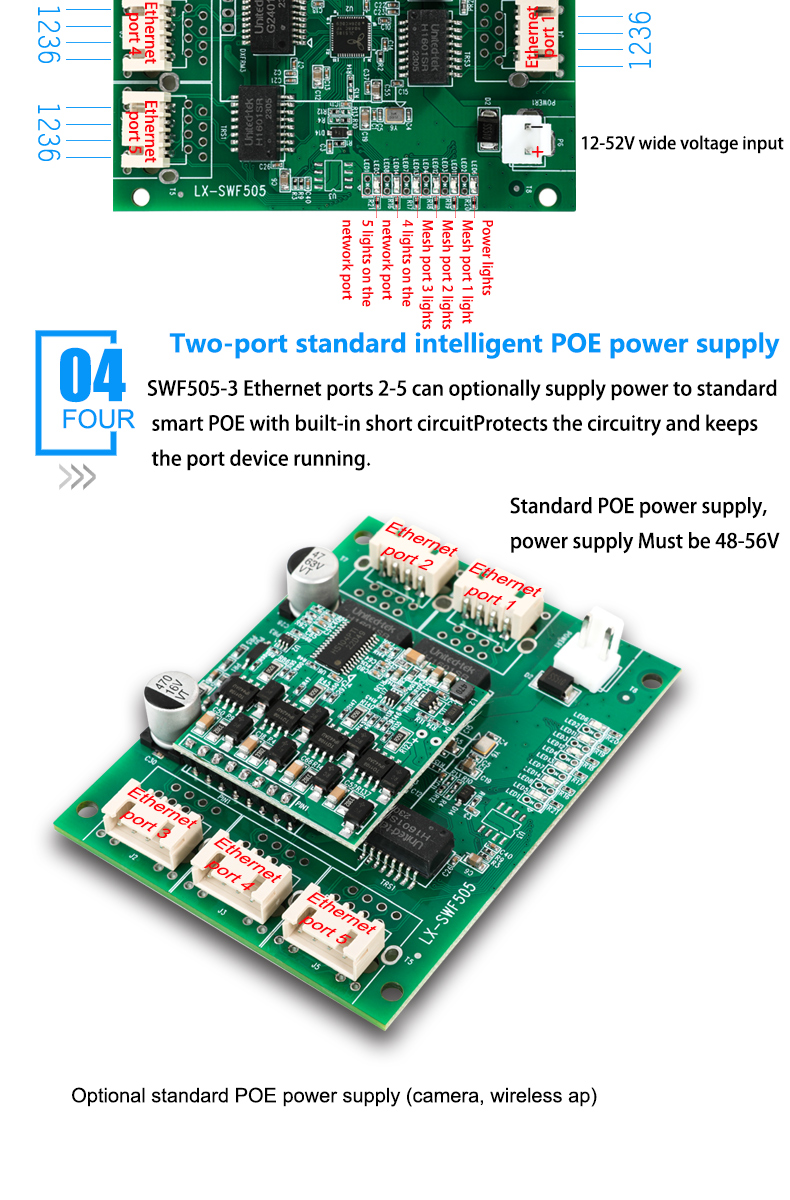

POE Power	Meet IEEE802.3AF/AT standard, 1/2(+)3/6(-) single port 15.4-30W
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	1Gbps (non-blocking)
Forwarding Rate	Ethernet 10Mbps(Half Duplex) 20Mbps(Full Duplex), 10Mbps:14,880pps FastEthernet100Mbps(half duplex), 200Mbps(full duplex), 100Mbps:148800pps
Maximum Single Port/Average Power	(DC5-12V)
Packet Forwarding Rate@64byte	1.448Mpps
MAC Address Table	2K
Twisted Pair Transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
Power Consumption	Standby power consumption: <3W; full load power consumption: <5W
LED Indicator	Power indicator: PWR (green); Network indicator: Link, Link/Act (green)
Dimension(LWH)	608016mm
Net/Gross Weight	<42g/<45g(POE<49g/<52g)

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.

Industrial Router

Home Router

Outdoor Wireless

Industrial Switch

The 5G Wi-Fi 6 router has remarkable features and is well recognized by the market!

Hotel wireless network construction plan

Scenic area wireless network construction plan

Rural wireless network coverage solution

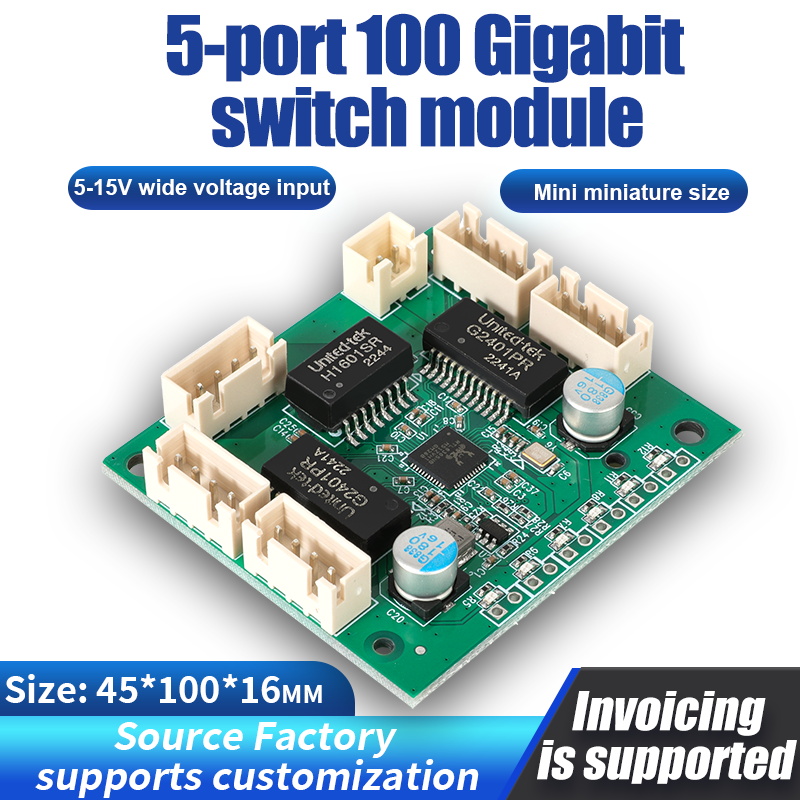

SWF505-3 mini Switch Module
