Description

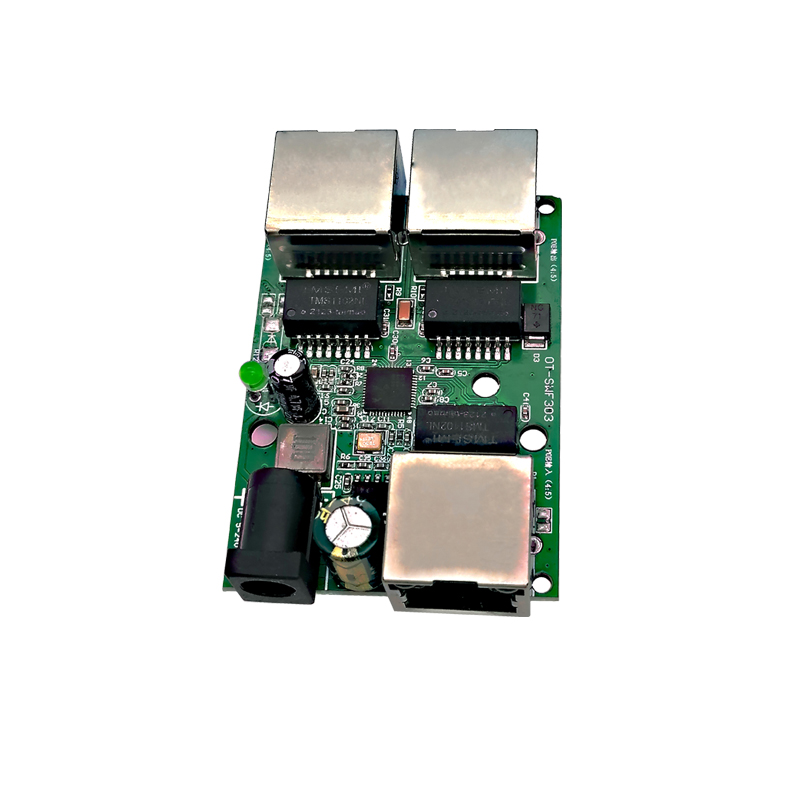

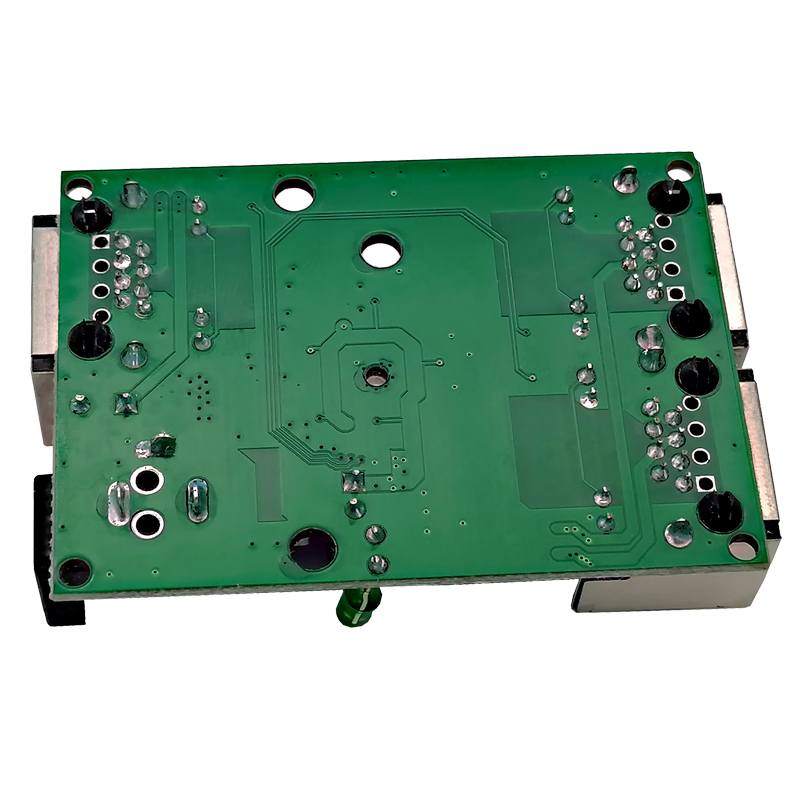

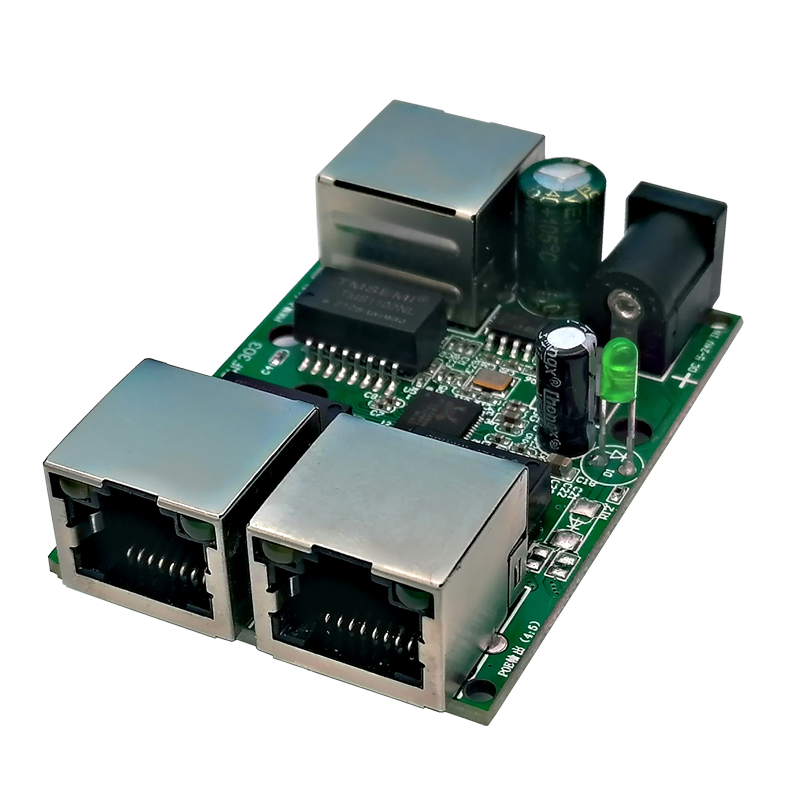

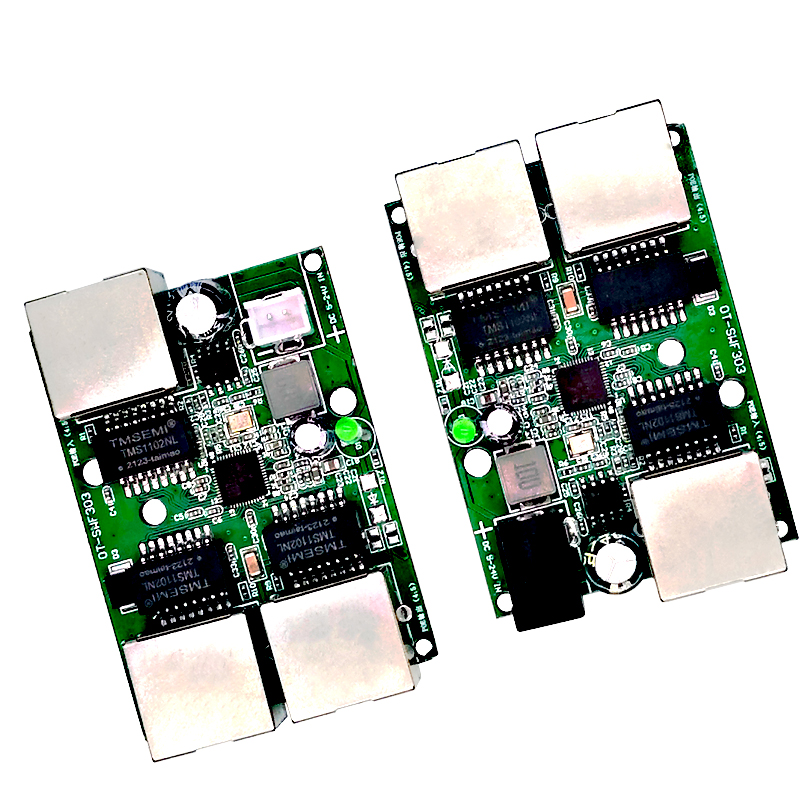

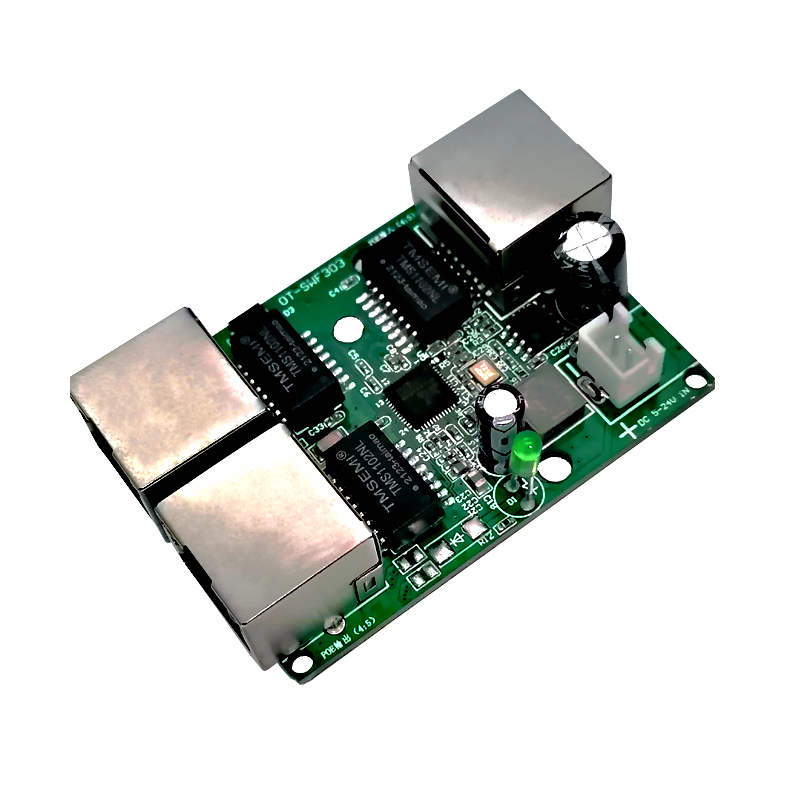

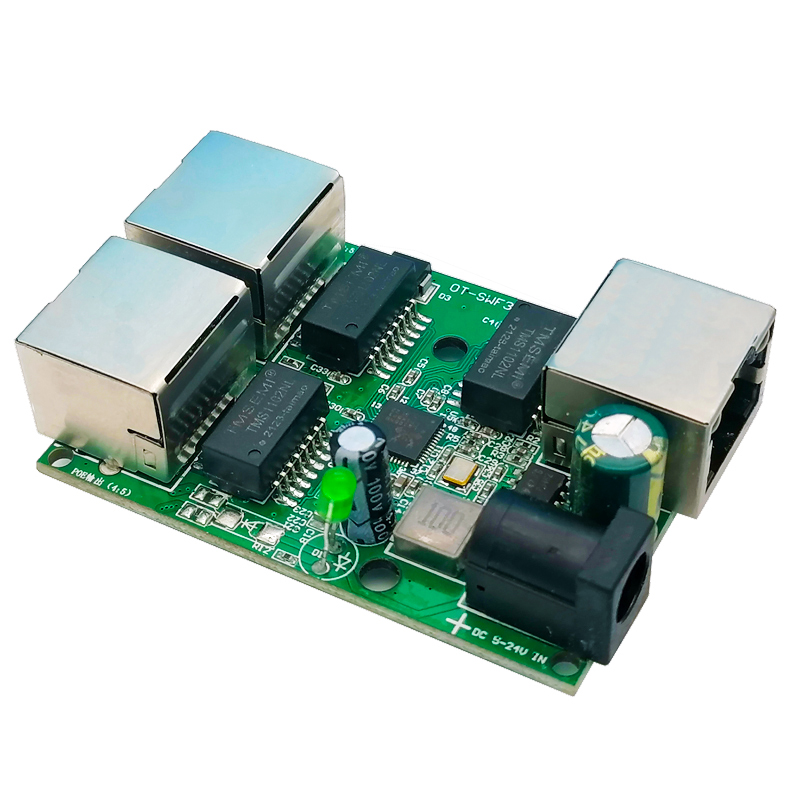

 SWF-303 It is a 100M non-standard PoE Ethernet switch product independently developed by Huasifei Technology, providing 3 10/100M RJ45 ports. Each port supports MDI/MDIX automatic flip function, and can realize wire-speed forwarding. The 3 ports have PoE function, support non-standard PoE power supply, can be used as Ethernet power supply equipment, can automatically detect and identify standard-compliant power receiving devices, and supply power to them through network cables. Simple and convenient to use, no configuration required, plug and play.

Features

• 3*10/100M auto-adaptive RJ45 ports, 1x2x3x ports support PoE power supply, and the transmission distance is 100 meters;
• Non-standard poe interface, 4.5-pin positive, connected to a resettable fuse (60v/0.75A), 78-pin is negative.
• Support IEEE802.3 standard;
• Store-and-forward architecture;

• Support IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control;
• Support MAC address self-learning;
• The port supports the auto-negotiation function, which automatically adjusts the transmission mode and transmission rate;
