Description

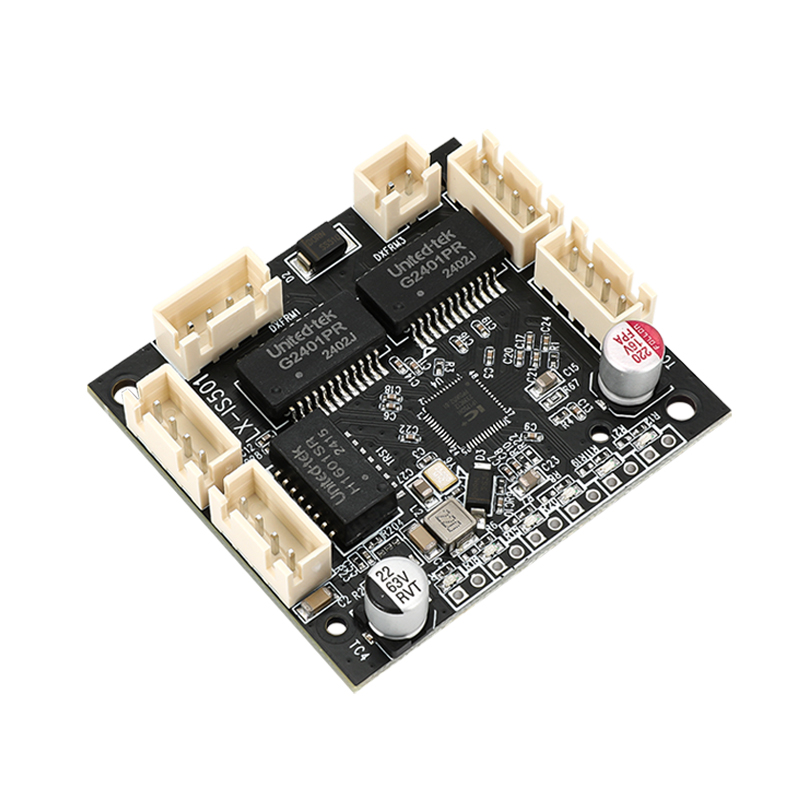

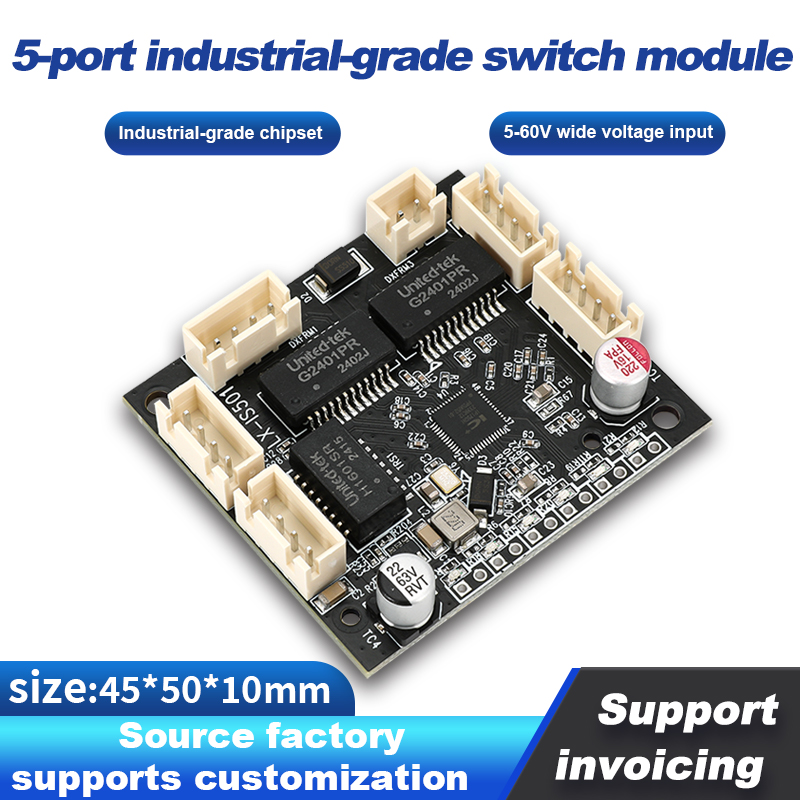

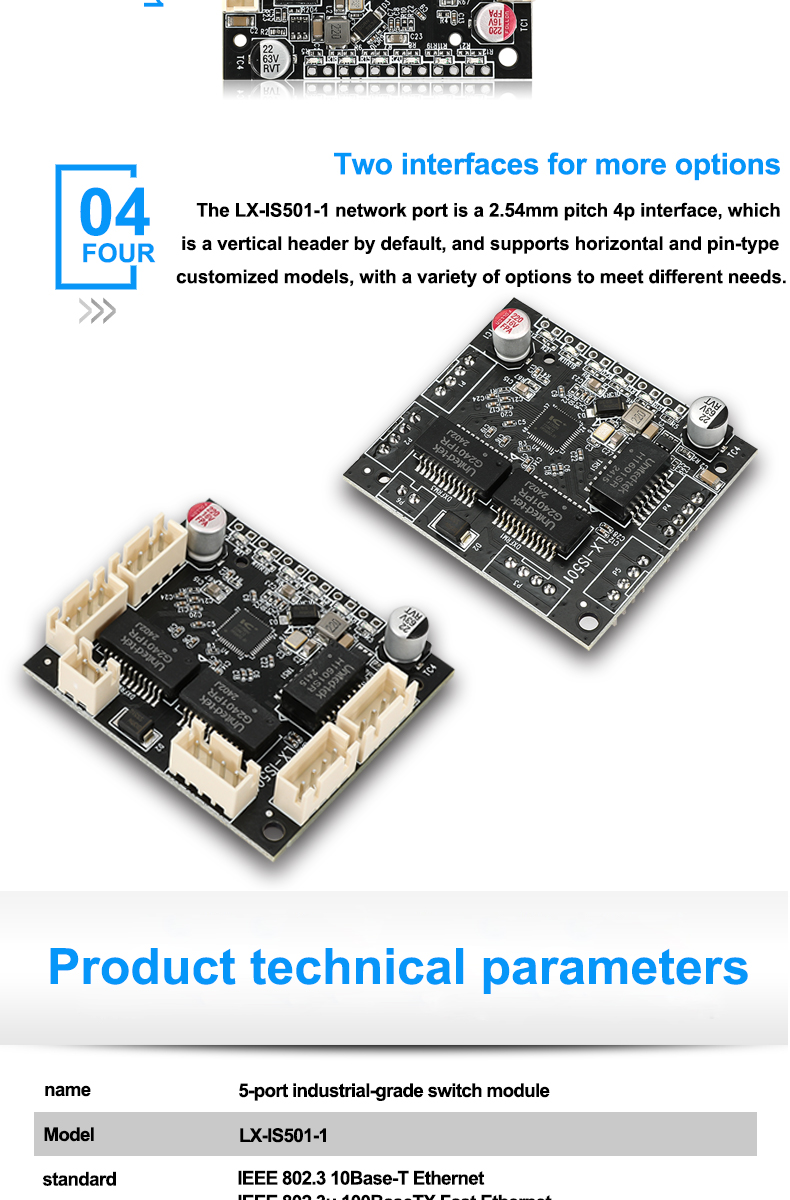

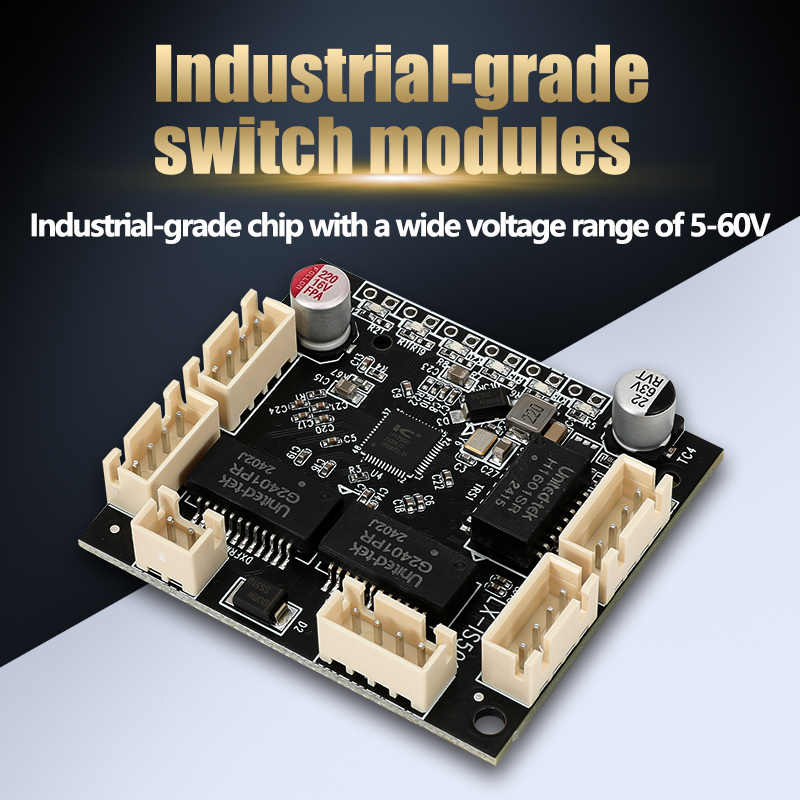

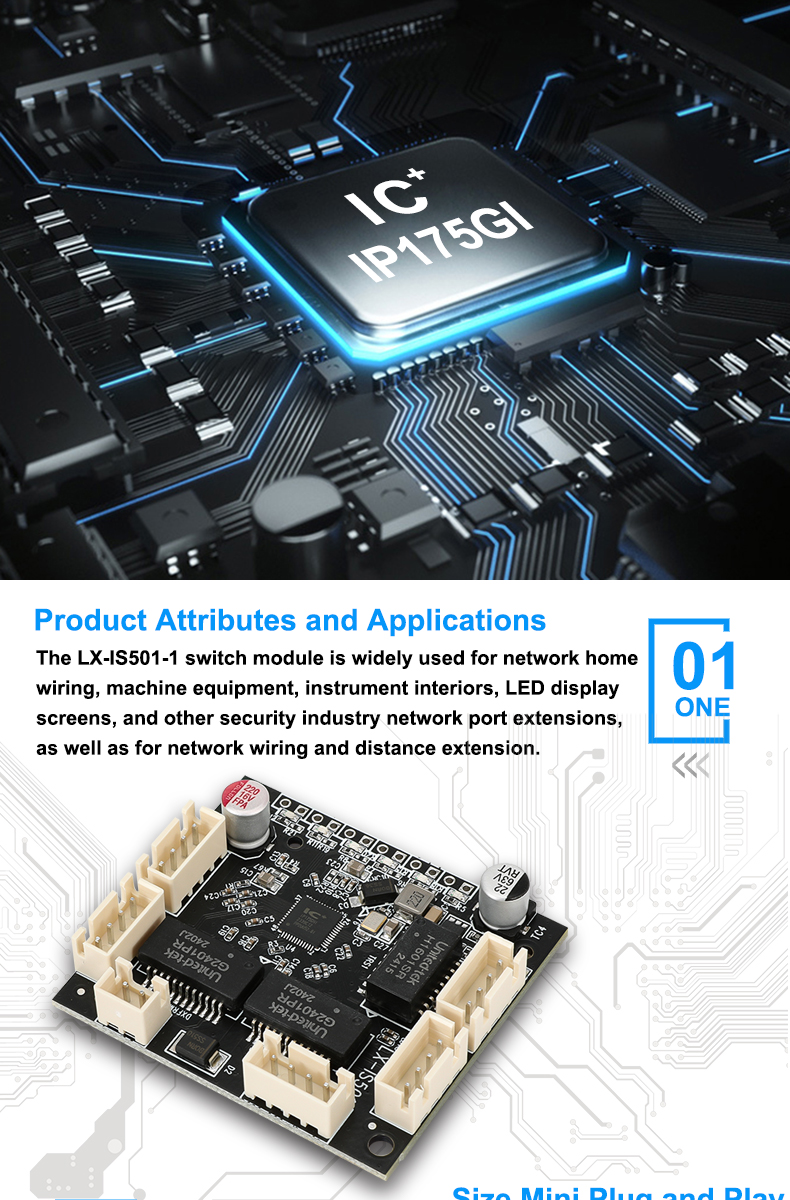

The LX-IS501-1 series are 5-port 100Gb industrial grade switch modules. There are 2 models available in this series, namely XH2.54mm 4pin port and on-board 4pin pin model. They are characterized by high integration, compact size, rich functionality, simplicity and convenience. With embedded installation, users can customize the PCB specification and select the type of Ethernet interface through the module pins to meet the needs of different applications.

The hardware adopts fanless, low power consumption, wide temperature and voltage design, and passes the strict test in accordance with the industry standard, which can adapt to the industrial field environment with strict requirements on EMC, and can be widely used in the industrial fields of smart grid, rail transportation, smart city, safe city, new energy, and intelligent manufacturing.

Key Features

Compliant with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3x.

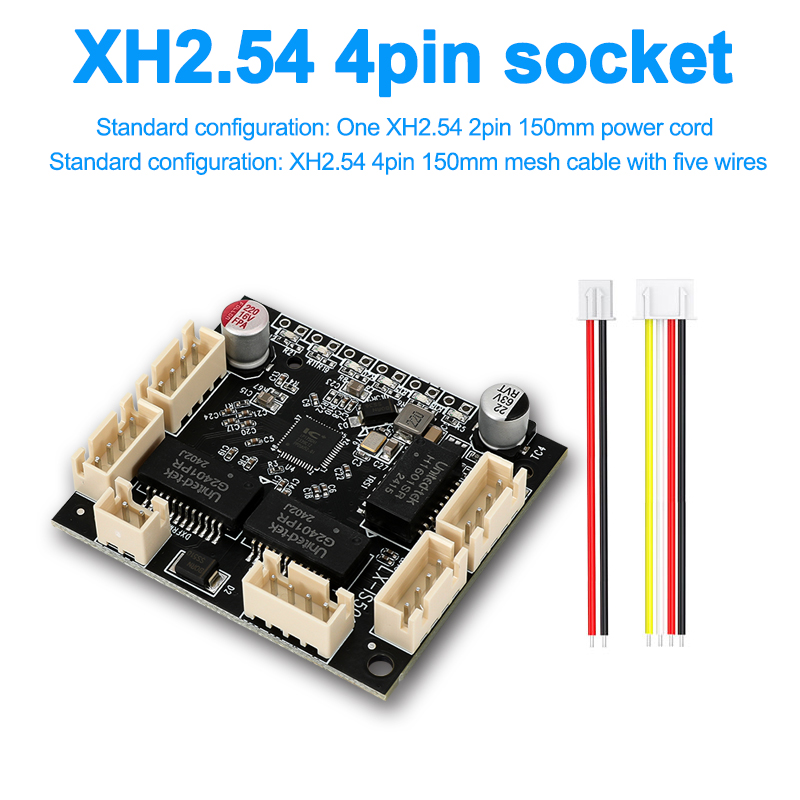

5*10/100M Base-TXH2.54mm 4pin socket ports (Data/Power).
2K MAC address and MAC address auto-learning.
1Gbps non-blocking wire-speed forwarding backplane bandwidth.

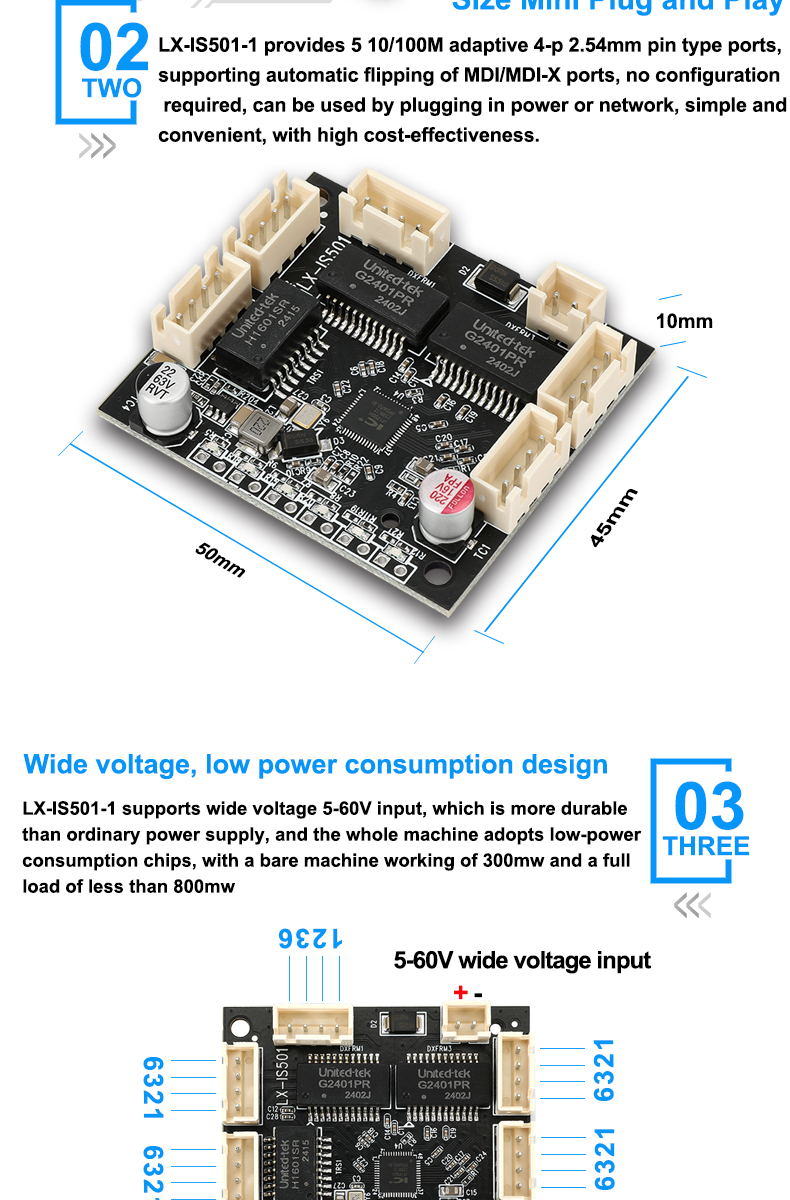

External power supply DC 5-60V (XH2.542pin socket).

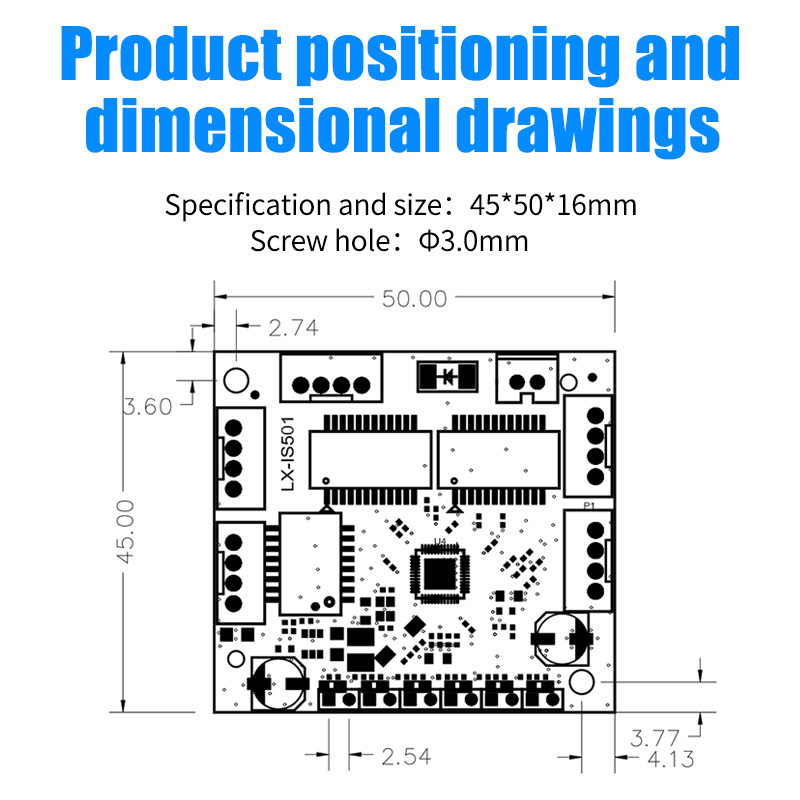

Module PCBA size: 45*50*10mm(L*W*H).

Product Characteristics

High-speed transmission, stable online

Provides five 10/100M Base-T adaptive XH2.54mm 4pin socket ports, which is convenient for users to network flexibly to meet the networking needs of various scenarios; all ports support non-blocking wire-speed forwarding, smoother transmission. Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control..

Compact and Modular Design

Highly integrated, compact size of only 45*50*10mm, embedded installation, users can customize the PCB specification, through the module pins can choose any type of Ethernet interface to meet the needs of different applications.

Plug and play without configuration

Support 10/100/M Base-T adaptive XH2.54mm 4-pin socket ports, each port supports MDI/MDIX adaptive function, full-speed 100Gbps switching capability, plug-and-play, no need to manage to ensure that all ports are non-blocking forwarding. Users can easily know the working status of the device through the power indicator (PWR), port status indicator (Link, L/A)..

Industrial design for a wide range of applications

The hardware adopts fanless, low power consumption, wide temperature and voltage design, and passes the strict test in accordance with the industry standard, which can adapt to the industrial field environment with strict requirements on EMC, and can be widely used in smart grid, rail transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.

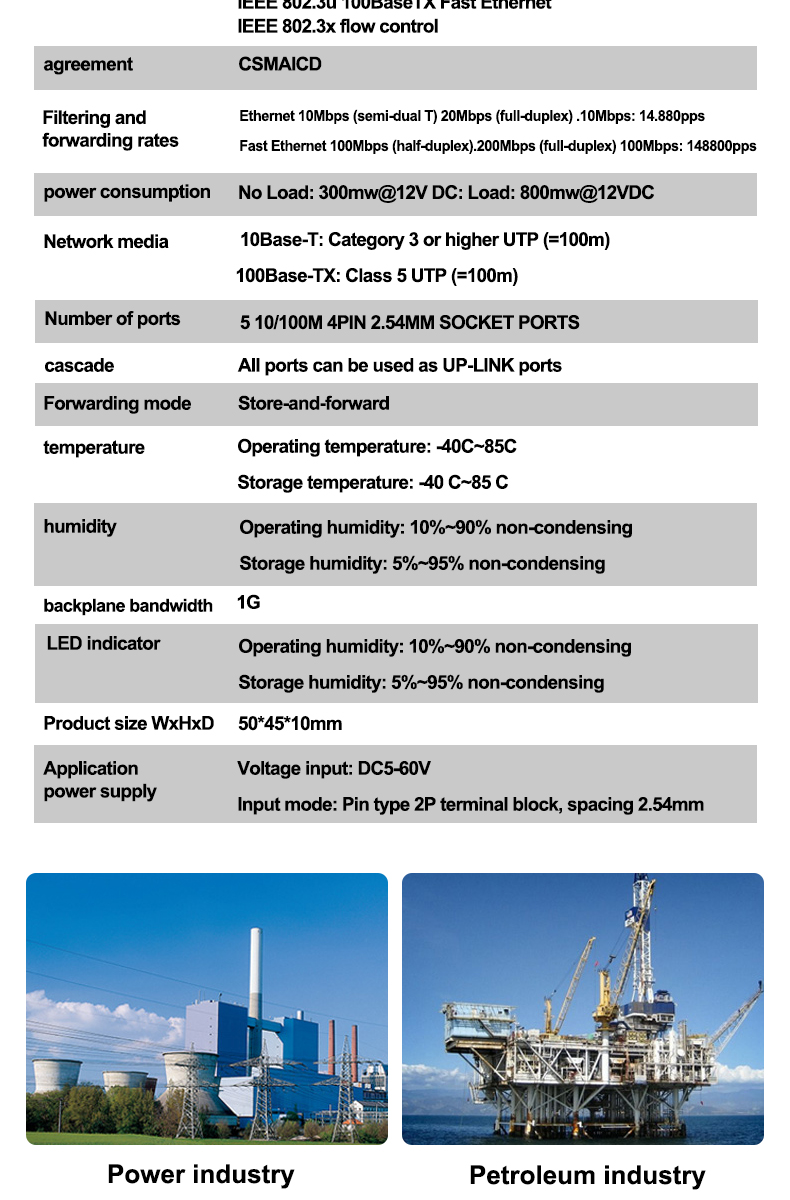

specification

working environment
Product Model	LX-IS501-1
Fixed Port	5*10/100M Base-TXH2.54mm 4pin socket ports (Data/Power)
Network Protocol	IEEE802.310BASE-T;IEEE802.3i 10Base-T; IEEE802.3u 100Base–TX; IEEE802.3x
Port Characteristics	10/100M Base-T auto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	1Gbps (non-blocking)
Forwarding Rate	Ethernet 10Mbps (half-duplex) 20Mbps (full-duplex), 10Mbps: 14.880pps Fast Ethernet 100Mbps(Half Duplex),200Mbps(Full Duplex),100Mbps:148800pps
Cascade	All ports can be used as UP-LINK ports.
Packet Forwarding Rate@64byte	4Mpps
MAC Address Table	2K
Twisted Pair Transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE–TX:Cat5 or later UTP(≤100 meter)
Power Consumption	Standby power consumption: <300MW;Full load power consumption: <800MW
LED Indicator	Power indicator: PWR (green); Network indicator: Link, Link/Act (green)
Dimension(LWH)	455010mm
Net/Gross Weight	<20g/<22g
Working Environment
Operating Humidity	10%-90%RH(non-condensing)
Operating Temperature	-40℃-85℃
Storage Humidity	10%-90%RH(non-condensing)
Storage Temperature	-40℃-85℃

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
