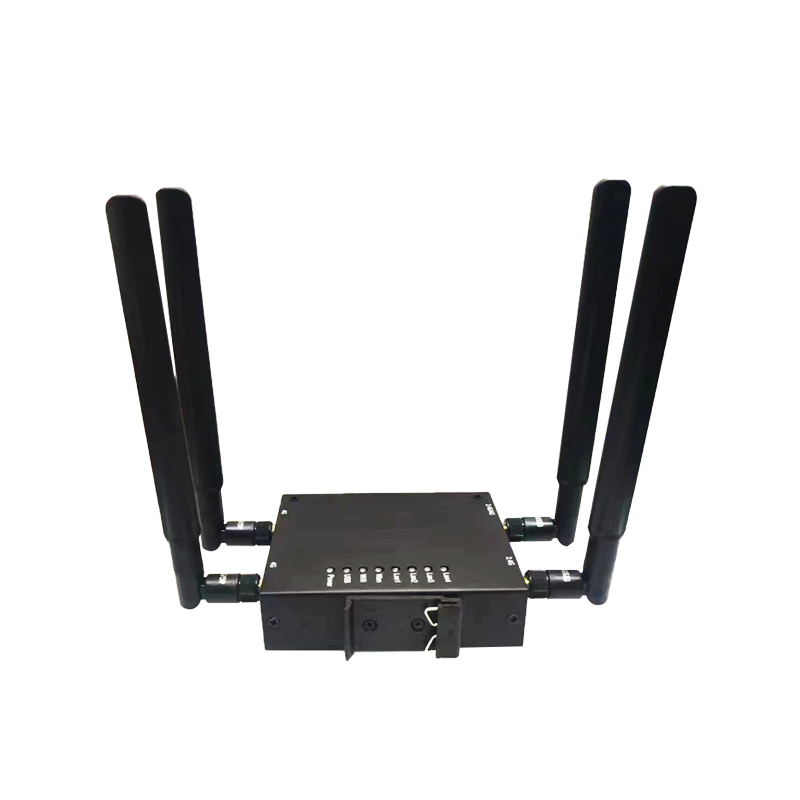

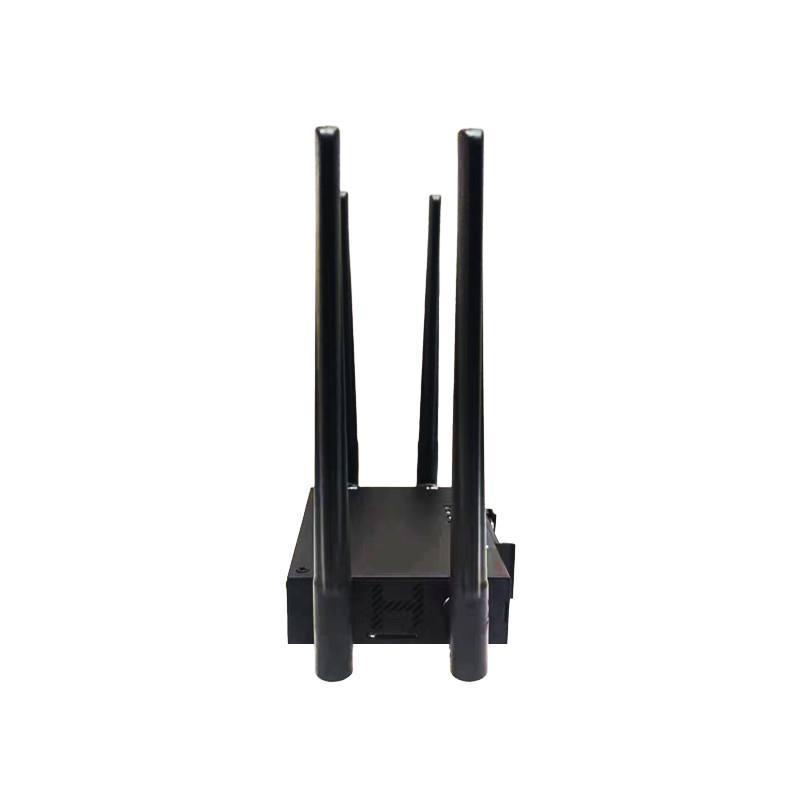

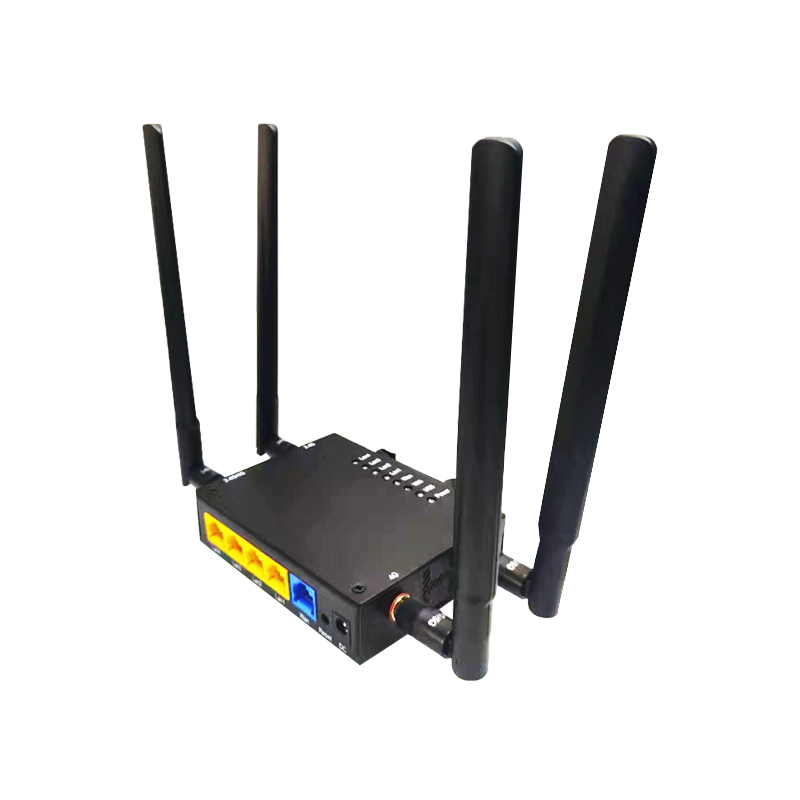

WS300A wifi 4g router

HUASIFEI black Iron shell 4g router openwrt 12V DC 300Mbps wifi 4g router with SIM slot

Product Description
Product features

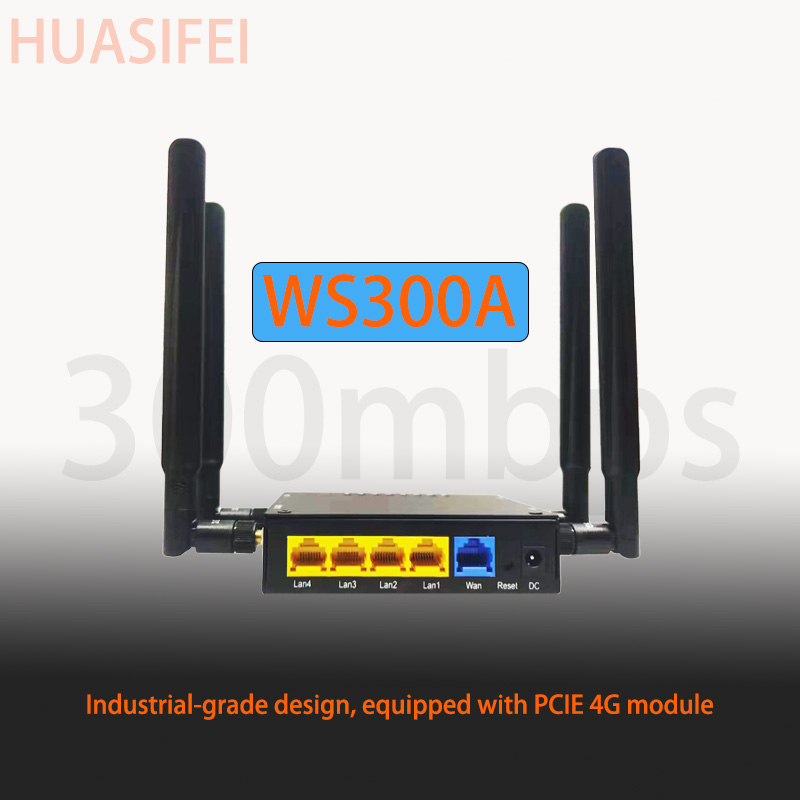

  • Industrial grade design, equipped with PCIE 4G modules;

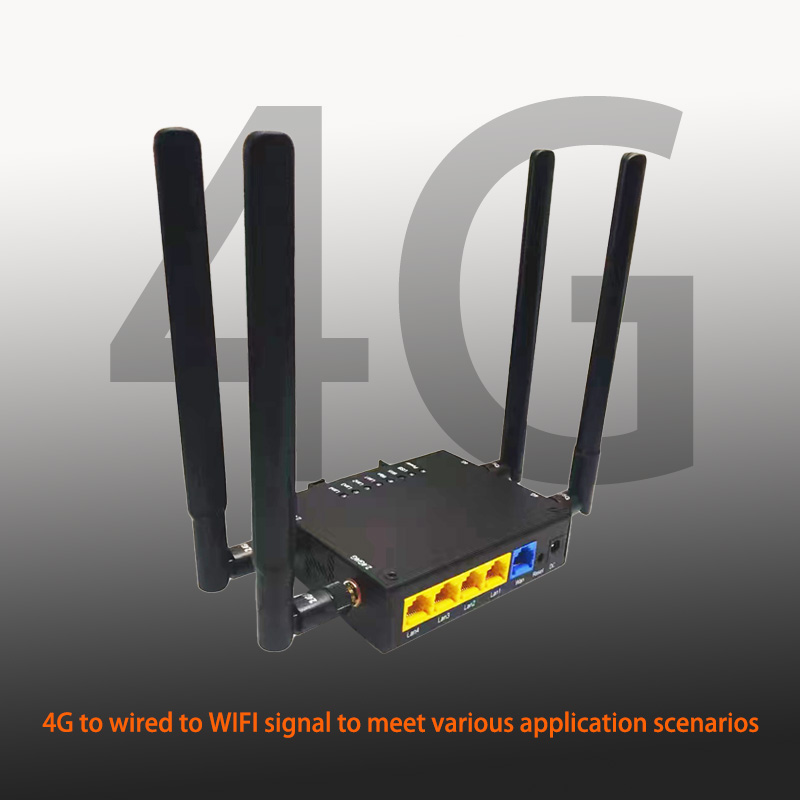

  • 4G to wired to WIFI signal conversion, meeting various application scenarios;
  • With a large number of devices, it is easy to connect to various wireless terminal devices;
  • No wiring, bid farewell to wired broadband, flexible installation;
  • Free card replacement, plug and play, with network access for card insertion;

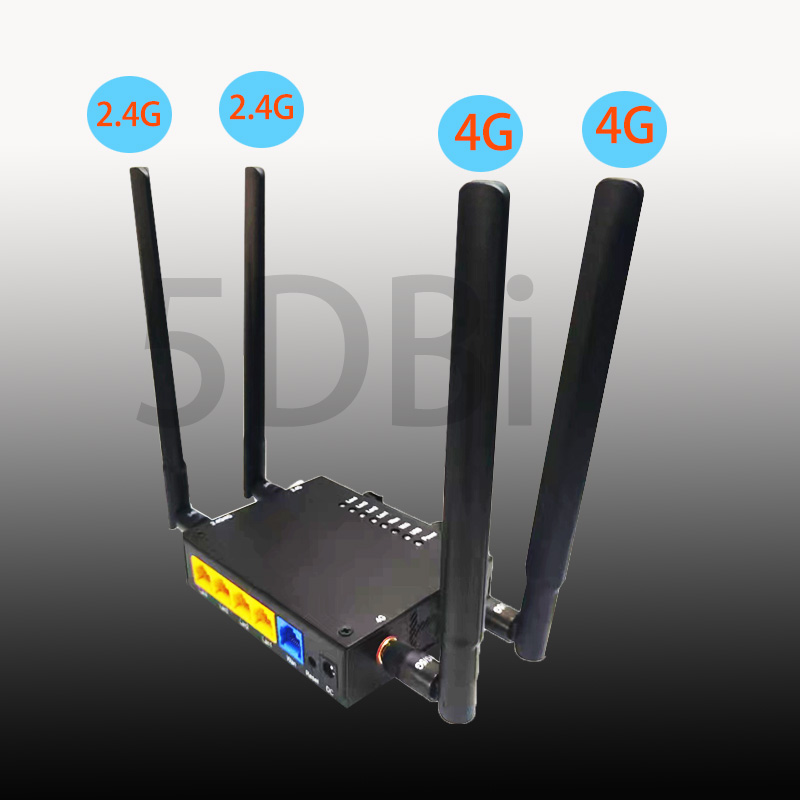

  • Two 2.4G and two 4G high gain omnidirectional antennas are installed externally, with strong penetration and stable signal.

Description

Parameters

Hardware specifications


hardware system





master control MT7620A
FLASH 16MB
DDR 128MB
4G module EC200A/EC20/EC25/EP06
Wireless parameters Protocol standards IEEE 802.11 b/ g/ n
Working frequency band 2.4GHz:2412MHz~2472MHz
Wireless rate 300Mbps Max
4G rate LTE-FDD:Maximum downlink speed 150Mbps, maximum uplink speed 50Mbps

LTE-TDD:Maximum downlink speed 130Mbps, maximum uplink speed 30Mbps

Transmission power 18dBm Max

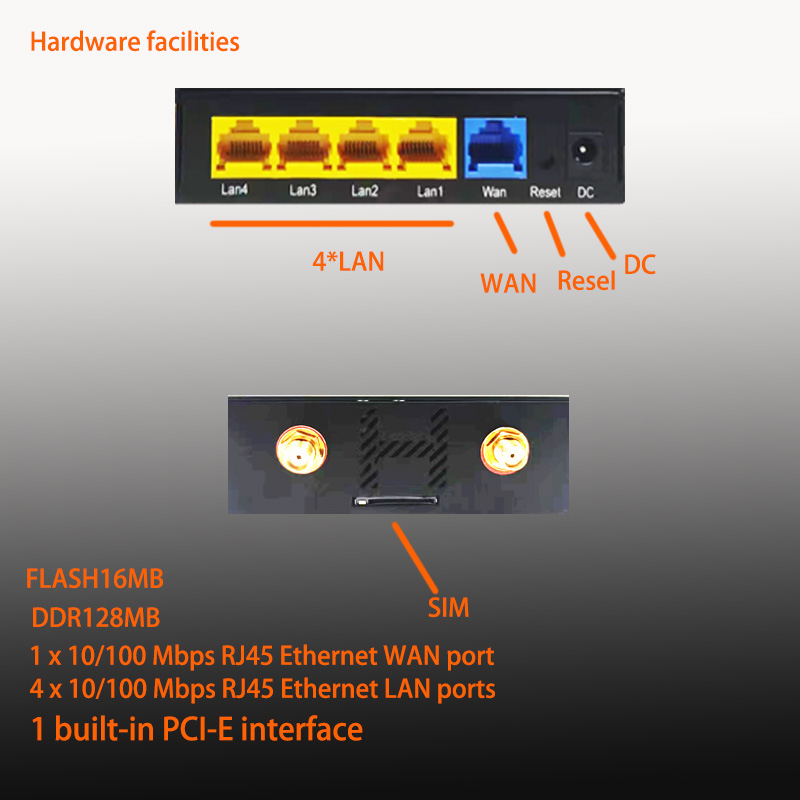

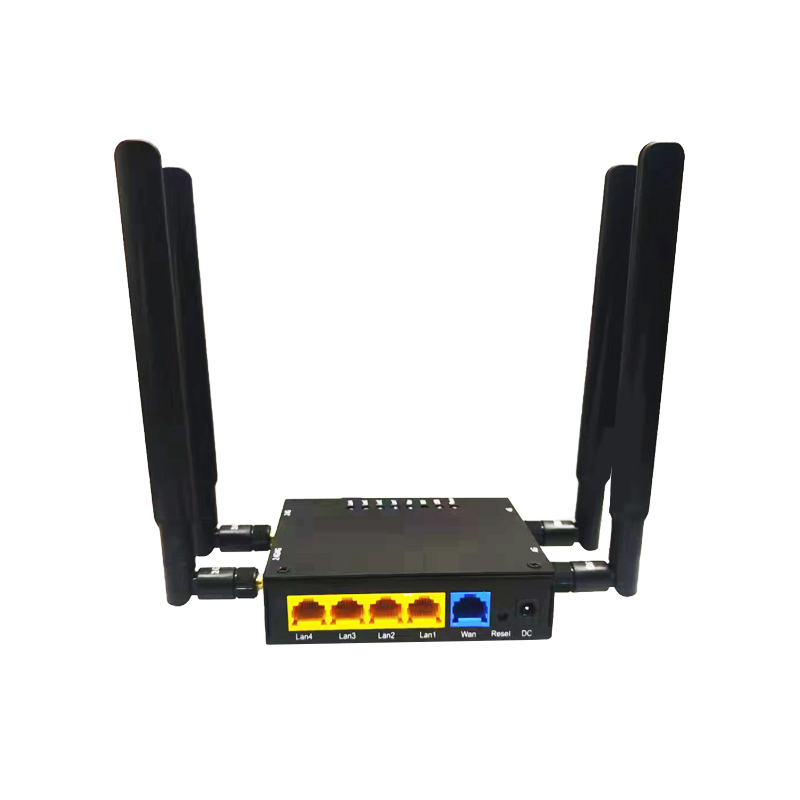

physical interface network interface 1 10/100 Mbps RJ45 Ethernet WAN port

4 10/100 Mbps RJ45 Ethernet LAN ports

Power supply interface 1 DC power port, supporting 12V DC power supply



SIM card interface 1 standard pop-up Mini SIM card slot
Key switch 1 RESET reset button
PCI-E interface 1 built-in PCI-E interface (optional or replaceable 4G modules of different brands)
Antenna interface 2 standard SMA interfaces for 4G antennas (external interface, interchangeable with different antennas)

2 WIFI antenna standard SMA interfaces (external interface, can replace different antennas)

pilot lamp LED indicator light Respectively POWER,4G,WIFI,WAN,LAN1,LAN2,LAN3, LAN4
Power supply/power consumption Power supply method DC 12V~1A power supply



product accessories main engine Industrial grade intelligent 4G router host * 1
DC adapter DC 12V/1A
antenna Two 5dBi high gain omnidirectional WIFI antennas

Two 5dBi high gain omnidirectional 4G antennas

other User manual * 1, warranty card * 1, certificate of conformity * 1

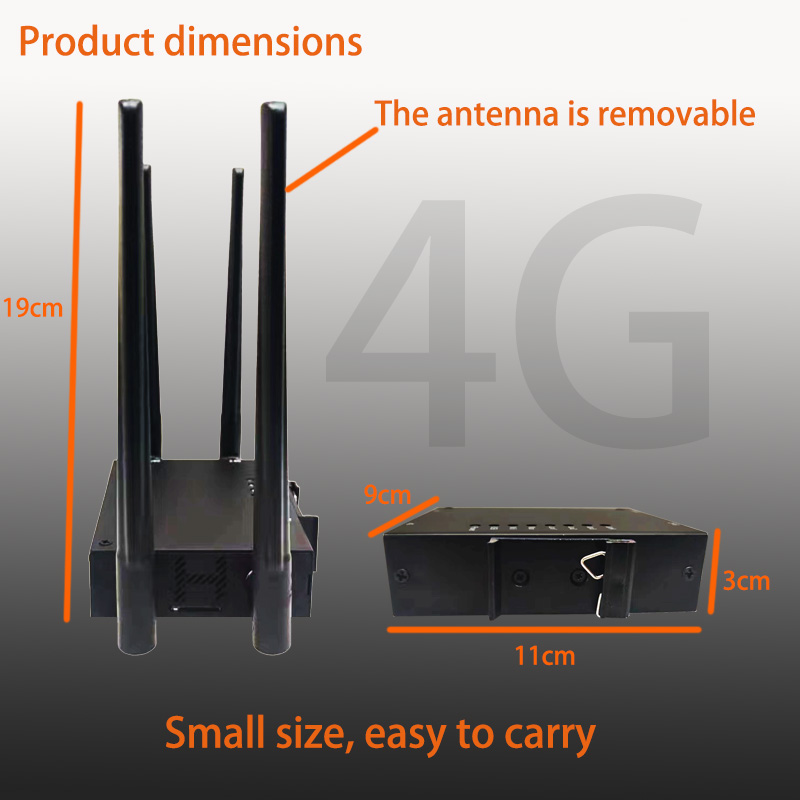

Appearance/Packaging Product size External dimensions (length * width * height): 110mm * 90mm * 30mm (excluding antenna)

Antenna height: 190mm

Appearance material Iron shell, frosted surface
Appearance color Black (customizable appearance color)
weight 1.5kg
other Protection level IP31,2KV lightning protection
Installation method Desktop and wall mounted
Usage environment Working temperature: -10 ℃~55 ℃

Storage temperature: -40 ℃~70 ℃

Working humidity: 10%~90% RH non condensing

Storage humidity: 5%~95% RH non condensing
