specification

5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.

  The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.

Key Features

5G Cellular
Built-in Qualcomm™ SDX62 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.

Wi-Fi 6 (802.11ax)

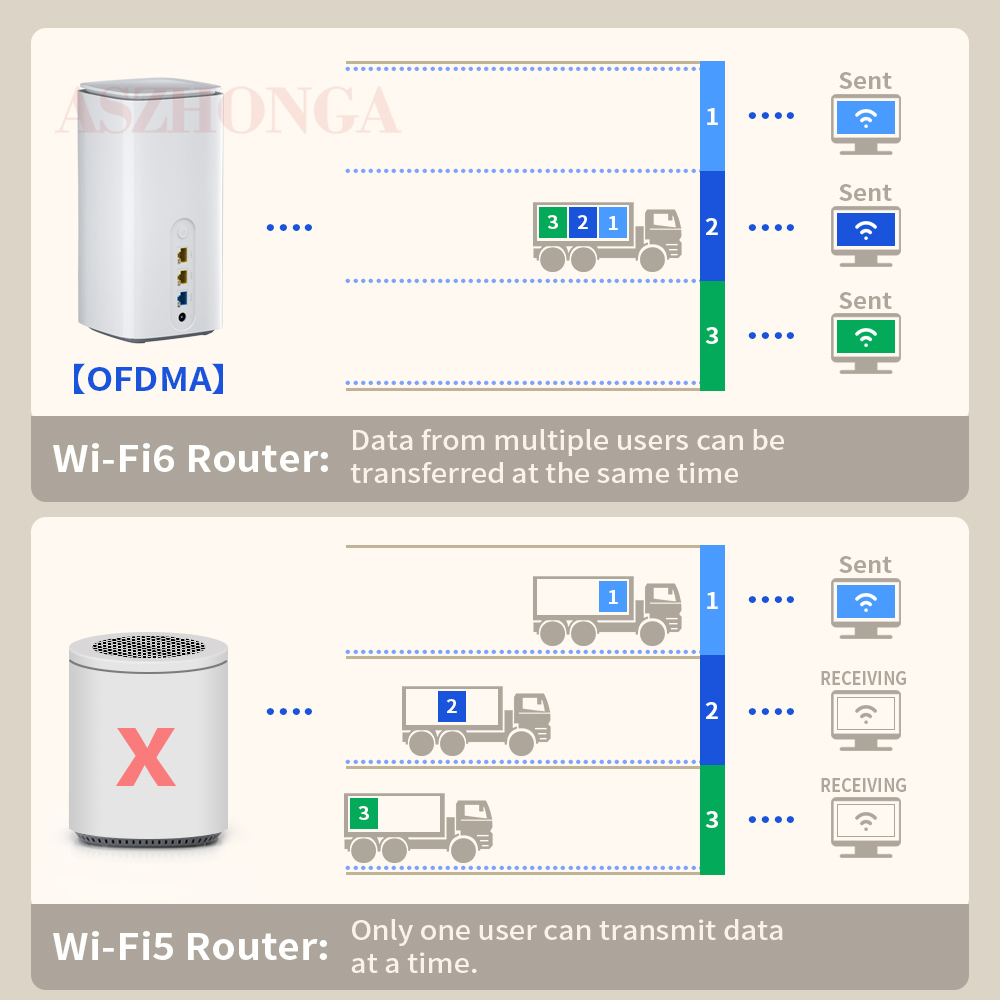

The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best network efficiency.

Higher Wireless Capacity
Dual-band 4 spatial streams, the CPE outputs 3000Mbps wireless bandwidth (600 + 2475), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.

Hybrid MESH+ Networking
The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.

5G Datasheet

• 5G Baseband: Qualcomm® Snapdragon™ X62 Modem-RF System Peak Downlink Rate:4.4Gbps Peak Uplink Rate:1500Mbps·
• 5G Network Modes: SA (standalone), NSA (non-standalone)
• 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
• 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
• 5G Standards:3GPP Release 15
• 5G SA Sub-6 DL2.4 Gbps:UL 900 Mbps
• 5G NSA Sub-6 DL 3.4 Gbps; UL 550 Mbps
• 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
• 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)

4G Datasheet

• LTE Category:Down Cat 16/ UP Cat 18
• LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12 /B13/B14/B17/B18/B19 /B20/B25 /B26/B28/B29/B30/B32/B66/B71
• LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
• LTE Down 4 × 4 MIMO :B1/B2/B3/B4/B7/B25 /B30/B32/B34/B38/B39 /B40 /B41/B42/B43/B48/B66
• WCDMA:B1/B2/B3/B4/B5/B8/B19
• LTE :Down 1.6 Gbps;UP 200 Mbps

WIFI6 Datasheet

WiFi 6(802.11ax)

• Working Radio: #1: 600Mbps @ 2.4GHz; #2: 2475Mbps @ 5.1-5.8GHz
• Coding Technology:1024-QAM / OFDMA
• Peak Connections:>100+ Clients
• Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
• Antenna: built-in 4 pcs high performance antennas with 4 pcs external FEM components.

Data Switching

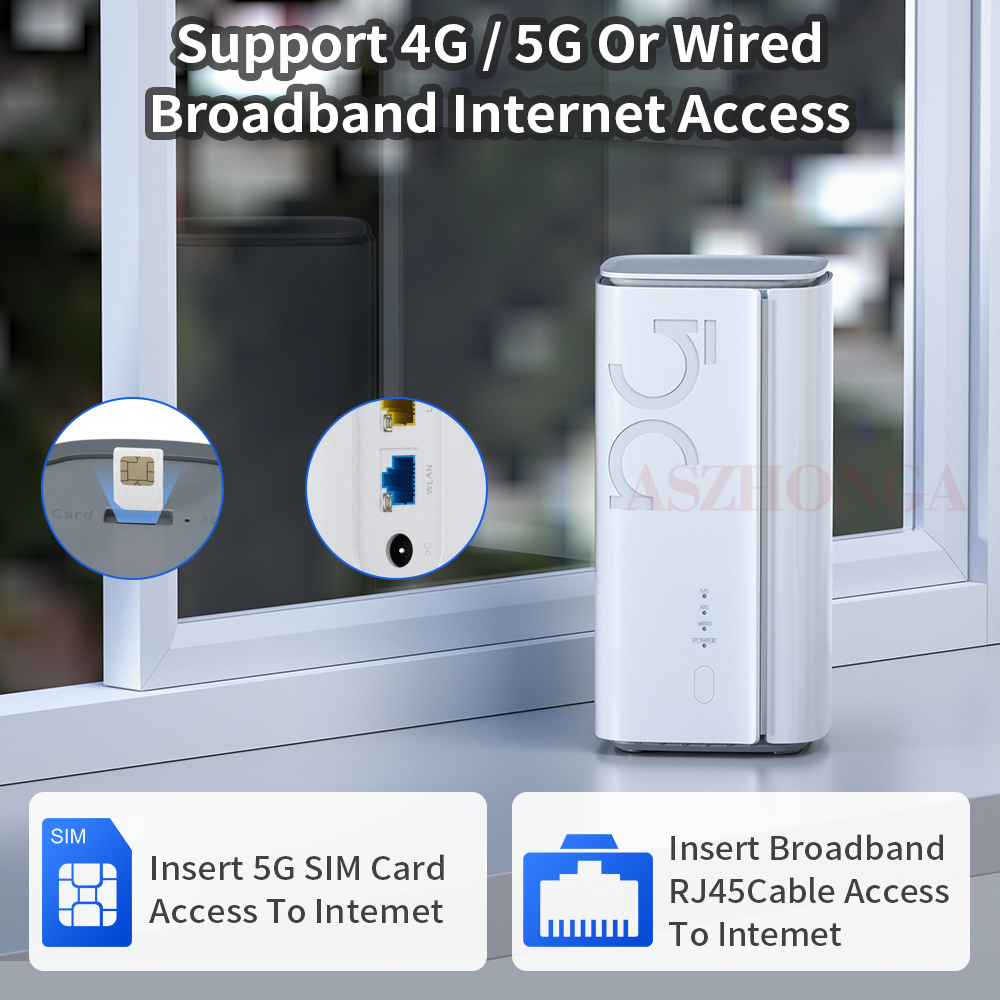

• Mobile 4G/5G Connection (Support APN)
• Giga Ethernet Connection
• MESH:MESH+ hybird
• 2.4G/5Ghz WiFi
• Advanced Firewall
• MAC Filter
• WiFi Sercurity
• VPN Passthrough and VPN Client (L2TP PPTP)
• IPV4/IPV6

• WEB / APP Mangement

• Firmware upgrade

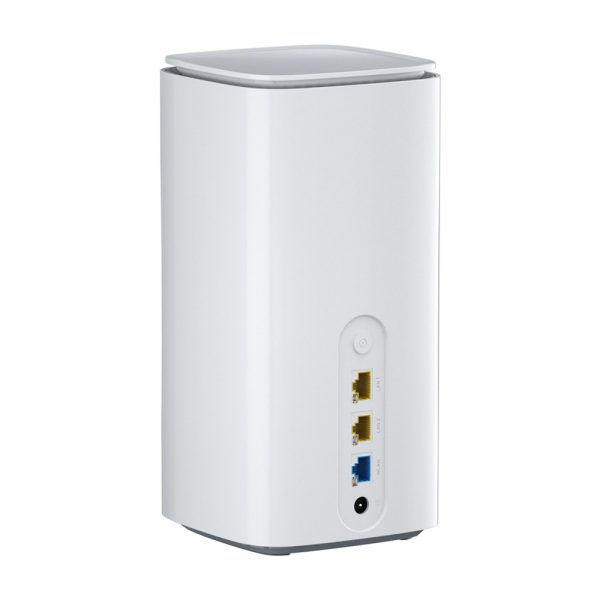

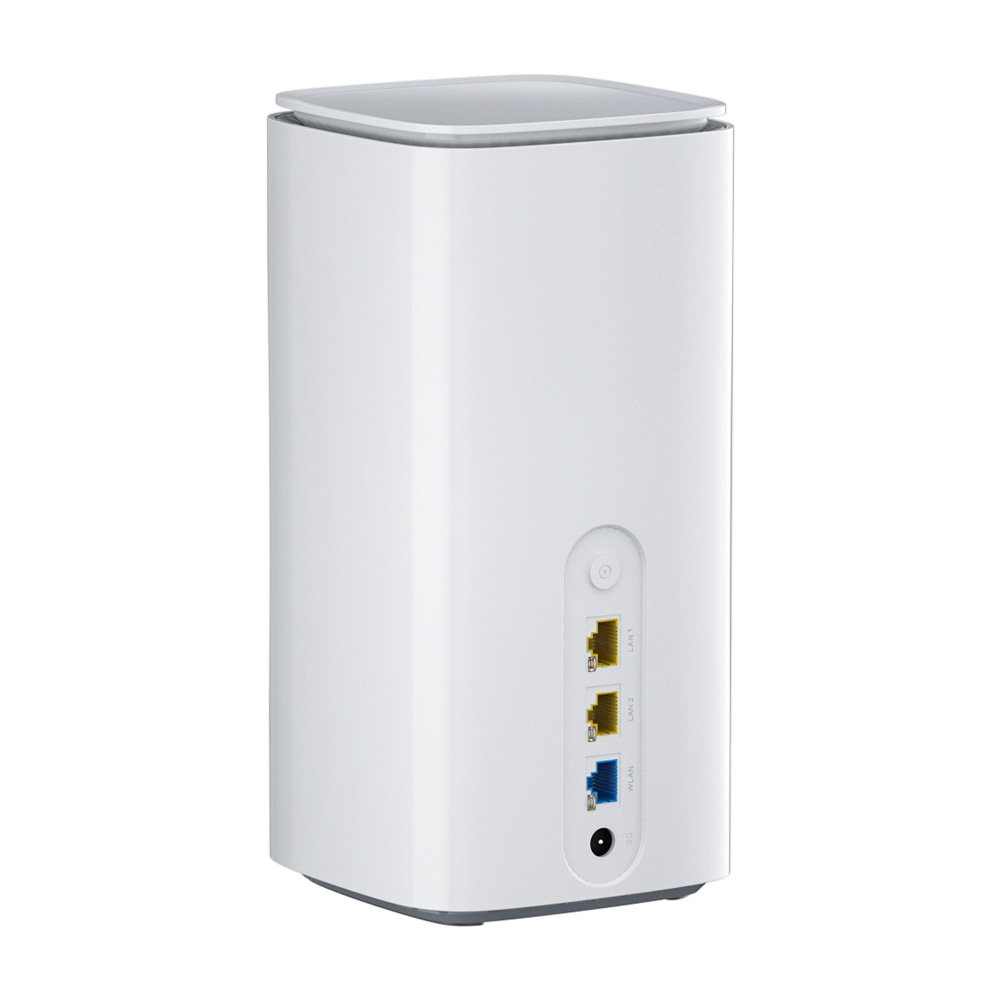

 Hardware Specification

•  Chip:MT7981 +MT7976+MT7531

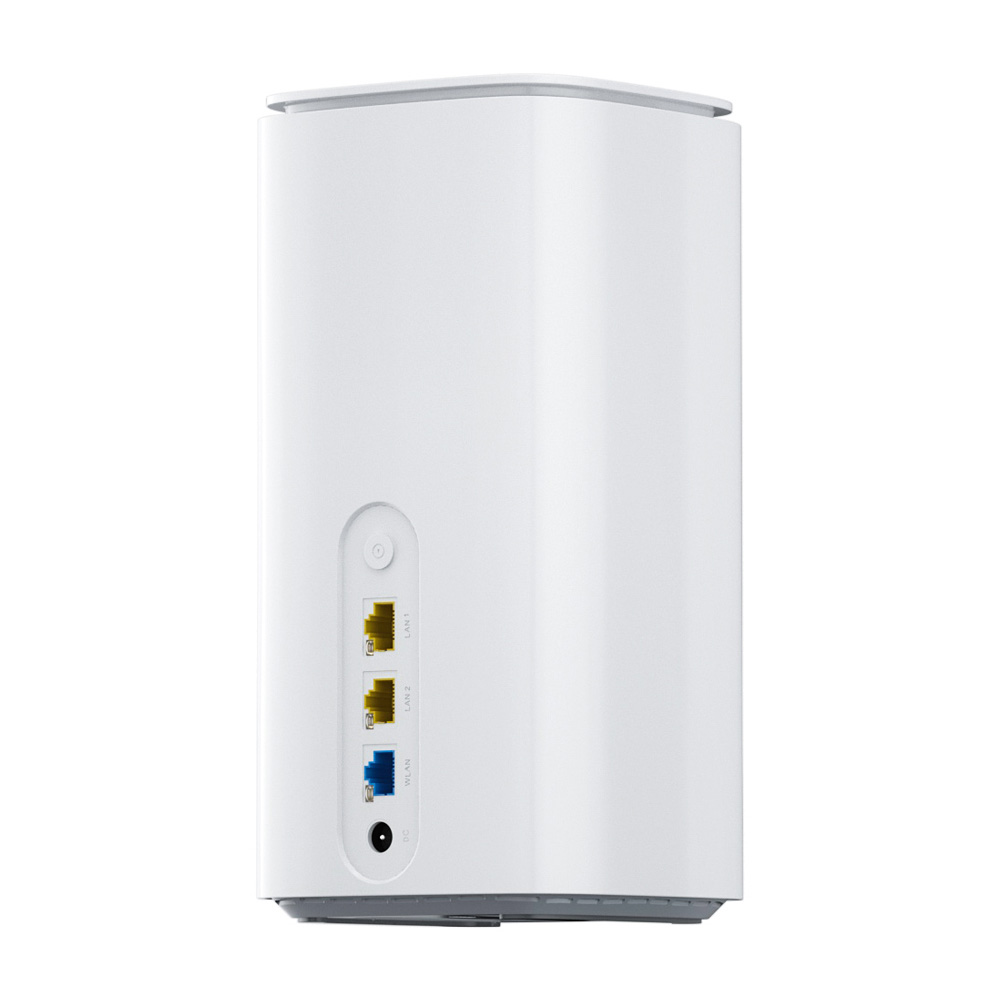

• Ethernet:1*1Gbps WAN,2*LAN 1Gbps
• 1* SIM Slot(Nano-SIM)
• Reset button
• MESH+ Button
• MESH+ LED Switch

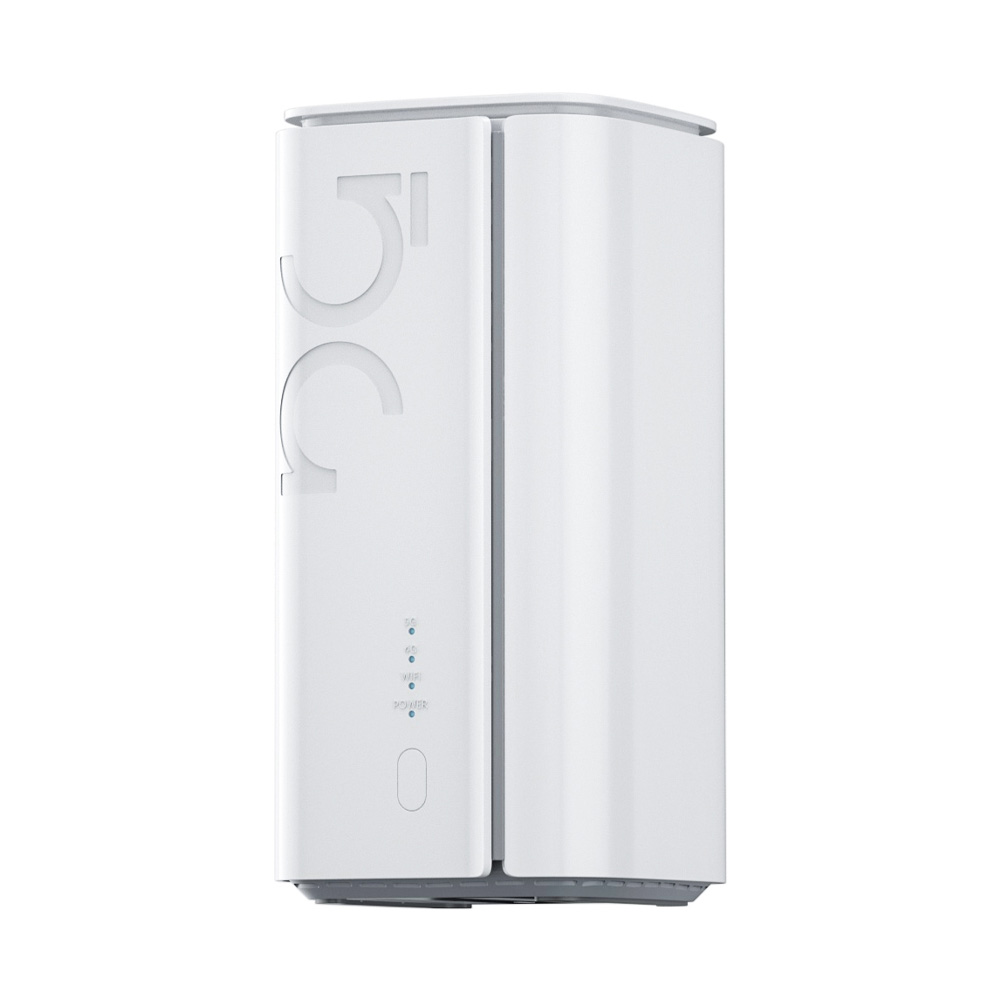

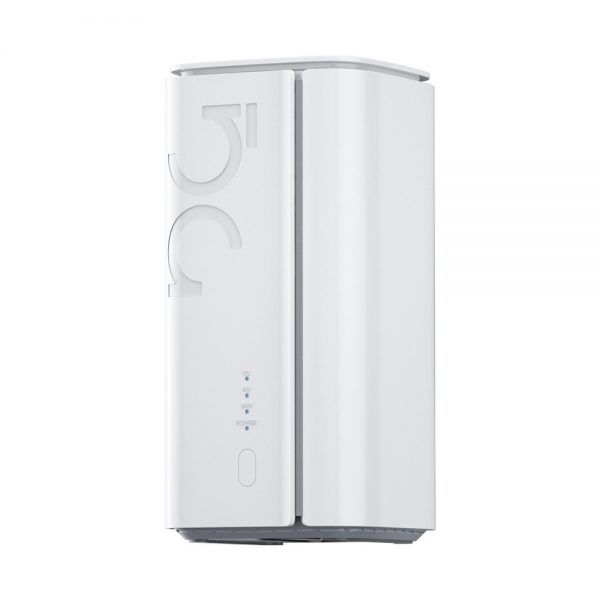

• LED Indicator
  MESH+ Working Status (breathing light)
  4G Status
  5G Status
  WiFi Status
  Power Status
• General
  Power Consumption:<20W
  DC Power Supply: 12V/2A
  Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
  Humidity:5%~95%
  Dimensions:108X108X216MM
