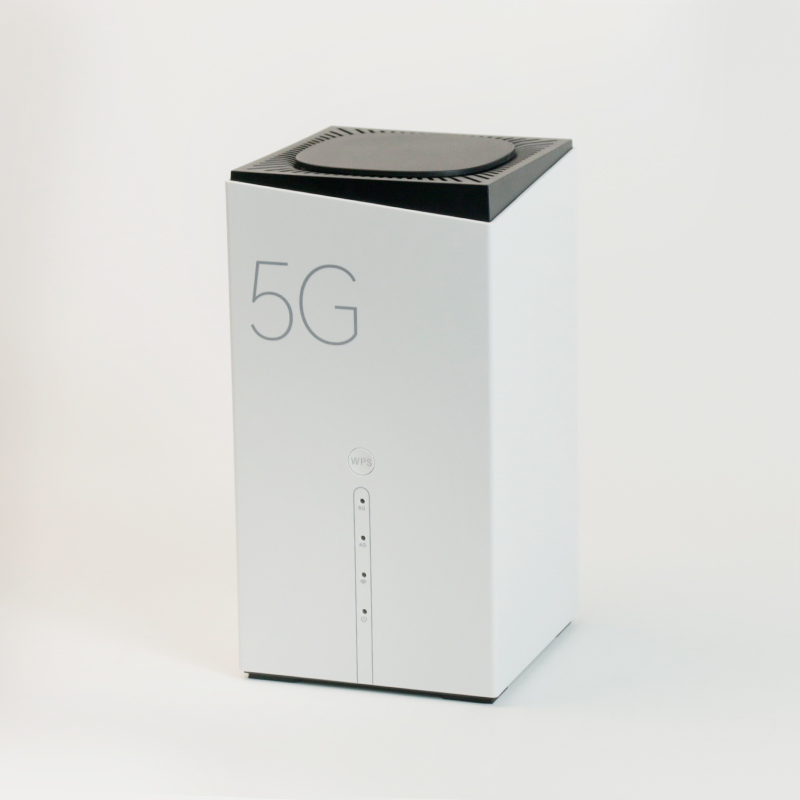

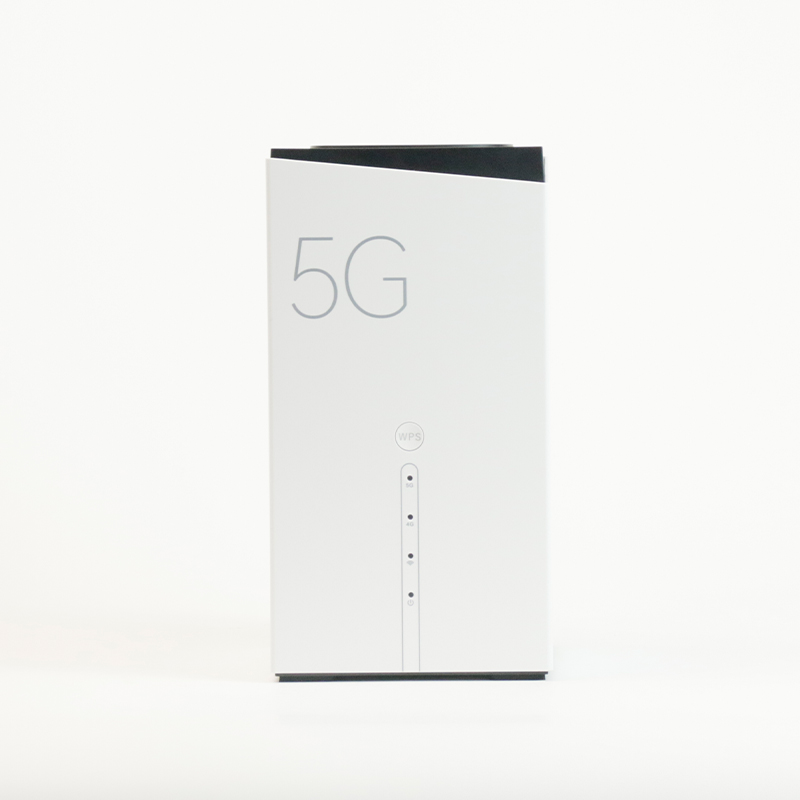

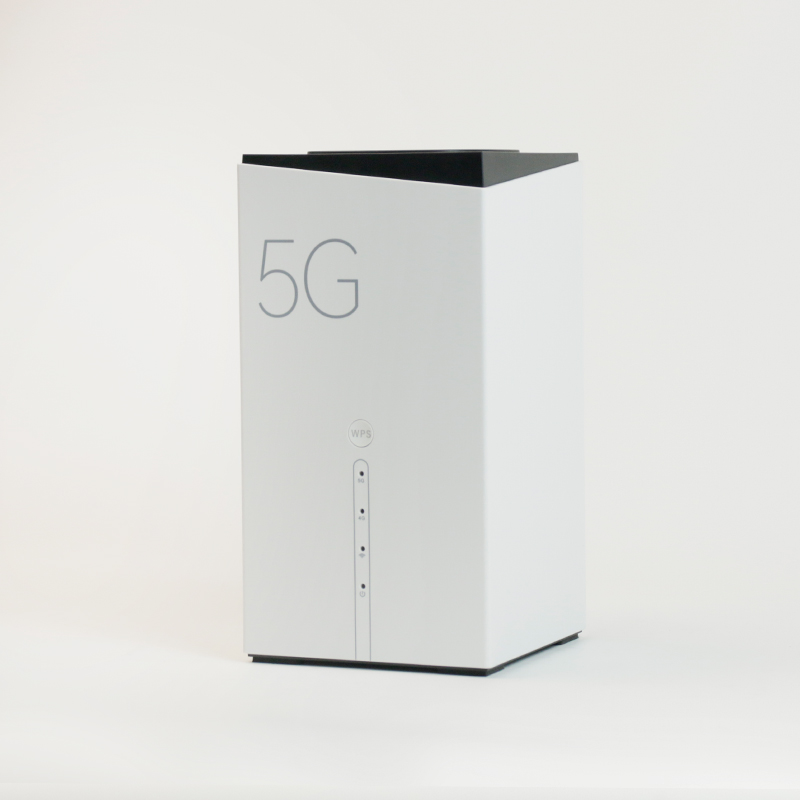

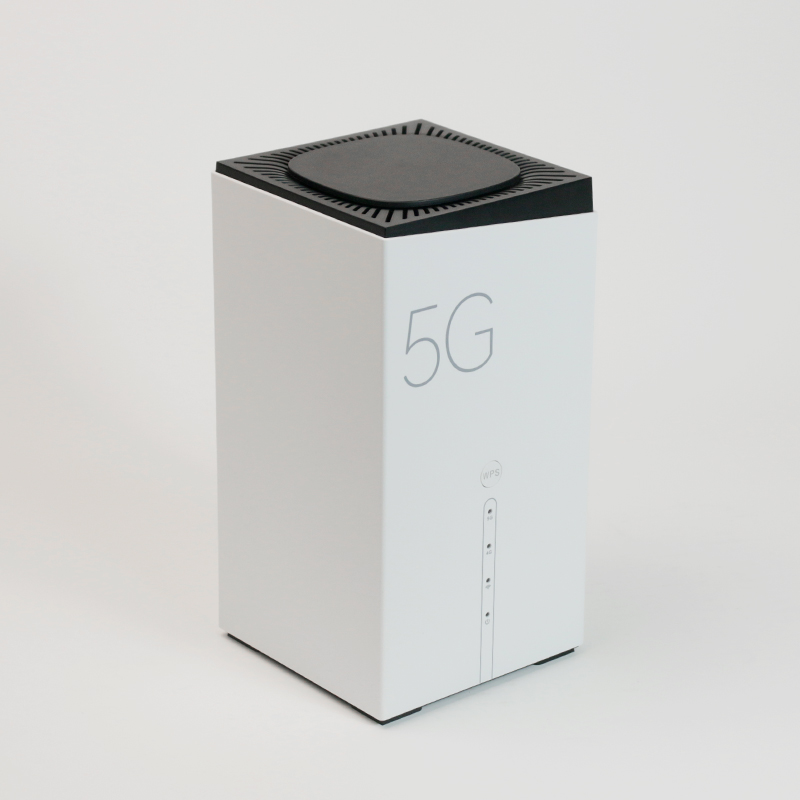

R4A wifi6 5g router

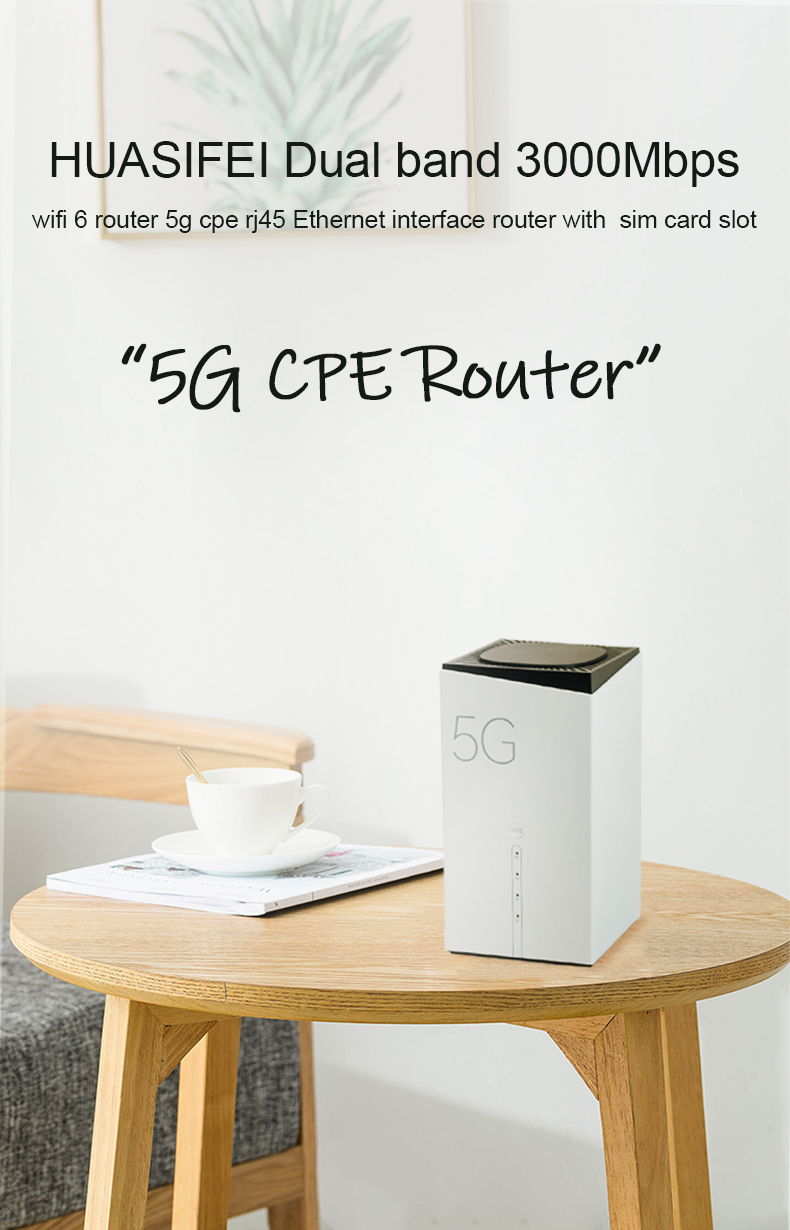

Dual band 3000Mbps wifi6 5g router support 128 Users gigabit port 5g cpe router with SIM slot

              Specification
Platform Chipset MTK MT6877
Memory LPDDR4X 2GB RAM+EMMC 8GB ROM or above
WiFi MT7981BA+MT7976CN+MT7531AE
LED Power /5G signal /4G signal /WiFi
Cellular Protocal 3GPP Rel.15,5G NR,SA/NSA,Sub 6G/LTE Category 18

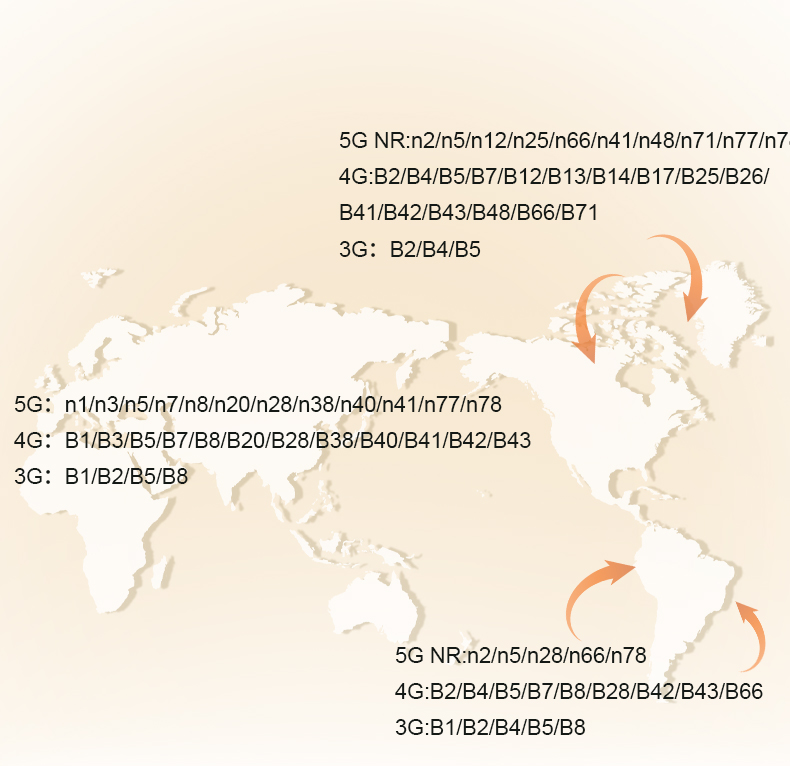

EAU Bands 5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
4G:B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43
3G:B1/B2/B5/B8
LAM Bands 5G NR:n2/n5/n28/n66/n78
4G:B2/B4/B5/B7/B8/B28/B42/B43/B66
3G:B1/B2/B4/B5/B8
NA bands(TBD) 5G NR:n2/n5/n12/n25/n66/n41/n48/n71/n77/n78
4G:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42/B43/B48/B66/B71
3G:B2/B4/B5
CA/ENDC Support mainstream 2CC LTE+1CC NR ENDC combination, as well as LTE 2CA and partial 2CA NR.
Throughput NR:Downlink/Uplink up to 2.77Gbps/1.25Gbps                                         LTE:Downlink/Uplink up to 1.2Gbps/150Mbps                                        WCDMA:Downlink/Uplink up to 42.2Mbps/11.5Mbps
Antenna 4*4 MIMO
WiFi Bands 2.4G,5.8G
Protocal WiFi-6, 802.11a/b/g/n/ac/ax, 2.4GHz & 5GHz Simultaneous Dual-Band Wi-Fi;
Throughput 5 GHz: 2402 Mbps (802.11ax, HE80)
2.4 GHz: 574 Mbps (802.11ax)
Users 128 users
Interface SIM card NANO SIM card,eSIM optional
single SIM card,hot plugging supported

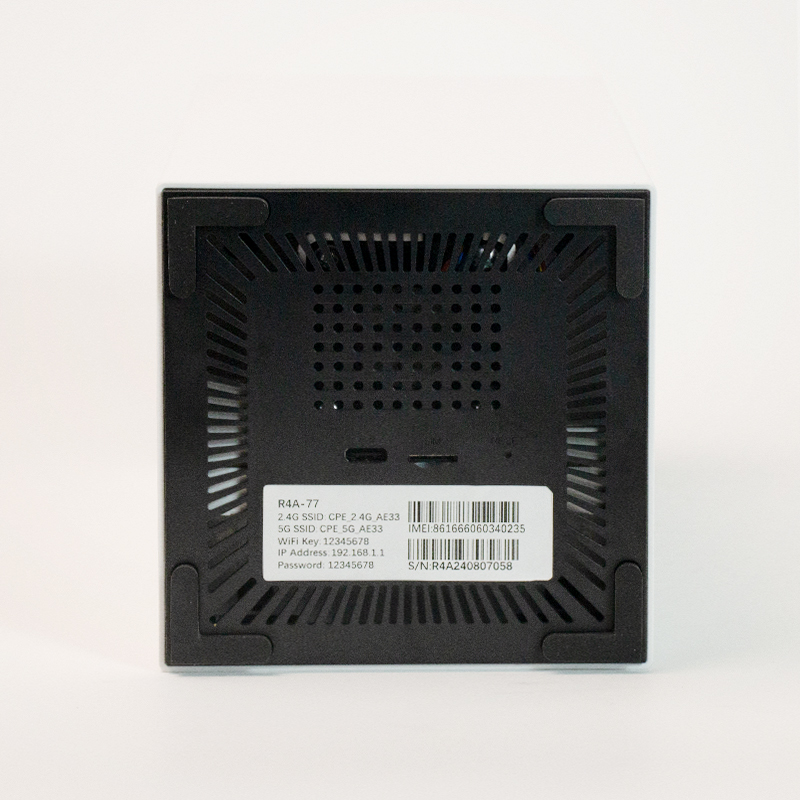

USB TYPE-C USB2.0(Debugging port)

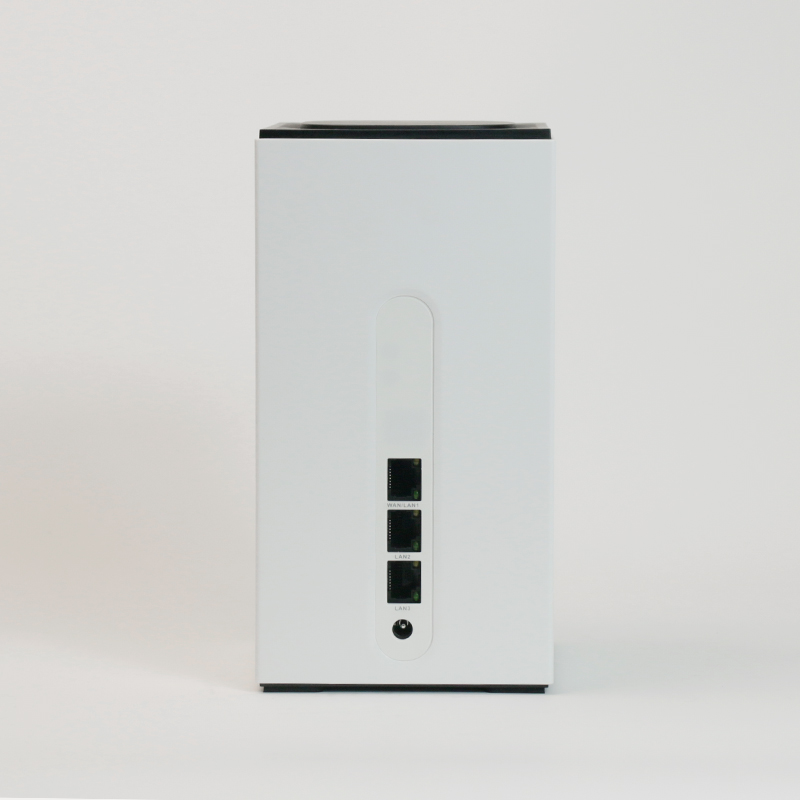

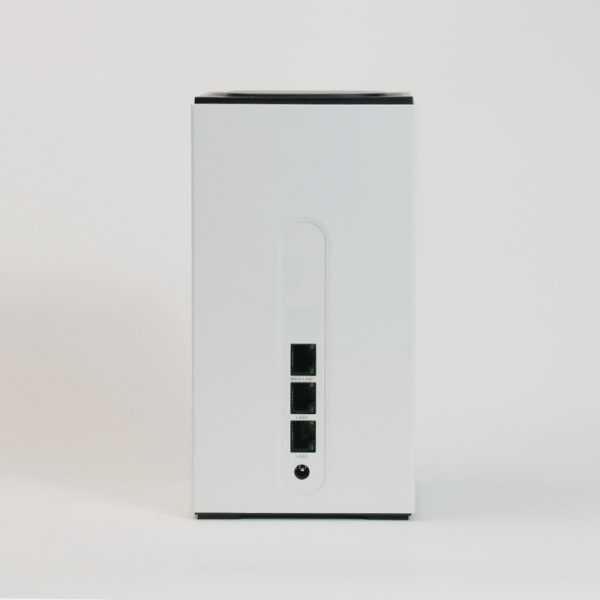

Ethernet Port 2x RJ45 ( 1xLAN 1 Gigabit,1xLAN/WAN 1 Gigabit)
VoLTE/CSFB RJ11 (Option)
Software Languages English ( Could be customized)
OS Windonws 10/OS
Browser IE/Firefox/Google Chrome/Safari/Opera
Management Web UI
Working Mode Gate way by default
Network Setup APN management/Network selection/Statistics/Data usage
LAN LAN IP Address/Multicast Proxy/DHCP Service Type/
DHCP Server /DHCP Lease Reservation/DHCP Lease Status
WAN DHCP/PPPoE/Static IP
Security Firewall/VPN Passthrough/DMZ/Port Forwarding/Port Filter/NAT/PP2P/Parental Control/UPnP
/IP/MAC/URL Filter/IP sec
SMS Support
DHCP DHCP/IPv4/IPv6
Guest Network Yes
WIFI Encryption WPA, WPA2, WPA3
WIFI Band Steering Support
MTU Setting Support
WPS Support
MESH EASY MESH optional
TR069 Option
Fota Support
SIM Lock Support
Auto Pin Support
NTP Support
Button Button 1*WPS/MESH + 1*RESET
Charge Power input AC 100~240V, 50/60Hz, DC 12V
Size Size 101.5*101.5*191.5mm
Enviroment Working Temperature 0℃-45℃
Storagy Temperature -20℃-70℃
Humidity 5%-95%
annotation:[*]It can be supported, but it needs extra debugging or affects other frequency bands.

Description

Dual band 3000Mbps wifi6 5g router support 128 Users gigabit port 5g cpe router with SIM slot

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1)Custom solutions for WIFI system
2)Replacement and enhancement of connectors, antennas, modules, and GPS systems
3)Custom logo design
4)Label creation and application
5).And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
