Product Description

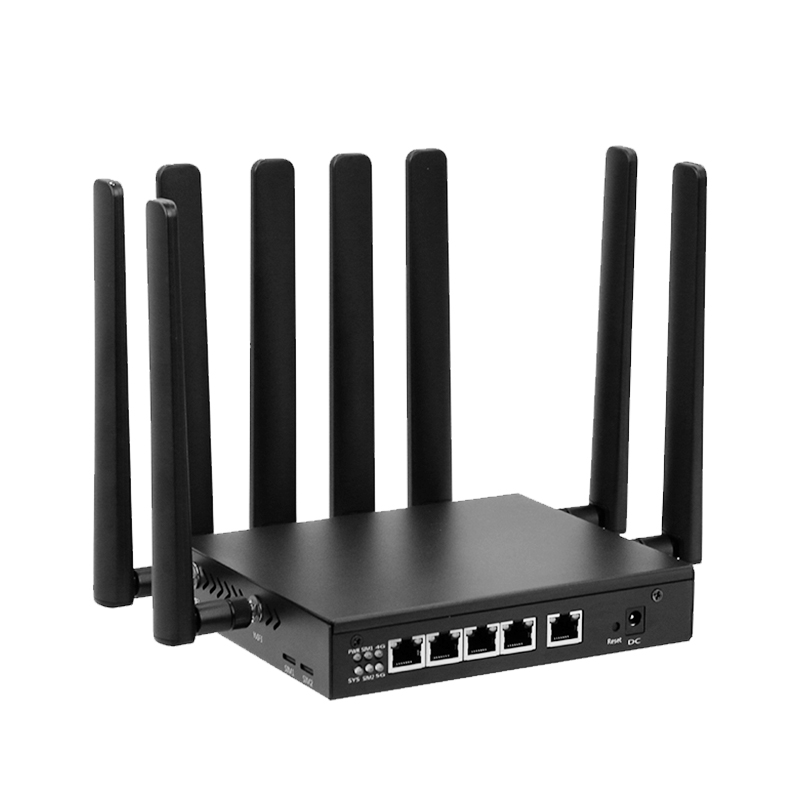

The 5G WiFi6 router is based on a new embedded platform to meet the growing demand for mobile devices.
The CPE is NSA/SA dual-mode compatible for all network types worldwide, which means you can enjoy ultra-fast broadband
connectivity wherever you are by simply plug-and-playing.
Enjoy an ultra-fast broadband connection anywhere.
CPE brings new ways to experience VR/AR/4K/8K streaming freely and easily. Built-in 802.11ax (Wi-Fi 6) Technology,
Single CPEWith built-in 802.11ax (Wi-Fi 6) technology, a single CPE delivers more wireless coverage and more bandwidth. At the same time, CPE also brings higher security, better network

Hardware Description
Adopt MT7981B main chip, main frequency up to 1.3GHZ; With independent MT7976CN WIFI6 chip, total speed up to 3000Mbps; High-speed 512 DDR3, with 256MB SPI Nand Flash(16GB EMMC optional)

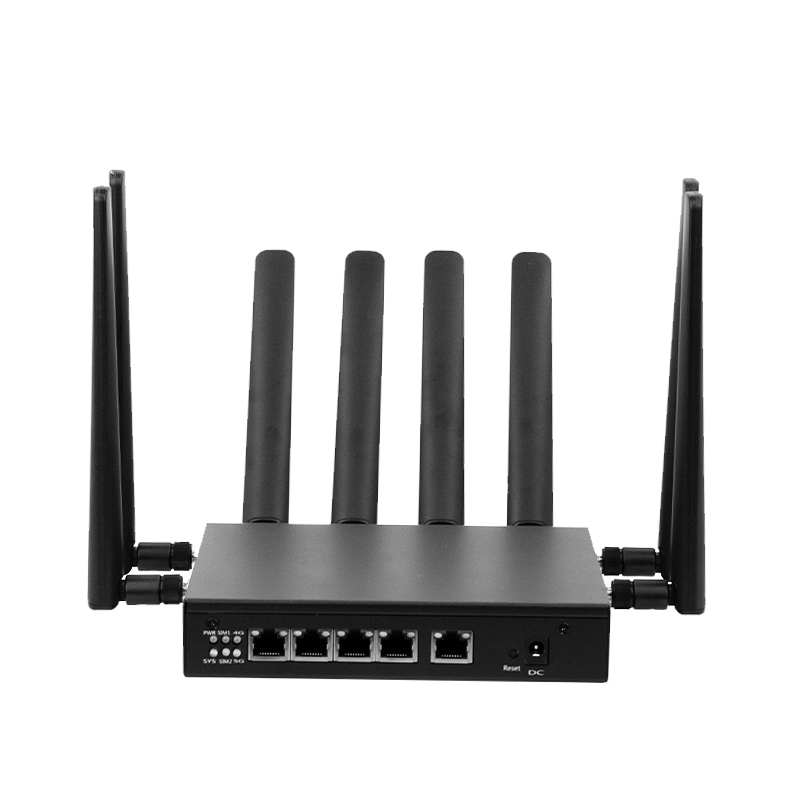

1WAN+4LAN 1000M adaptive network port ;
Support “one-key flashing mode”, long press the reset button to enter the recovery mode;
Support “one key ” MESH network;
Built-in M.2 interface and PCIE interface for installing 5G cellular modules;

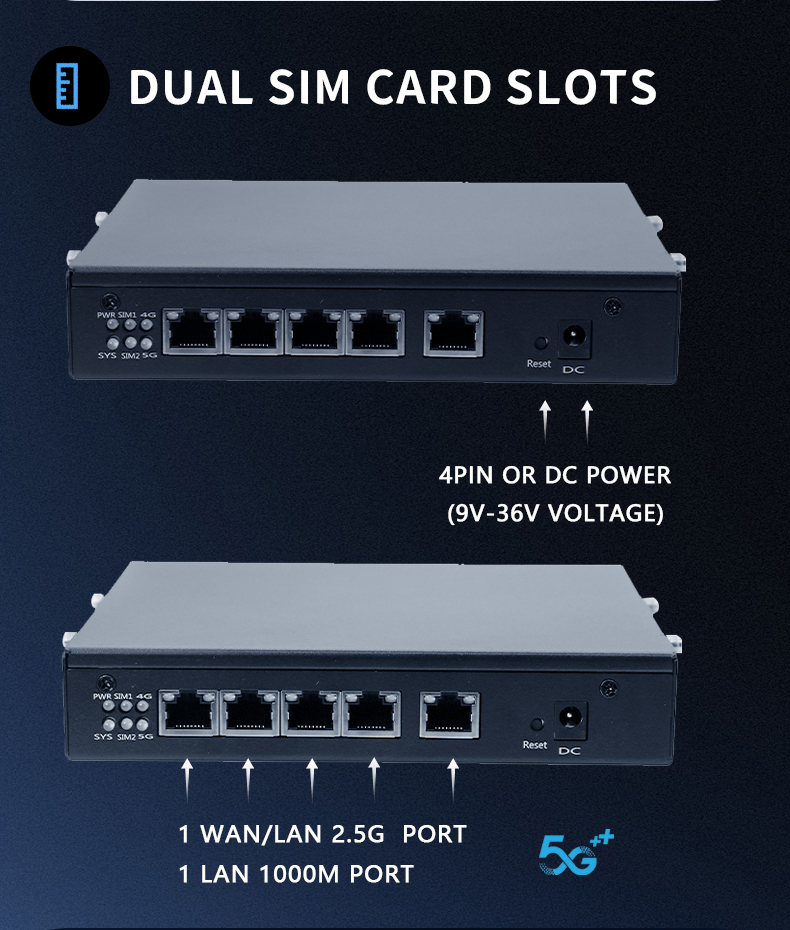

External standard Nano SIM card slot ,also built-in eSIM card slot;

WS1698 Hardware Specifications
Hardware Specifications	MT7981B+MT7976CN+MT7531AE Dual Core 1.2GHZ DDR3 memory 512MB SPI NAND FLASH 256MB (16GB EMMC optional)
WIFI Chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards	IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate	Dual-band concurrent up to 3000Mbps
Operating band	2.4GHz 5.8GHz
4G 5G Modem	4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20
5G NR	NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
5G NR	SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
LTE	LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
	LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
	LAA B46
UMTS	WCDMA B1/ 2/ 4/ 5/ 8/ 19
GNSS	GPS/ GLONASS/ BDS/ Galileo/ QZSS
5G SA Sub-6 5G NSA Sub-6 LTE WCDMA	DL 2.4 Gbps; UL 900 Mbps DL 3.4 Gbps; UL 550 Mbps DL 1.6 Gbps; UL 200 Mbps DL 42 Mbps; UL 5.76 Mbps
Output Power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm
Receiving sensitivity	11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm

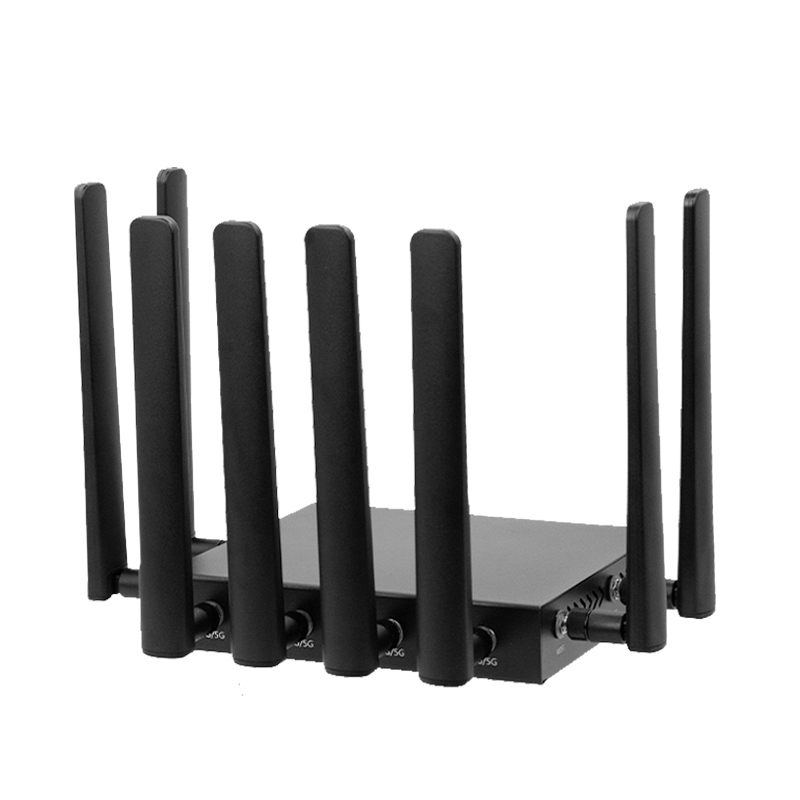

Antenna	4 x 7dbi high gain omni-directional wifi antennas, 4 x 5dbi high gain omni-directional 4G5G antennas
Interface	110/100M/1000M WAN port with automatic MDI/MDIX with LED 410/100M/1000M LAN ports, auto MDI/MDIX with LED 1USB 3.0 port 1PCI-E 1M.2 1SIM card 1*SD card(SMD SD memory card)
LED	Power/WIFI/4G/5G
Button	1 Reset button,
Power adapter	DC 12/3000mA
Maximum power consumption	< 24W
Color scheme	Black
Accessories and Packaging	Egg separator paper tray 32216cm 1PCS Whole box: 43.128.534.8 10PCS Power adapter 12V/3A 1PCS Super Category 5 network cable *1PCS

FAQ

1、OEM/ODM service is accepted?
Can I get my products customized?
OEM/ODM service is available.

What kind of service do you offer
1）Custom solutions for WIFI system
2）Replacement and enhancement of connectors, antennas, modules, and GPS systems
3）Custom logo design
4）Label creation and application
5）.And more

2、When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.

3、Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.

4、How long is the production lead time ?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

5、How to update the firmware of our router to the latest version
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
