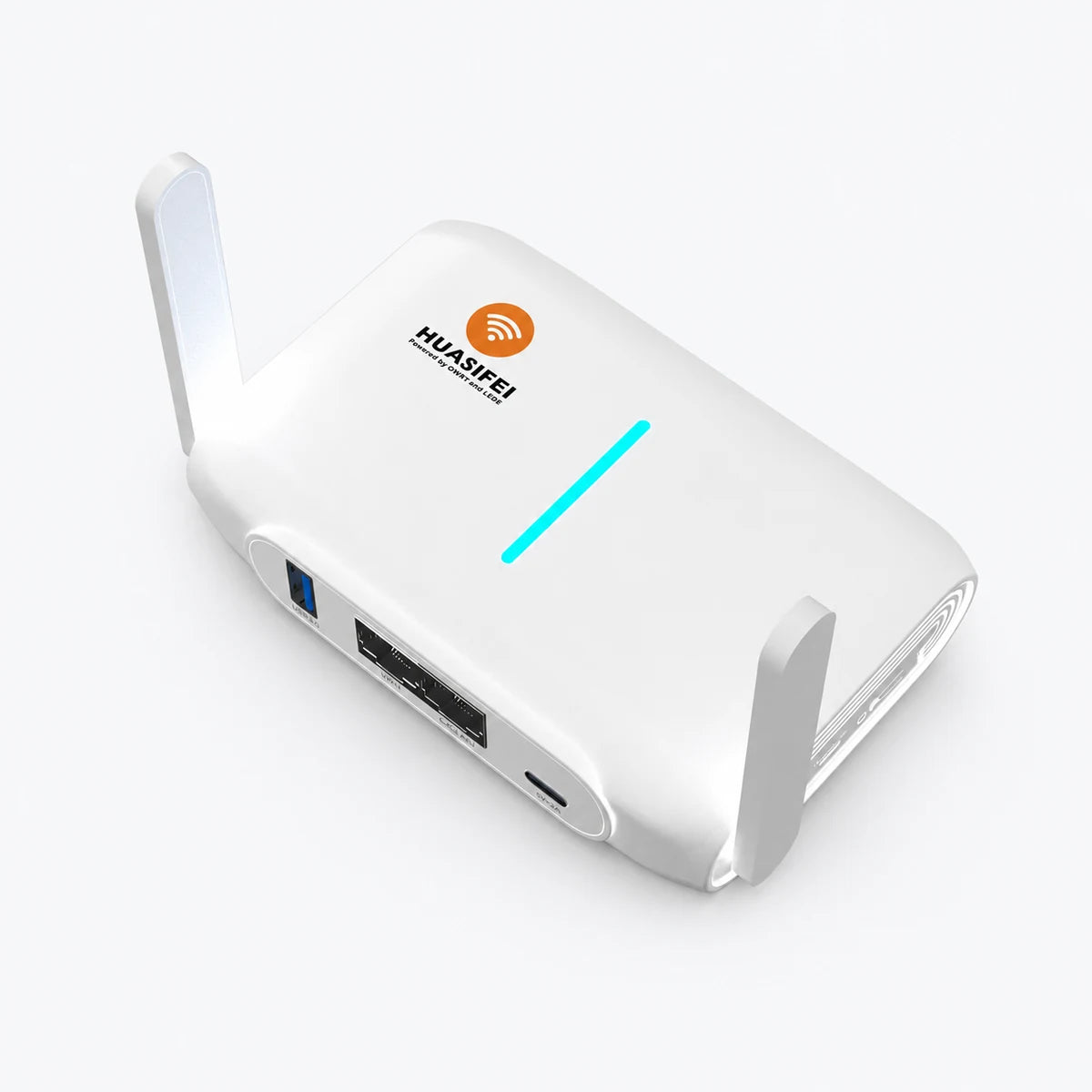

HUASIFEI WH3000 external antenna Wi-Fi 6 router, three-quarter view

Click image to enlarge1 / 5

Compact Wi-Fi 6 Router

WH3000 Compact Wi-Fi 6 Router

$99.99 USD

Compact Wi-Fi 6. Practical wired connections. A choice of two antenna designs.

Wi-Fi 6 · AX3000
2.5GbE LAN
Compact USB-C design

Model-specific support OpenWrt resources

Antenna design

Two antenna designs. The same price.

Retail ordering is coming soon.

Business, wholesale and OEM/ODM inquiries are open now. Subscribe for retail availability and product news.

Request a business quote Get launch updates

Before you buy

External and built-in antenna versions are the same price. Select the design you want to order.

Complete setup Shipping information Returns policy

WH3000 / COMPACT WI-FI 6

A compact network, built around you.

Bring your own network to a desk, a short stay or your next project. WH3000 brings dual-band Wi-Fi 6, useful wired connections and flexible firmware options together in a compact design.

AX3000: Dual-band Wi-Fi 6
2.5GbE: LAN connection
1 GB: DDR4 memory
8 GB: eMMC storage

HUASIFEI WH3000 router in a compact desk setup — Illustrative workspace scene. Accessories are shown for context.

SMALL FOOTPRINT. CAPABLE HARDWARE.

Room to do more.

A dual-core MediaTek processor, DDR4 memory and eMMC storage provide the foundation for your networking setup—from everyday connections to supported software packages.

Processor: MediaTek MT7981BDual-core 1.3 GHz
Memory: 1 GB DDR4
Storage: 8 GB eMMC

WIRELESS + WIRED

Useful connections. In one place.

HUASIFEI WH3000 external antenna router — Ports

DUAL-BAND WI-FI 6

Two bands for your devices.

Connect compatible devices on 2.4 GHz or 5 GHz. AX3000 describes the combined theoretical wireless link rates of the two bands.

2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps

These are theoretical link rates, not internet, USB or VPN speeds. Actual performance depends on your devices, radio conditions, configuration and upstream connection.

FOUR PRACTICAL INTERFACES

Plug into your setup.

2.5GbE LAN: A 2.5 Gbps local link for a compatible computer or switch.
Gigabit WAN: Connect to an existing wired internet source at up to 1 Gbps.
USB 3.0: Connect compatible storage or supported USB peripherals.
USB-C · 5 V / 3 A: Power the router with a suitable 5 V / 3 A supply.

TWO ANTENNA DESIGNS

Choose the form that fits.

WH3000 is available in built-in and external antenna designs. Confirm the antenna version, hardware revision and included accessories for your order.

HUASIFEI WH3000 built-in antenna router — Angle

HUASIFEI WH3000 external antenna router — Angle

BUILT-IN ANTENNAS

A clean, compact profile.

Wi-Fi antennas sit inside the enclosure. The built-in antenna version has its own product datasheet in our download center.

View built-in antenna datasheet

EXTERNAL ANTENNAS

Two external Wi-Fi antennas.

The external antenna design is shown in the product imagery. Ask our team to confirm the matching specification and supplied configuration.

Ask about this configuration

The two designs are distinct configurations. Check dimensions, weight, firmware and package contents for the version you select; the antenna design alone does not establish a performance difference.

Back to purchase options

QWRT / LuCI

See your network. Shape your setup.

Explore system status and network settings through the QWRT / LuCI browser interface. Match firmware, source resources and additional software packages to your exact WH3000 hardware revision.

View firmware downloads Explore source resources

WH3000 QWRT LuCI system overview showing the model, MediaTek platform and firmware information — Actual WH3000 interface screenshot from an earlier QWRT R23.10.24 build. Screens and available features vary by firmware version; this is not a live demo or a statement of the current shipping version. Open full-size screenshot

Build on the hardware.

USB storage sharing

Connect compatible USB storage and configure file sharing with a supported firmware package. Storage devices are separate accessories.

Optional USB cellular

Use compatible external cellular hardware with the required firmware and power setup. WH3000 has no built-in cellular modem or SIM slot.

Software that fits your needs

Explore supported VPN and encrypted DNS packages. Features and setup requirements depend on the installed firmware; confirm your intended configuration.

WH3000 / HARDWARE

The details, at a glance.

Core WH3000 platform specifications. Confirm the exact antenna design and hardware revision when choosing your device.

Browse product datasheets

WH3000 core hardware specifications
Model	WH3000
Processor	MediaTek MT7981B · Dual-core 1.3 GHz
Memory	1 GB DDR4
Storage	8 GB eMMC
Wi-Fi	Dual-band Wi-Fi 6 · AX3000 class
Wireless link rates	2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps
Ethernet	1 × 2.5GbE LAN 1 × Gigabit WAN
USB	1 × USB 3.0
Power input	USB-C · 5 V / 3 A
Antenna designs	Built-in antennas or two external Wi-Fi antennas; confirm the supplied version.
Cellular expansion	Compatible external USB hardware required. No built-in modem or SIM slot.
Firmware resources	Model-specific manufacturer firmware and source resources. Match the hardware revision and storage layout before updating.

Wireless rates are theoretical. Dimensions, weight and included accessories are configuration specific. The available English datasheet is labeled for the built-in antenna version.

BEFORE YOU CHOOSE

A few useful answers.

Is WH3000 a 5G cellular router?

WH3000 is a Wi-Fi 6 router with no built-in cellular modem or SIM slot. The 5 GHz Wi-Fi band is different from 5G cellular. External USB cellular expansion requires compatible hardware, firmware and power; confirm those components separately.

Which antenna design should I order?

WH3000 has built-in and external antenna designs. Tell us the version you need and confirm its hardware revision, dimensions and package contents before ordering. The listed built-in antenna datasheet should not be used as a complete specification for the external antenna version.

Can I use it with hotel Wi-Fi or as an access point?

Choose a configuration that matches the available upstream connection. Router, access-point, repeater and client behavior depend on the installed firmware and settings. Check the exact firmware's support, including any hotel login requirements, before relying on a particular mode.

Can any USB-C charger or power bank run WH3000?

Use a power supply and cable that meet the router's 5 V / 3 A requirement. A USB-C connector alone does not confirm adequate power or USB Power Delivery support. Allow for the power needs of any attached USB peripheral as well.

Is the pictured software the version I will receive?

The screenshot shows an earlier QWRT / LuCI build on a WH3000. The supplied firmware and available packages can vary by hardware revision and order configuration. Confirm your required features and use firmware files intended for your exact device.

RESOURCES FOR YOUR WH3000

Your next step, made simple.

01 / PDF

Product datasheet

Preview or download the English WH3000 specification for the built-in antenna version. For the external antenna design, ask for the matching specification.

View built-in antenna document

02 / SOFTWARE

Firmware downloads

Find WH3000 files in the download center. Match the model, hardware revision and storage type before updating.

View firmware downloads

03 / HUASIFEI

Talk through your setup

Share your antenna preference, upstream connection and software needs. We can help you confirm the right configuration.

Contact HUASIFEI
